| Solid Or Vented Type Rotor | Solid |
| Outside Diameter | 290.0 |
| Nominal Thickness | 12.5 |
| Overall Height | 2.323 |
| Discard Thickness | 11.3 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Sensor Ring Included | No |
| Surface Type | Smooth |
| Heavy Duty Supplier | Yes |
| Bolt Circle Diameter (in) | 4.5 In |
| Bolt Circle Diameter (mm) | 114.3 mm |
| Center Hole Diameter (In) | 2.783 In |
| Outer diameter (mm) | 290 mm |
| Outer Diameter (in) | 11.417 In |
| Overall Height (in) | 2.323 In |
| Overall Height (MM) | 59 mm |
| Minimum Thickness (mm) | 11.3 mm |
| New Thickness (In) | 0.492 In |
| New Thickness (mm) | 12.5 mm |
| Minimum Thickness (IN) | 0.445 In |
| Center Hole Diameter (mm) | 70.68 mm |
| Bolt Holes | 5 |

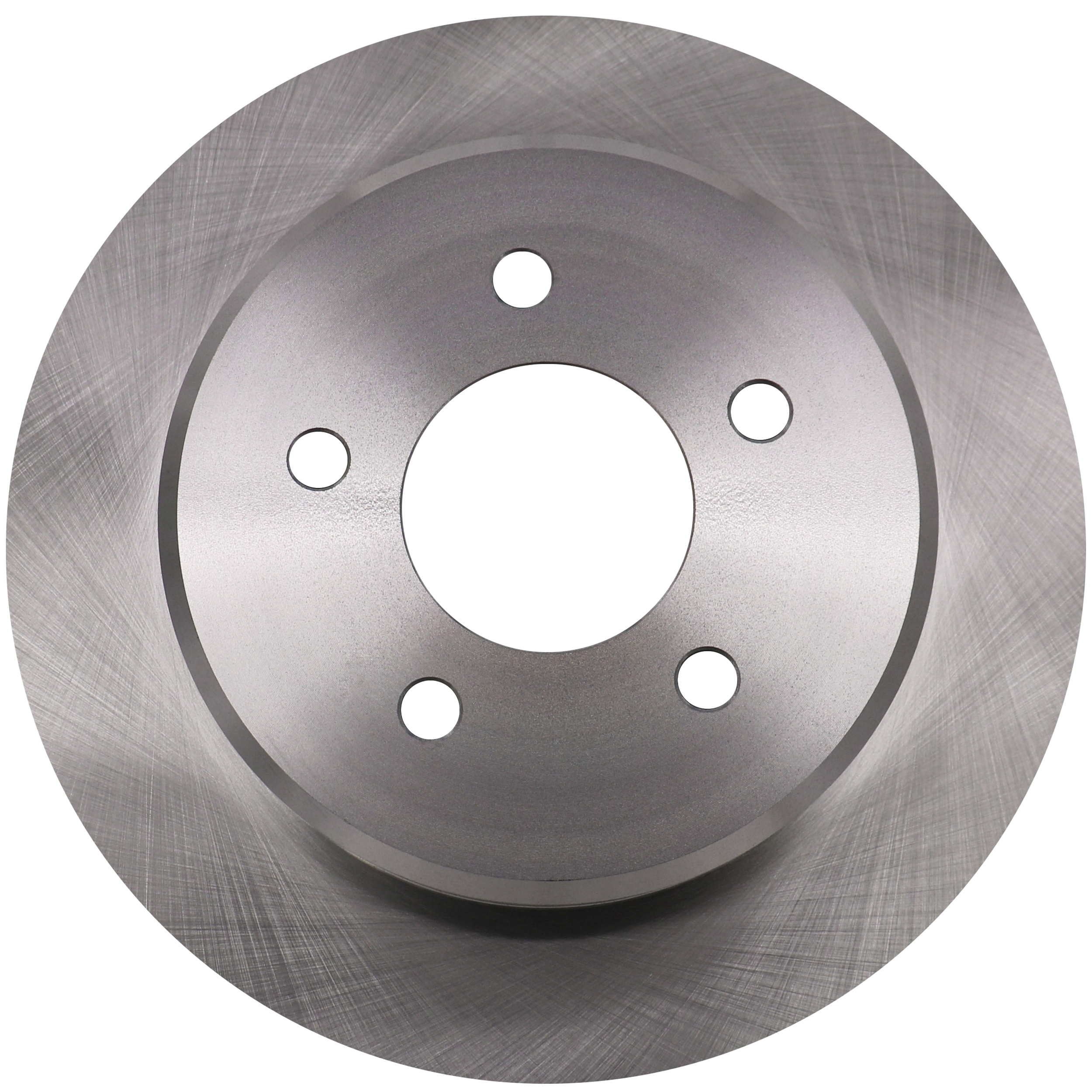

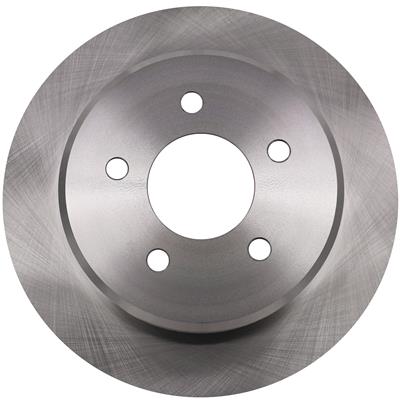

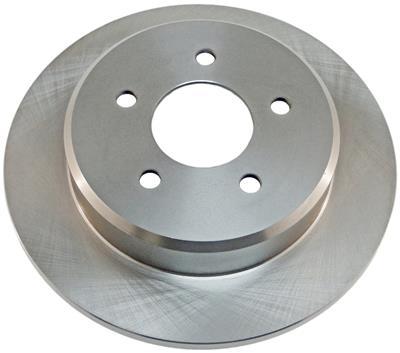

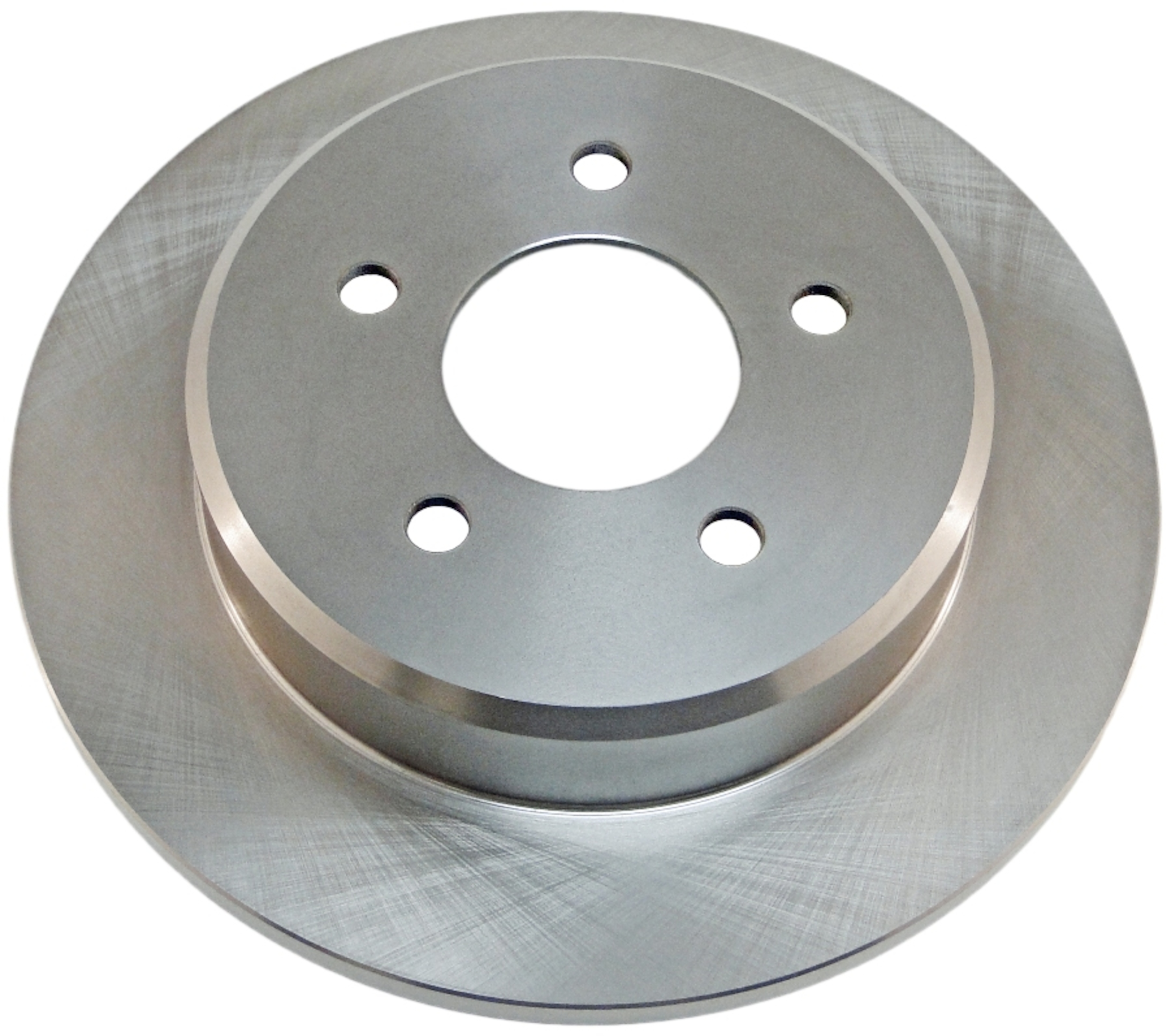

| Part Terminology | Disc Brake Rotor |
