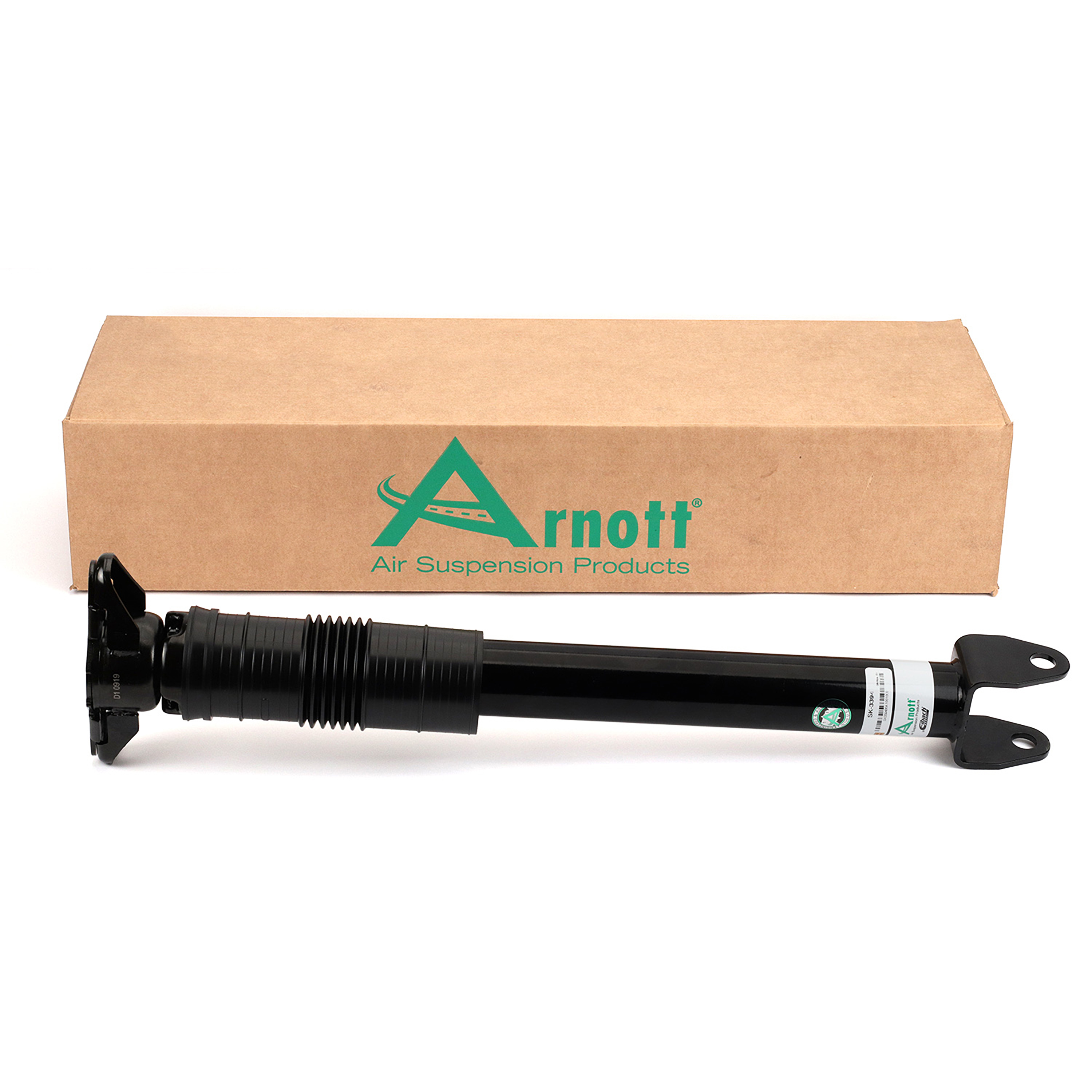

Arnott new rear shock
Part # SK-3394 | Line Code: ARN

Not Fitted / Universal

Product Details
Dampening Type Monotube
Lower Mount Type Bolted
Upper Mount Type Bolted
Boot Included Yes
Spring Isolators Included No
California Proposition 65 no
Compressed Length 409
Dust Shield Material Rubber
Bumpstop Yes
Ship Pressurized YES
Damper Valve Type Passive
Accy Kit#/Parts Part # n/a
Shock Rod Fitting Thread Size M12 x 1.25
Mounting Bolt Diameter (mm) 12
Upper Mount Style Machined
Upper Mount Bolt Qty 2
Mount Plate Diameter (in/mm) 6.06/154
Max/Working Pressure (psi) 150/100
Lower Mount Style Clevis
Air Fitting Size n/a
Can Included NO
Shock Rod Nut Size M12 x 1.25
Lower Mounting Isolator Included No
Upper Mounting Isolator Included Yes
Shock Spring Assisted No
Spring Seat Included No
Adjustable Damping No
Bearing Plate Included Yes
Coil Spring Maximum Outside Diameter N/A
Internal Damper Type Hydraulic
Body End Measuring Point Center Eye
Shock Absorber Rod End Measuring Point Shoulder of Stud
Air Bladder Material N/A
Air Bladder No
Protective Aluminum Can No
Boot/dust Shield Included Yes
Shock/strut Design Monotube
Internal Construction Type Monotube
Air Ride Suspension No
Heavy Duty Crimping Rings N/A
Air Adjustable No
Spring Rate Type N/A
Contents Shock Assembly
Progressive Spring Rate N/A
Travel Length 167.9
Extended Length 576.9
Body/housing Diameter 69
Mounting Hardware Included Yes
Adjustable No
Gas Charged Yes
Coil Over Springs Included No
Springs Included No
Boot Color Black
Installation Manual
Part Terminology Suspension Shock Absorber

Features & Benefits
New Premium Rear Shock for the 2011-2015 Jeep Grand Cherokee (WK2) w/Quadra-Lift. This shock, which fits both the left and right side, includes a custom valved and thoroughly road tested Eibach shock which provides an excellent ride. The shock includes a new polyurethane bump stop, new top and bottom mounts and a protective dust boot. The new replacement Grand Cherokee rear shock is designed and assembled by Arnott in the USA and is backed by Arnott's industry leading warranty.

Application Summary

11-15 Jeep Grand Cherokee (WK2) w/Quadra-lift - LT/RT
