Product Details
expand_less
| Reach |
25 |
| Ground Electrode Quantity |
1 |
| Thread Diameter |
14 |
| Ground Electrode Tip Design |
Taper Cut |
| Electrical Terminal Type |
Non-removable Nut |
| Center Electrode Design |
Machined Fine Wire |
| Terminal Type |
Non Removable Nut |
| Washer Included |
No |
| Thread Size |
M14 - 1.25 |
| Center Electrode Core Material |
Copper |
| Resistance |
4000 |
| Gap Size |
1.1 |
| Seat Type |
Tapered |
| Insulator Height |
52.3 |
| Center Electrode Tip Material |
Iridium |
| Center Electrode Insulator Tip Projection |
Mid Projection |
| Ground Electrode Core Material |
Nickel |
| Insulator Material |
Ceramic |
| California Proposition 65 |
Prop 65 not required to address for Autolite spark plugs |
| Resistor Type |
Mid Projection |
| Alliance Keywords |
spark plug, bougie d'allumage, bougie |
| Grade Type |
Performance |
| Manufacturer Heat Range |
11 |
| Hex Size |
16 |
| Part Terminology |
Spark Plug |
Features & Benefits
expand_more

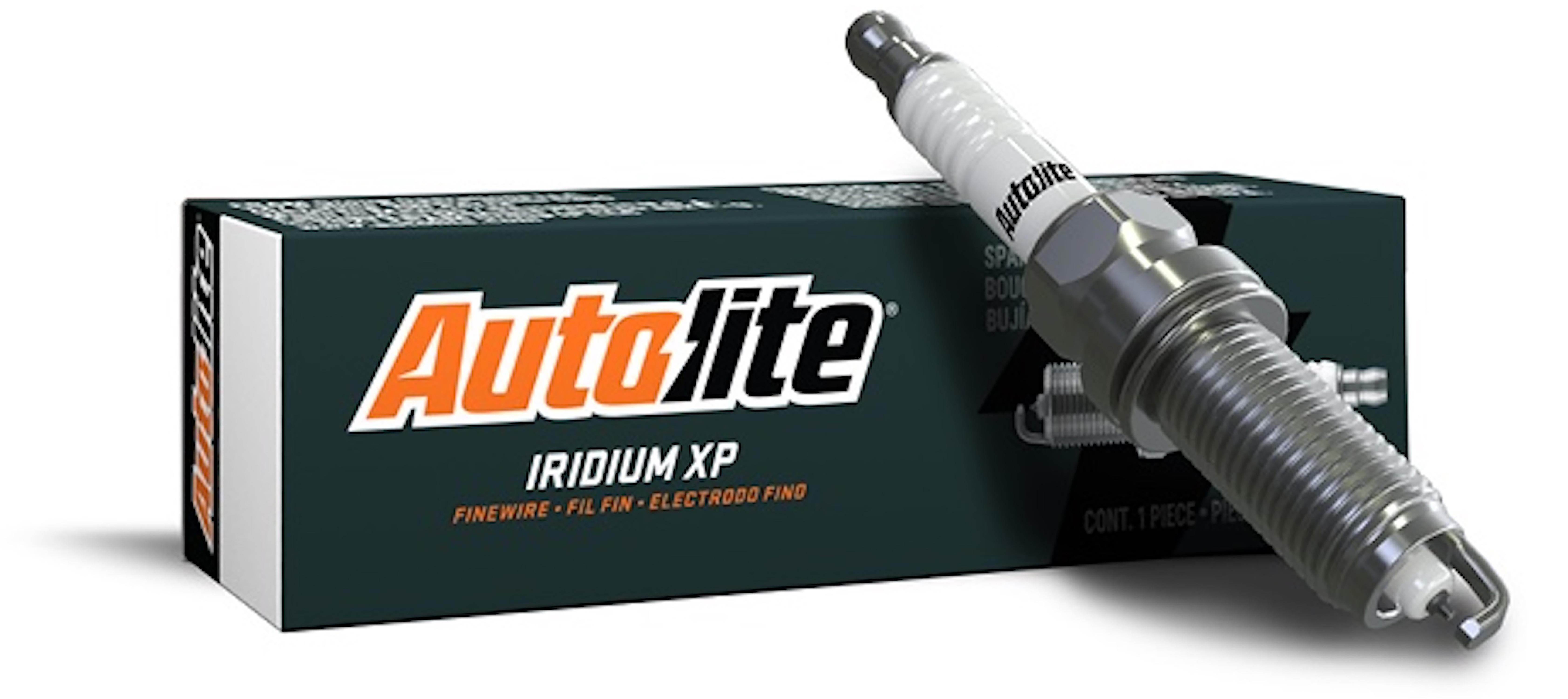

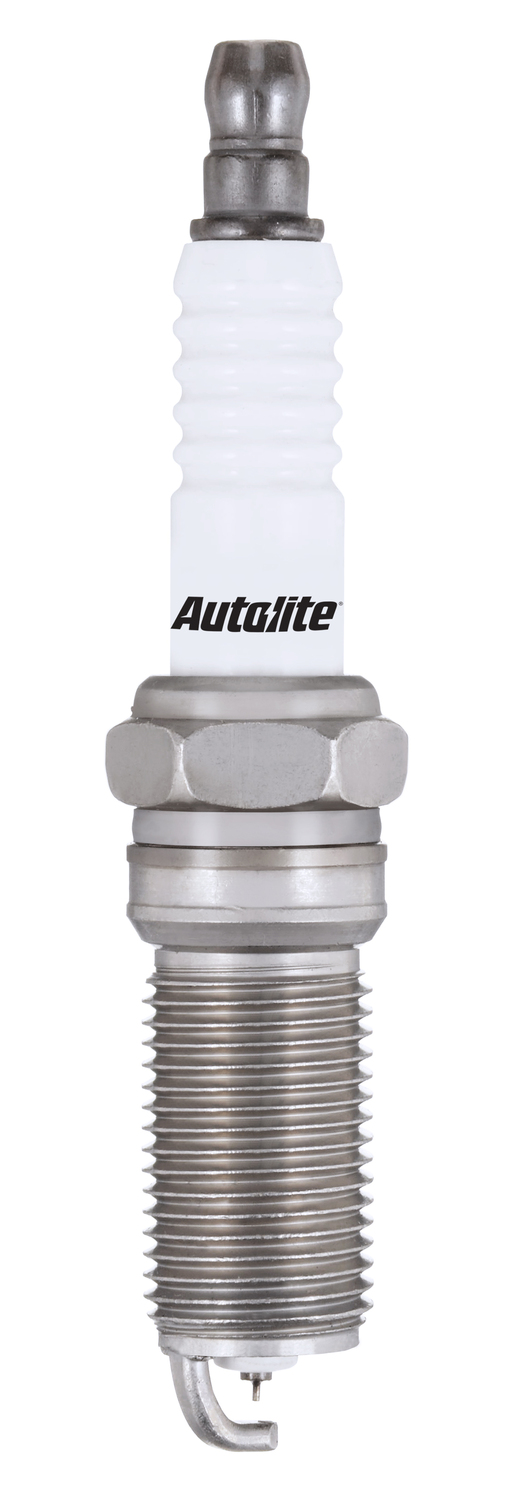

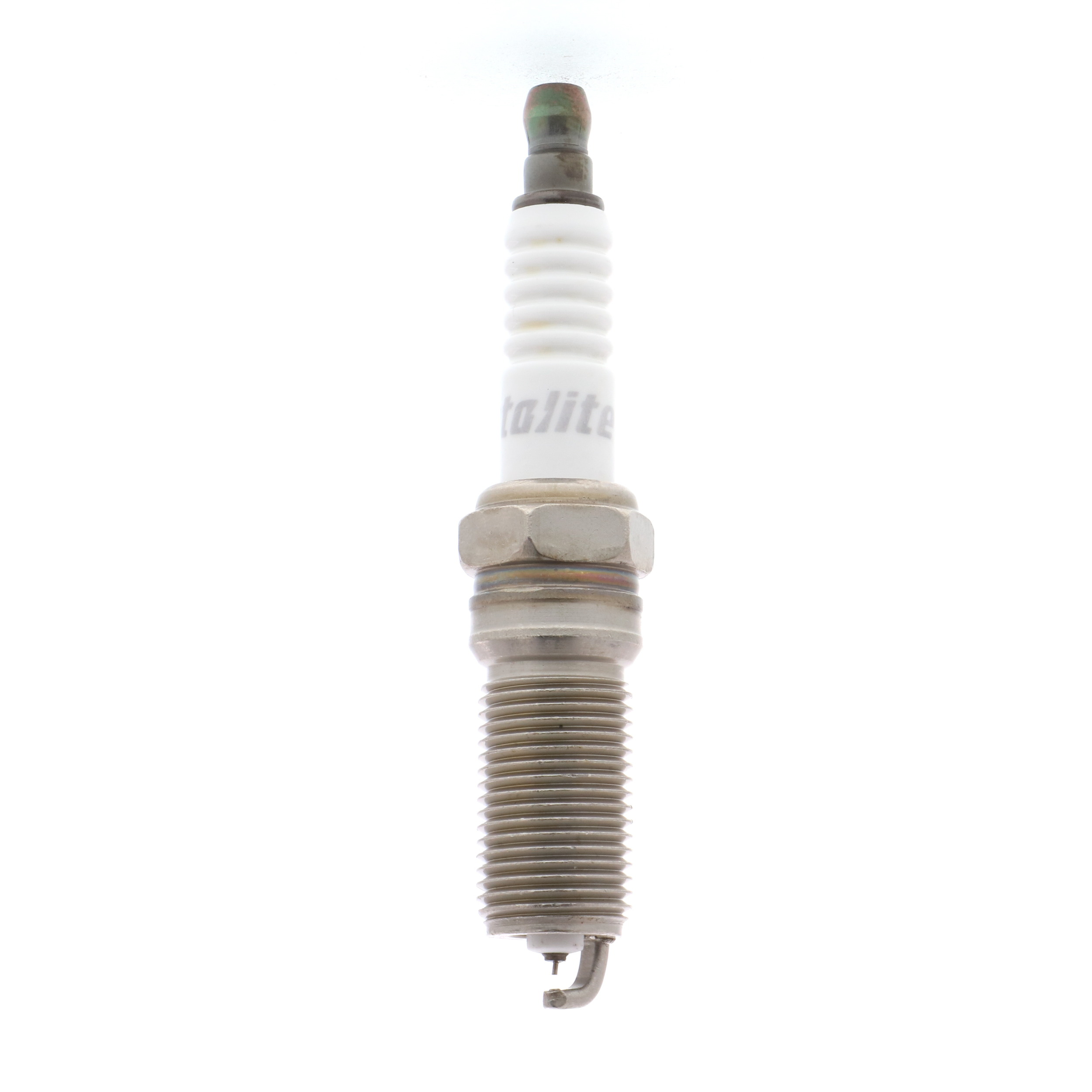

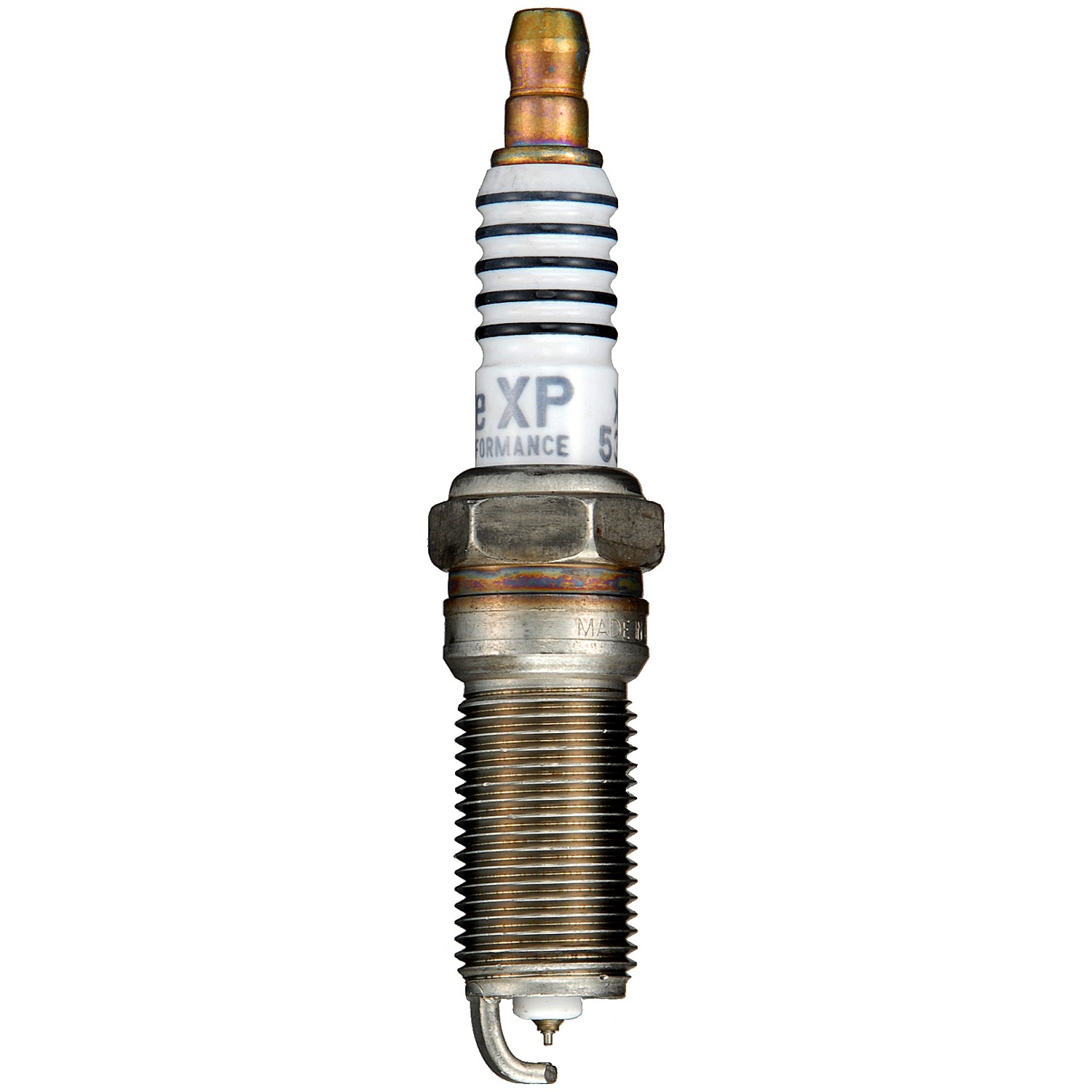

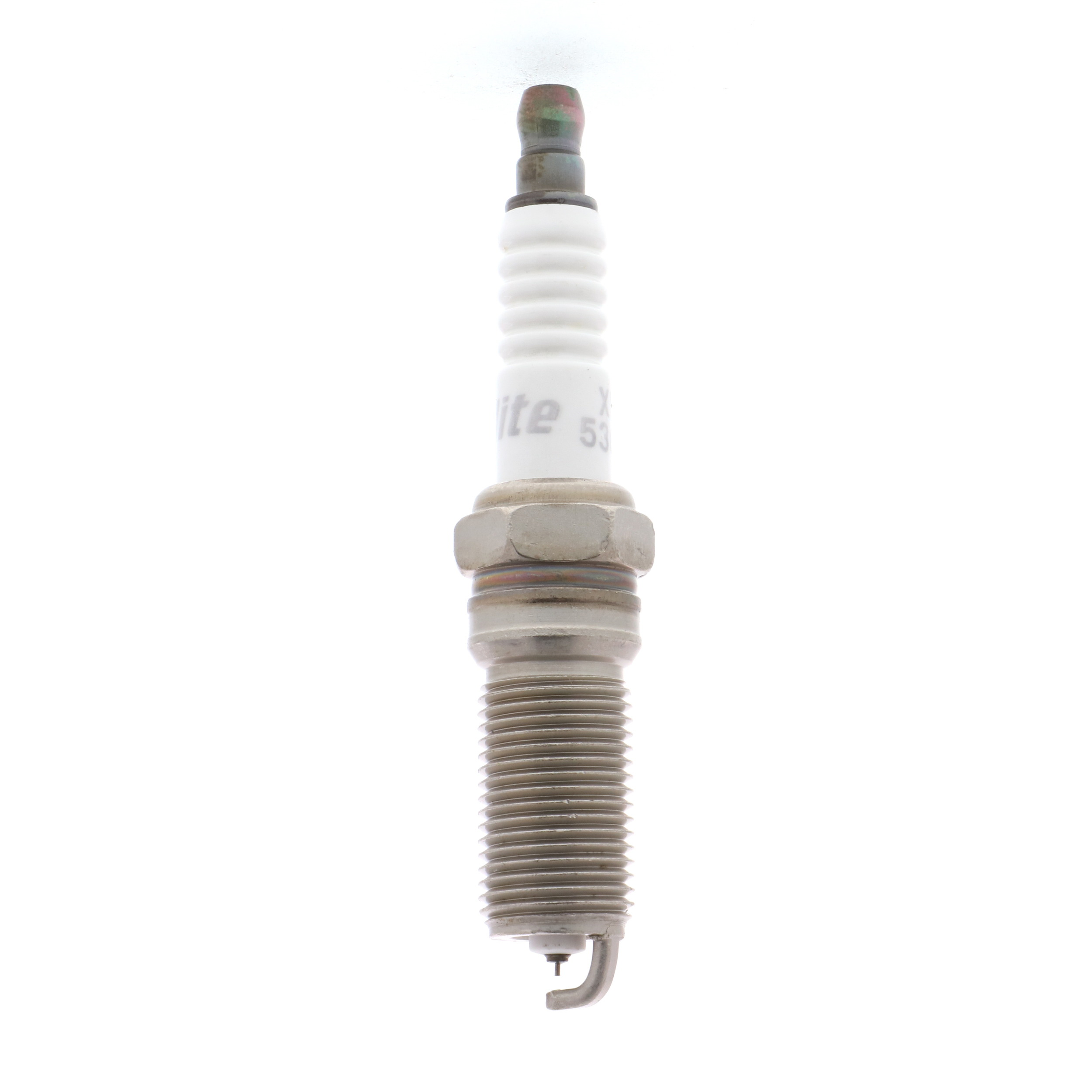

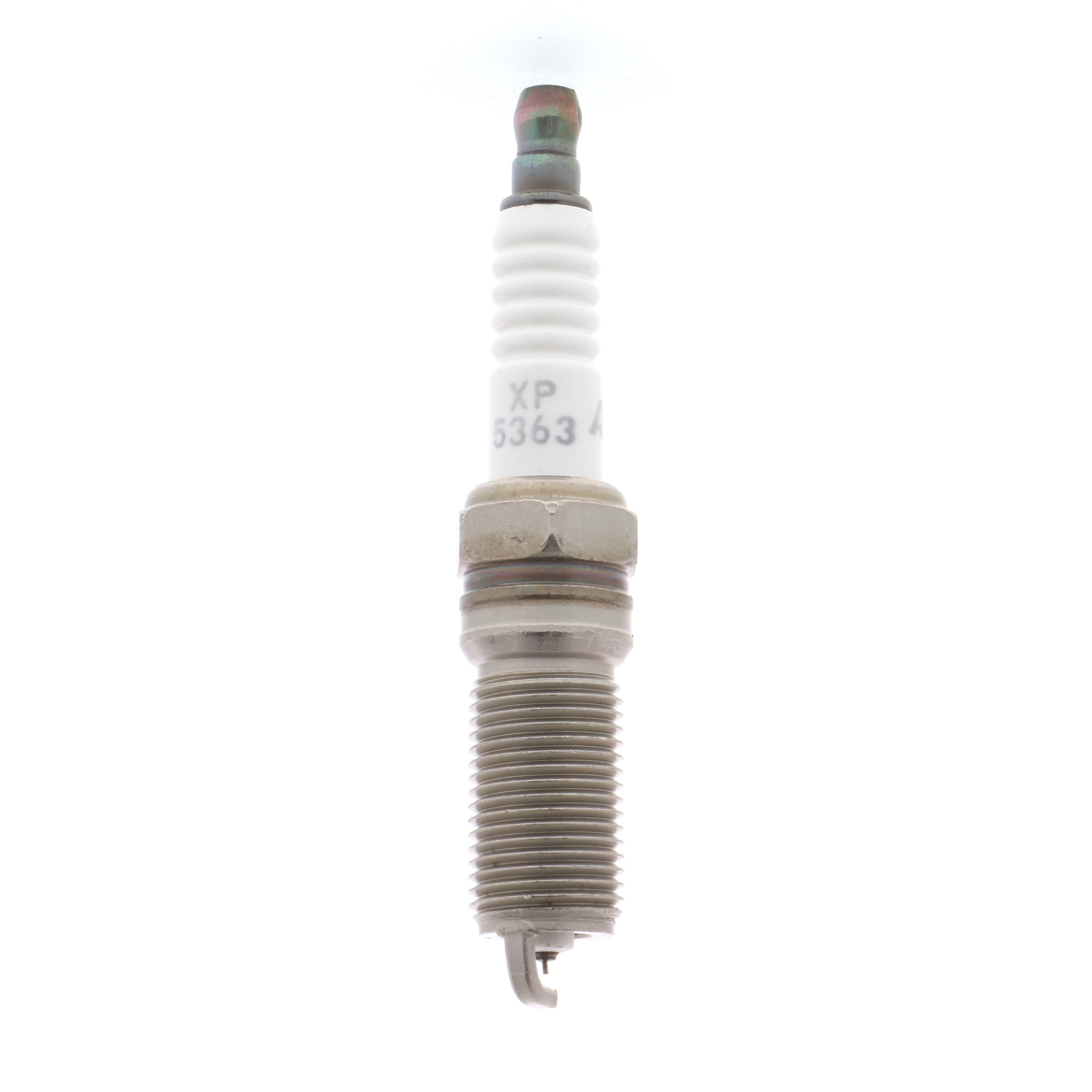

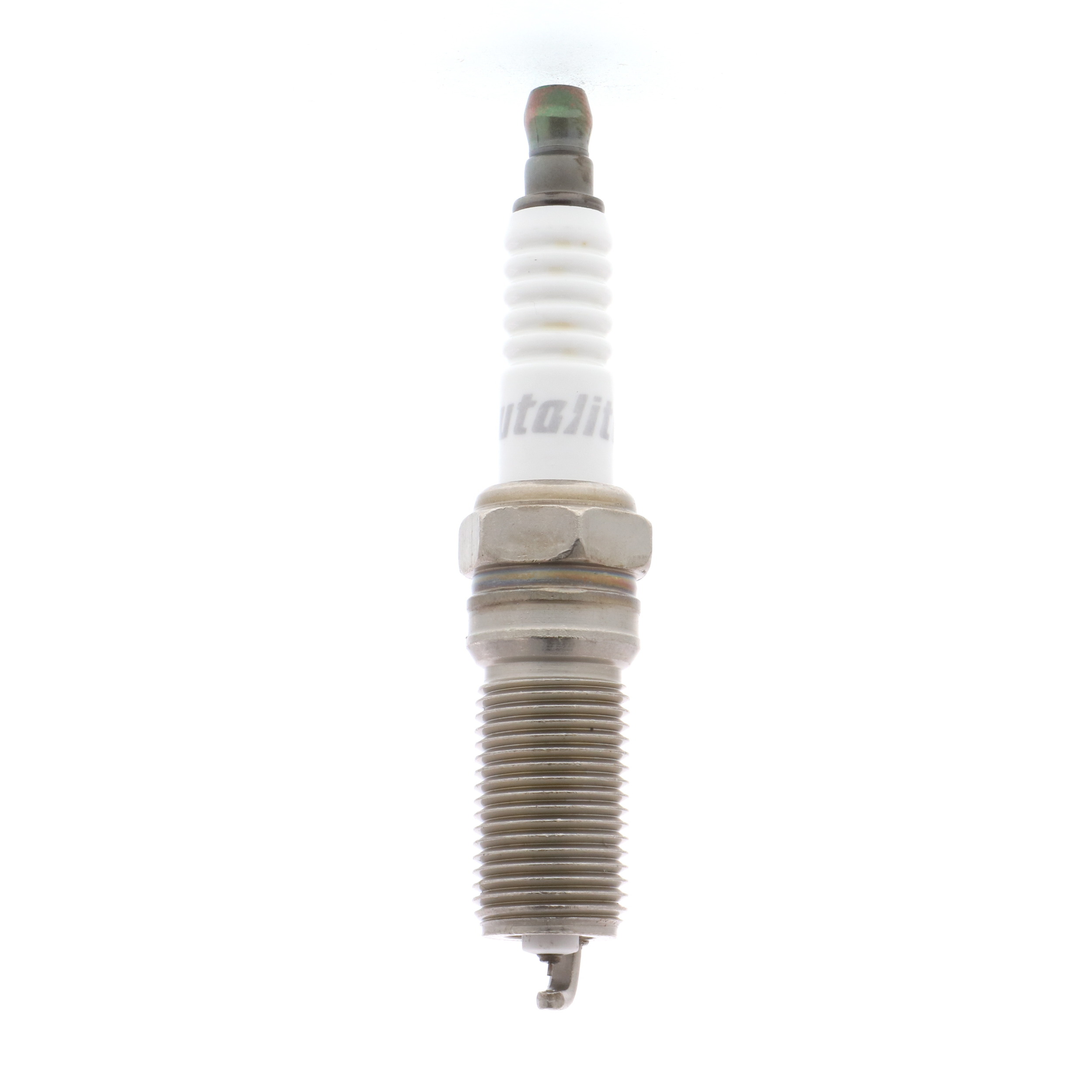

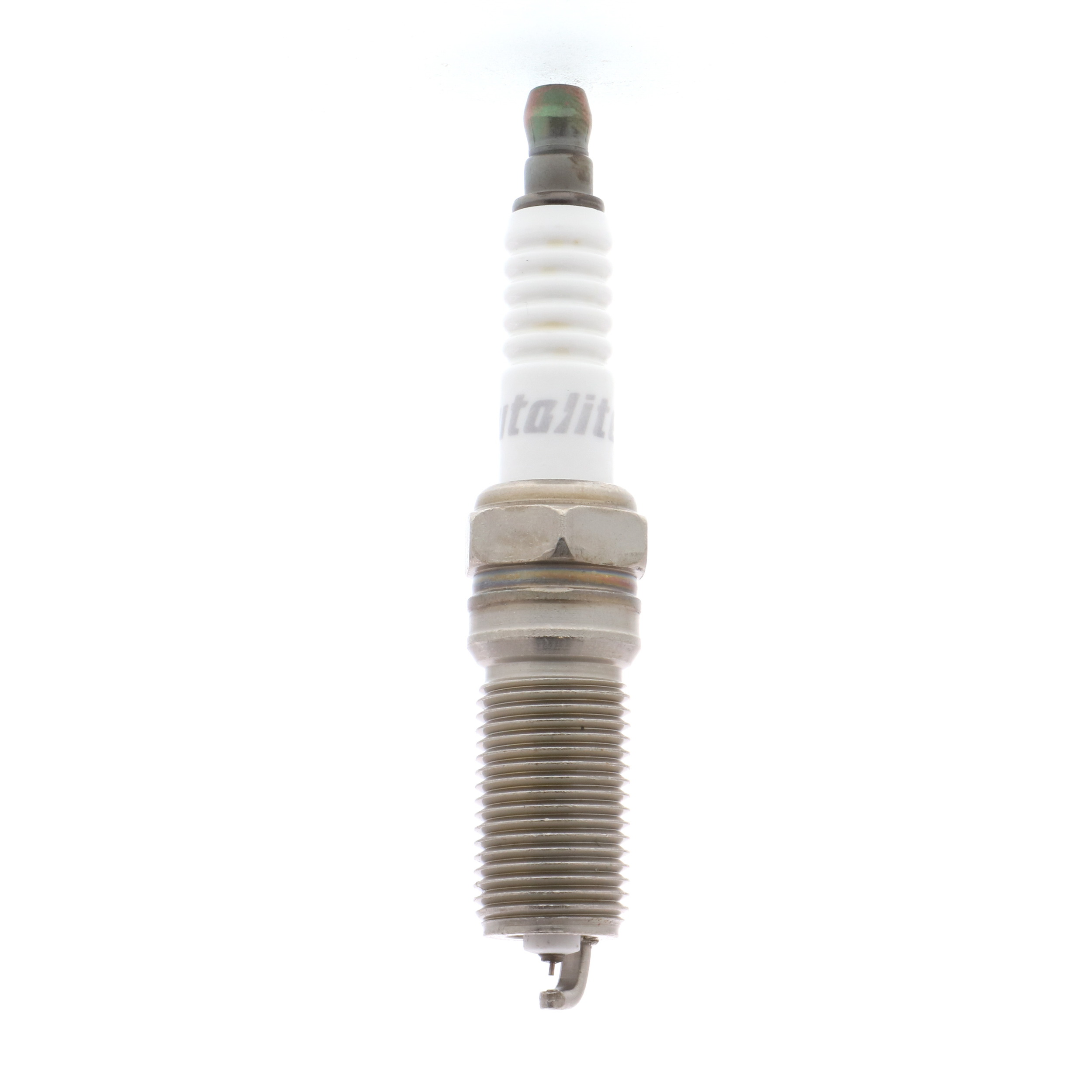

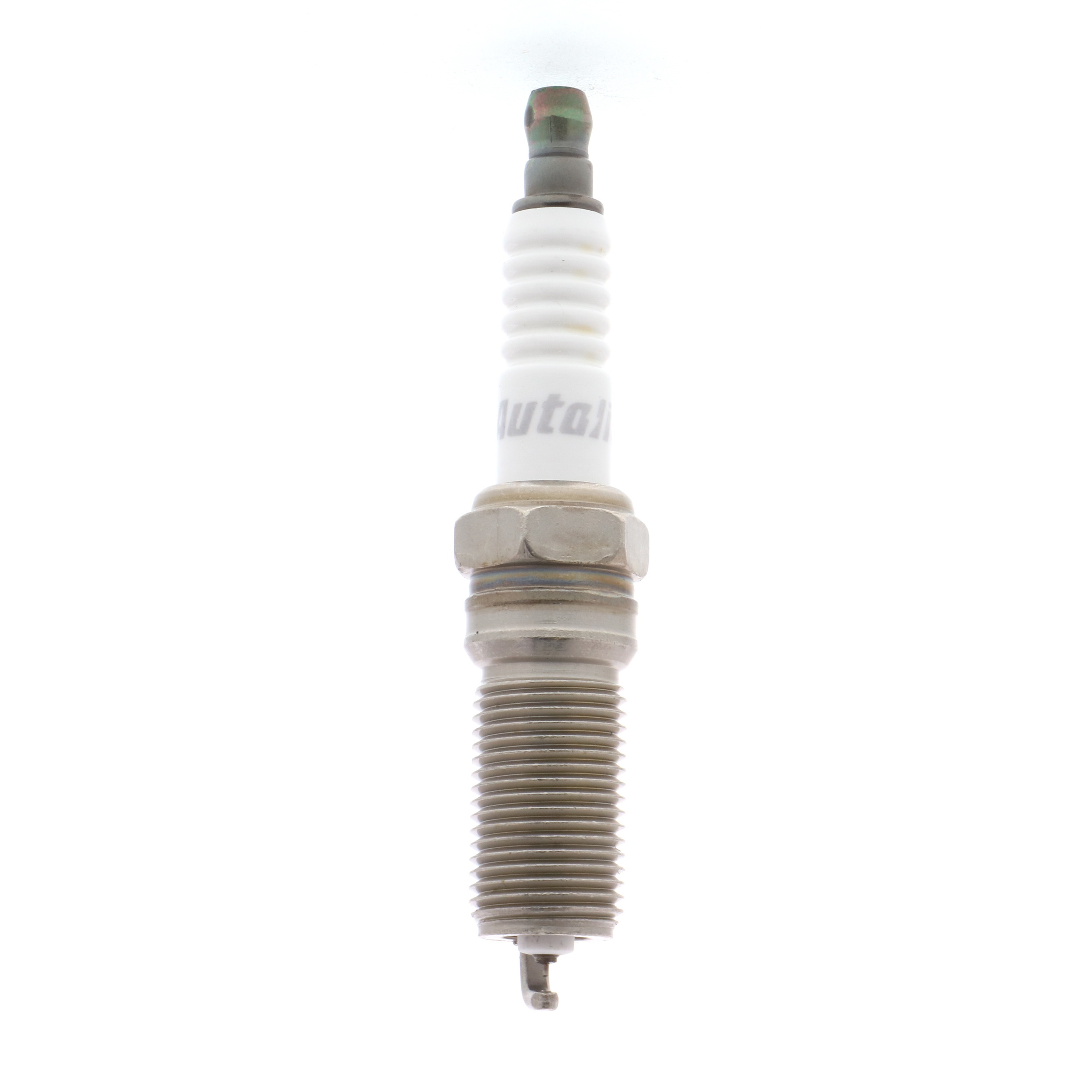

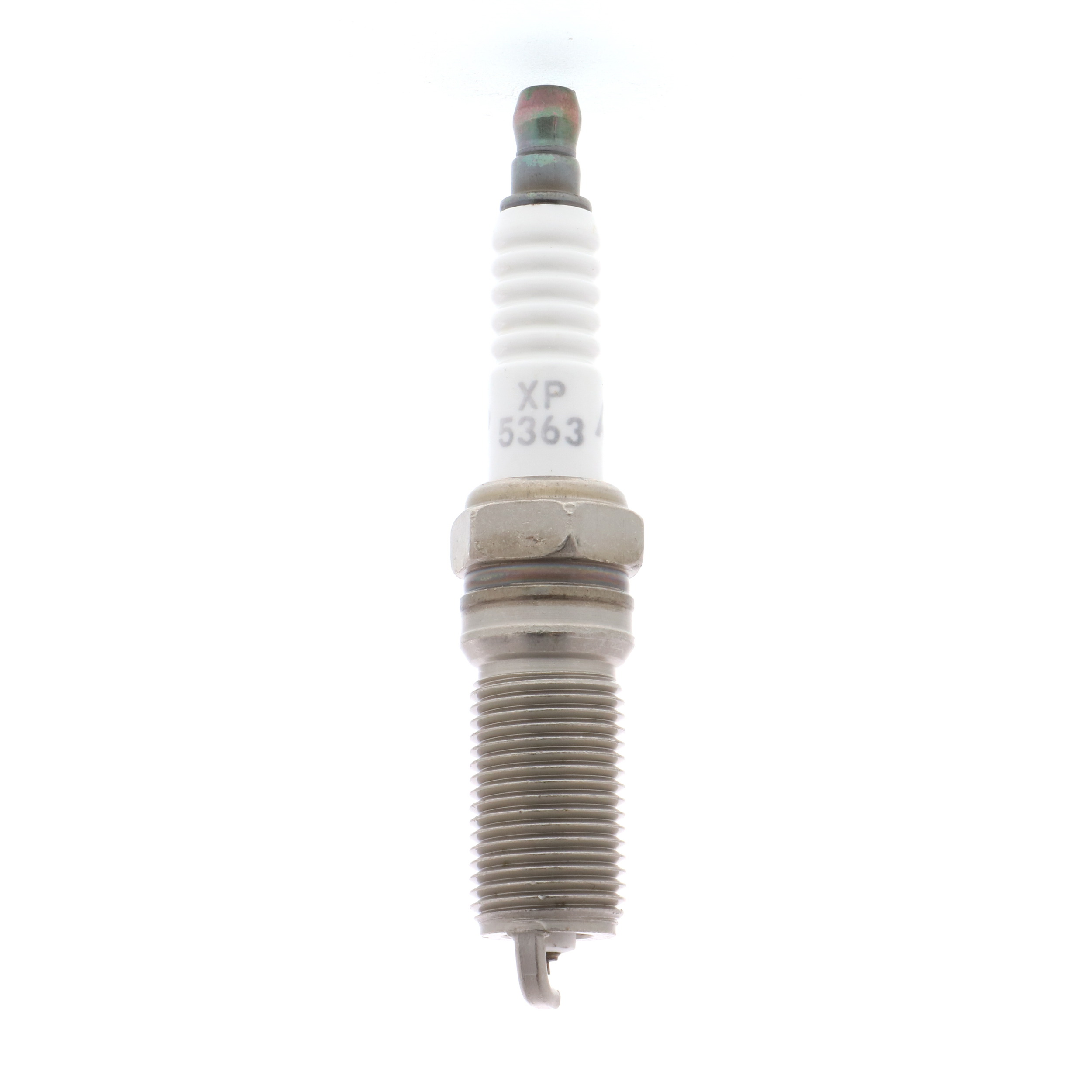

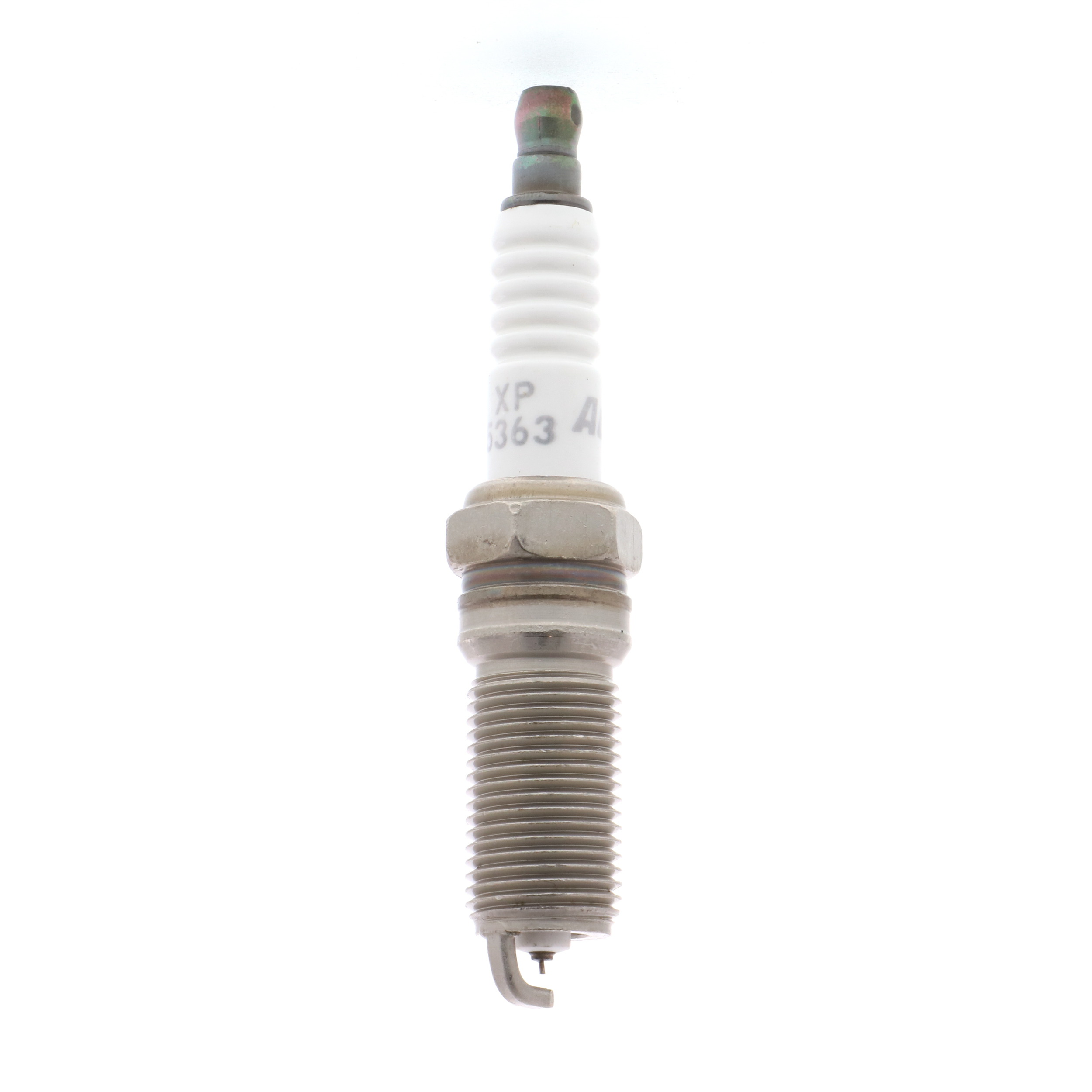

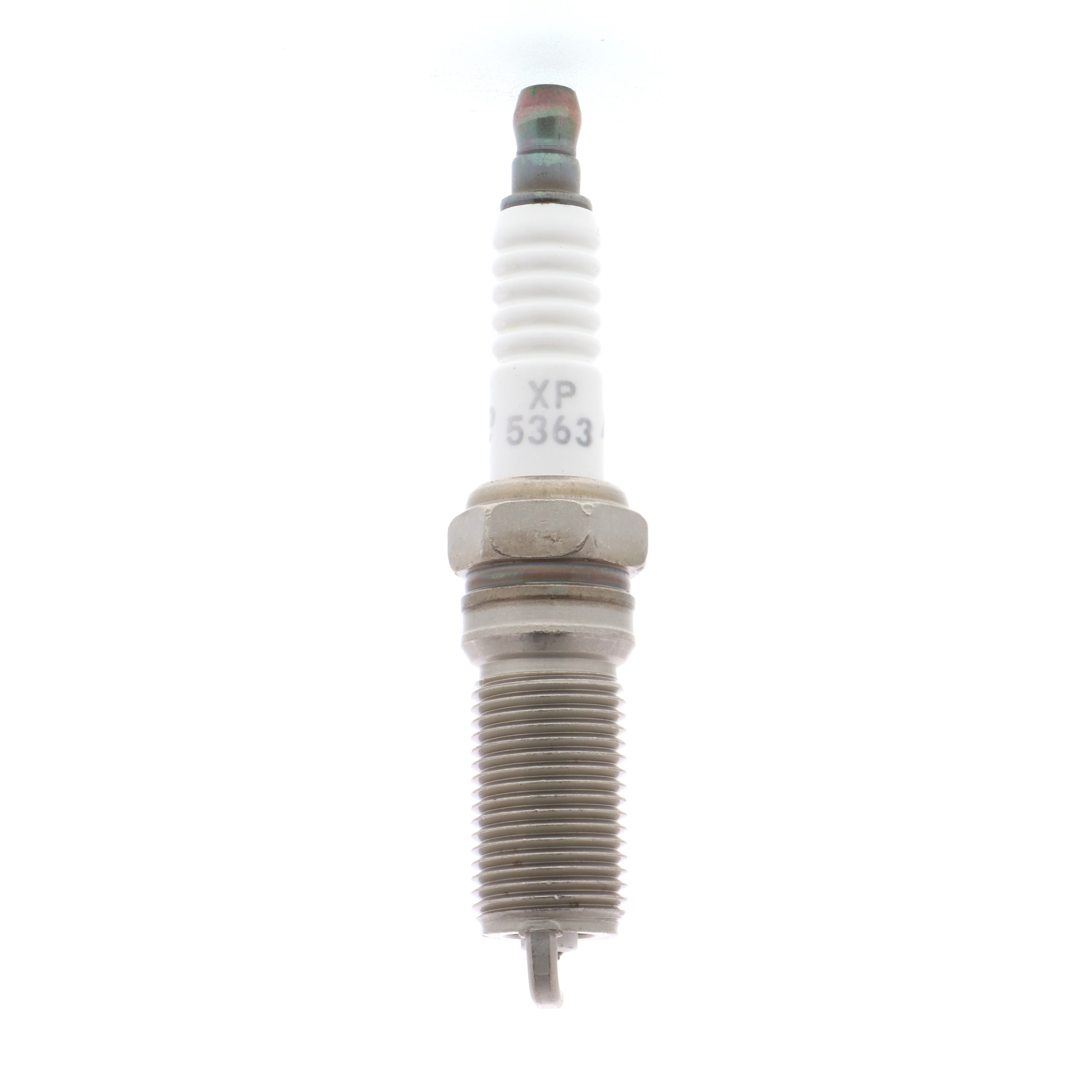

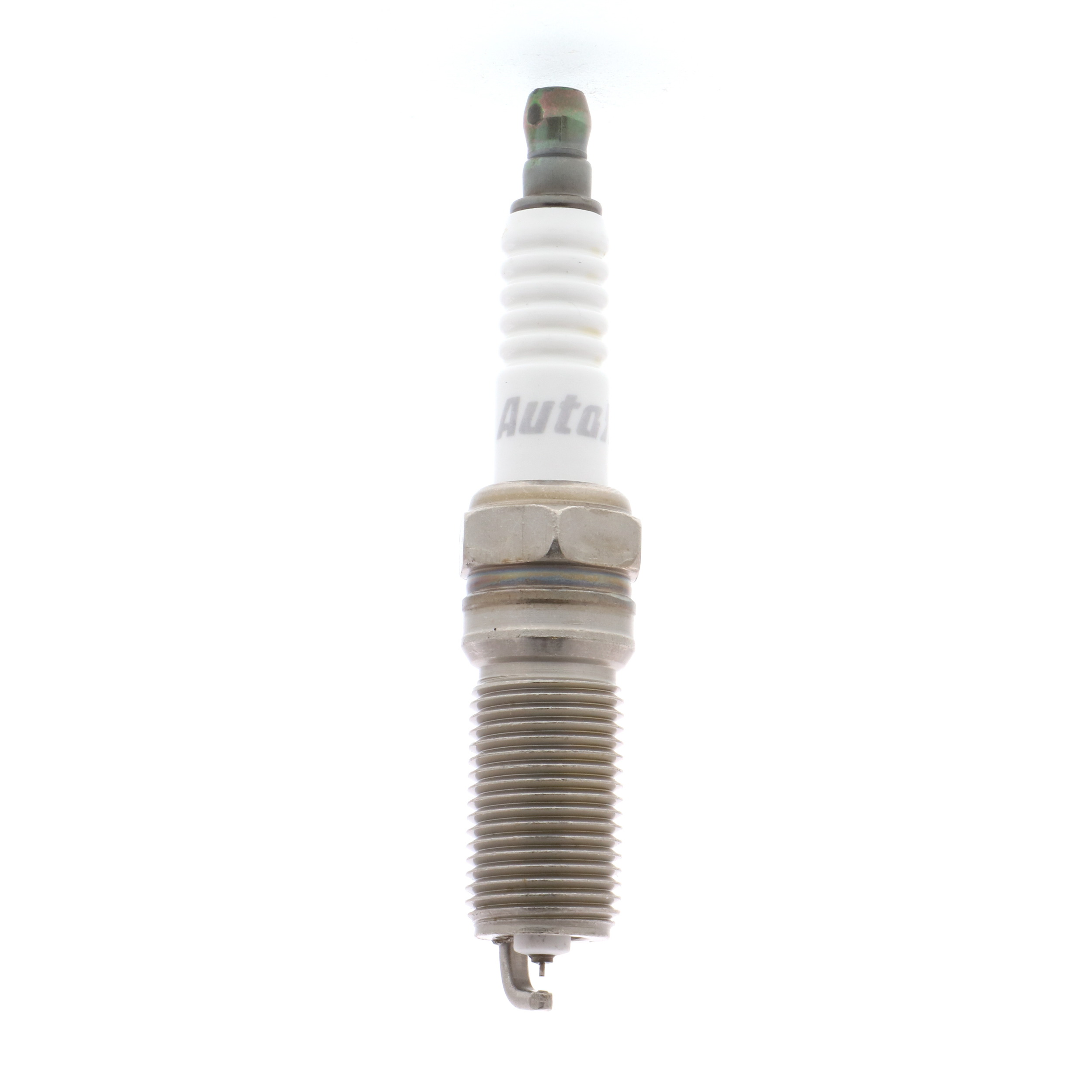

Autolite® Iridium XP spark plugs are engineered with an iridium-enhanced fine-wire and a proprietary, platinum ground electrode, to increase durability*, while its tapered ground wire maximizes engine efficiency, delivering improved engine performance, fuel efficiency, acceleration, and ignitability.
Application Summary
expand_more
Buick Envision (2016-2019), Ford C-Max (2013-2018), Ford E-350 Super Duty (2017-2019), Ford E-450 Super Duty (2021), Ford EcoSport (2018), Ford EcoSport (2020-2022), Ford Edge (2011-2018), Ford Escape (2009-2019), Ford Explorer (2011-2021), Ford F-150 (2010-2021), Ford F-250 Super Duty (2011-2022), Ford F-350 Super Duty (2011-2022), Ford F-450 Super Duty (2020-2021), Ford F53 (2020), Ford F-550 Super Duty (2020-2021), Ford F59 (2020-2021), Ford Fiesta (2011-2019), Ford Flex (2013-2019), Ford Focus (2002-2004), Ford Fusion (2010-2020), Ford Mustang (2011-2021), Ford Police Interceptor Sedan (2013-2019), Ford Police Interceptor Utility (2013-2021), Ford Police Responder Hybrid (2019-2020), Ford SSV Plug-In Hybrid (2019-2020), Ford Transit Connect (2014-2021), Ford Transit-150 (2015-2021), Ford Transit-250 (2015-2021), Ford Transit-350 (2015-2021), Ford Transit-350 HD (2015-2021), Lincoln Continental (2017-2020), Lincoln MKS (2014-2016), Lincoln MKT (2013-2019), Lincoln MKX (2011-2018), Lincoln MKZ (2013-2020)
