Front Brake Hardware

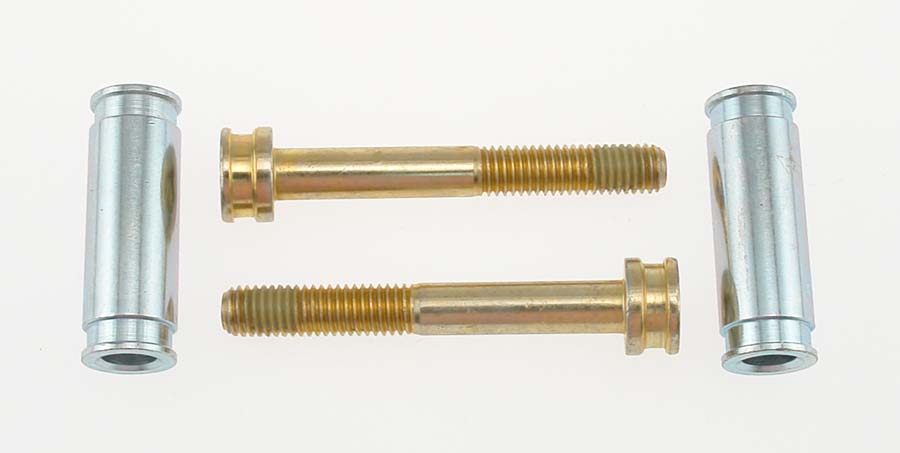

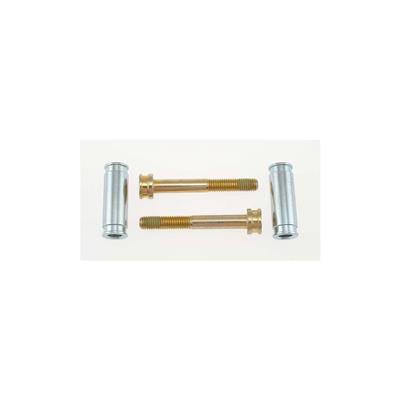

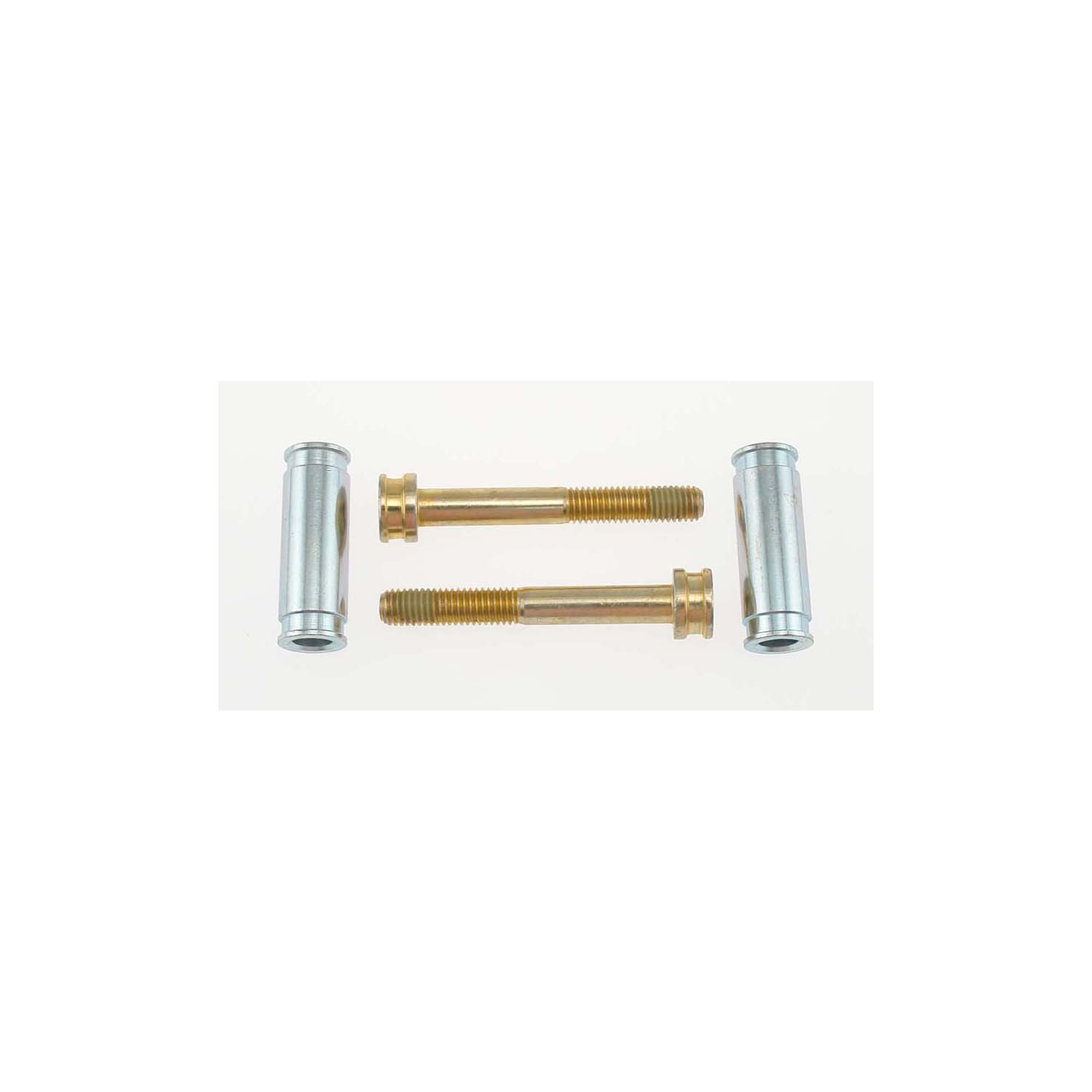

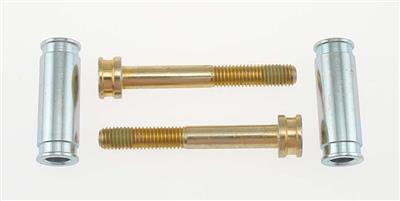

Disc brake caliper guide pin
Part # H5067 | Line Code: CBH
brandNameImage
brandNameImage

$11.19
help
Not Fitted / Universal

Product Details
expand_less
Color Zinc
Dust Boots Included No
Thread Size M8-1.25
Number of Bolts 2
Number of Sleeves 2
Head Size (in) 1/4
Head Size (MM) 6
CALIPER BOLT HEAD TYPE Allen
Shoulder Length (In) 1-1/5
Diameter (in) Bolt: 1/3 Sleeve: 1/2
Thread Length (mm) 29.7
Thread Length (In) 1-1/6
Length (in) Bolt: 2-5/7 Sleeve: 1-2/3
Length (MM) Bolt: 68.6 Sleeve: 42.2
Nuts Included No
Sleeve Included Yes
Washers Included No
Instructions Included No
Material Steel
Part Terminology Disc Brake Caliper Pin Kit

Features & Benefits
expand_more
Brakes are designed as a system and all the parts need to work together for best performance. Industry brake service experts agree - when brake friction materials are ready to be replaced, the hardware is too. Caliper Guide Pins are important to replace because they hold the brake piston in place to create effective stopping performance.

Application Summary
expand_more

DODGE 02-00 FORD 07-95 LINCOLN 02-98
