Thickness | 0.051 |
Gasket Sealant Included | No |
Grade Type | Performance |
Cylinder Bore Diameter | 4.200 |
Mfg. | GM Performance |
Engine Family | Chevrolet V8 Small Block |
Engine Displacement | 262, 265, 267, 283, 302, 305, 307, 327, 350, 400, 400 Race |

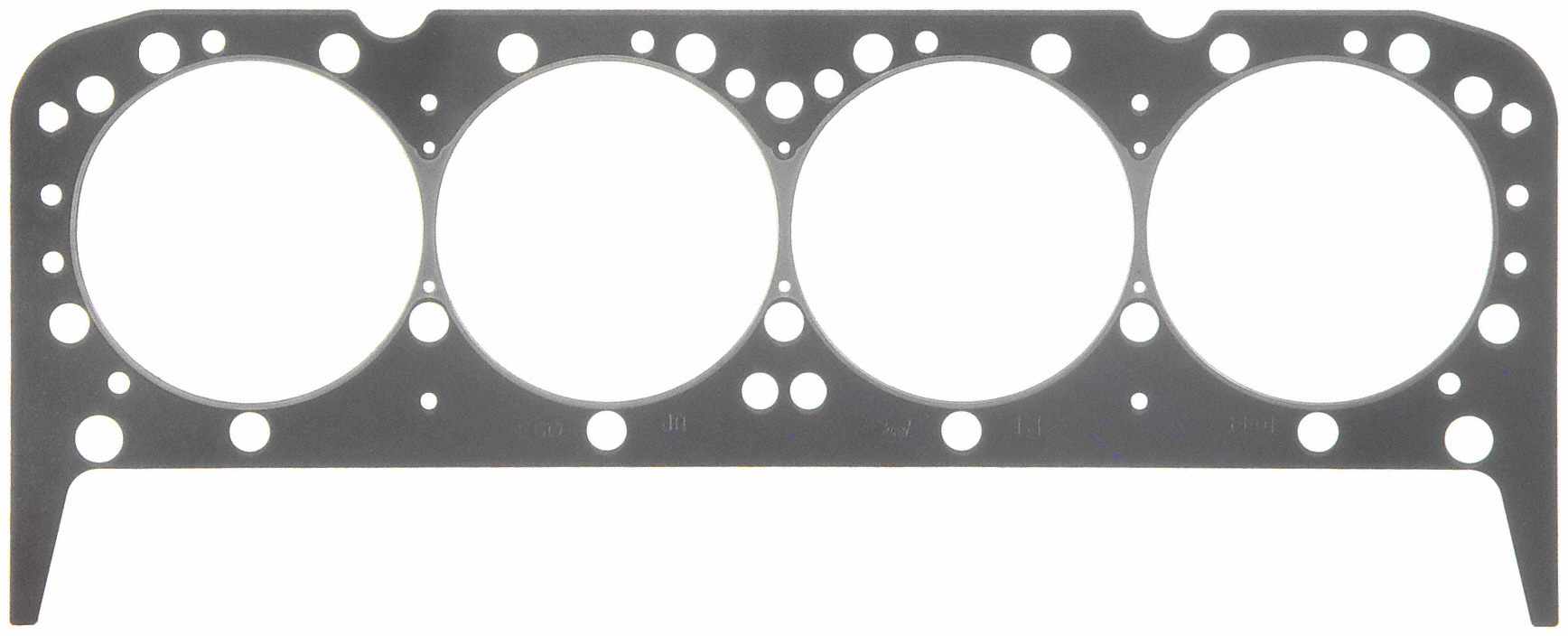

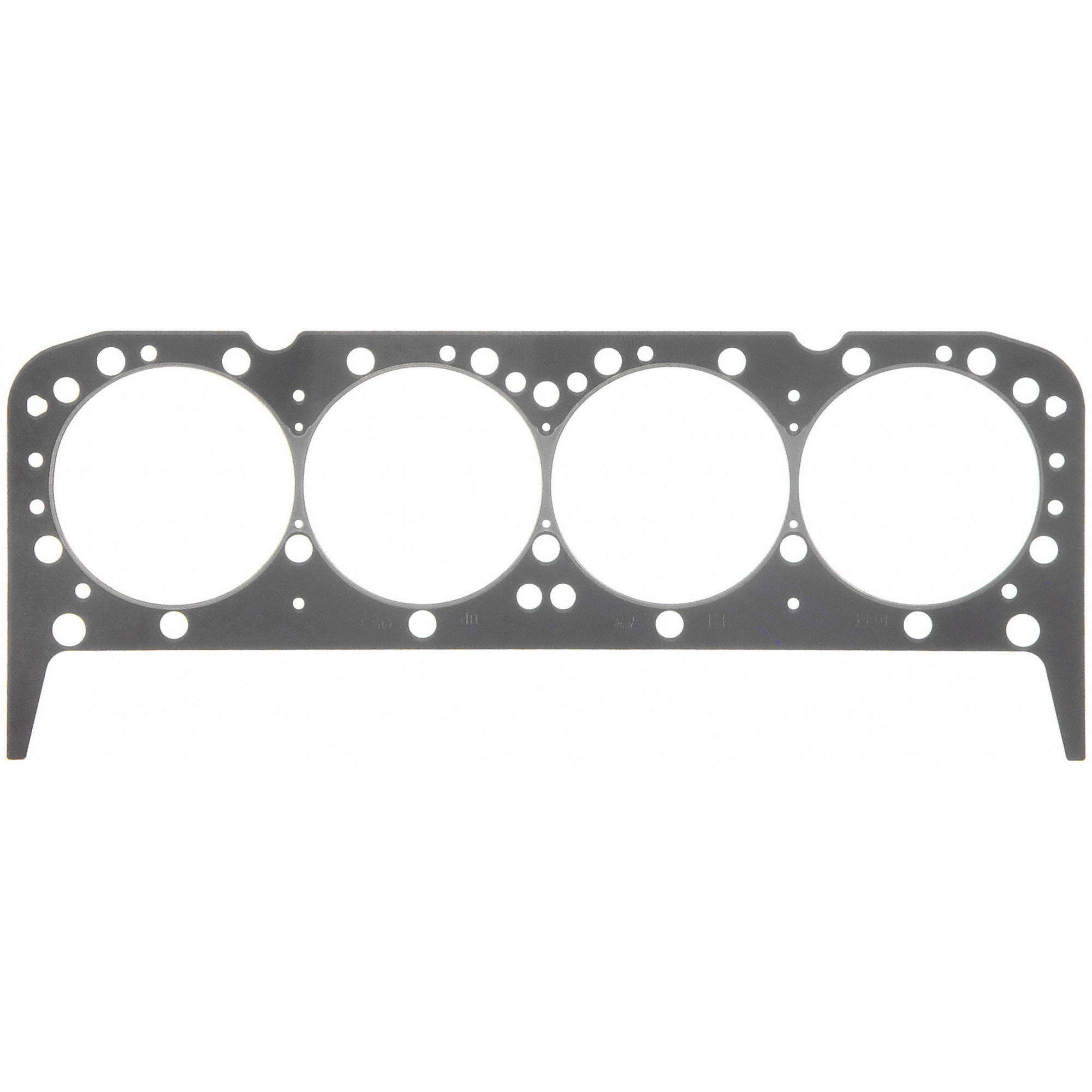

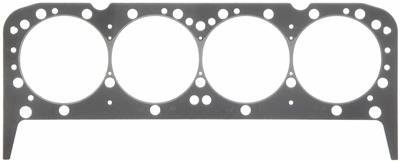

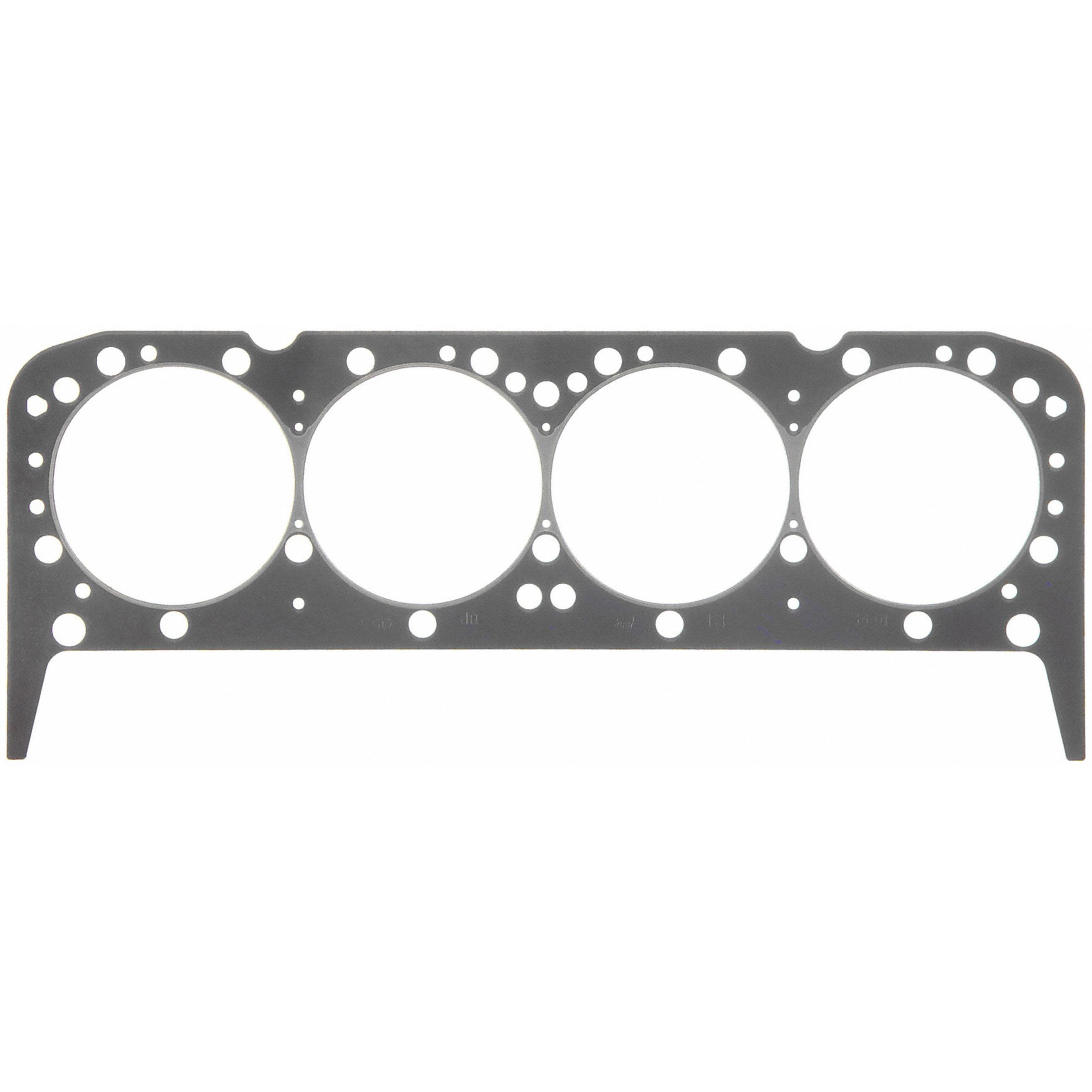

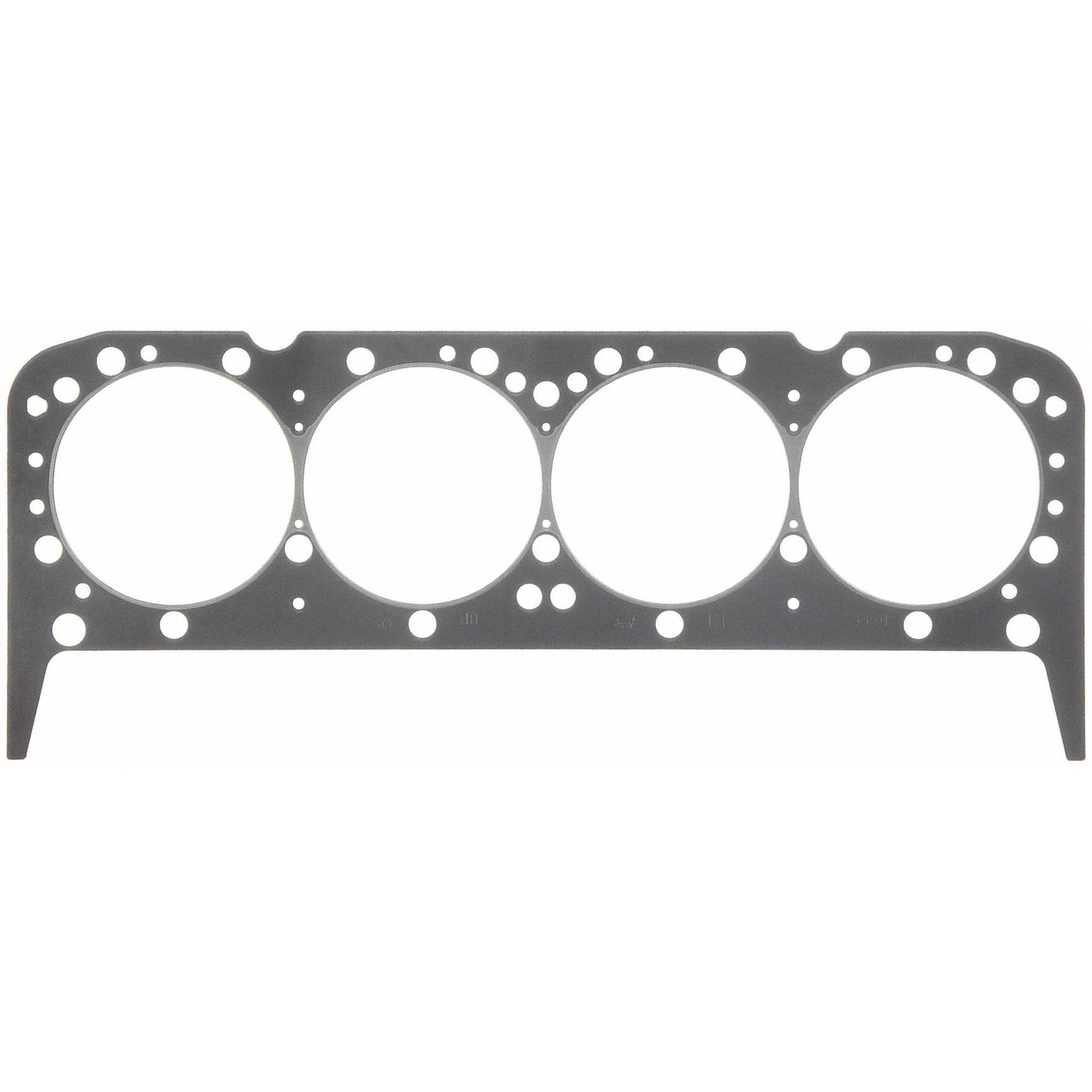

Part Type | Head Gasket |
Bore Size (in.) | 4.200 |
Combustion Seal Design | Pre-flattened steel wire |
Thickness (in.) | 0.051 |
Product Notes | Extra thick to reduce compression and correct piston-valve clearance problems; Can be used on 400 race Engs.; Steam holes for 400 Engs.; Street use; Can be used on aluminum blocks w/liners; Minimal brinelling of aluminum heads |
Heavy Duty Supplier | Yes |
Materials/Construction | Steel core laminate |
Application Notes | Cast iron or aluminum heads |
Material | Steel core laminate |
Combustion Chamber Volume (cc) | 11.200 |
Part Terminology | Engine Cylinder Head Gasket |
