| Depth | 2.875 |
| Height | 8.500 |
| Inlet Fitting Type | Block Fitting |
| Outlet Fitting Type | Block Fitting |
| Outlet Fitting Outside Diameter | No. 12 / No. 6 |
| Inlet Fitting Outside Diameter | No. 6 / No. 8 |
| Width | 13.38 |
| Type | Plate & Fin |
| Core Height Fraction | 8-3/8 |
| Core Depth Fraction | 2-7/8 |
| Core Width Fraction | 13-3/8 |
| Inlet Type | Block Fitting |
| Outlet Type | Block Fitting |
| Heavy Duty Supplier | Yes |
| O-Ring B Quantity | 1 |
| O-Ring A Quantity | 1 |
| Description | Evaporator Cores |
| O-Ring C Quantity | 1 |
| O-Ring D Quantity | 1 |
| Core Height IN | 8.375 |
| Core Depth IN | 2.875 |
| Core Height MM | 212.72 |
| Core Depth MM | 73.03 |
| Core Width MM | 339.73 |
| Material | Aluminum |
| Core Width IN | 13.38 |
| O-Ring A Number/Desc | 24402 / Slimline Washer |
| O-Ring B Number/Desc | 24404 / Slimline Washer |
| O-Ring C Number/Desc | 24606 / Green O-Ring |
| O-Ring D Number/Desc | 24608 / Green O-Ring |

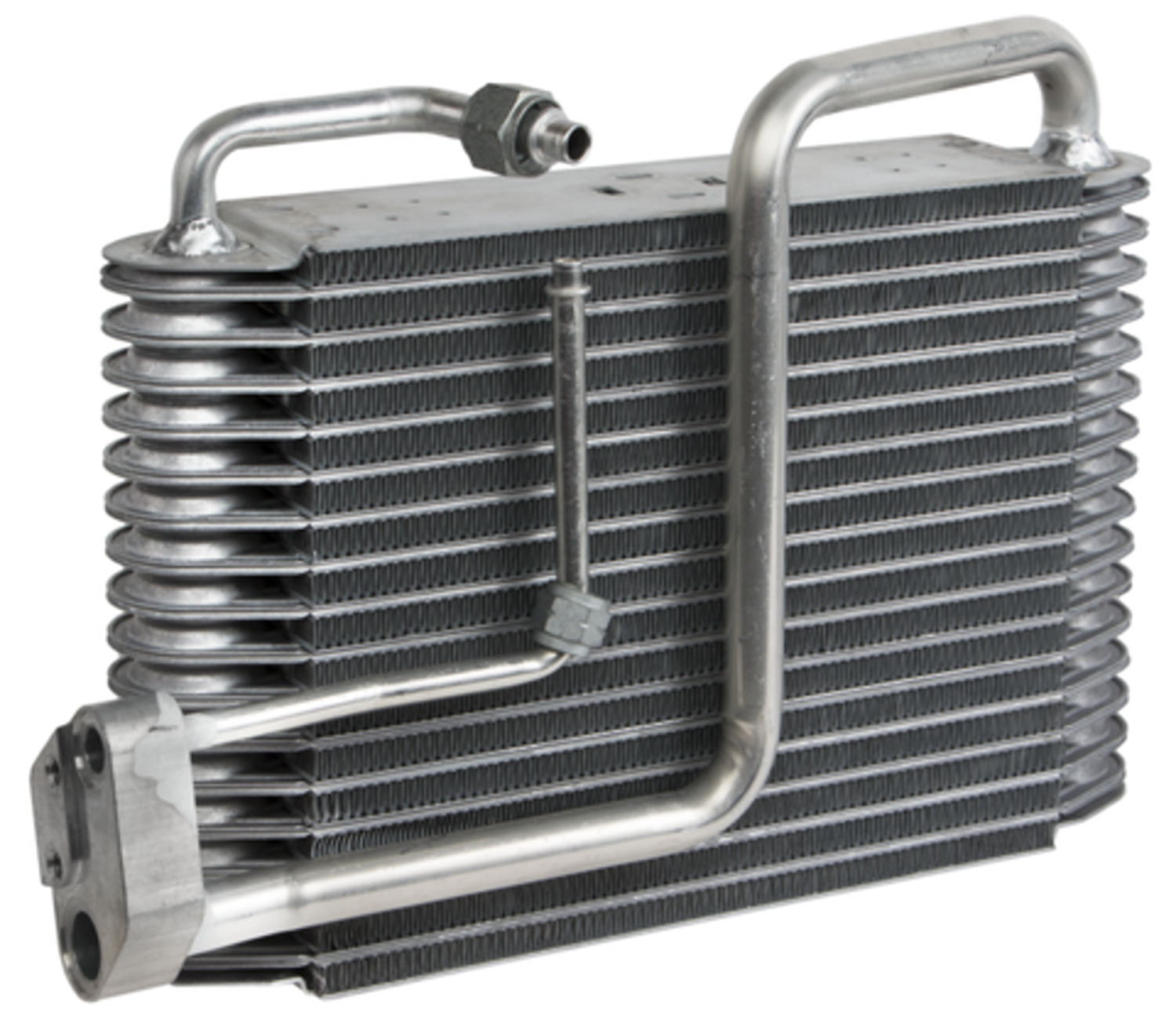

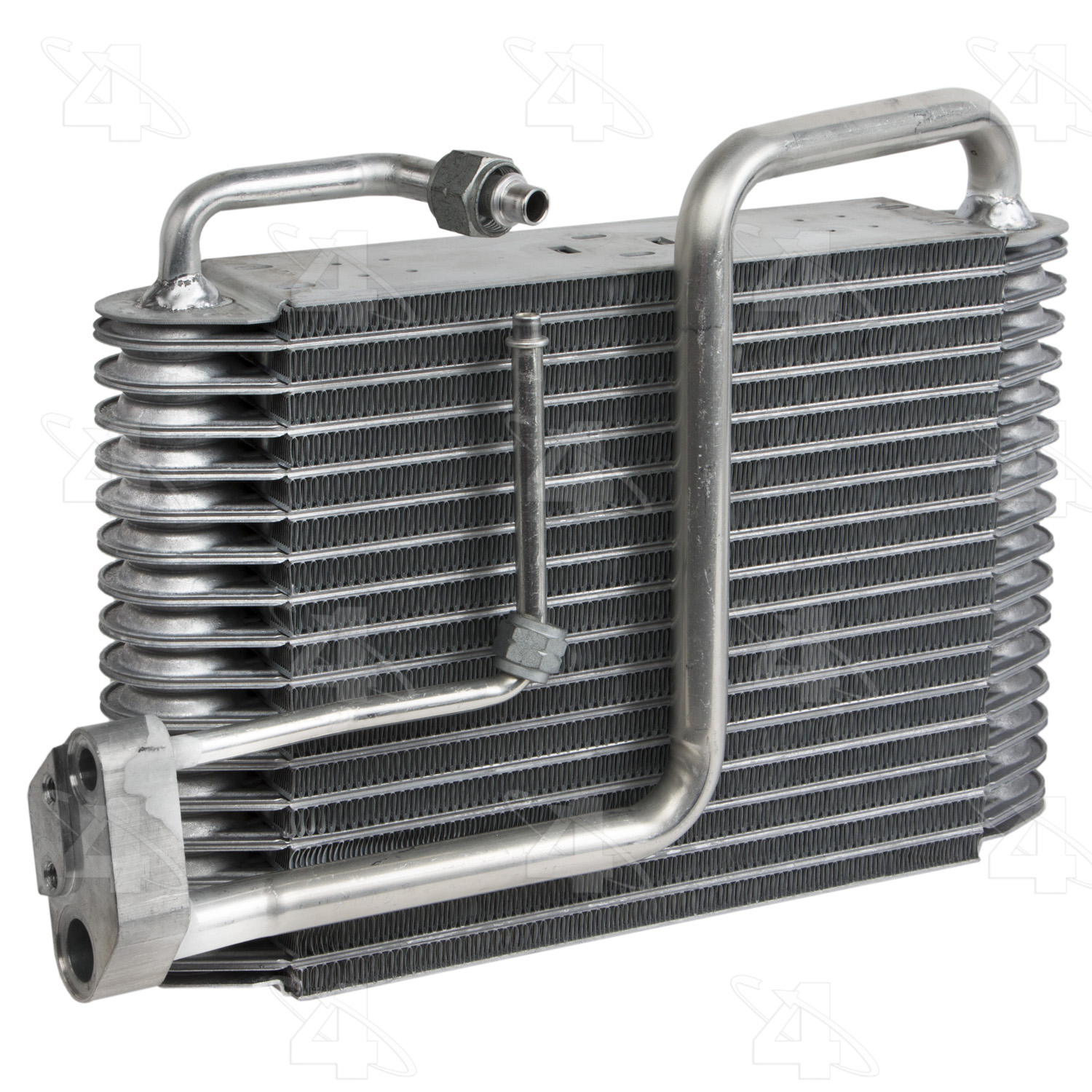

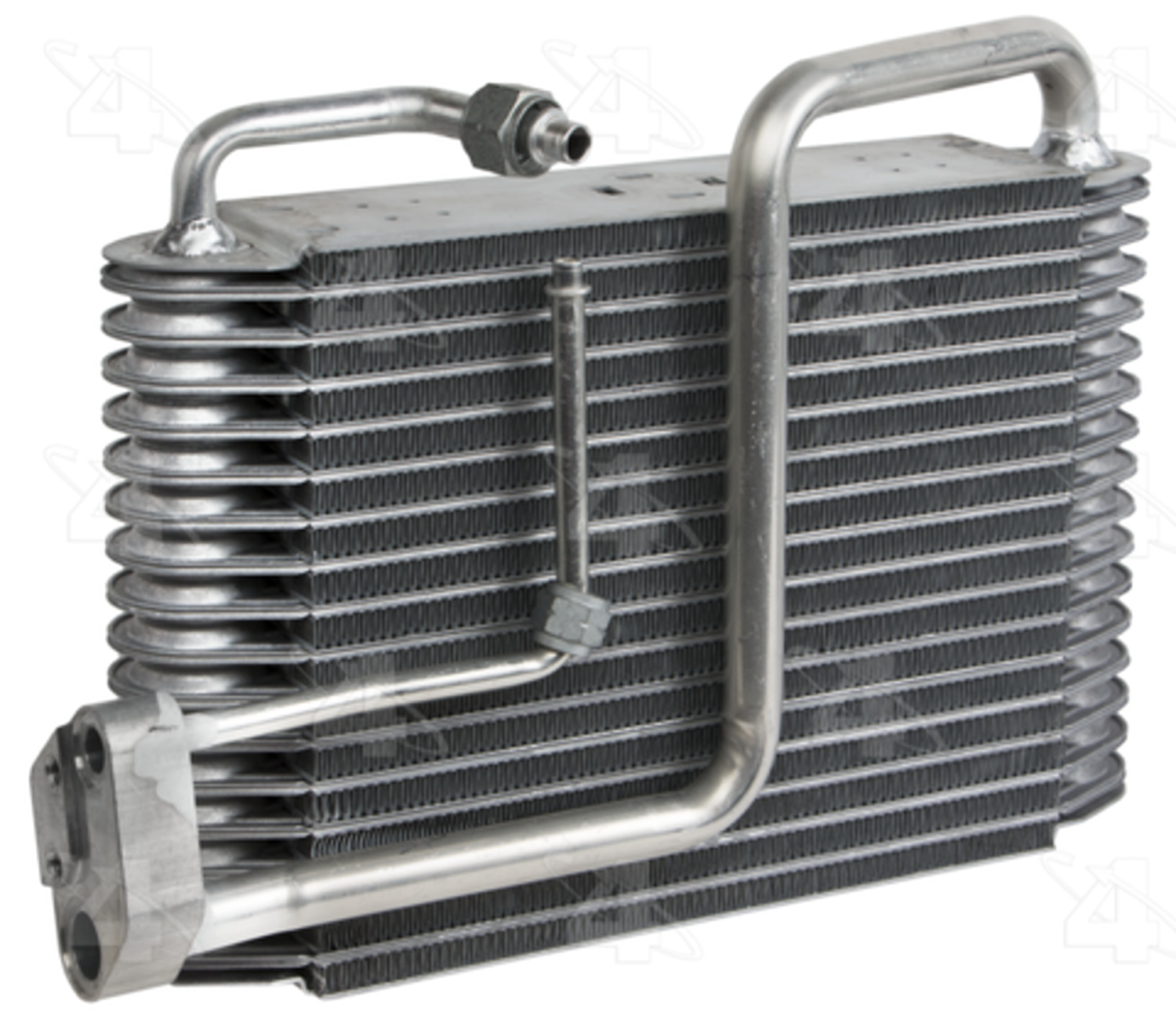

| Part Terminology | A/C Evaporator Core |
