| Distance From Clutch To Mounting Flange | 0.59 |
| Clutch Pulley Diameter | 4.250 |
| Coil Clock Position | 11 |
| Compressor Type | HT6 |
| Pulley Belt Type | Serpentine |
| Compatible Refrigerant Oil Type | PAG 150 |
| Clutch Maximum Diameter | 4.250 |
| Pulley Lip Diameter | 4.250 |
| Pulley Ridge Diameter | 4.250 |
| Switch Included | High Pressure |
| Connector Shape | 8mm Pin Connector |
| Mounting Type | Tangent Mount |
| Switch Type | Pressure Switch |
| Clutch Included | Included |
| Oil Filled | Included |
| Distance Between Mounting Holes | 15.24 |
| Coil Voltage | 12 |
| Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Refrigerant Type | R134a |
| Terminal Type | Pin |
| Connector Type | pin |
| Heavy Duty Supplier | Yes |
| Mount Type | Tangent Mount |
| Style | Piston |
| O-Ring A Quantity | 2 |
| New or Reman | New |
| Type | GM |
| Ctch Dia. MM Prmy | 107.950 |
| Switch / Sensor Desc | High Pressure |
| Discharge Port Type | Sealing Washer |
| Suction Port Type | Sealing Washer |
| Oil Type | PAG 150 |
| Description | Compressors - New |
| Mounting Hardware? | Not Included |
| Coil Clock | 11 |
| Model | HT6 |
| O-Ring B Number/Desc | N/A |
| O-Ring C Number/Desc | N/A |
| O-Ring B Quantity | N/A |
| O-Ring C Quantity | N/A |
| Pulley Diameter MM | 107.95 |
| Mount Distance MM | 15.24 |
| Electronic Control Valve | No |
| Pulley Diameter IN | 4.250 |
| Groove | 6 |
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Mount Distance IN | 0.59 |
| O-Ring A Number/Desc | 24354 / Sealing Washer |

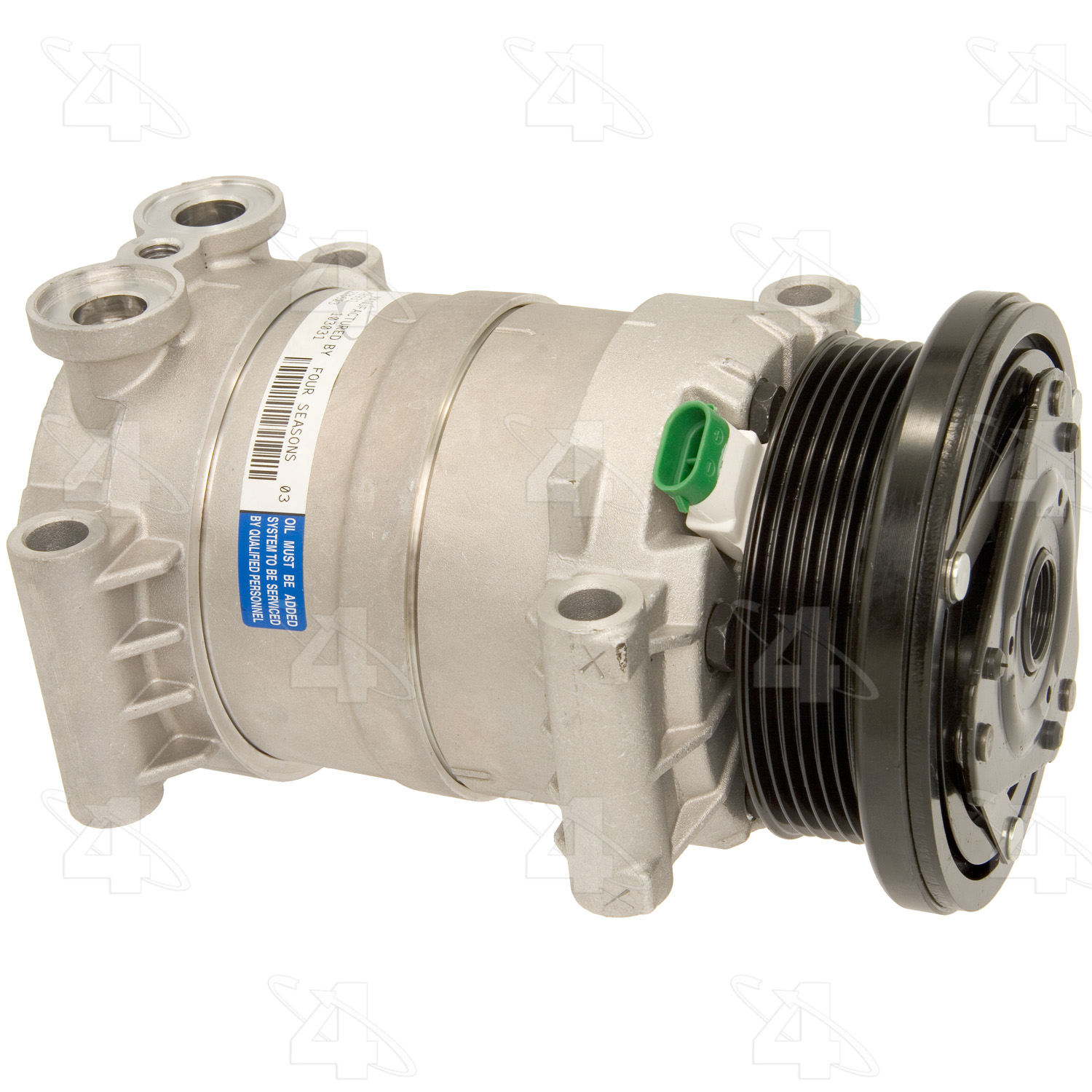

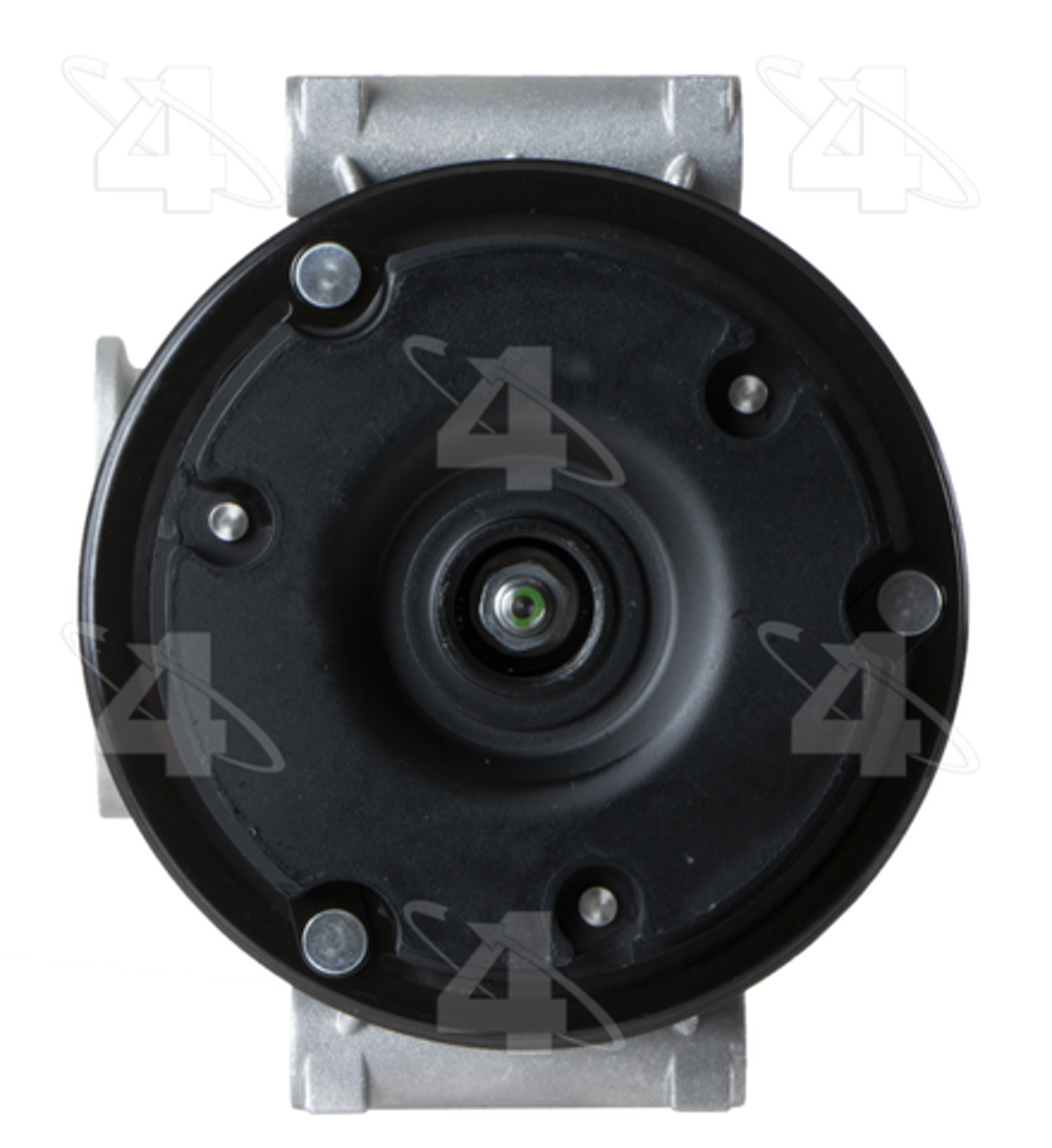

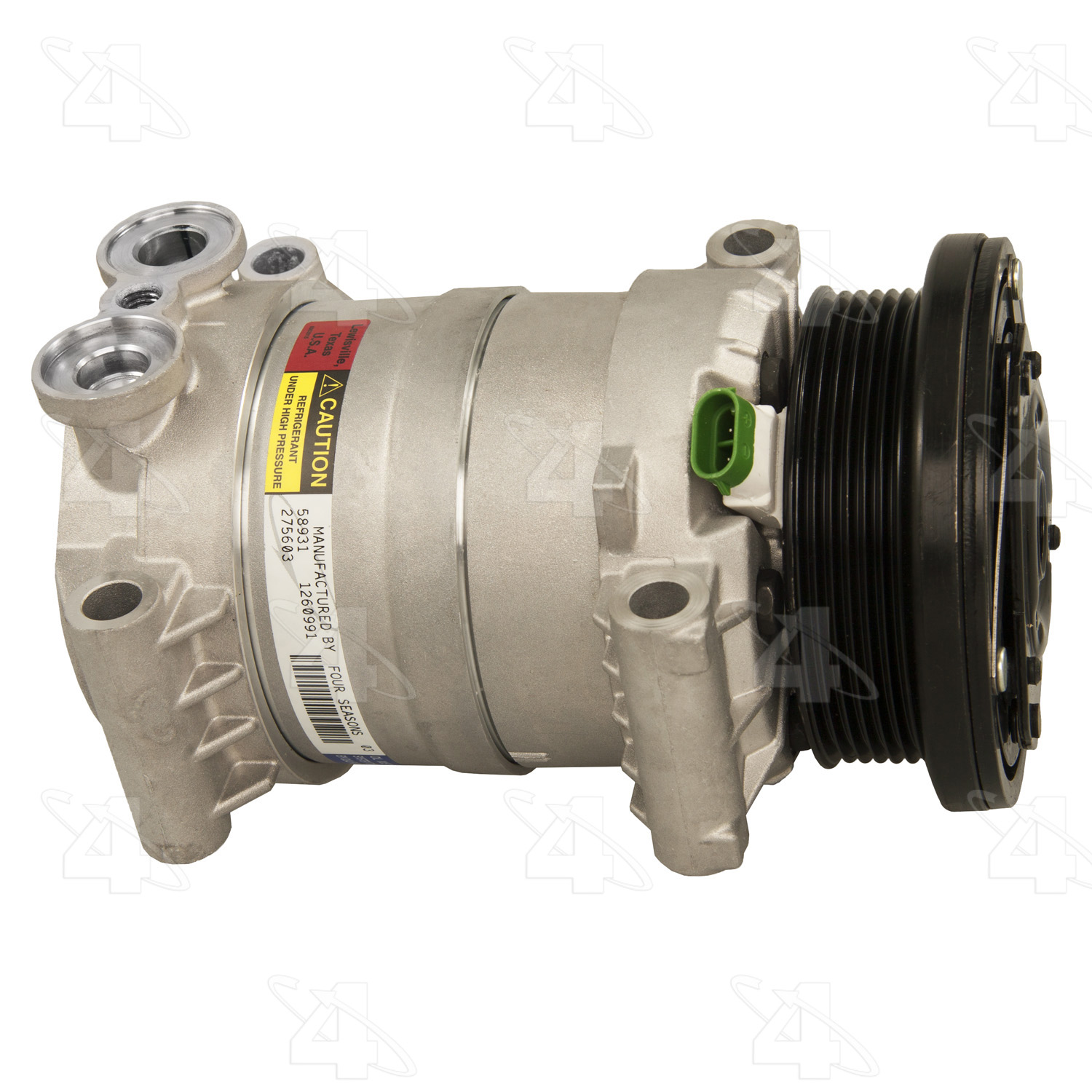

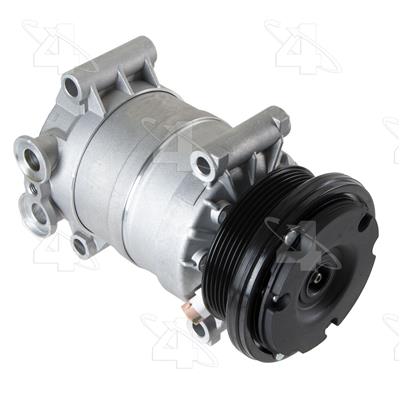

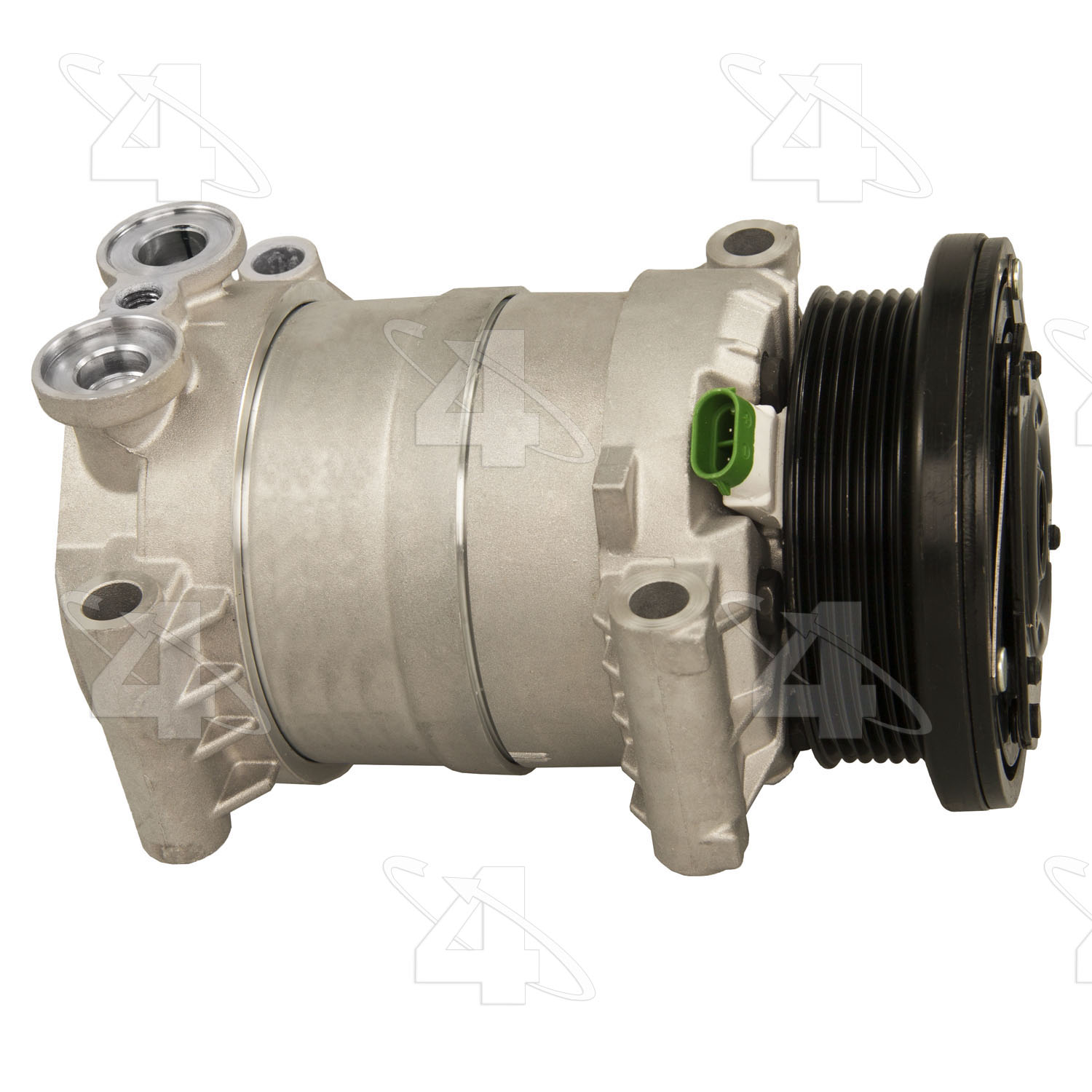

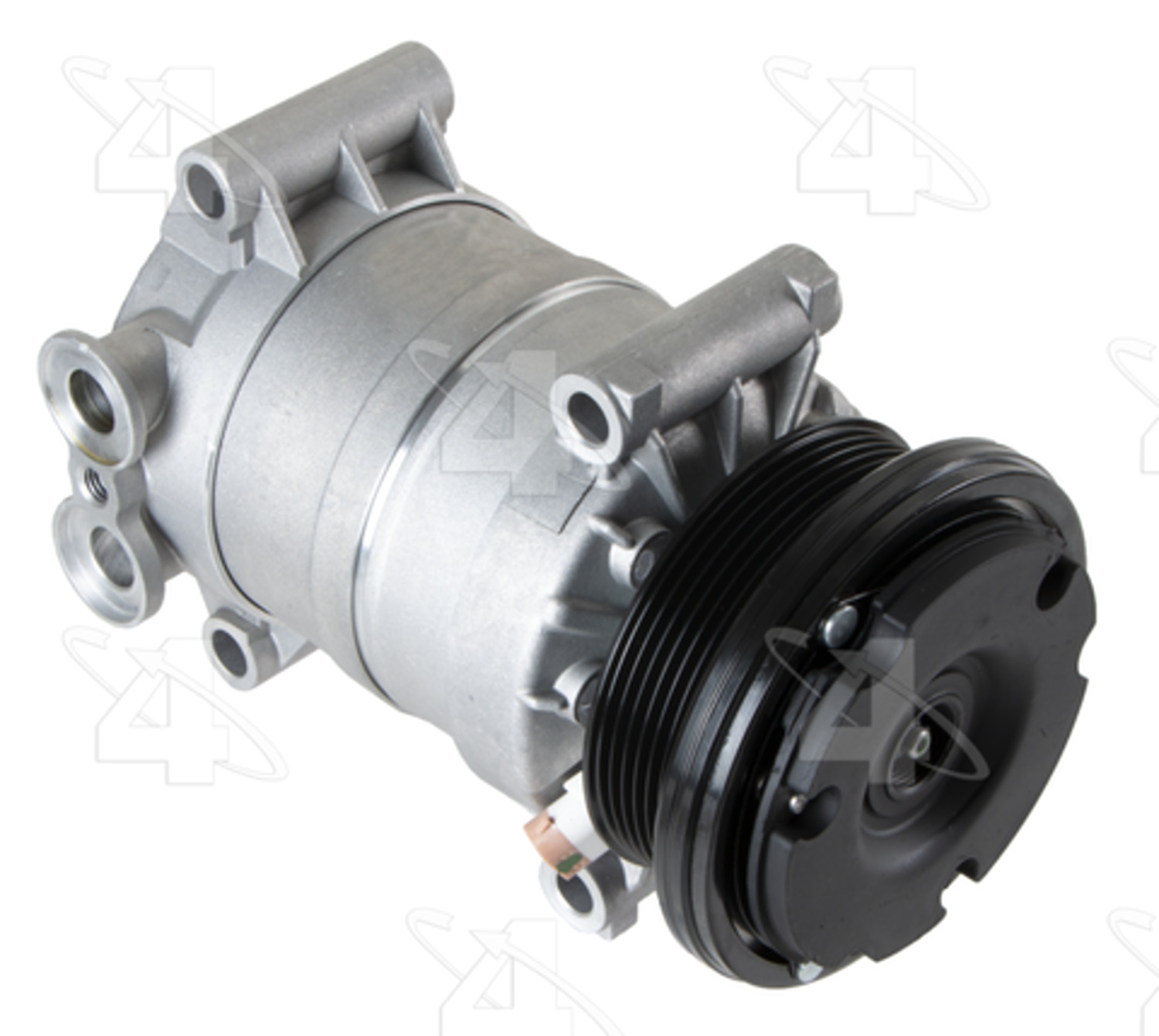

| Part Terminology | A/C Compressor |
