| Inside Diameter | .125 |
| Length | 250 |
| Cover Color | Black |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Cover Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Maximum Working Pressure | 3000 |
| Burst Pressure | 12000 |
| Reinforcement Material | Synthetic Fiber |
| Outside Diameter | .32 |
| Hose Material | Seamless Nylon (Type Z) |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Color | Black |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Burst Pressure (psi) | 12000 |
| Hose Pressure Description | Medium Pressure |
| Reinforcement | Synthetic Fiber |
| Type | Thermoplastic Hydraulic Hose |
| Industrial Description | 2TH7XCTN |
| Minimum Bend Radius (in) | .5 |
| Coupling Recommendation | Swage PCTS |
| Hose Outside Diameter (in) | .32 |
| Hose Inside Diameter (in) | .125 |

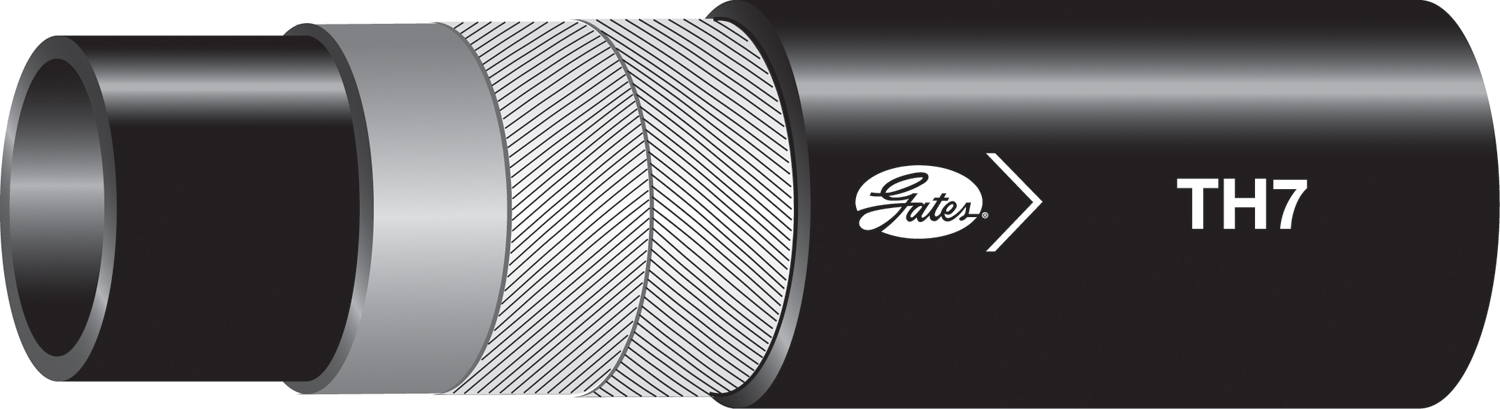

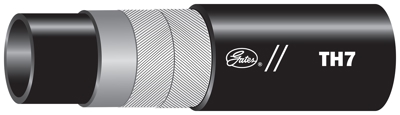

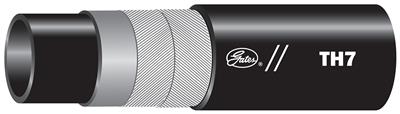

| Product Type | TH7 Hydraulic Hose - SAE 100R7 |
| Temperature Range | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Heavy Duty Supplier | Yes |
| ISO Specification | N/A |
| EN Specification | N/A |
| Dash Size | 2 |
| SAE Specification | 100R7 |
| Tube Description | Black |
| Tube Material | Seamless Nylon (Type Z) |
| Outside Diameter (In) | .32 |
| Inside Diameter (in) | .125 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Hose |
