| Inside Diameter | 1 |
| Length | 144 |
| Thread Size | 1 7/16-12 |
| Drop Length | 2.8 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |

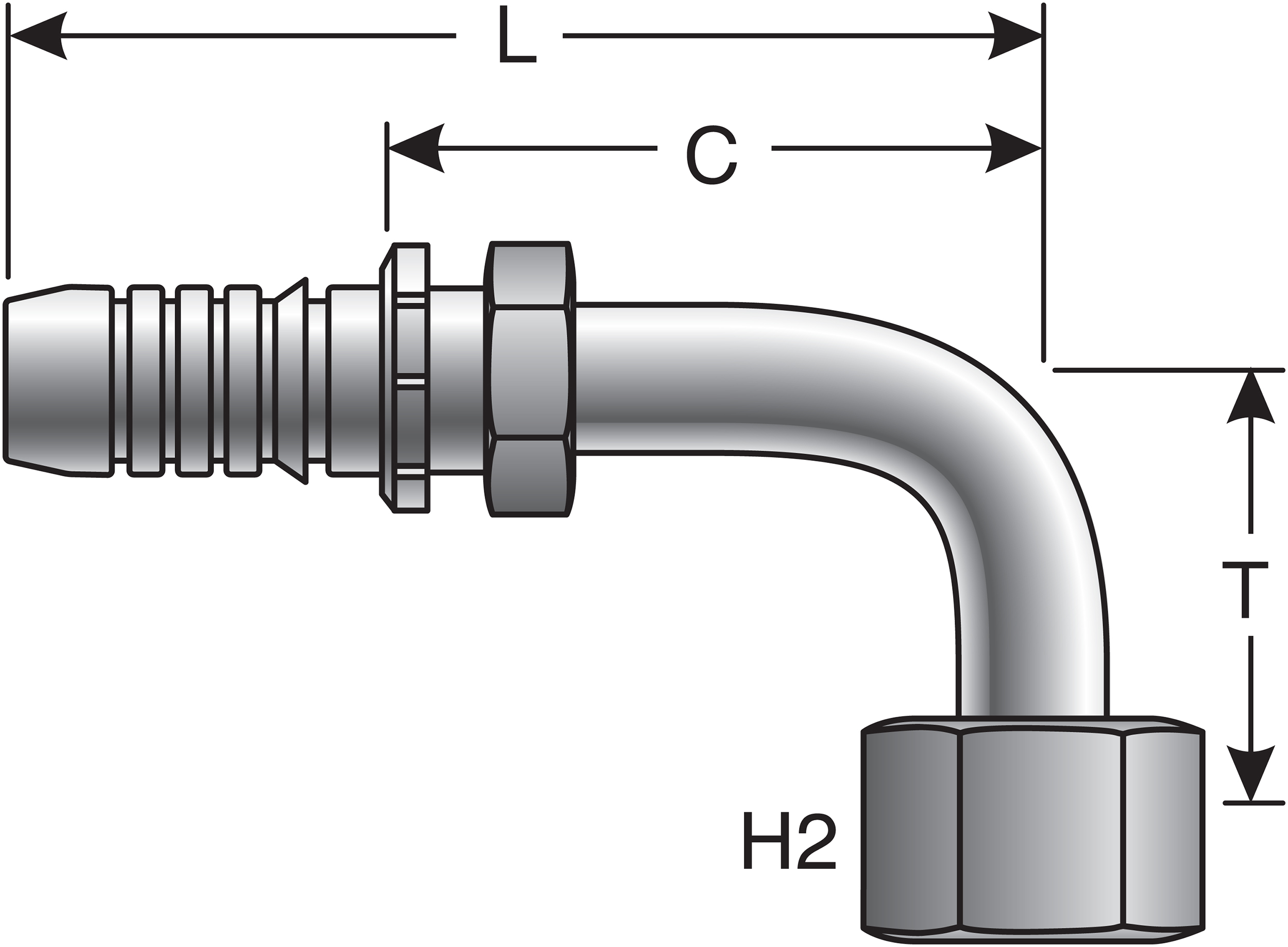

| Drop (in) - T | 2.8 |
| Nut Hex (mm) - H2 | 41 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Cut Off (mm) - C | 87.6 |
| Cut Off (in) - C | 3.45 |
| Drop (mm) - T | 71.1 |

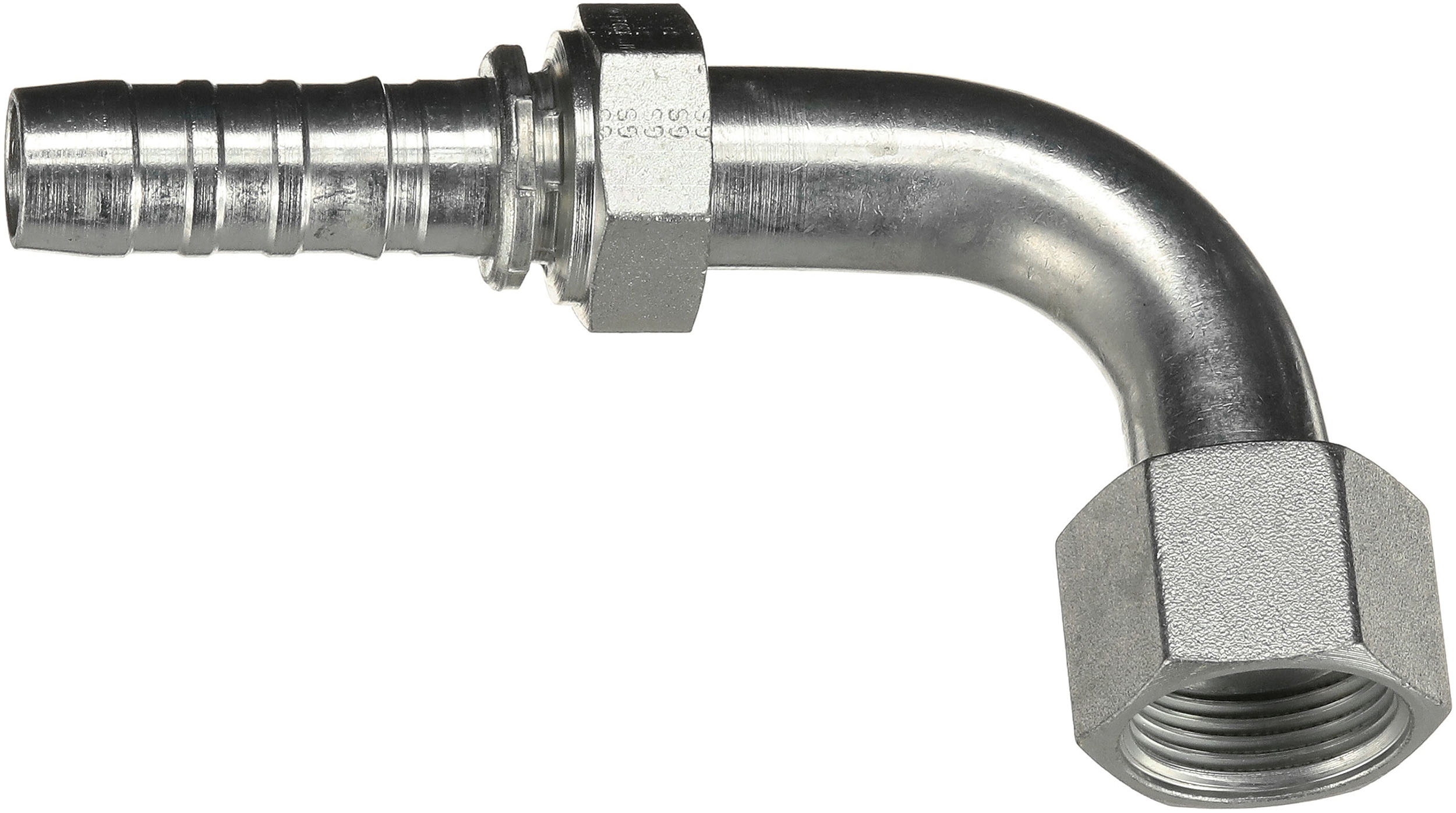

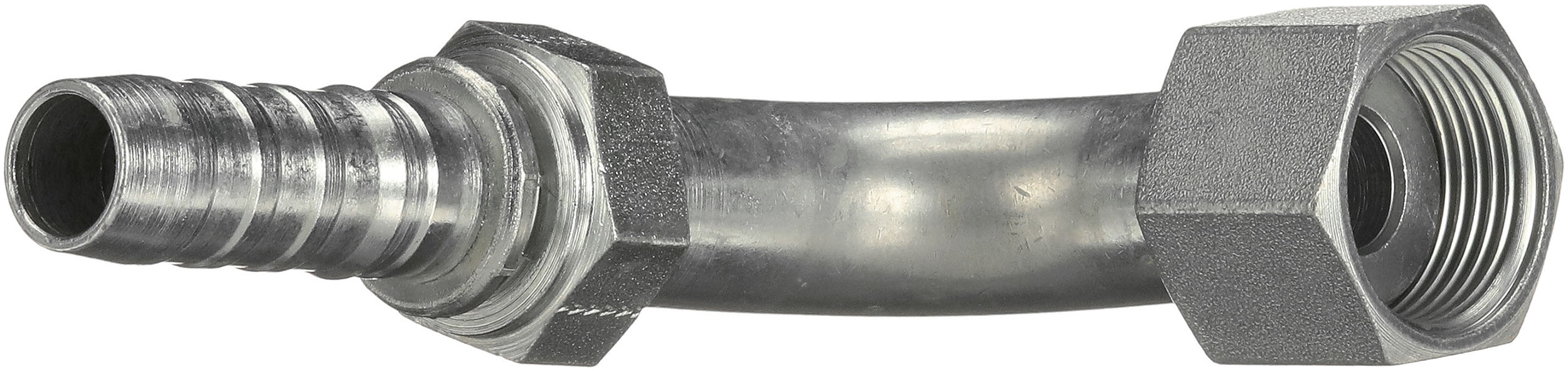

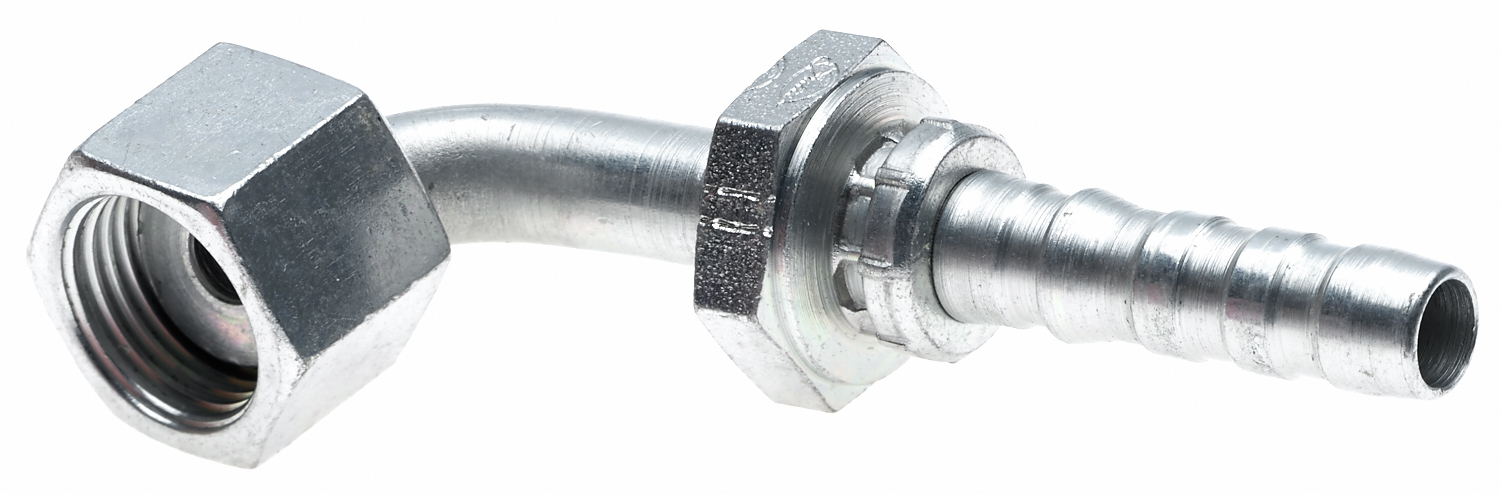

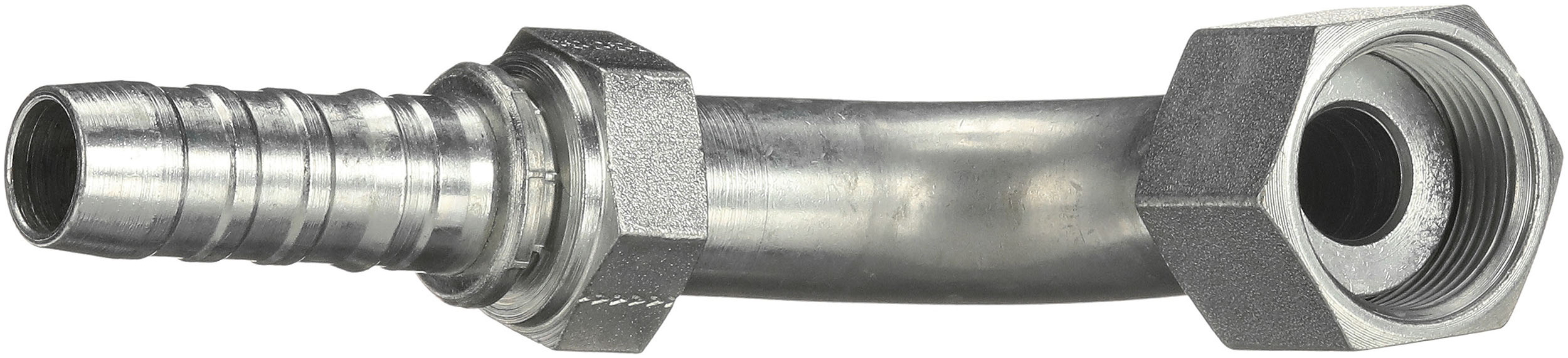

| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 16GS-16FFORX90M |
| Heavy Duty Supplier | Yes |
| Length (in) | 5.67 |
| Length (MM) | 144 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Coupling / Adapter |
