| Length | 3.51 |
| Inside Diameter | 9.5 |
| Seal Type | Mated Angle |
| Thread Size | 3/4-16 |
| Drop Length | 15 |
| Swivel | Yes |
| Gender | Female |
| Hose Inside Diameter (in) | .375 |
| Hose Inside Diameter (mm) | 9.5 |
| Drop (mm) - T | 15 |
| Drop (in) - T | .59 |
| Nut Hex (mm) - H2 | 24 |
| Cut Off (mm) - C | 61.2 |
| Cut Off (in) - C | 2.41 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

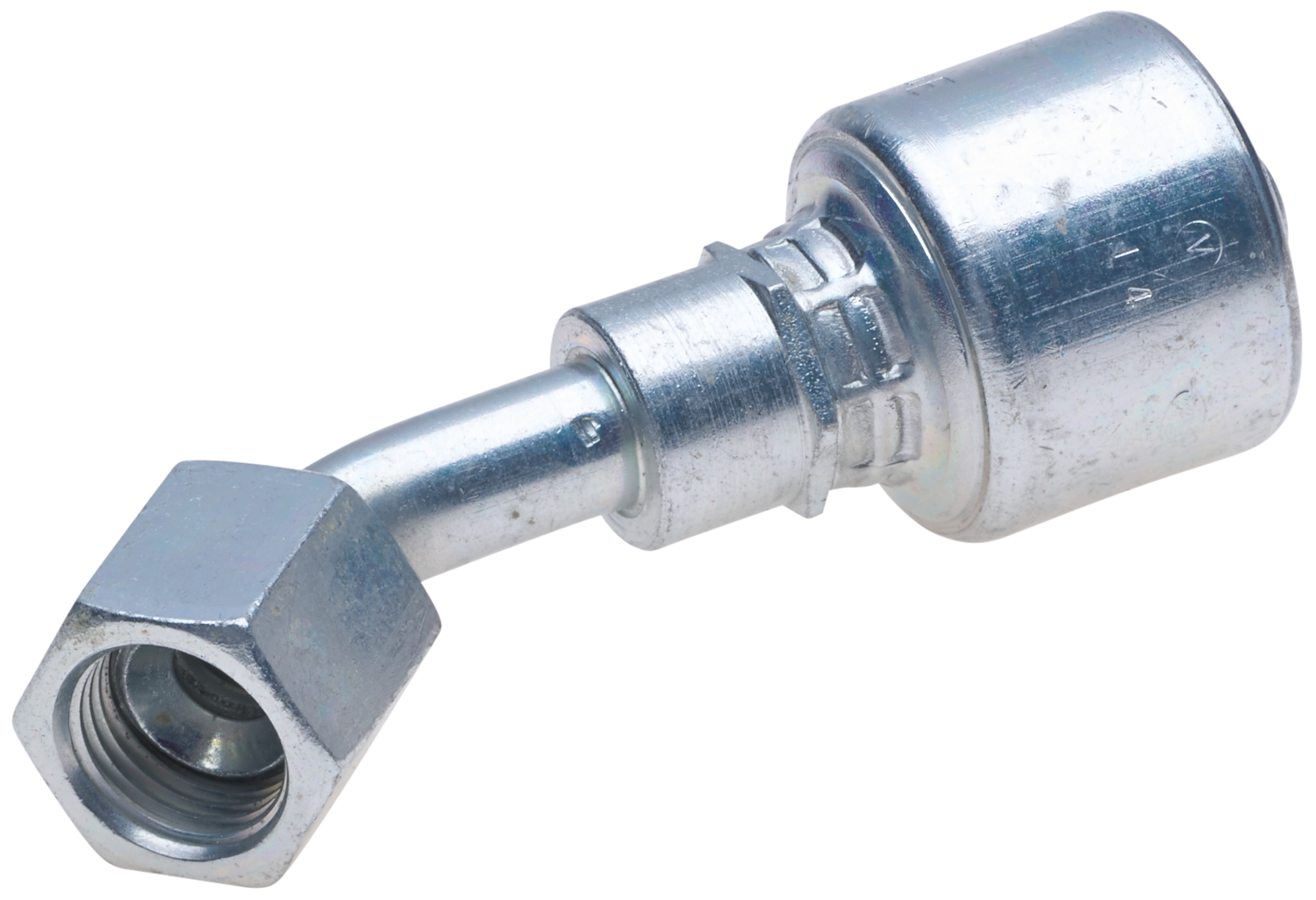

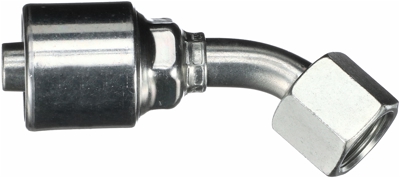

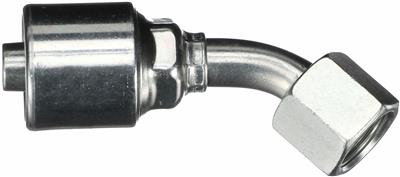

| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 6G-8FJX45S |
| Heavy Duty Supplier | Yes |
| Nose Seat | Standard |
| Mating Angle | 37 |
| Bent Tube Angle | 45 |
| Length (in) | 3.51 |
| Length (MM) | 89.1 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Coupling / Adapter |
