| Length | 4.22 |
| Inside Diameter | 15.9 |
| Seal Type | Mated Angle |
| Thread Size | 1 1/16-12 |
| Swivel | Yes |
| Gender | Female |
| Drop Length | 48 |
| Hose Inside Diameter (in) | .625 |
| Hose Inside Diameter (mm) | 15.9 |
| Drop (mm) - T | 48 |
| Drop (in) - T | 1.89 |
| Cut Off (mm) - C | 68.6 |
| Cut Off (in) - C | 2.7 |
| Nut Hex (mm) - H2 | 32 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

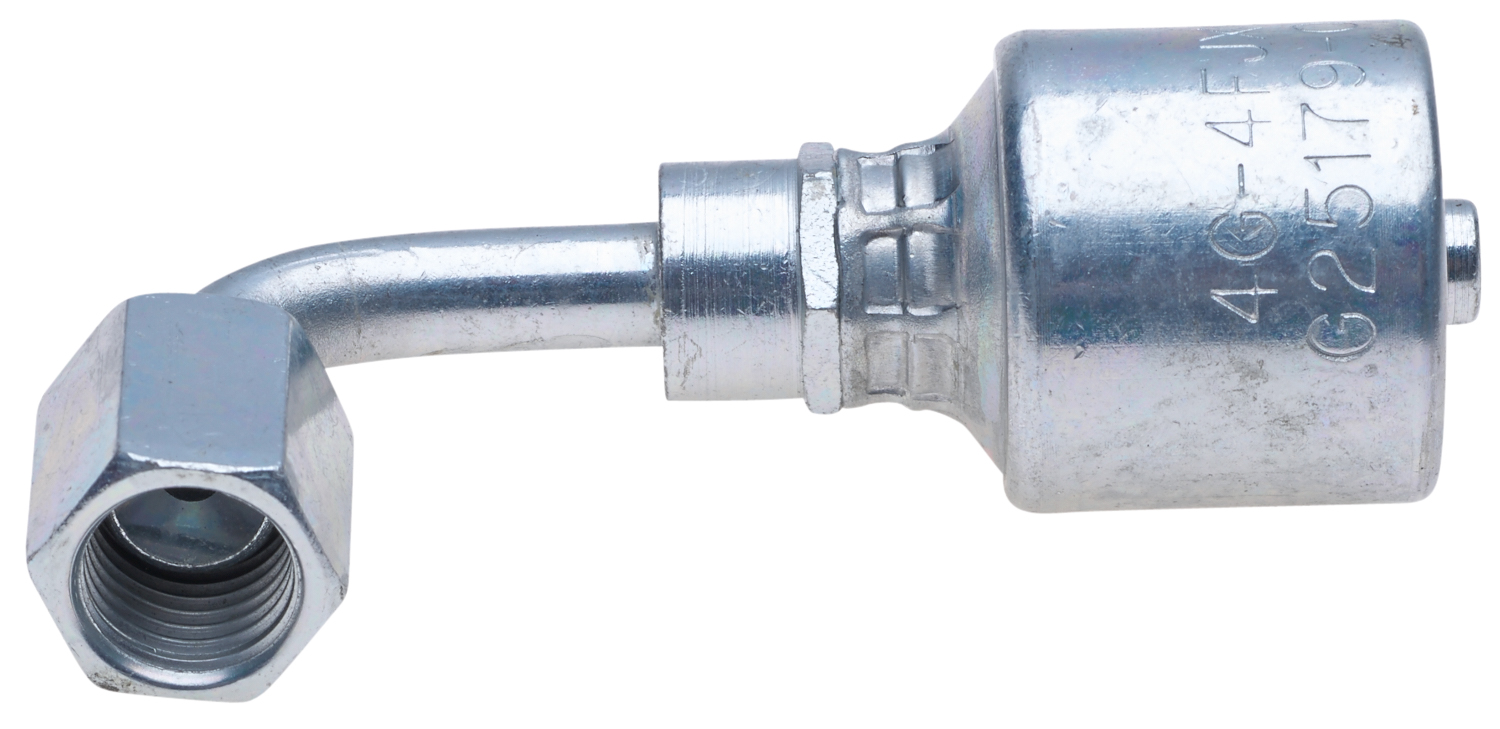

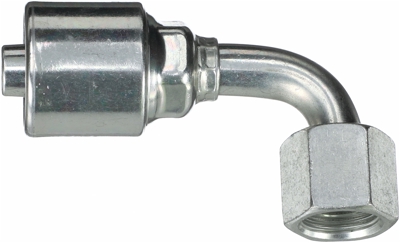

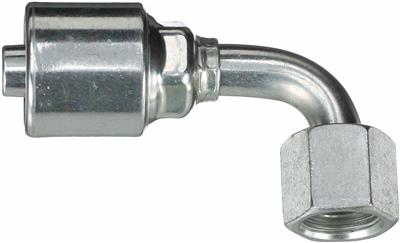

| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 10G-12FJX90S |
| Heavy Duty Supplier | Yes |
| Nose Seat | Standard |
| Mating Angle | 37 |
| Bent Tube Angle | 90 |
| Length (in) | 4.22 |
| Length (MM) | 107.3 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Coupling / Adapter |
