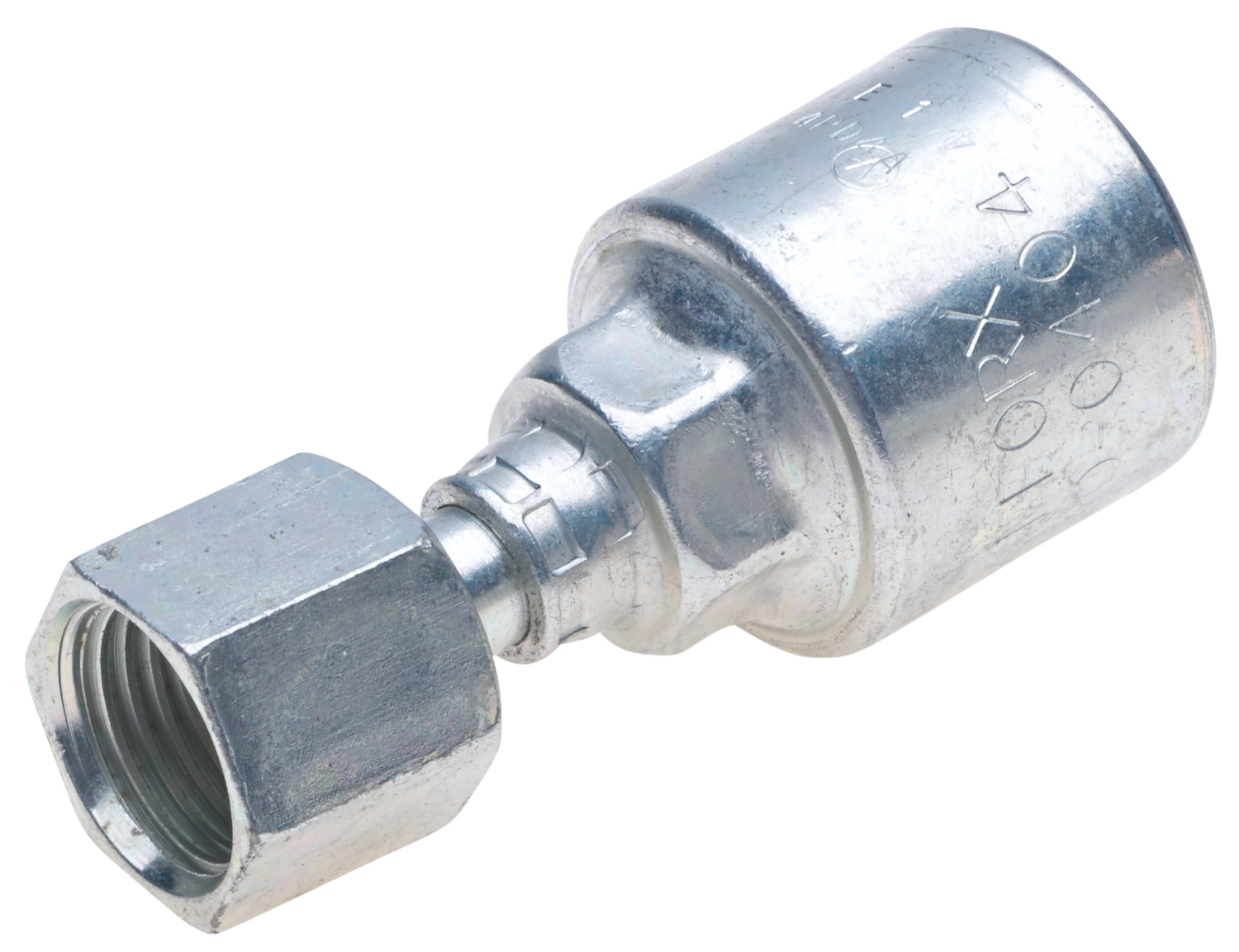

| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel |
| Cut Off (in) - C | 1.52 |
| Hose Inside Diameter (mm) | 15.9 |
| Seal Type | O-Ring |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .625 |
| Thread Size | 1-14 |
| Gender | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex (mm) - H2 | 30 |
| Stem Hex (mm) - H1 | 24 |
| Bent Tube Angle | Straight |
| Bulkhead | No |
| Length | 76 |
| Inside Diameter | .625 |
| O-Ring Location | Flat Face O-Ring |
| Length (in) | 2.99 |
| Swivel | Yes |
| Length (MM) | 76 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 38.5 |
| Industrial Description | 10G-10FFORX |
| Part Terminology | Hydraulic Coupling / Adapter |
