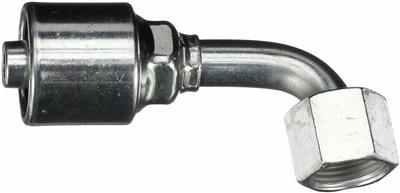

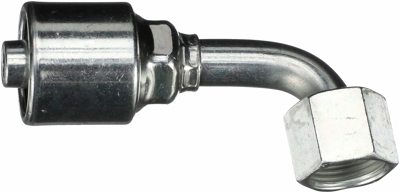

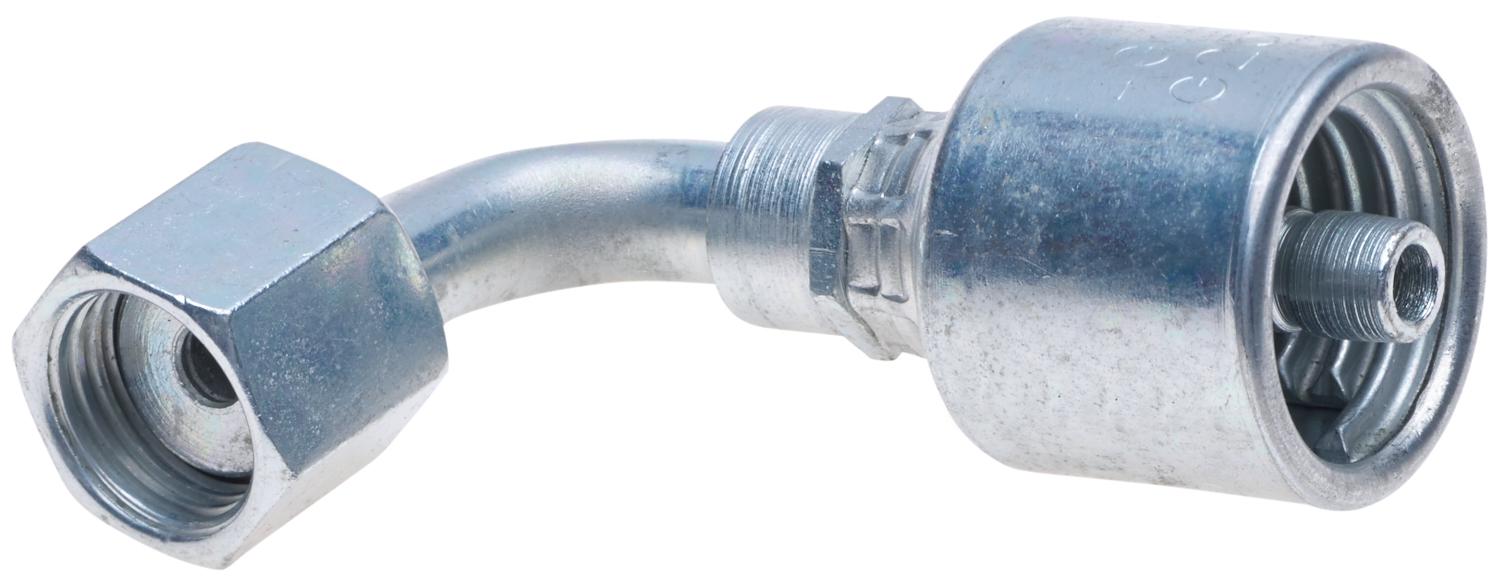

Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Part # G25240-0406 | Line Code: GAT
brandNameImage
brandNameImage

$43.99
$43.99
error
Not Fitted

Product Details
expand_less
Length 2.5
Inside Diameter .25
Thread Size 11/16-16
Drop Length 38
Swivel Yes
Gender Female
Seal Type O-Ring
Length (in) 2.5
Hose Inside Diameter (in) .25
Hose Inside Diameter (mm) 6.4
Drop (mm) - T 38
Drop (in) - T 1.5
Nut Hex (mm) - H2 22
Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Cut Off (in) - C 1.47
Coupling Description MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube
Cut Off (mm) - C 37.4
Industrial Description 4G-6FFORX90M
Heavy Duty Supplier Yes
O-Ring Location Flat Face O-Ring
Bent Tube Angle 90
Bulkhead No
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Length (MM) 63.4
Part Terminology Hydraulic Coupling / Adapter

Features & Benefits
expand_more
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
