| Inside Diameter | .5 |
| Length | 80 |
| Flange Thickness | 6.9 |
| Flange Diameter | 30.2 |
| Seal Type | O-Ring |
| Hose Inside Diameter (in) | .5 |
| Hose Inside Diameter (mm) | 12.7 |
| Flange Head Thickness (mm) - F | 6.9 |
| Flange Head Thickness (in) - F | .27 |
| Flange Diameter (mm) - M | 30.2 |
| Flange Diameter (in) - M | 1.19 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Cut Off (in) - C | 1.67 |
| Cut Off (mm) - C | 42.5 |
| Industrial Description | 8G-8FL |

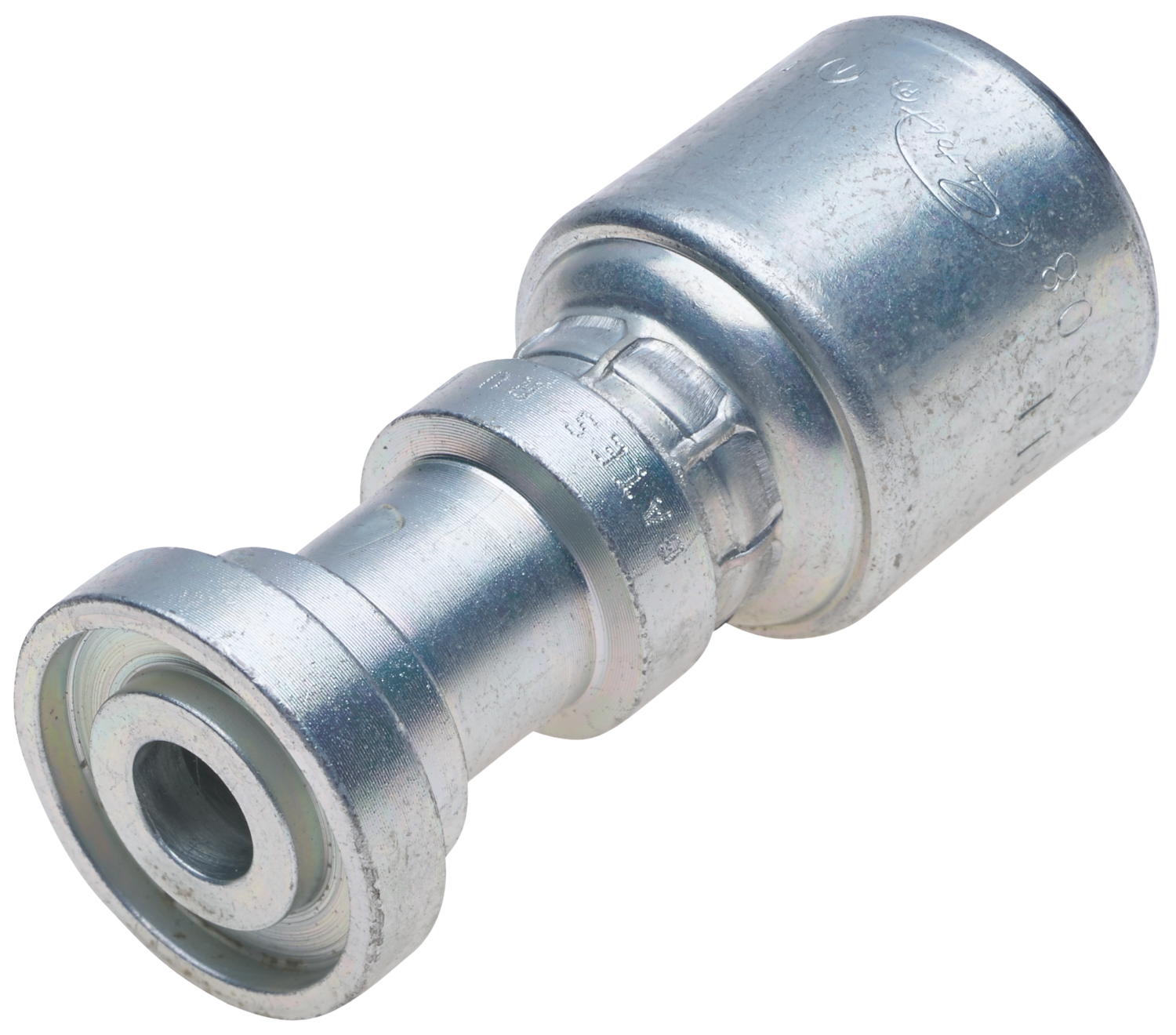

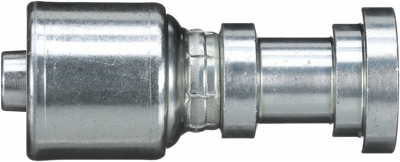

| Coupling Description | MegaCrimp Code 61 O-Ring Flange |
| Heavy Duty Supplier | Yes |
| Bent Tube Angle | Straight |
| Termination | Code 61 |
| O-Ring Location | Flange Groove |
| Length (MM) | 80 |
| Length (in) | 3.15 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Coupling / Adapter |
