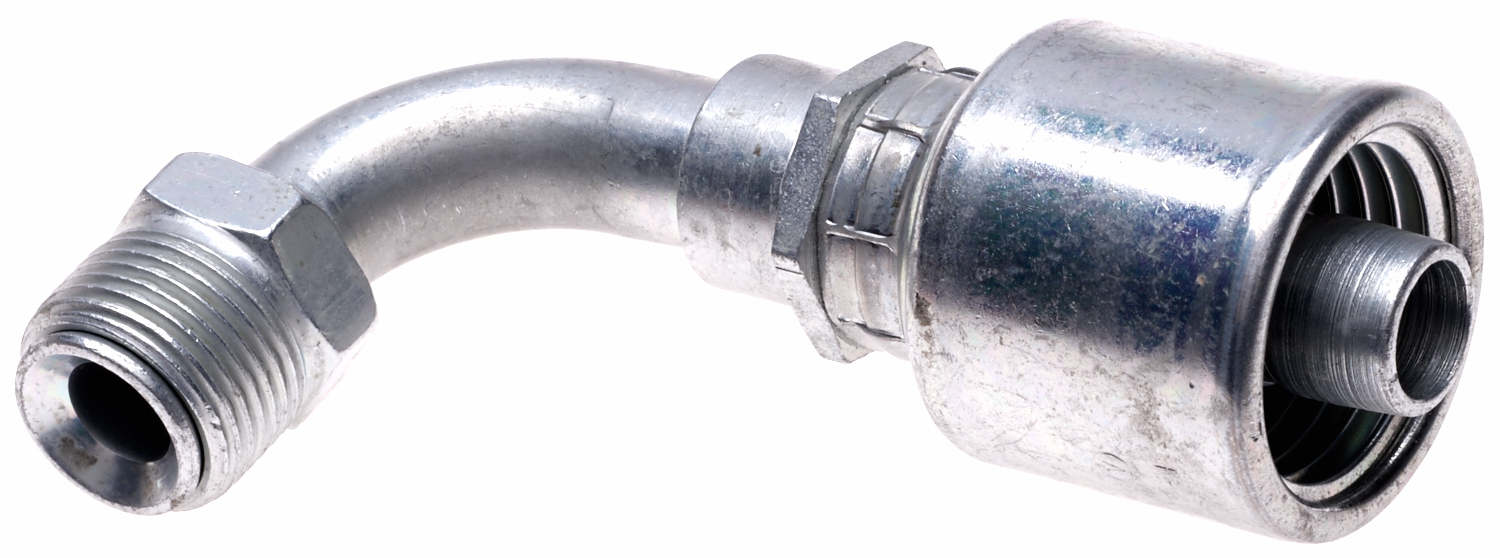

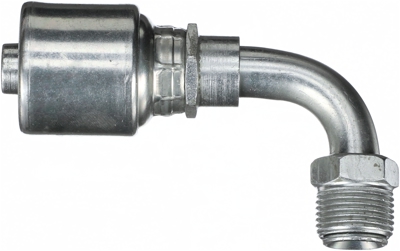

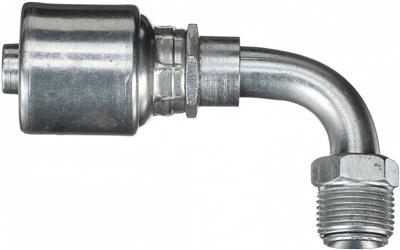

| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Cut Off (in) - C | 1.44 |
| Mating Angle | 45 |
| Hose Inside Diameter (mm) | 6.4 |
| Seal Type | Mated Angle |
| Nut Hex (in) - H2 | .5 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .25 |
| Drop Length | 35.1 |
| Thread Size | 1/2-20 |
| Gender | Male |
| Drop (in) - T | 1.38 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Bent Tube Angle | 90 |
| Length | 2.46 |
| Inside Diameter | 6.4 |
| Length (in) | 2.46 |
| Swivel | Yes |
| Drop (mm) - T | 35.1 |
| Length (MM) | 62.5 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 36.5 |
| Nose Seat | Inverted |
| Industrial Description | 4G-5MIX90 |
| Part Terminology | Hydraulic Coupling / Adapter |
