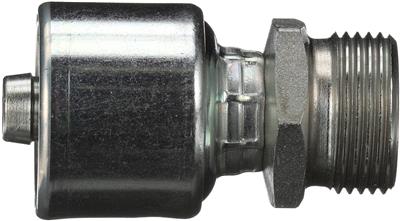

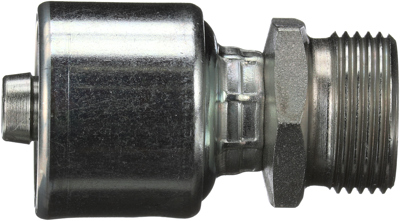

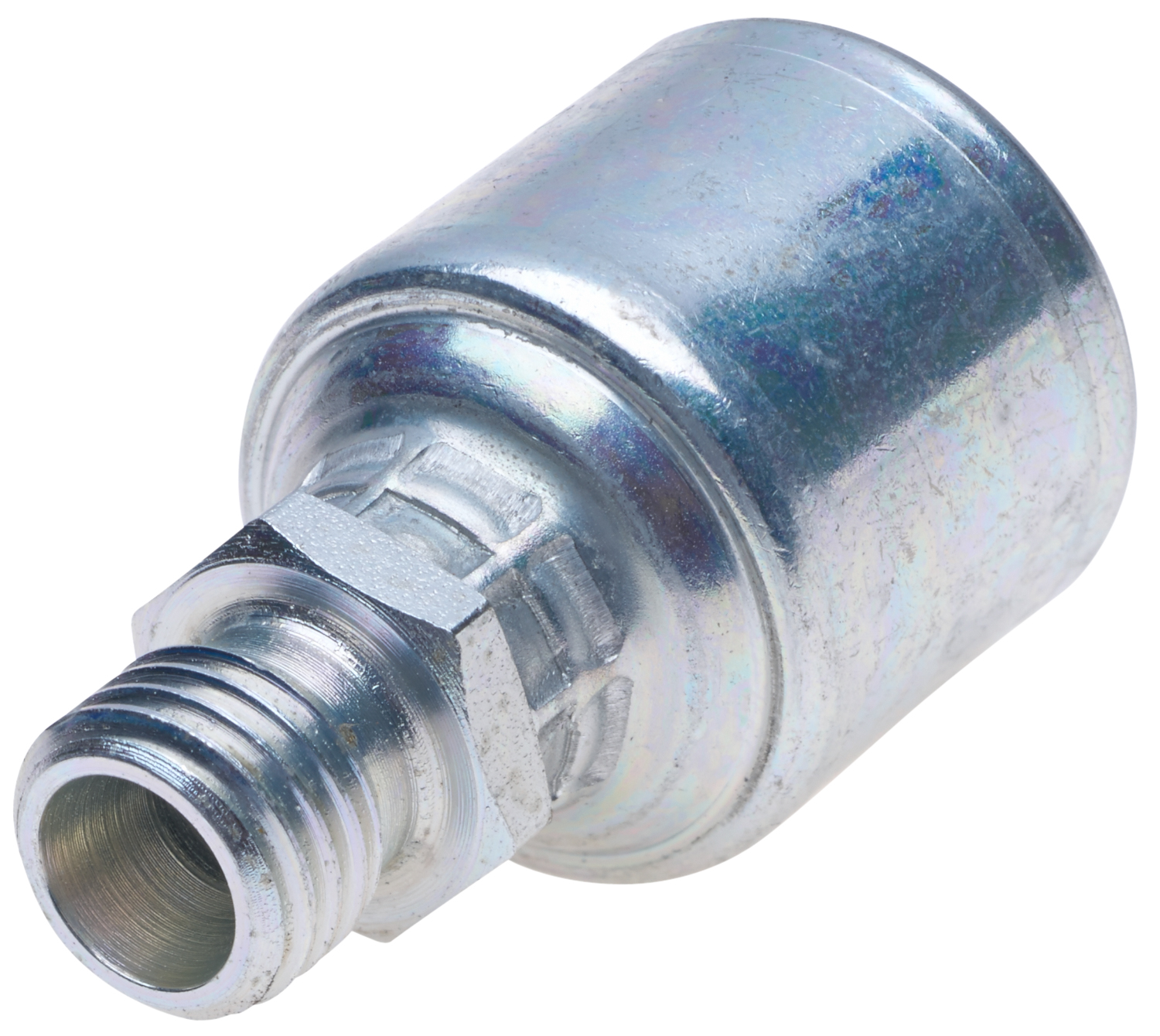

| Coupling Description | MegaCrimp Male DIN 24 Cone - Light Series |
| Seal Type | Mated Angle w/O-Ring |
| Heavy Duty Supplier | Yes |
| Seated Angle | 24 |
| Hose Inside Diameter (in) | .375 |
| Gender | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex (mm) - H1 | 17 |
| Inside Diameter | 9.5 |
| Length (in) | 2.07 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 10 |
| Cut Off (mm) - C | 24.6 |
| Industrial Description | 6G-10MDL |
| Cut Off (in) - C | .97 |
| DIN Series | Light |
| Hose Inside Diameter (mm) | 9.5 |
| Termination | DIN |
| Thread Size | M16X1.5 |
| Seat Angle | 24 |
| Bent Tube Angle | Straight |
| Length | 2.07 |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Swivel | No |
| Length (MM) | 52.5 |
| Outside Diameter | 10 |
| Part Terminology | Hydraulic Coupling / Adapter |
