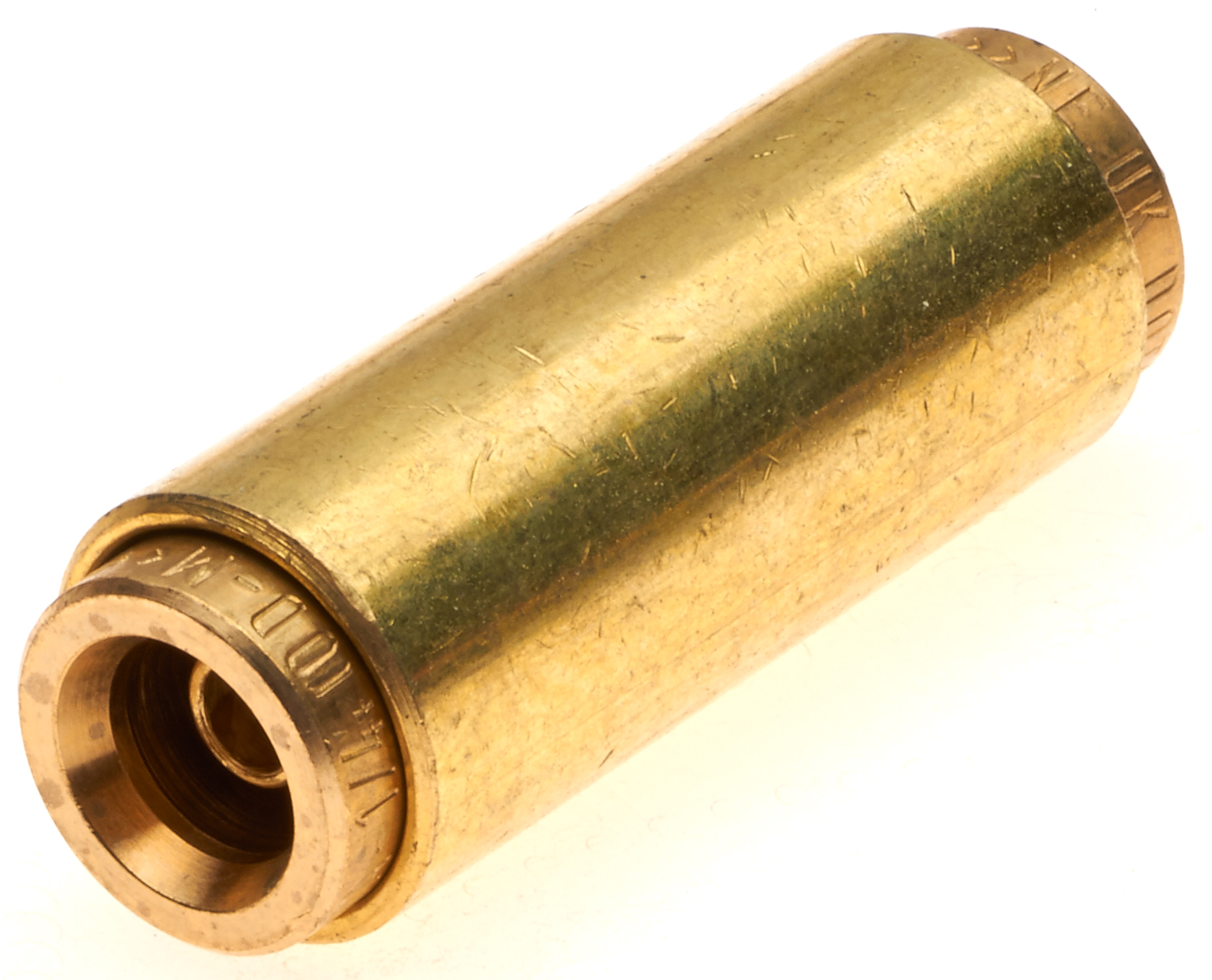

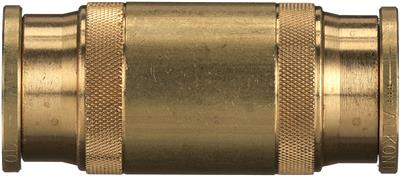

Air Brake Union (SureLok)
Part # G31400-1212 | Line Code: GAT
brandNameImage
brandNameImage

$47.99
help
Not Fitted / Universal

Product Details
expand_less
Maximum Working Pressure 150
Length 63
Material 360 Brass
Seal Material Ethylene Propylene
Outside Diameter .75
Temperature Rating -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Maximum Working Pressure (psi) 150
Tube Outside Diameter (in) - A1 .75
Tube Inside Diameter (in) - A1 .75
Temperature Range -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Tube Inside Diameter (in) - A2 .75
Industrial Description 12AB-12AB
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Tube Outside Diameter (in) - A2 .75
Coupling Description SureLok Air Brake Union
Heavy Duty Supplier Yes
Part Terminology Hydraulic Coupling / Adapter

Features & Benefits
expand_more
Recommended for air brake systems compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
