| Thermal Or Centrifugal | B - Non-Thermal & Std Thermal |
| Clutch Maximum Diameter | 7.2 |
| Distance From Clutch To Mounting Flange | 1.4 |
| Mounting Type | Flange |
| Use Type | Standard |
| Rotation | STD |
| Mounting Hole Quantity | 4 |
| Color | Raw Aluminum in Color |
| Bolt Hole Quantity | 4 |
| Grade Type | Standard |
| Material | Aluminum |
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer. |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Fan Mount Height MM | 35.56 |
| Mount Type | Flange |
| O.E. Replacement? | Yes |
| New or Reman | New |
| Meets / Exceeds OEM? | Yes |
| SDS Required | No (135233618) |
| Mount Hole Qty | 4 |
| Performance Rated? | Yes |
| Mounting Hardware? | Not Included |
| Type | Thermal |
| Bolt Thread | 5/16-18 Hole |
| Bolt Quantity | 4 |
| Description | Fan Clutches |
| Electronic Clutch? | Non Electronic |
| Duty Rating | Standard |
| Style | Standard Duty |
| Overall Dia. MM | 182.9 |
| Mount Dia. MM | 59 |
| Drawing Type | B |
| Pilot Depth MM | 19.1 |
| Mount Dia. IN | 2.33 |
| Fan Mount Dia. MM | 60.2 |
| Fan Bolt Circle MM | 76.2 |
| Overall Height MM | 75.7 |
| Warranty | 1 year/12,000 miles |
| Dia. IN | 7.2 |
| Pilot Dia. IN | .63 |
| Mounting Hardware Included | No |
| Overall Dia. IN | 7.2 |
| Pilot Depth IN | 0.75 |
| Fan Mount Dia. IN | 2.37 |
| Fan Bolt Circle IN | 3 |
| Overall Height IN | 2.98 |

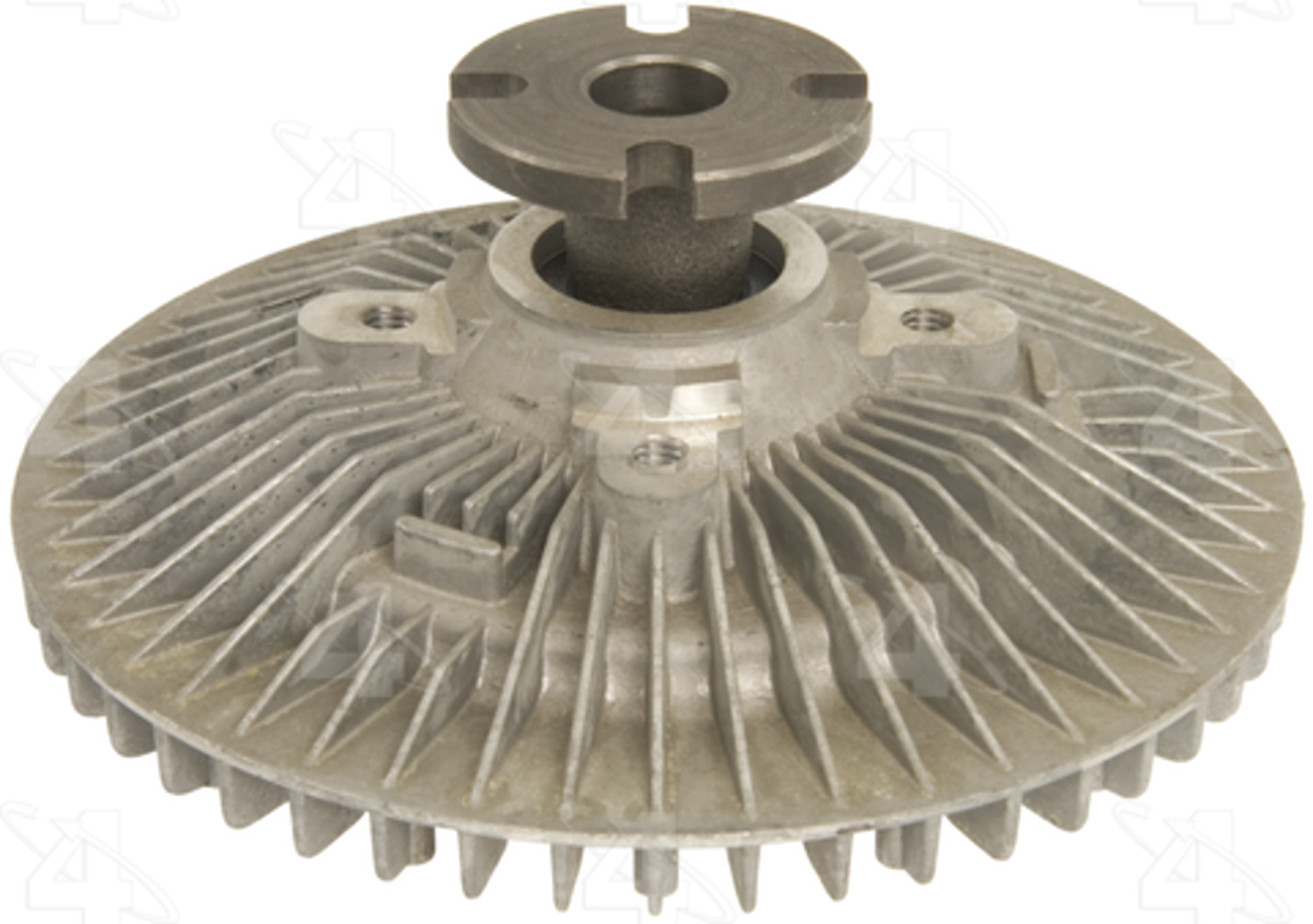

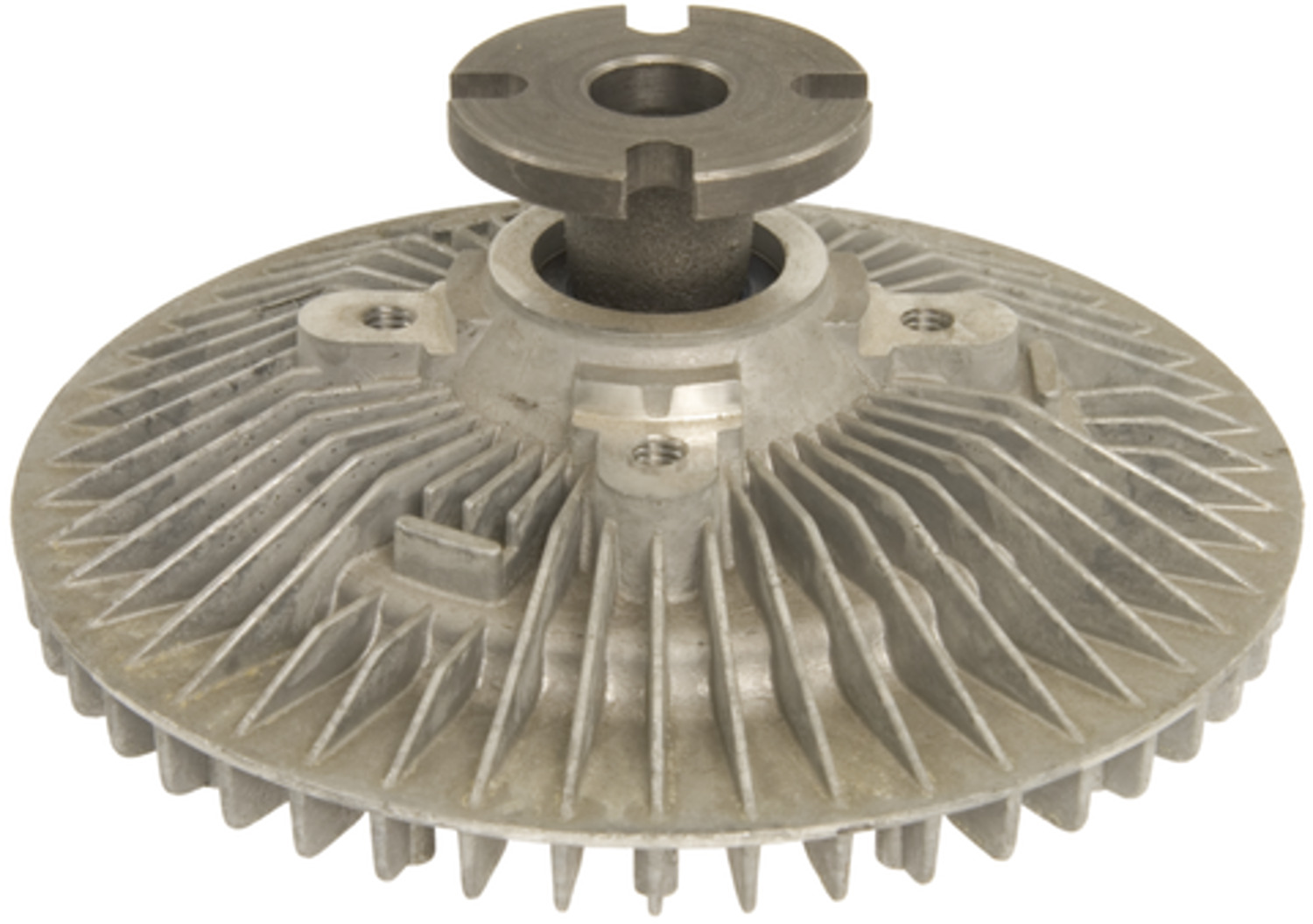

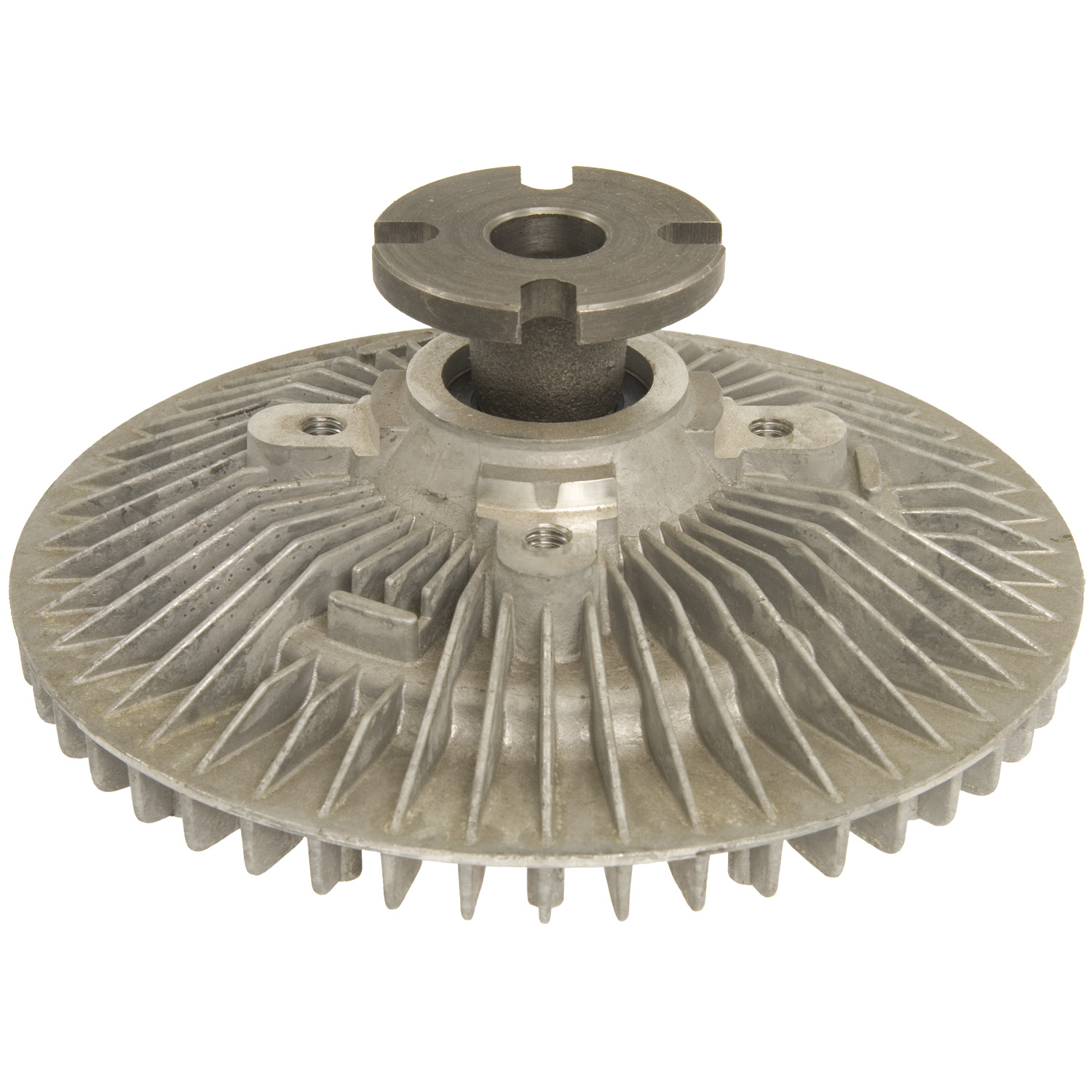

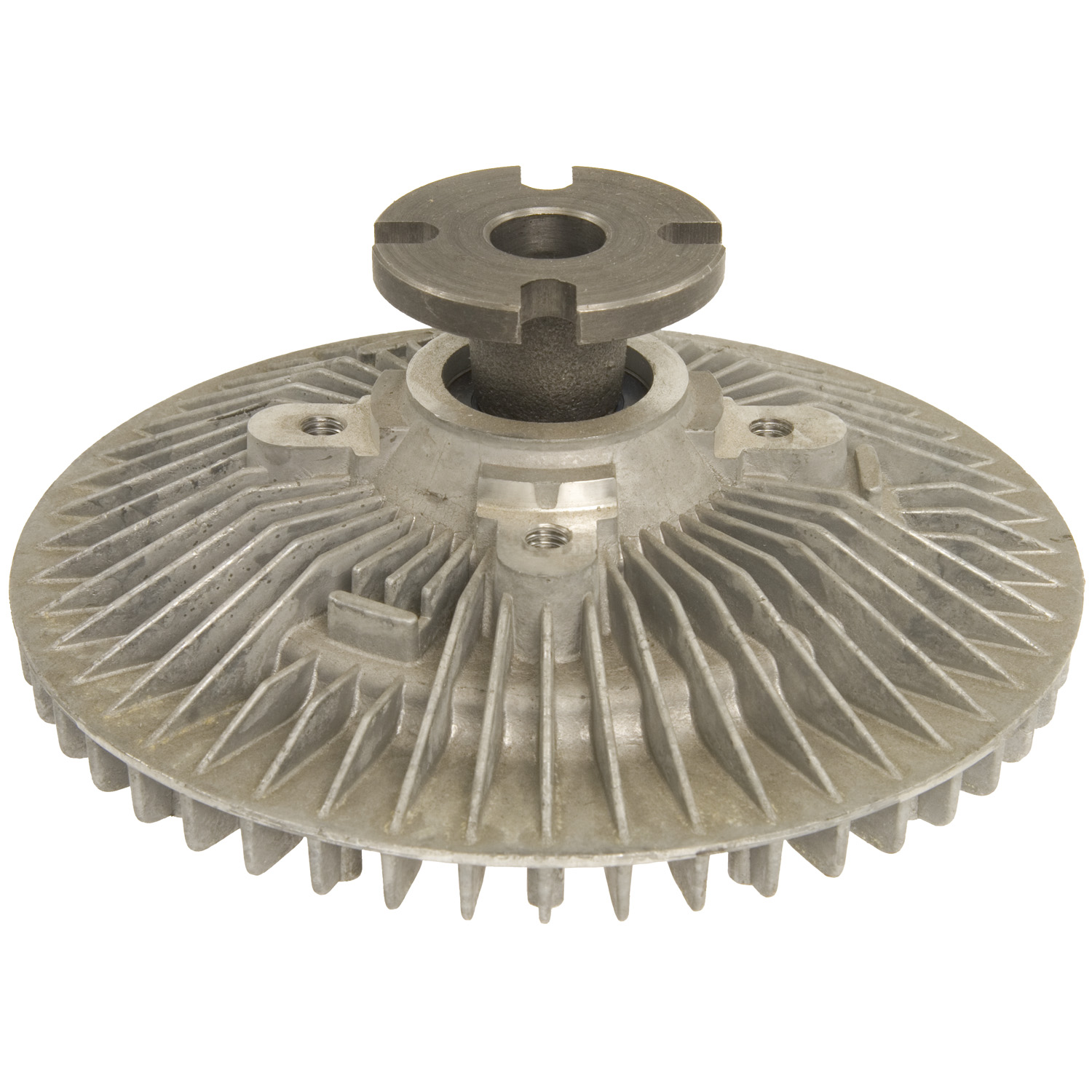

| Part Terminology | Engine Cooling Fan Clutch |
