Shocks & Struts

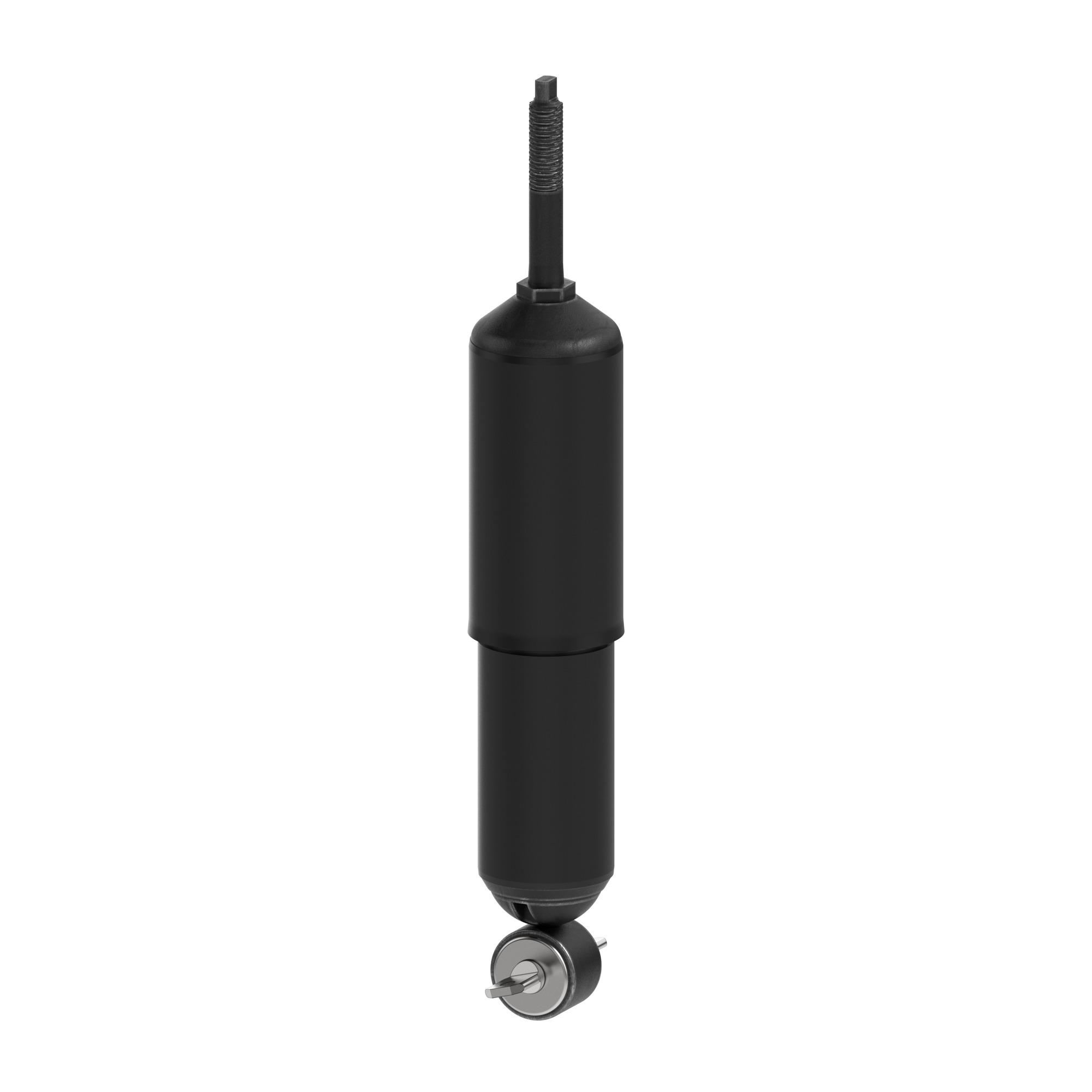

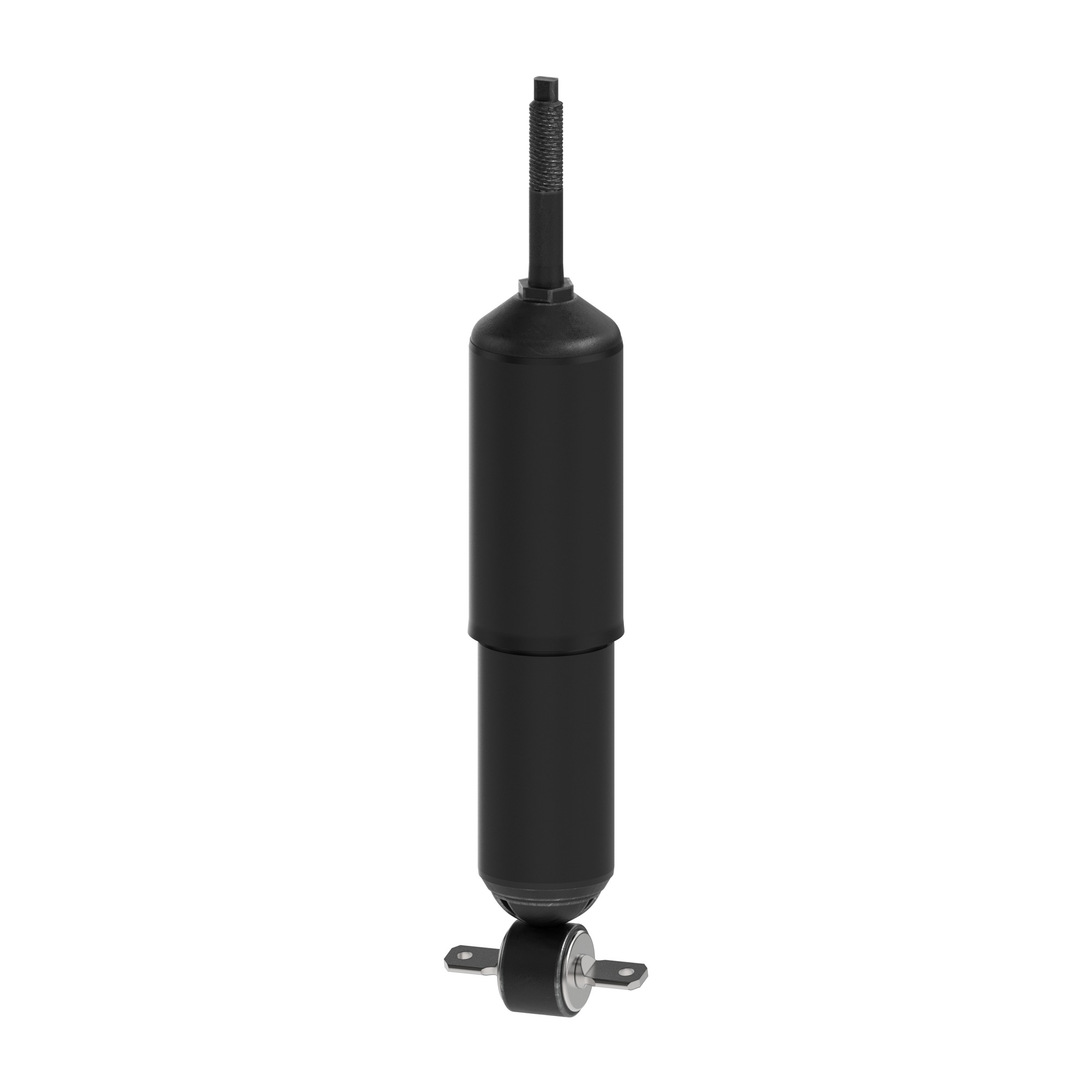

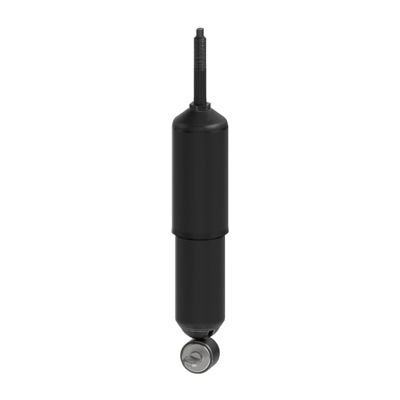

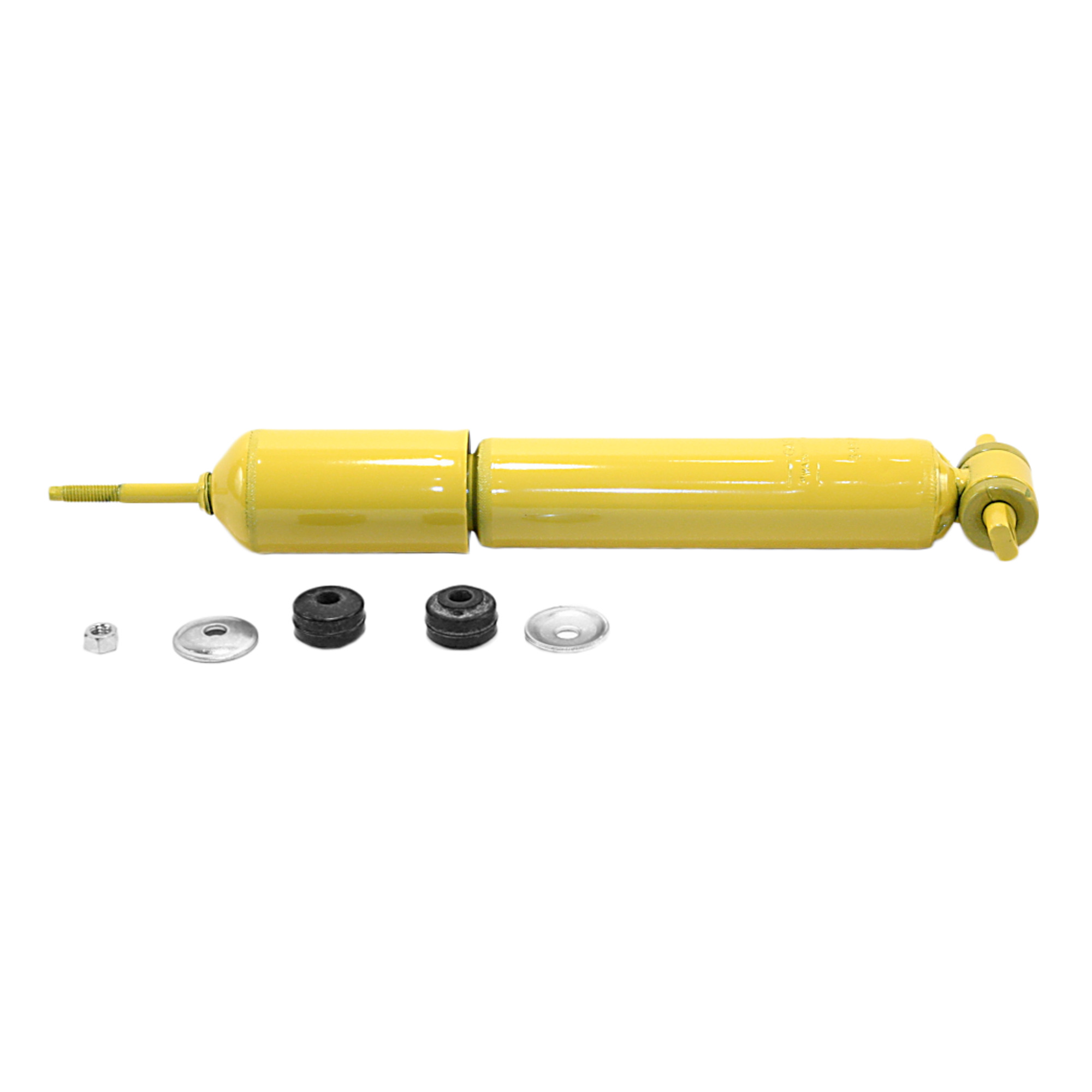

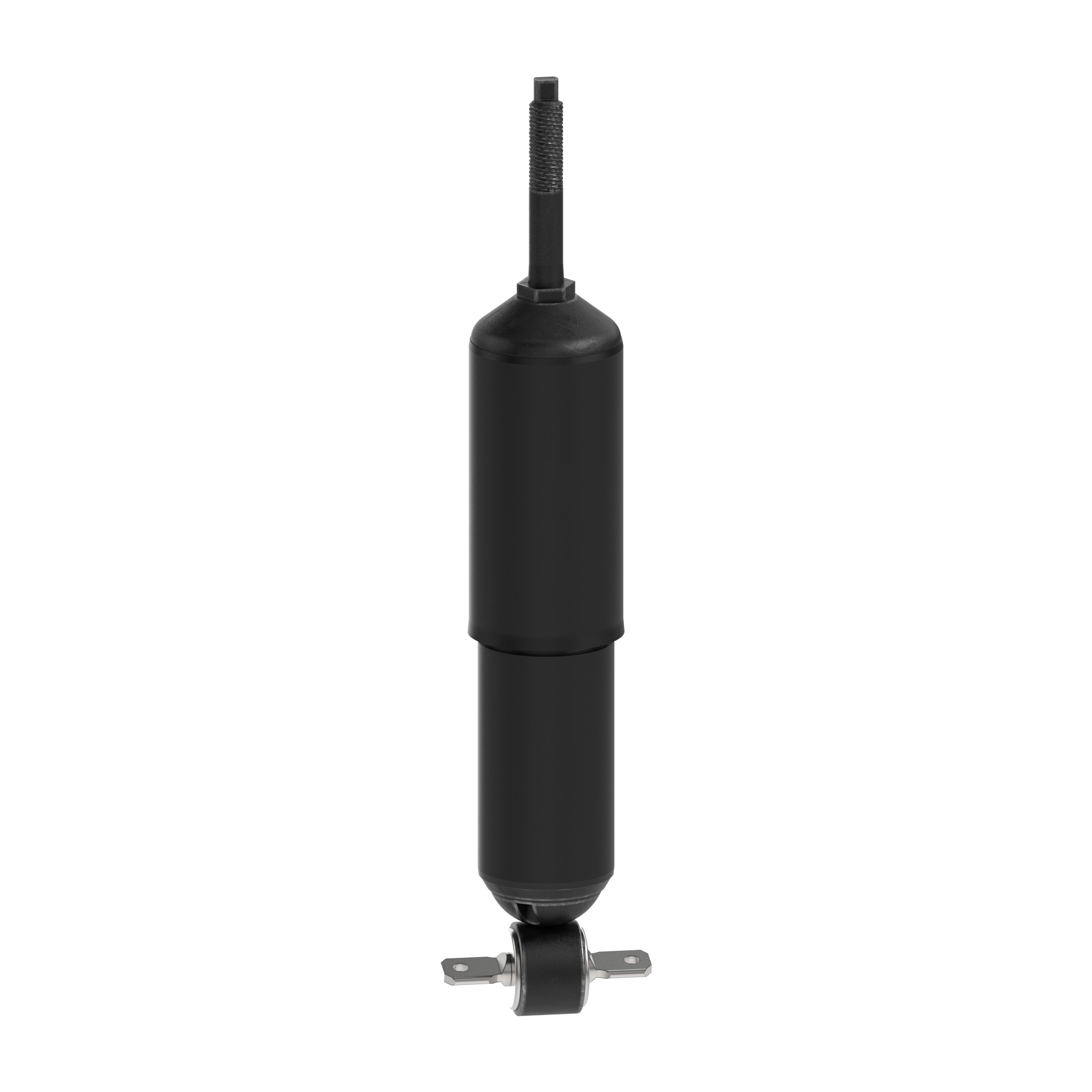

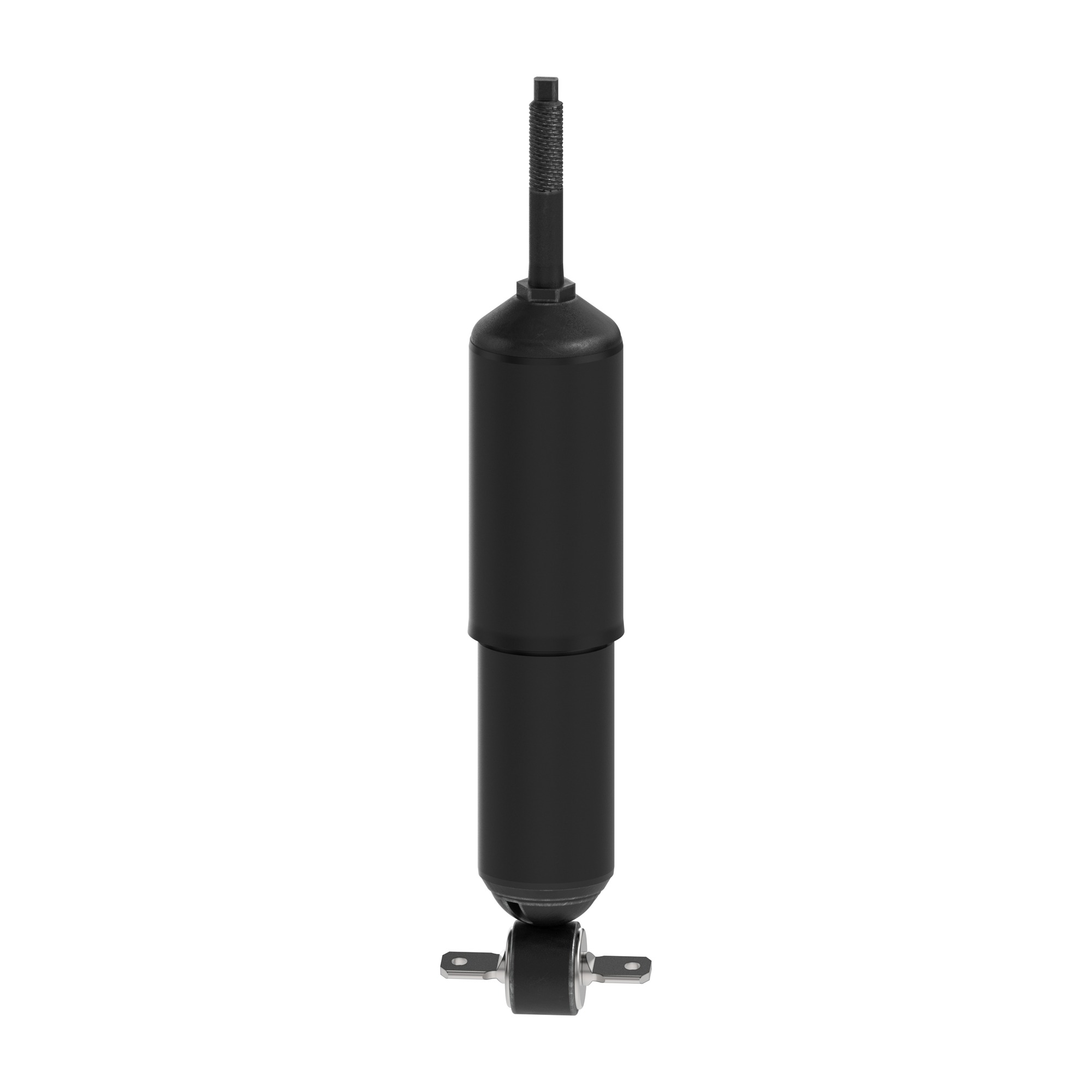

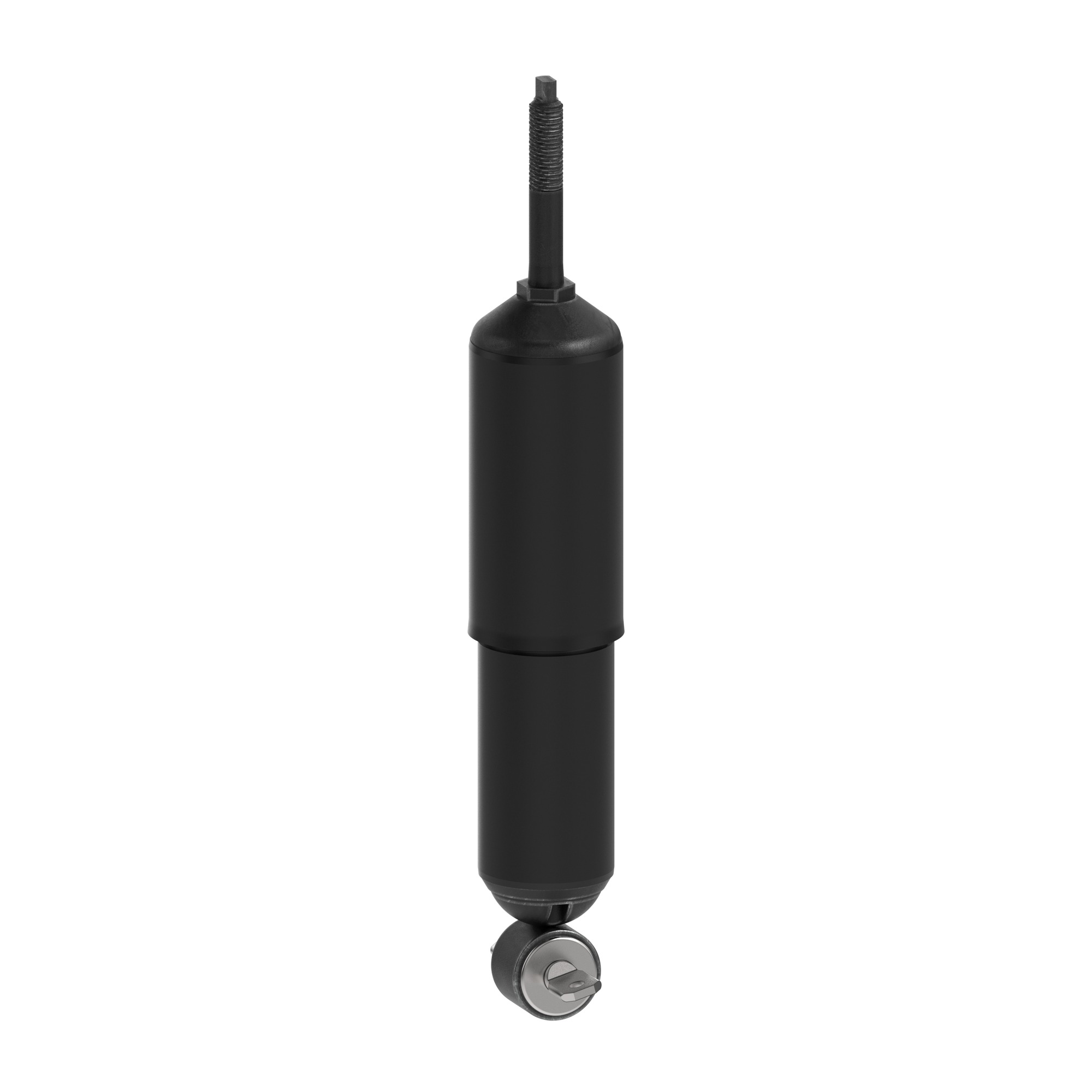

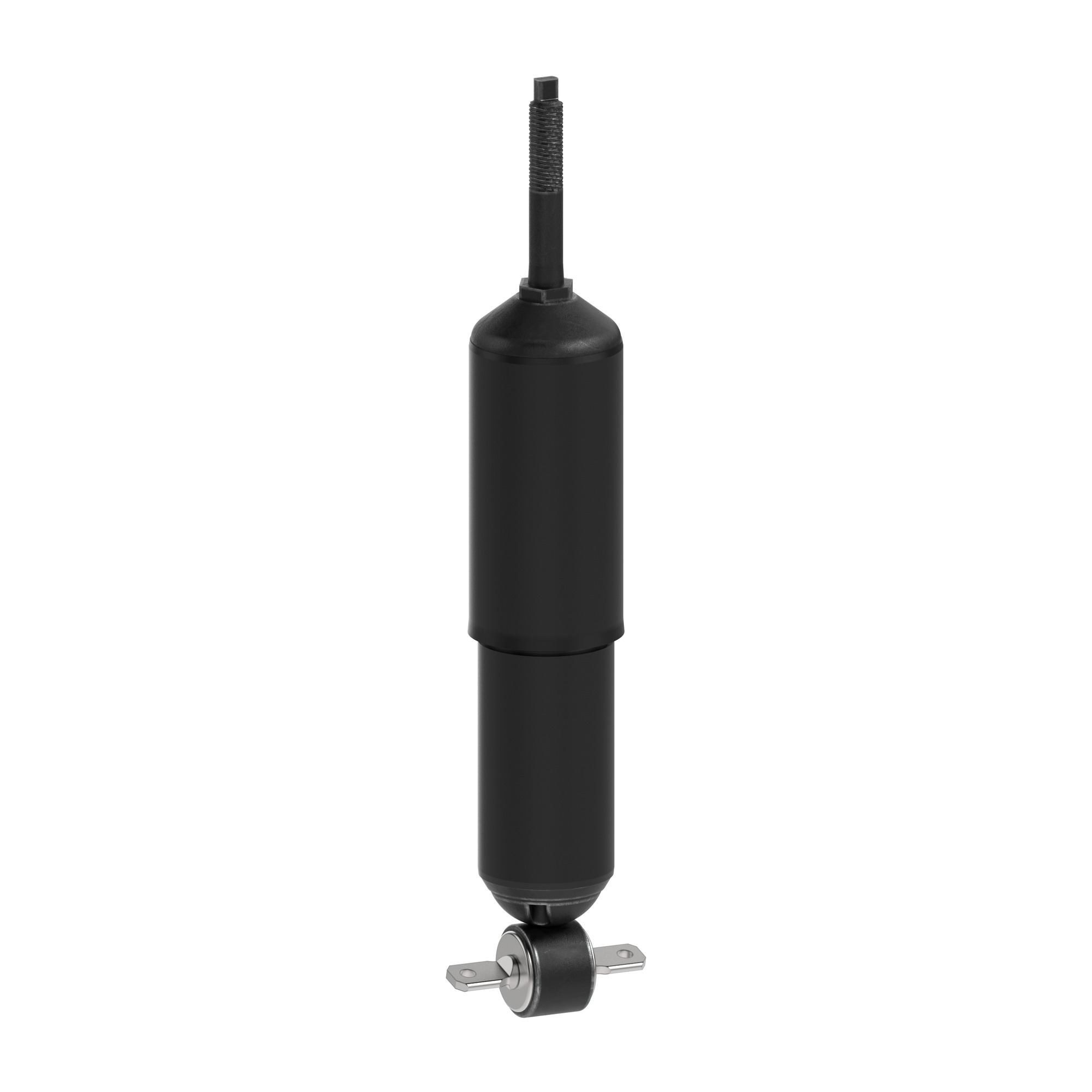

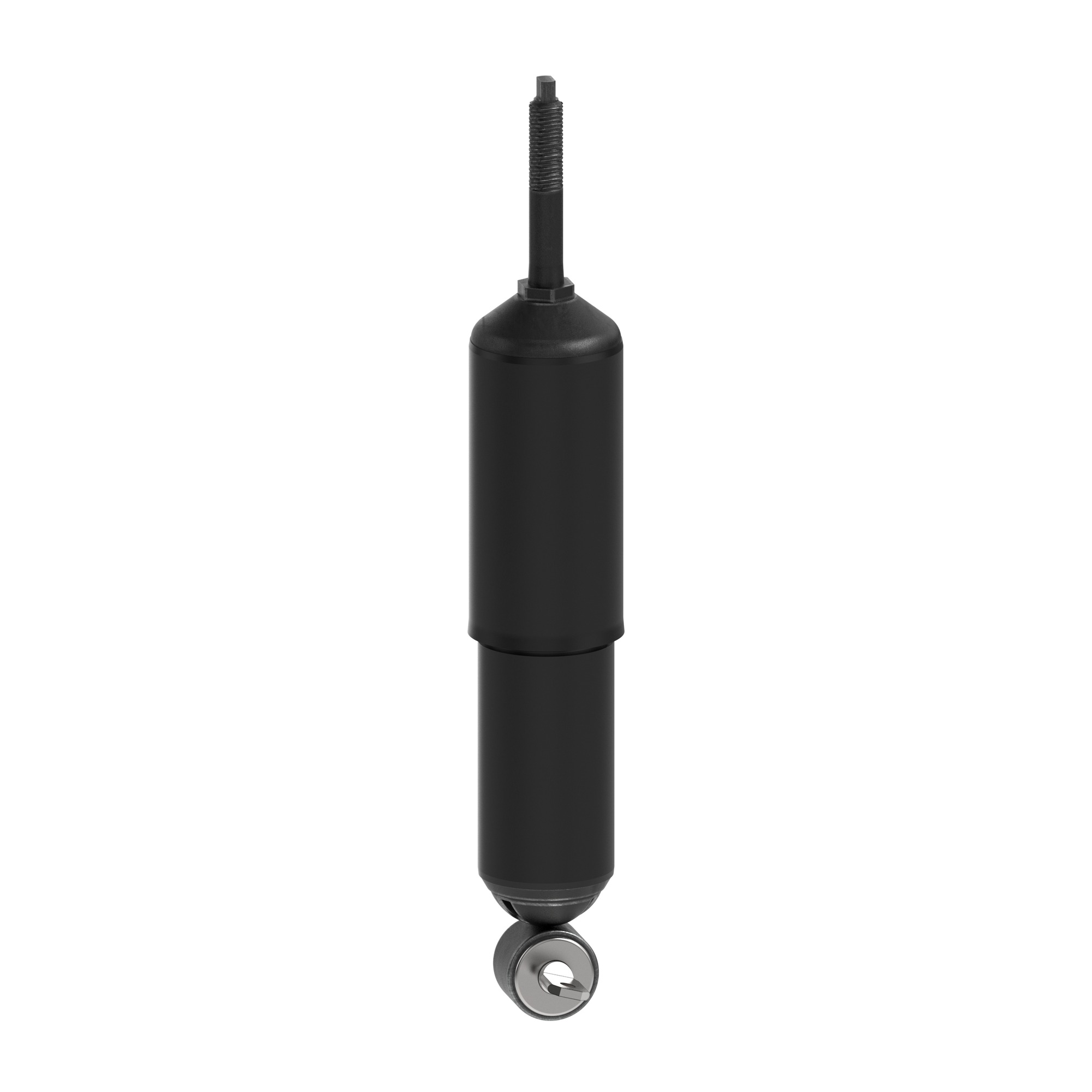

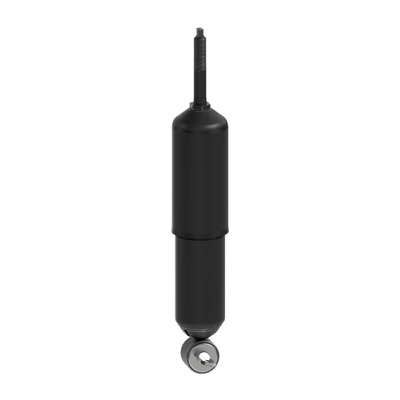

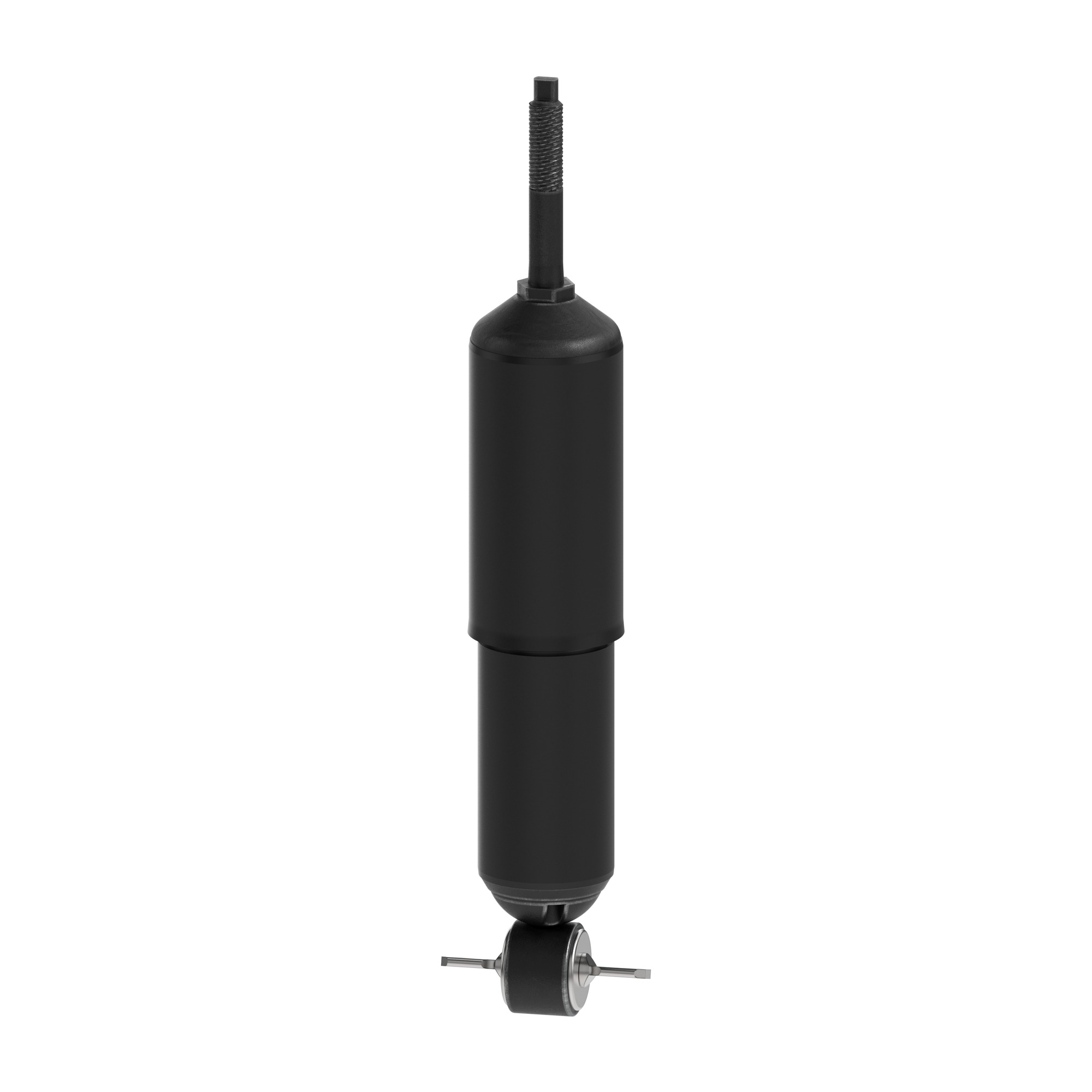

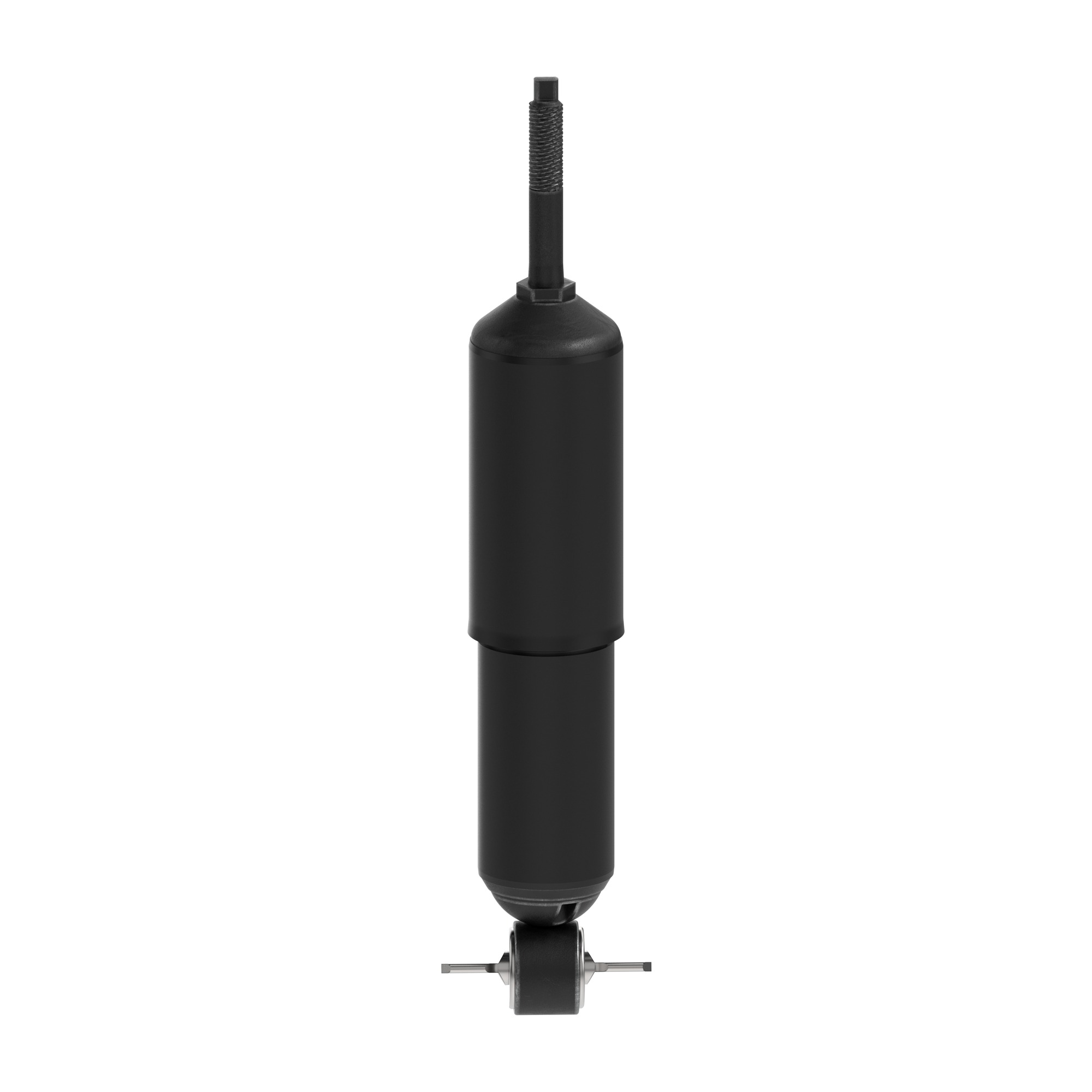

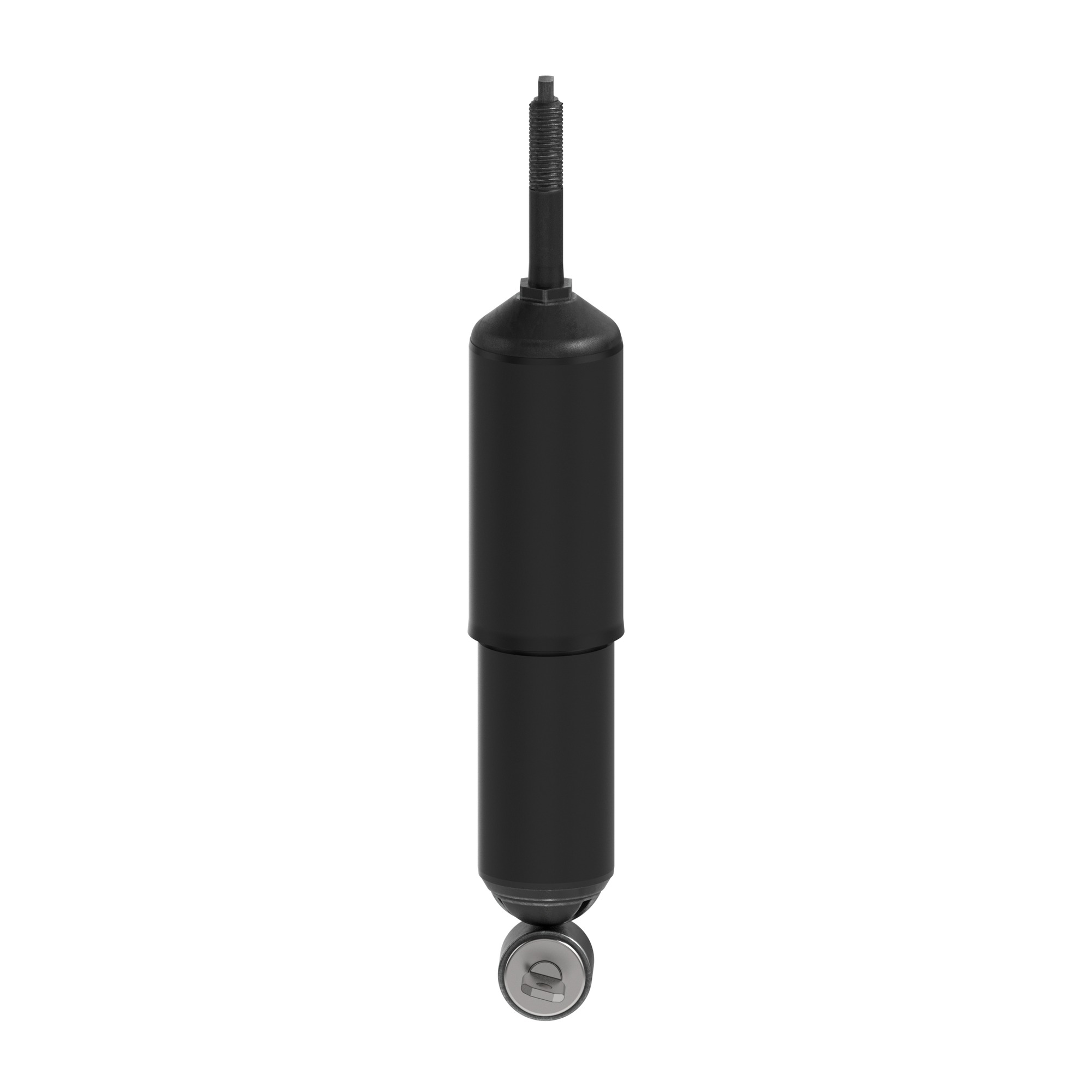

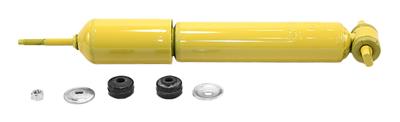

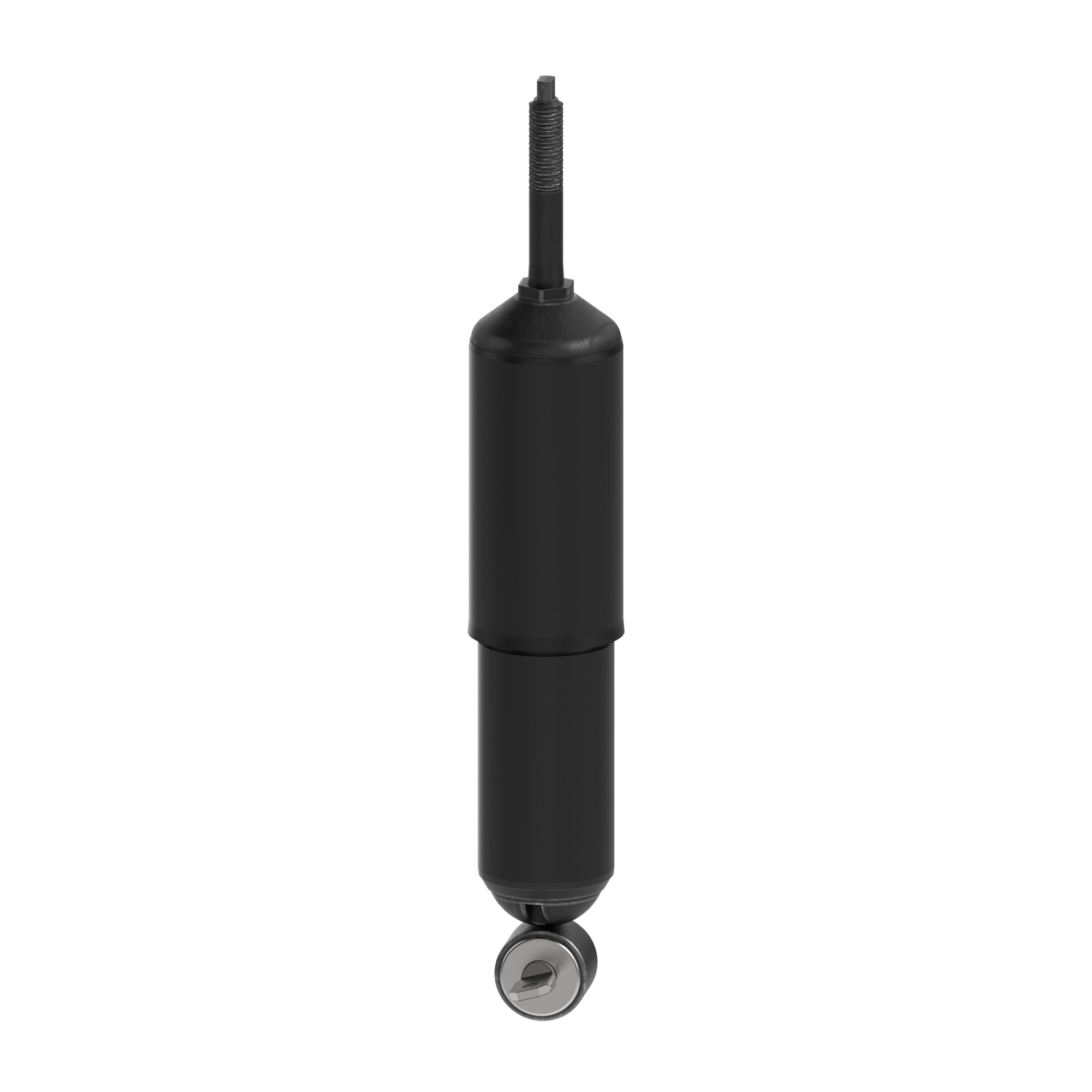

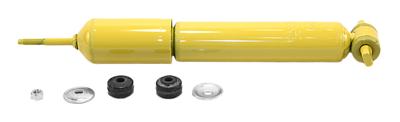

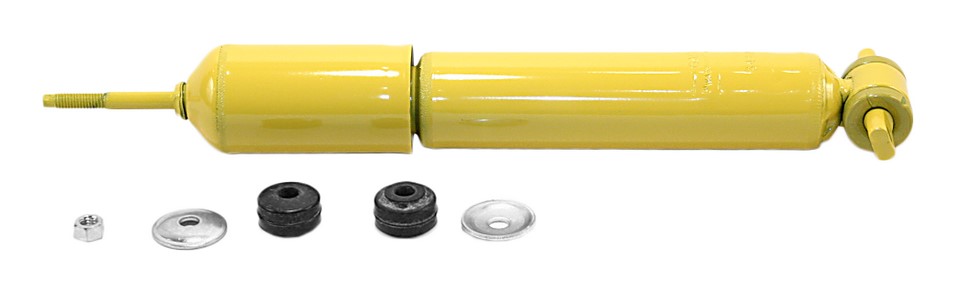

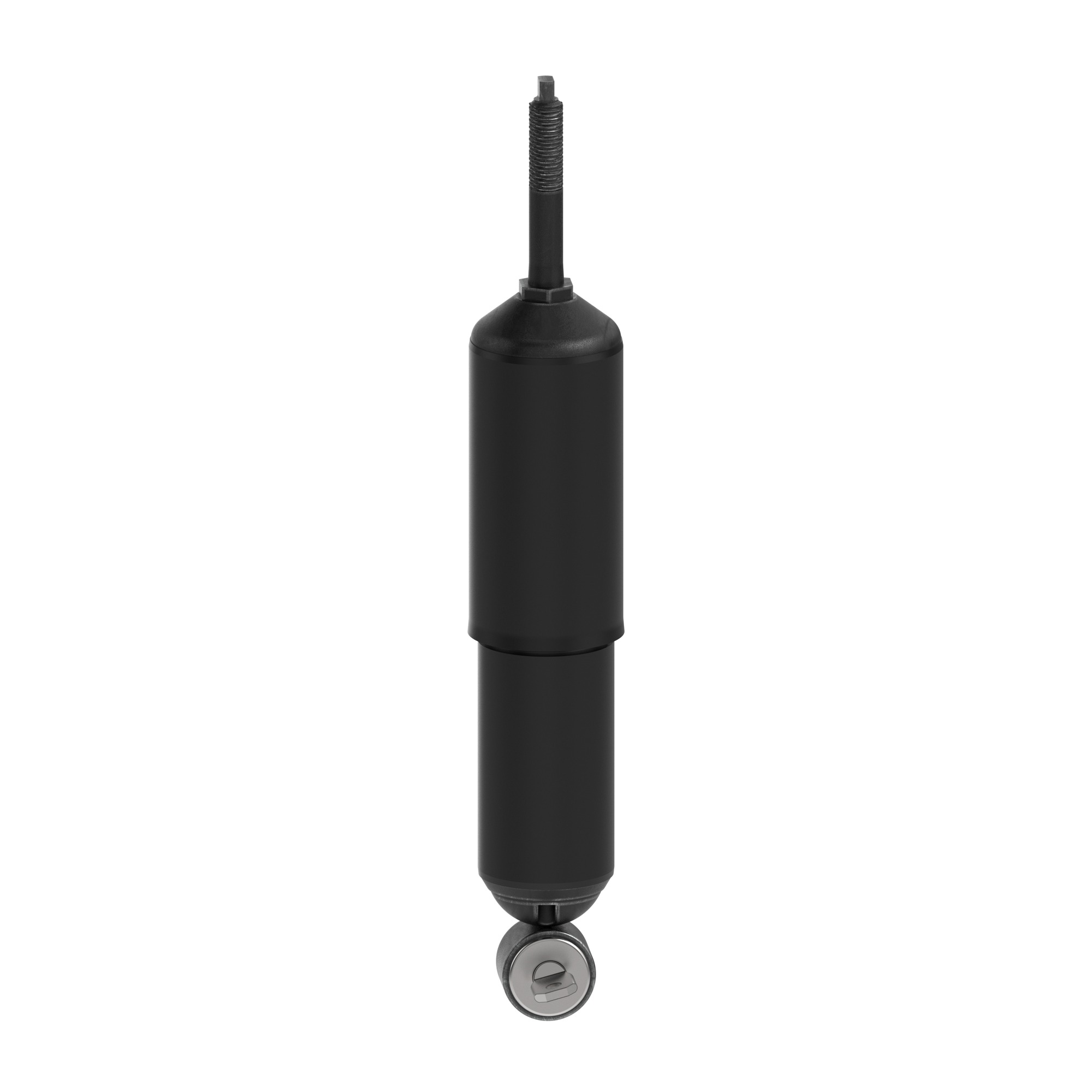

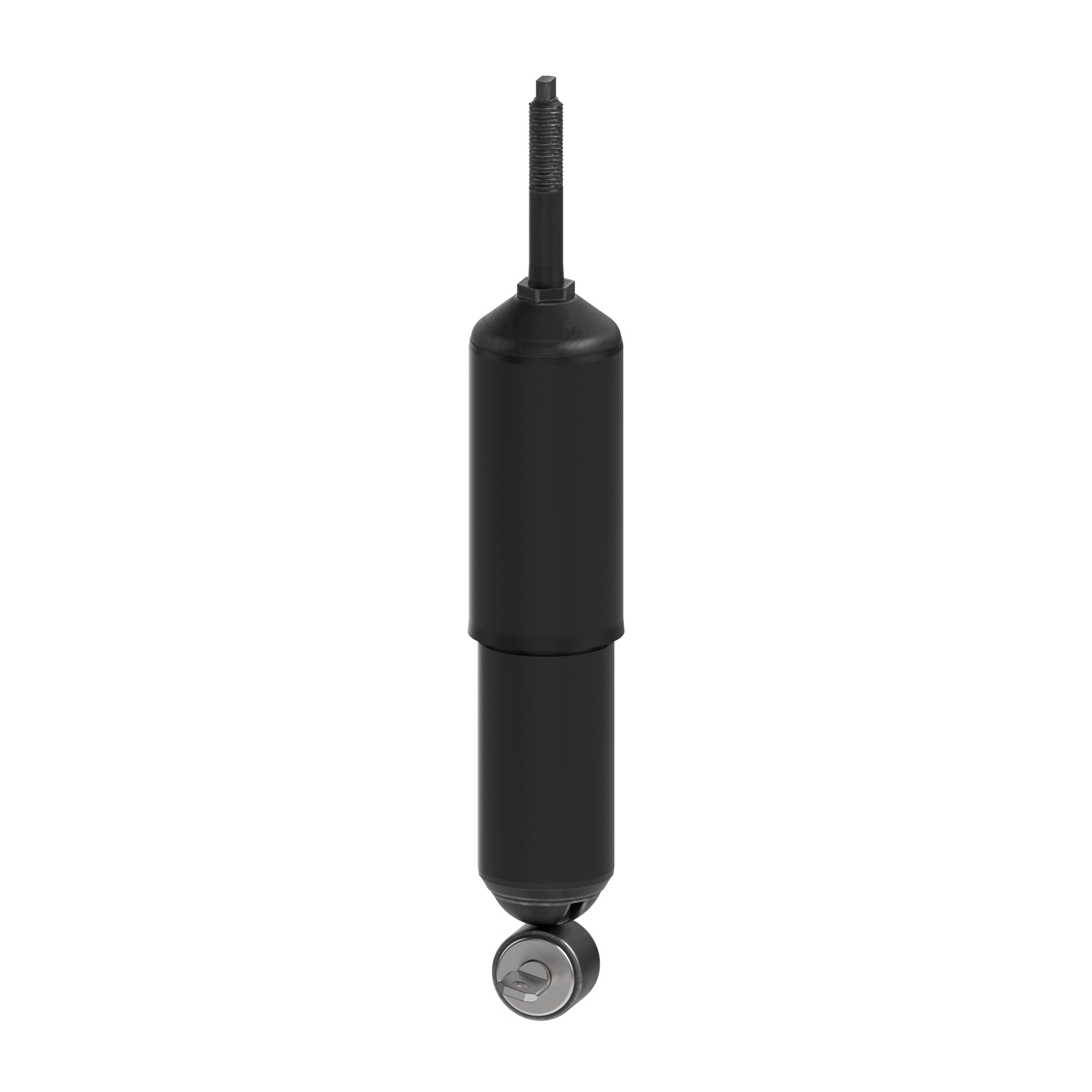

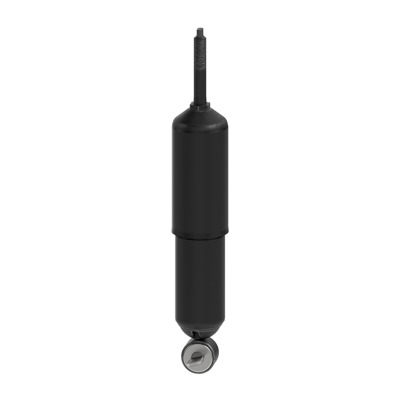

Gas-Magnum Suspension Shock Absorber
Part # 34675 | Line Code: MON
brandNameImage
brandNameImage

$51.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Dust Shield Included Yes
Shock Absorber Body End Measuring Point Center of Mounting Hole
Travel Length 4
Shock Absorber Rod End Measuring Point Base of Stem
Compressed Length 263.5
Gas Charged Yes
Dust Shield Yes
Extended Length 365.1
Upper Mounting Description Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Lower Mounting Description Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Lower Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Min Year Covered 1999
Most Popular Make / Model Chevrolet Silverado 1500
Max Year Covered 2007
Most Popular Year 2004
Extended Bumper Stop No
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Product Grade Premium
Parts Pack(s) P01135
Tope de rebote comprimido No
Cubre polvo Yes
Bloqueo hidráulico extendido No
Tope de rebote extendido No
Accesorio(s) P01135
Heavy Duty Supplier Yes
Tipo de Montura Superior Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Parts Pack P01135
Tipo de Montura Inferior Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Total Part VIO 2031839
Upper Mounting Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Lower Mounting Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Upper Mount Code S4
Lower Mount Code XP5
Internal Rebound Bumper No
Part Description Shock Absorber
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
Designed for midsize and full-size trucks and vans, Monroe(R) Gas-Magnum(R) shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.

Application Summary
expand_more

2007 Chevrolet Silverado 1500 Classic LS LT WT Hybrid (Front) (Drive: RWD / Qualifier: without Electronic Adjustable Suspension); 2002 Chevrolet C1500 (Front) (Drive: RWD / Qualifier: without Electronic Adjustable Suspension); 1999-2006 Chevrolet Silverado 1500 WT LT LS Base Hybrid (Front) (Drive: RWD / Qualifier: without Electronic Adjustable Suspension); 2007 GMC Sierra 1500 Classic (Front) (Drive: RWD / Qualifier: without Electronic Adjustable Suspension); 1999-2006 GMC Sierra 1500 (Front) (Drive: RWD / Qualifier: without Electronic Adjustable Suspension)
