Product Details
expand_less
| Adjustable Rebound |
No |
| Dust Shield Included |
Yes |
| Shock Absorber Rod End Measuring Point |
Center of Loop |
| Shock Absorber Body End Measuring Point |
Center of Loop |
| Travel Length |
8.02 |
| Mounting Hardware Included |
No |
| Gas Charged |
No |
| Dust Shield |
Yes |
| Grade Type |
Premium |
| Compressed Length |
373.9 |
| Extended Length |
577.6 |
| Upper Mounting Description |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Lower Mounting Description |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Lower Mount Type |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Upper Mount Type |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Min Year Covered |
1981 |
| Most Popular Year |
2009 |
| Max Year Covered |
2016 |
| Extended Bumper Stop |
No |
| Extended Hydraulic Lockout |
No |
| Compressed Bumper Stop |
No |
| Product Grade |
Premium |
| Parts Pack(s) |
None |
| Most Popular Make / Model |
Blue Bird All American FE |
| Tope de rebote comprimido |
No |
| Cubre polvo |
Yes |
| Bloqueo hidráulico extendido |
No |
| Tope de rebote extendido |
No |
| Accesorio(s) |
None |
| Heavy Duty Supplier |
Yes |
| Parts Pack |
None |
| Tipo de Montura Superior |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Tipo de Montura Inferior |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Total Part VIO |
106510 |
| Lower Mounting Type |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Upper Mounting Type |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Lower Mount Code |
L4 |
| Upper Mount Code |
L4 |
| Internal Rebound Bumper |
No |
| Part Description |

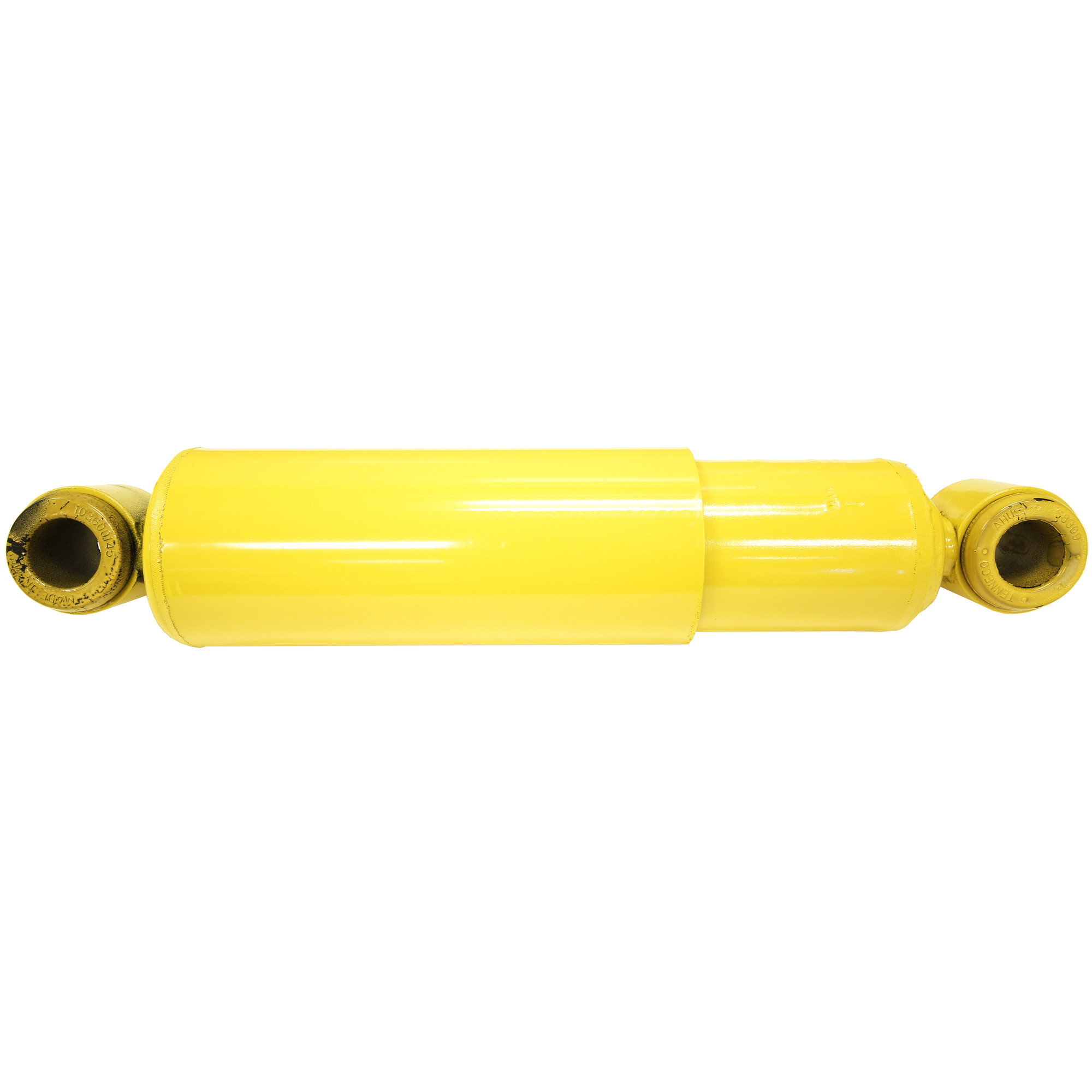

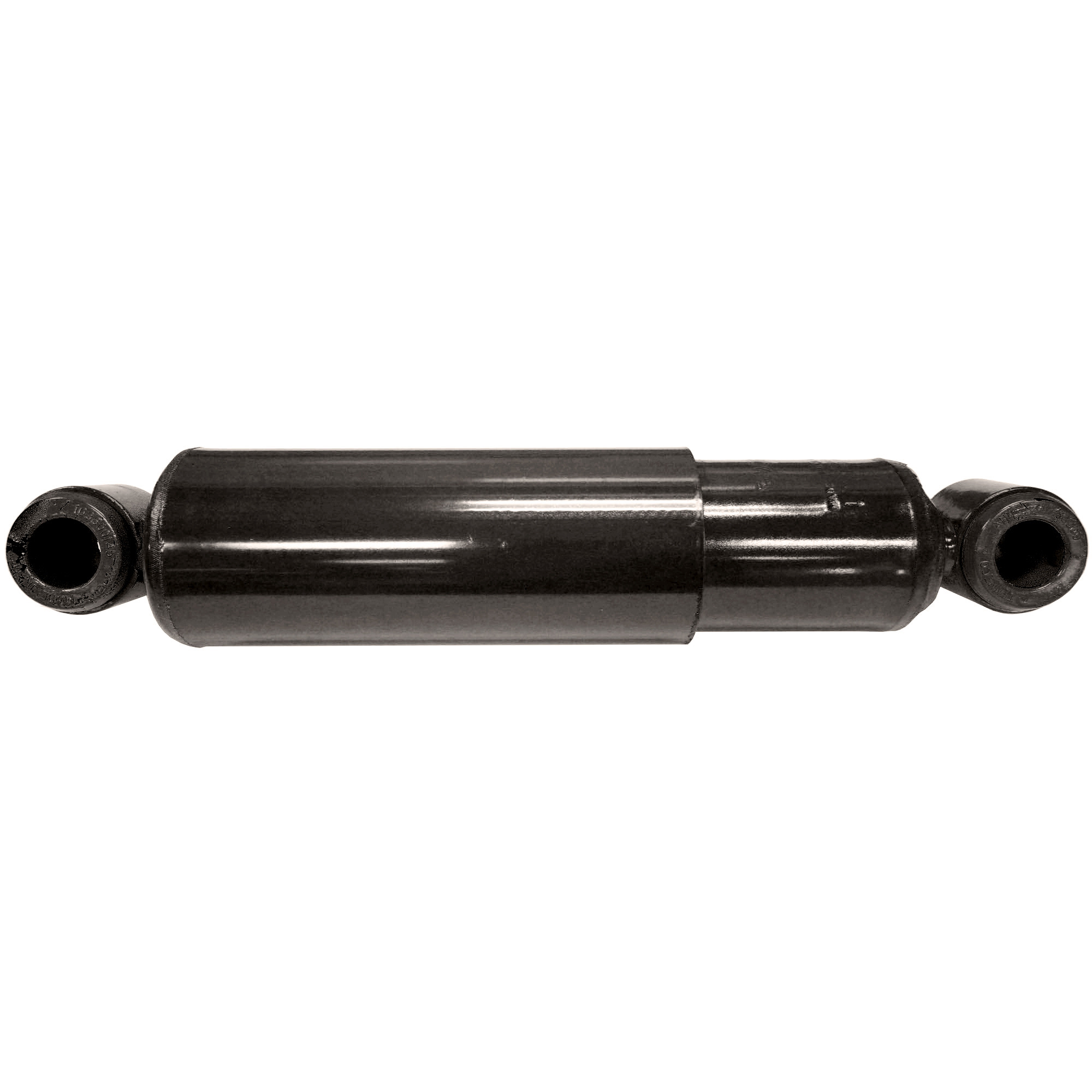

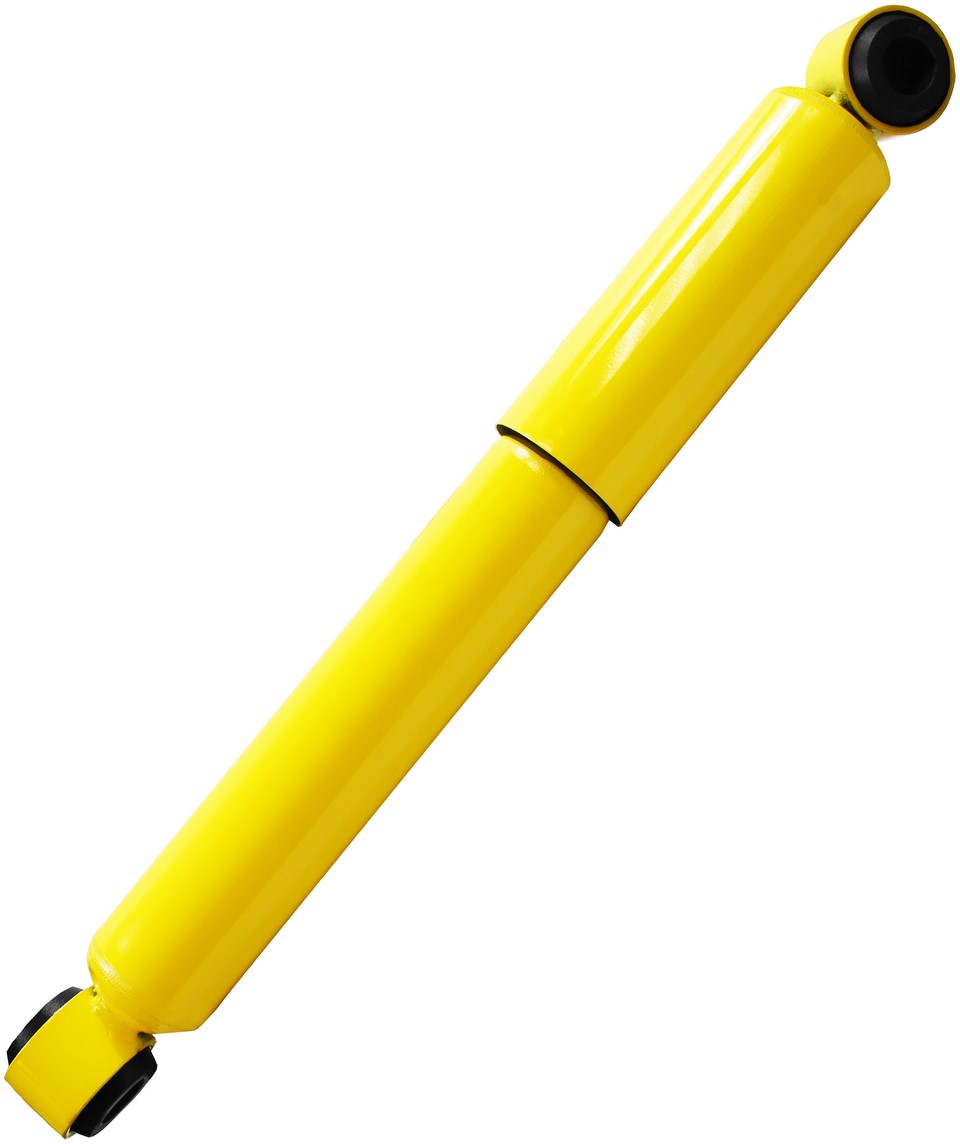

Shock Absorber |
| Duty Type |
Heavy Duty |
| Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more
Tough Monroe(R) Magnum(R) shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
Application Summary
expand_more
1989-2016 Blue Bird All American FE (Front) (Qualifier: Replaces OE Part Number(s) 614966, with ROCKWELL Axle(s), Non-Gas Shock Absorber, Spicer Axles / Note: w/ 1 Inch Mounting Pins); 1989-2016 Blue Bird All American RE (Rear) (Qualifier: Replaces OE Part Number(s) 614966, with ROCKWELL Axle(s), Non-Gas Shock Absorber, Spicer Axles); 1989-1993 Gillig School Bus (Front, Rear) (Qualifier: Replaces OE Part Number(s) 70034, Non-Gas Shock Absorber, For additional OE Part Number cross reference information, please refer to the product interchange, Replaces OE Part Number(s) 680009); 1984-1987 Peterbilt 349 (Front) (Qualifier: Replaces OE Part Number(s) 0202736, with 12,000 lb Axle(s), Non-Gas Shock Absorber, For additional OE Part Number cross reference information, please refer to the product interchange); 1981-1988 Peterbilt 359 (Front) (Qualifier: Replaces OE Part Number(s) 0202736, with 12,000 lb Axle(s), Non-Gas Shock Absorber, For additional OE Part Number cross reference information, please refer to the product interchange); 1981-2006 Peterbilt 362 (Front) (Qualifier: Replaces OE Part Number(s) 0202736, with 12,000 lb Axle(s), Non-Gas Shock Absorber, For additional OE Part Number cross reference information, please refer to the product interchange); 1981-1988 Peterbilt 353 (Front) (Qualifier: Replaces OE Part Number(s) 0202736, with 12,000 lb Axle(s), Non-Gas Shock Absorber, For additional OE Part Number cross reference information, please refer to the product interchange)
