Product Details
expand_less
| Bloqueo hidráulico extendido |
Yes |
| Extended Bumper Stop |
No |
| Gas Charged |
Yes |
| Tipo de Montura Inferior |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Cylinder Color |
Black |
| Heavy Duty Supplier |
Yes |
| Most Popular Make / Model |
Peterbilt 379 |
| Body Color |
Black |
| Duty Type |
Heavy Duty |
| Most Popular Year |
2007 |
| Shock Absorber Rod End Measuring Point |
Base of Stem |
| Extended Hydraulic Lockout |
Yes |
| Compressed Bumper Stop |
No |
| Tope de rebote extendido |
No |
| Accesorio(s) |
P01482 |
| Lower Mounting Type |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Extended Length |
611.2 |
| Dust Shield Included |
Yes |
| Cubre polvo |
Yes |
| Upper Mounting Type |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Internal Rebound Bumper |
No |

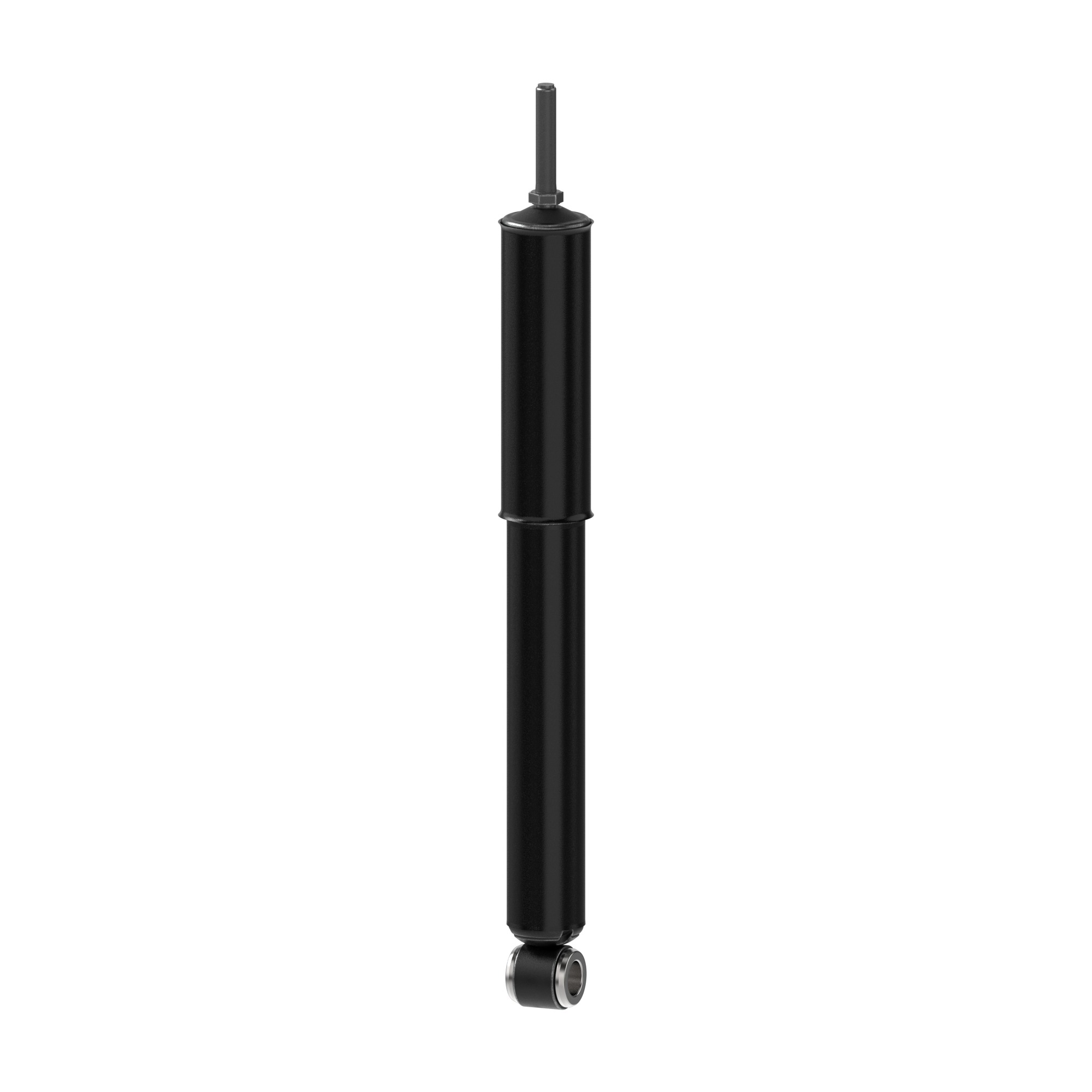

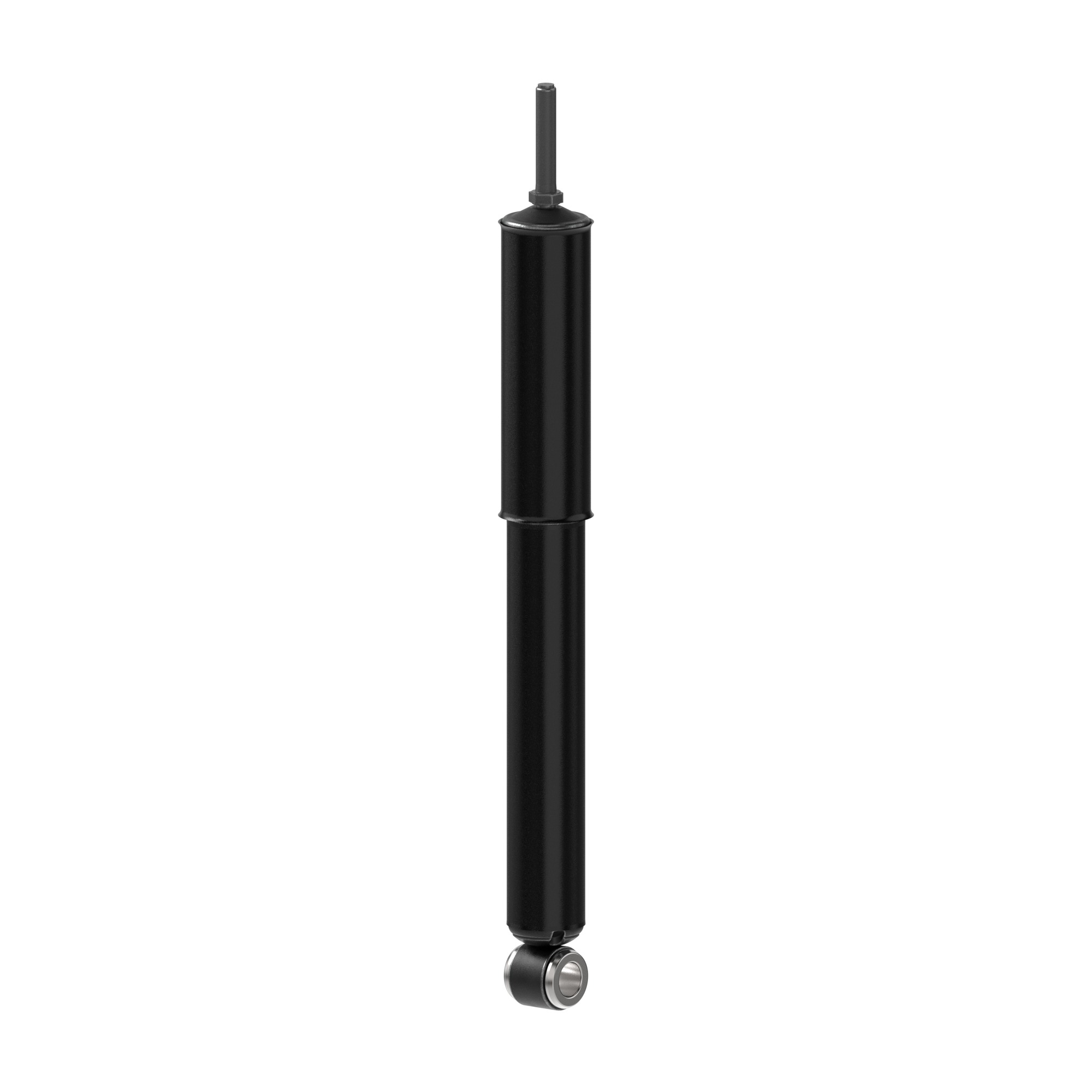

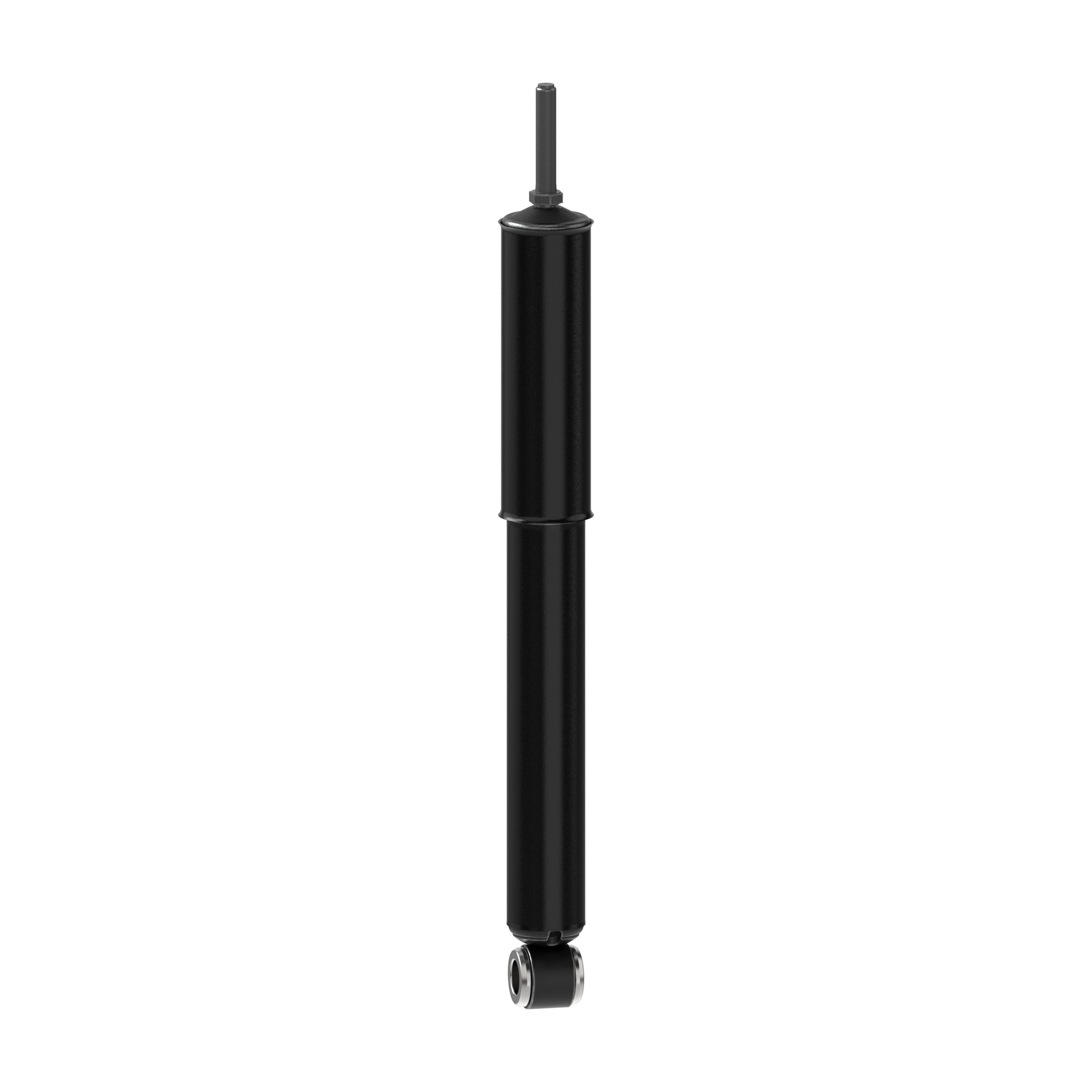

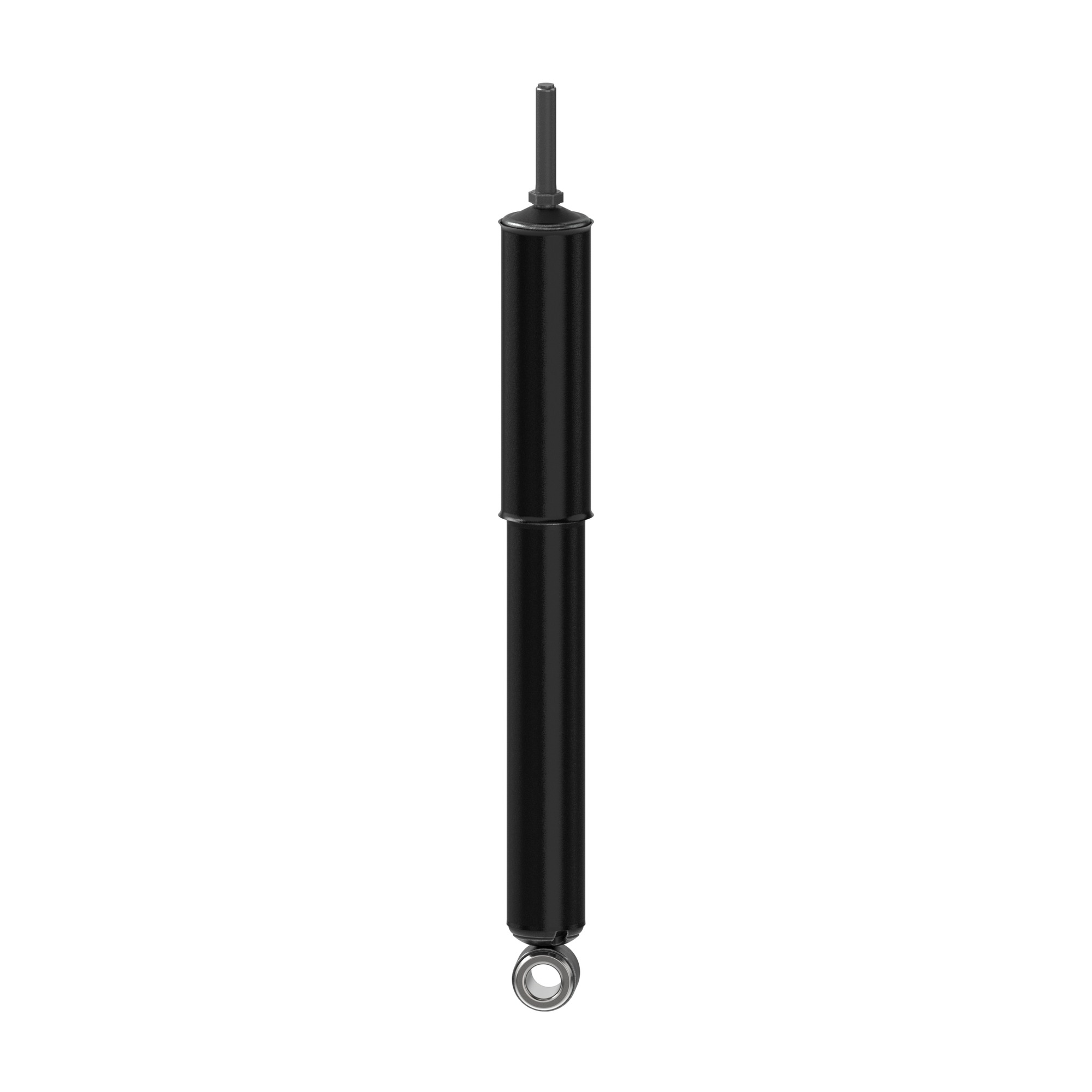

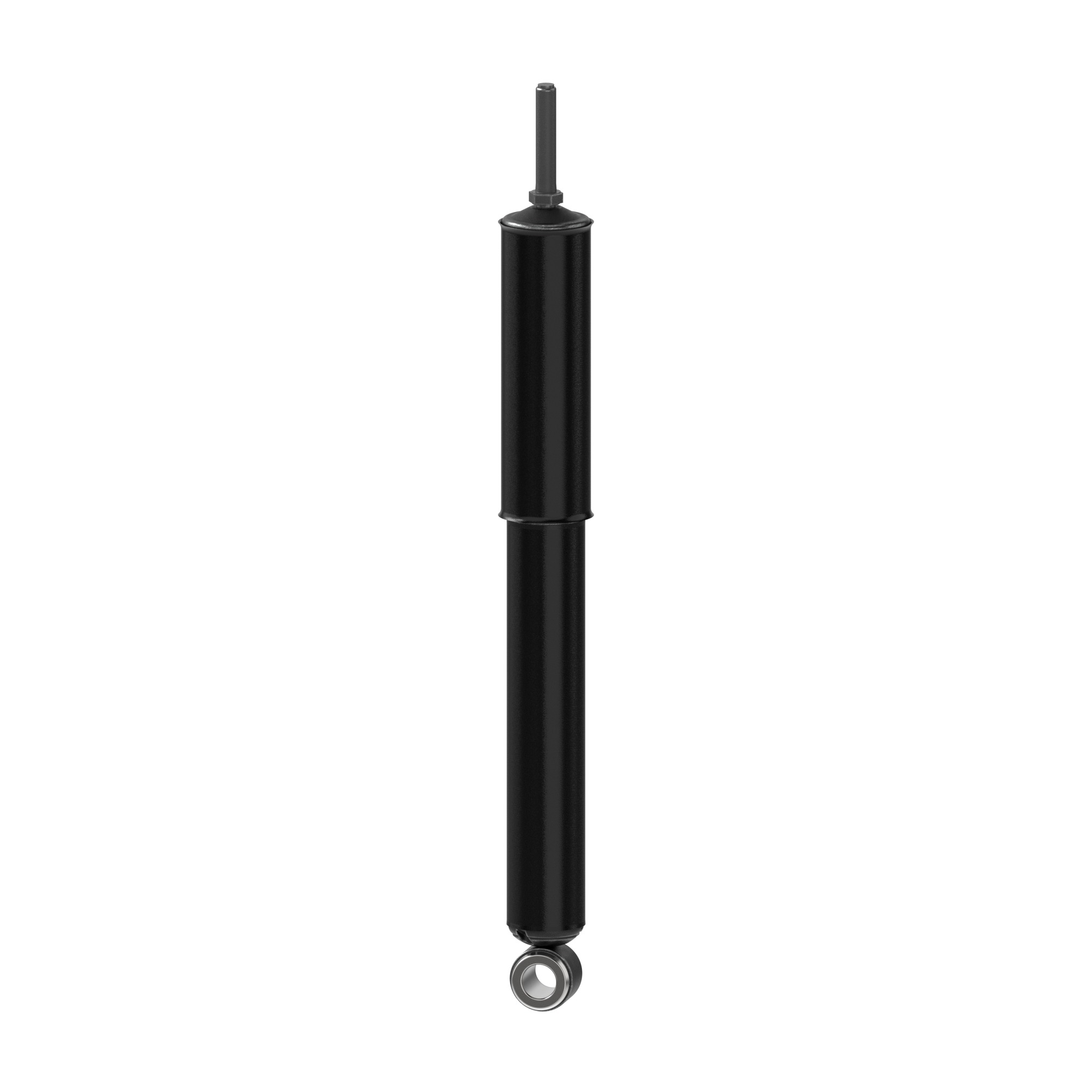

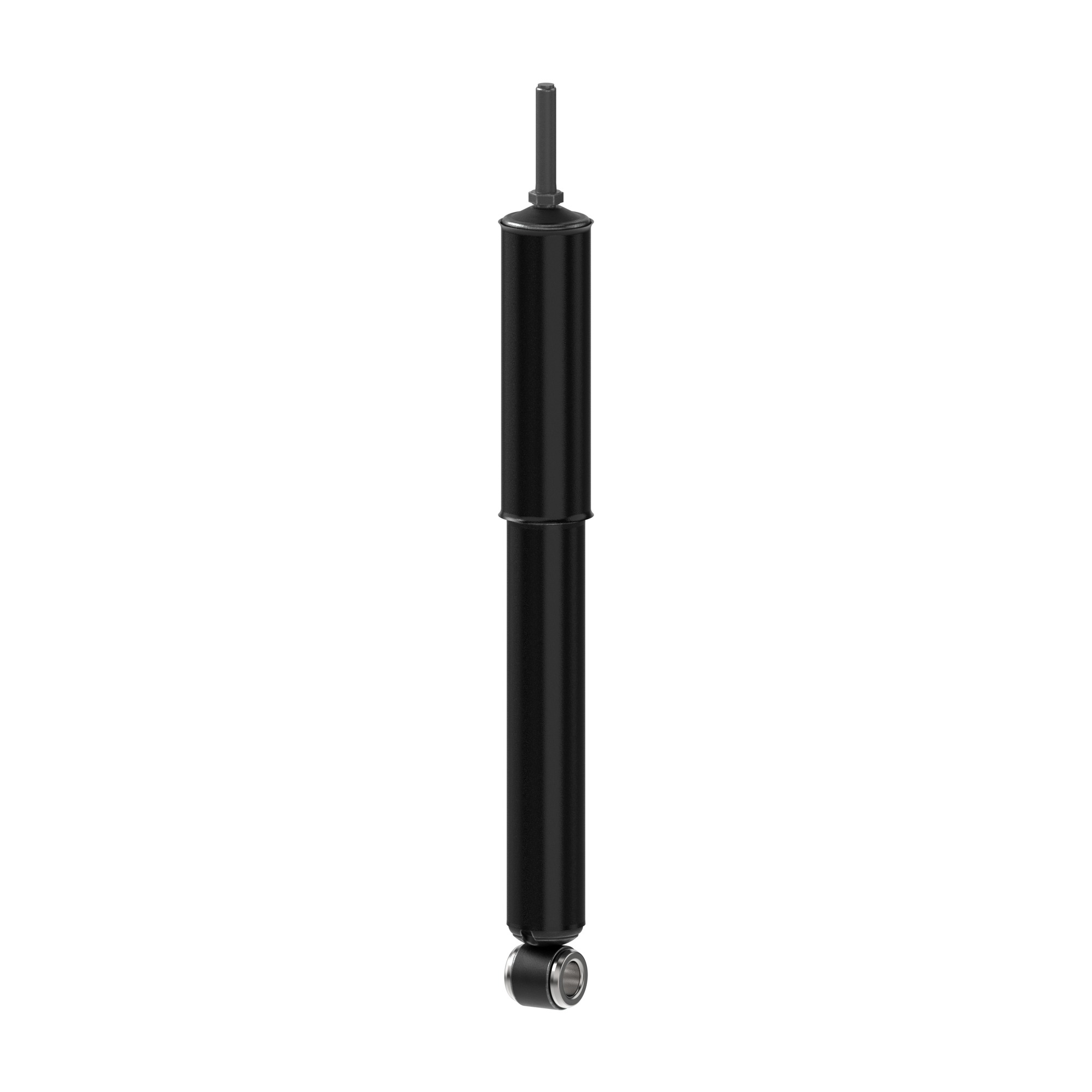

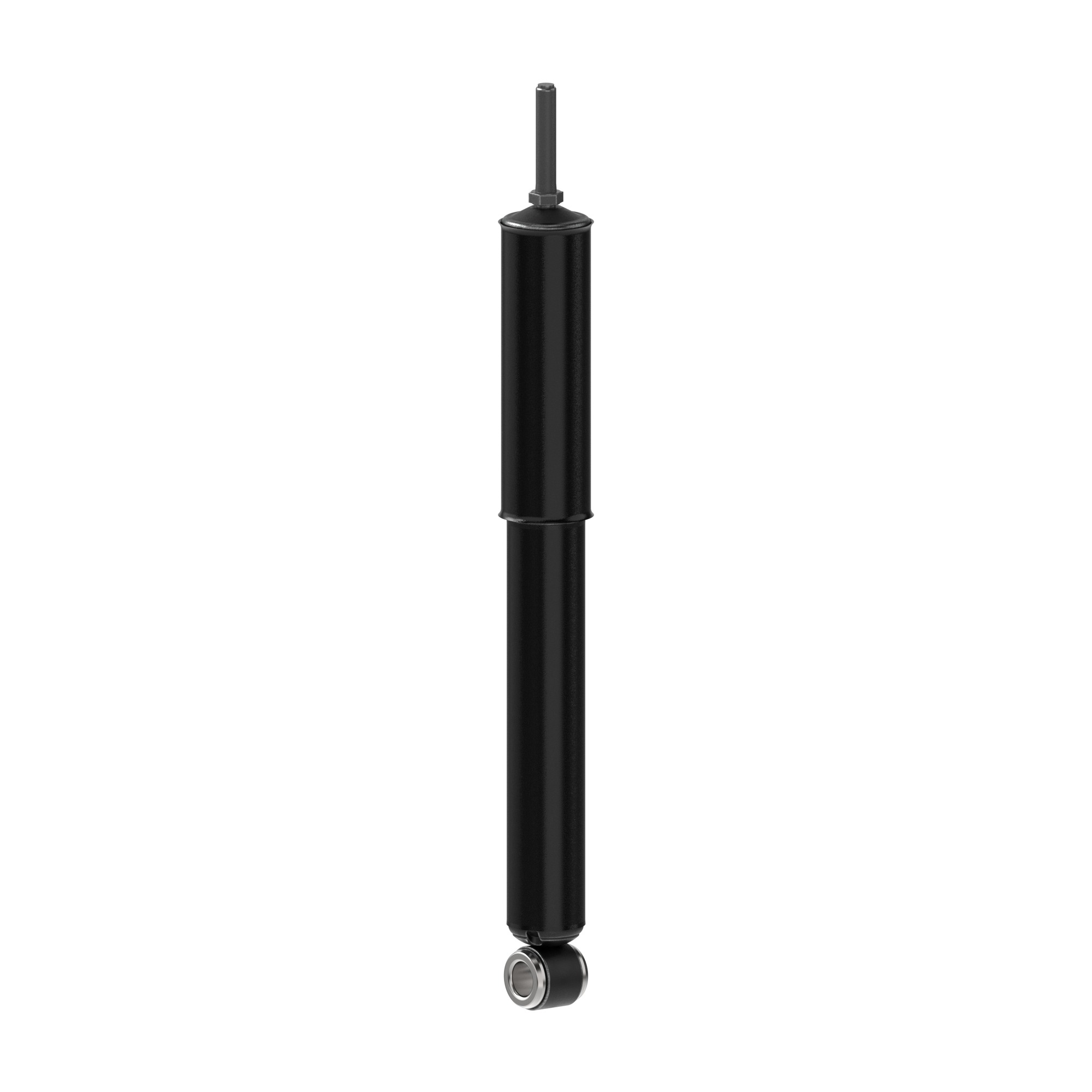

| Part Description |
Shock Absorber |
| Shock Absorber Body End Measuring Point |
Center of Loop |
| Compressed Length |
382.6 |
| Lower Mount Type |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Parts Pack(s) |
P01482 |
| Color |
Black |
| Product Grade |
Premium |
| Mounting Hardware Included |
Yes |
| Max Year Covered |
2016 |
| Upper Mount Type |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Lower Mount Code |
L4 |
| Tope de rebote comprimido |
No |
| Tipo de Montura Superior |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Total Part VIO |
274463 |
| Min Year Covered |
1983 |
| Adjustable Rebound |
No |
| Lower Mounting Description |
Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Travel Length |
9 |
| Parts Pack |
P01482 |
| Upper Mount Code |
S6 |
| Dust Shield |
Yes |
| Grade Type |
Premium |
| Upper Mounting Description |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more

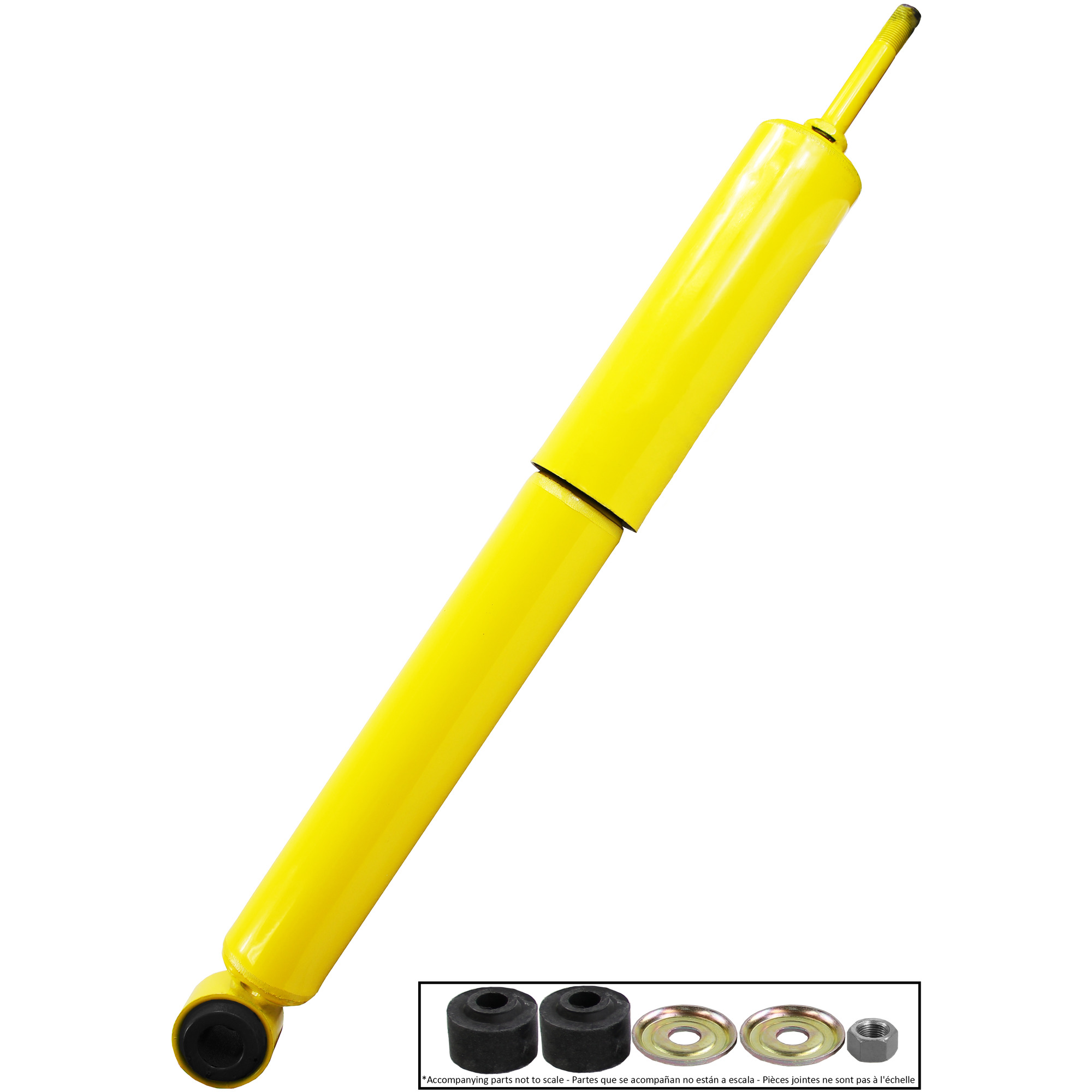

The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Application Summary
expand_more
2000-2011 Peterbilt 387 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1986-2008 Peterbilt 357 (Rear) (Qualifier: Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1990-2007 Peterbilt 378 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1990-2007 Peterbilt 379 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1990-1996 Peterbilt 375 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1988-1999 Peterbilt 376 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1996-2007 Peterbilt 385 (Rear) (Qualifier: Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 2008-2016 Peterbilt 384 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1983-2006 Peterbilt 362 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Trac Suspension, 1983 Models With Build Date After 11/01/1982, Shocks are 1.75 (in) Bore); 1990-2001 Peterbilt 377 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 1990-1997 Peterbilt 372 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 2006-2015 Peterbilt 386 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore); 2011-2015 Peterbilt 587 (Rear) (Qualifier: New Style, Replaces OE Part Number(s) 0304629, with Air Leaf Suspension, Shocks are 1.75 (in) Bore)
