Product Details
expand_less
| Bloqueo hidráulico extendido |
Yes |
| Extended Bumper Stop |
No |
| Tipo de Montura Inferior |
Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Heavy Duty Supplier |
Yes |
| Most Popular Make / Model |
Kenworth T600A |
| Body Color |
Black |
| Compressed Bumper Stop |
No |
| Tope de rebote extendido |
No |
| Lower Mounting Type |
Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Extended Length |
450.8 |
| Cubre polvo |
Yes |
| Upper Mounting Type |
Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Shock Absorber Body End Measuring Point |
Center of Loop |
| Lower Mount Type |
Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Foam Cell Design |
No |
| Color |
Black |
| Internal Construction Type |
Twin Tube |
| Max Year Covered |
2008 |
| Lower Mount Code |
LS54 |
| Upper Mount Type |
Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Tope de rebote comprimido |
No |
| Total Part VIO |
24045 |
| Min Year Covered |
1986 |
| Adjustable Rebound |
No |
| Parts Pack |
None |
| Adjustable Damping |
No |
| Upper Mounting Description |
Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Gas Charged |
Yes |
| Cylinder Color |
Black |
| Most Popular Year |
2007 |
| Shock Absorber Rod End Measuring Point |
Center of Loop |
| Extended Hydraulic Lockout |
Yes |
| Adjustable Dampening |
No |
| Accesorio(s) |
None |
| Shock Absorber Bore Size |
966393.7999999999 |
| Dust Shield Included |
Yes |
| Finish |
Painted |
| Internal Rebound Bumper |
No |
| Part Description |
Shock Absorber |
| Compressed Length |
304.5 |
| Parts Pack(s) |
None |
| Product Grade |
Premium |
| Mounting Hardware Included |
No |
| Shaft Diameter |
18 |
| Tipo de Montura Superior |
Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mounting Description |
Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Travel Length |
5.76 |
| Upper Mount Code |
LS54 |
| Dust Shield |
Yes |
| Grade Type |
Premium |
| Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more

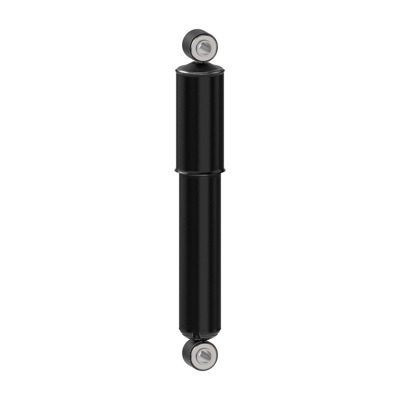

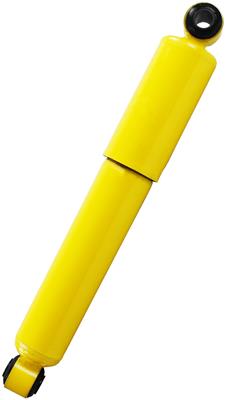

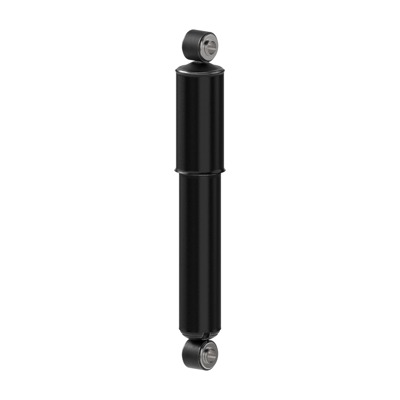

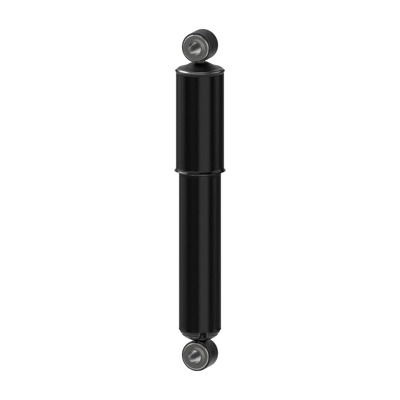

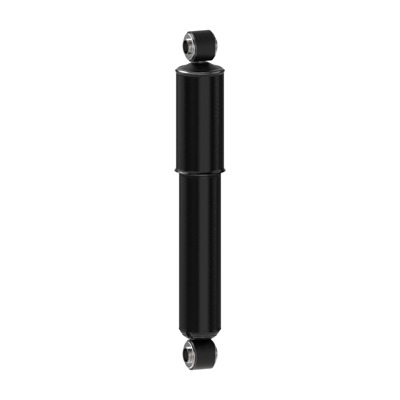

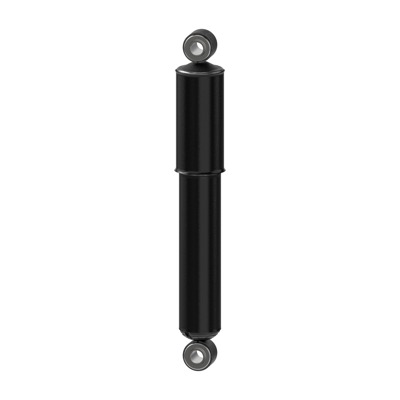

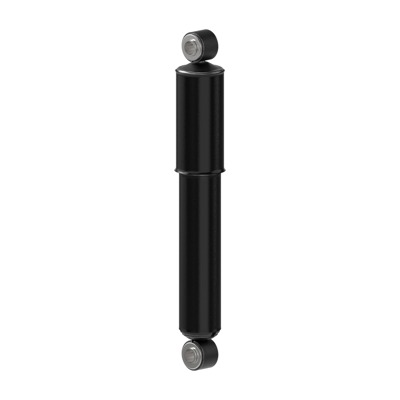

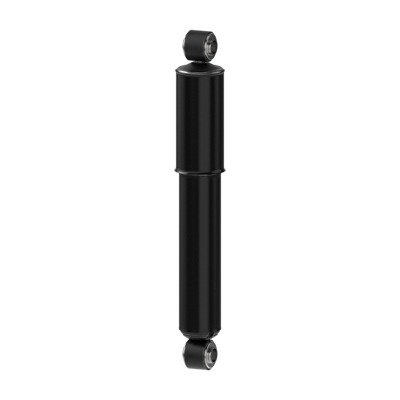

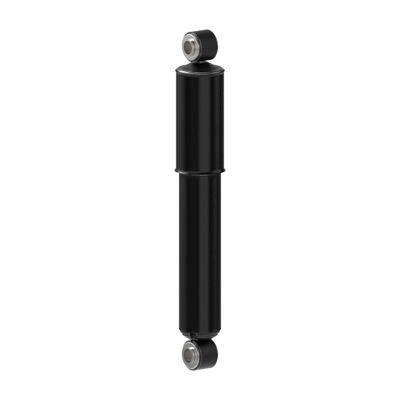

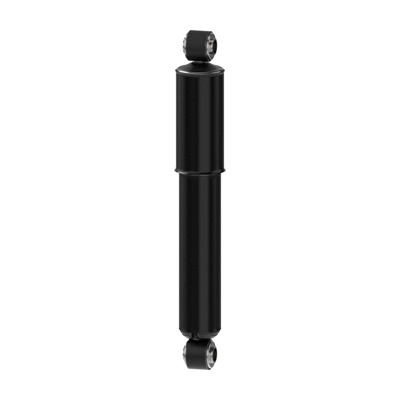

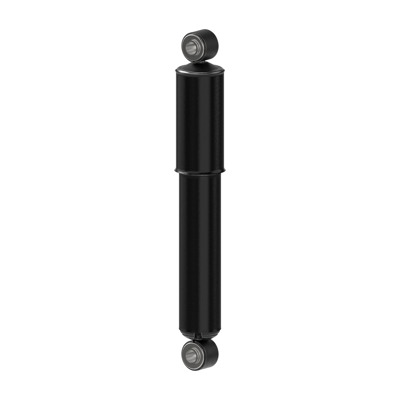

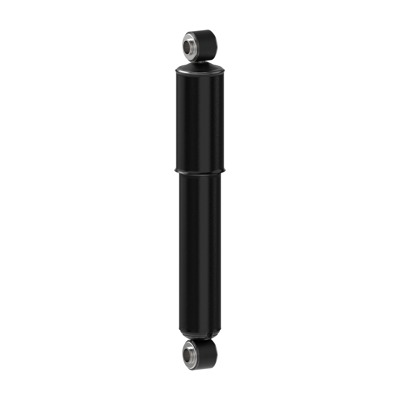

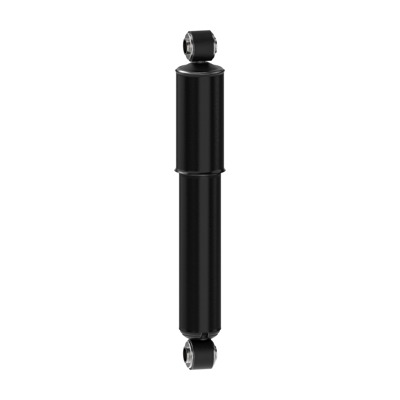

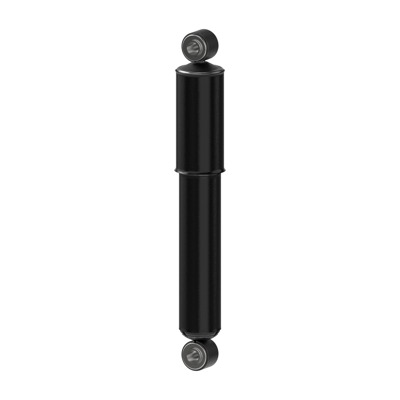

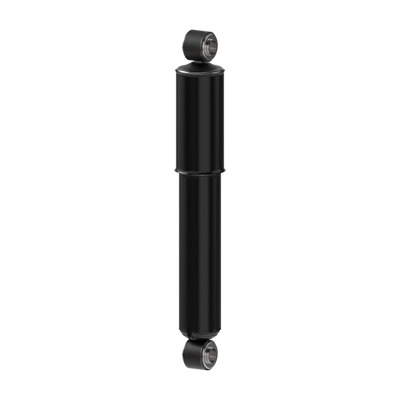

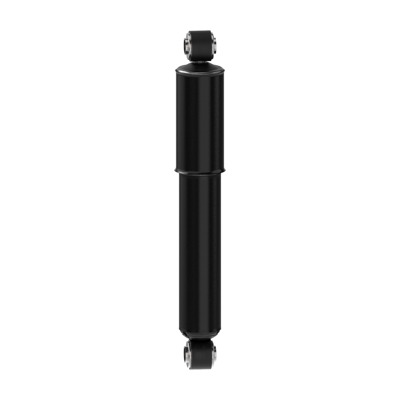

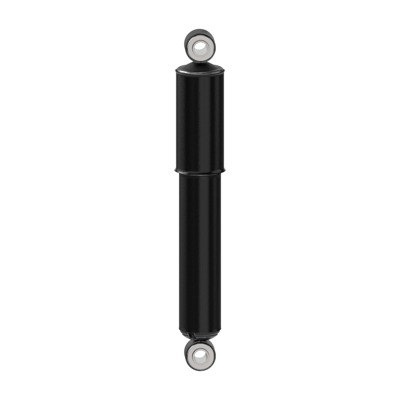

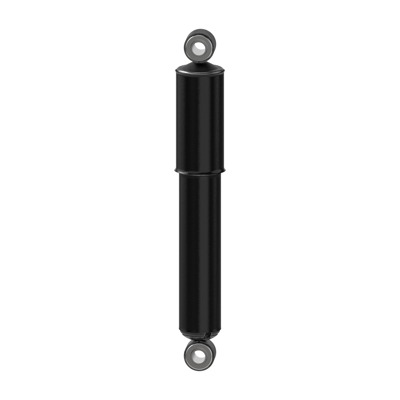

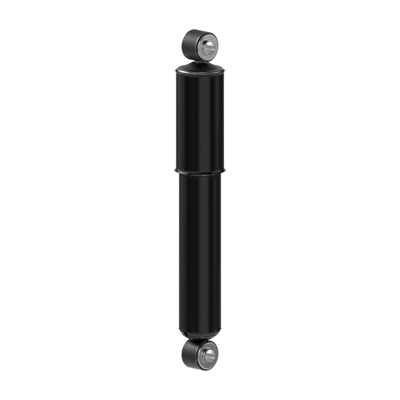

The Monroe(R) Magnum(R) shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today?s heavy-duty truck suspension systems.
Application Summary
expand_more
Semi-Trailer Suspension Hendrickson HC230 (Rear) (Qualifier: Replaces OE Part Number(s) A20002, S20002, A20889, S20889, Shocks are 1.75 (in) Bore); Semi-Trailer Suspension Hendrickson HT300T (Rear) (Qualifier: Replaces OE Part Number(s) A20126, A20889, S20126, S20889, Shocks are 1.75 (in) Bore); Semi-Trailer Suspension Hendrickson HT300U (Rear) (Qualifier: Replaces OE Part Number(s) A20126, S20126, Shocks are 1.75 (in) Bore); 1997-2003 Isuzu FTR (Rear) (Qualifier: Replaces OE Part Number(s) 8220644890, with 16,900 (lb) Tapered Leaf Springs, Shocks are 1.75 (in) Bore); 1997-2002 Isuzu FVR (Rear) (Qualifier: Replaces OE Part Number(s) 8220644890, with 16,900 (lb) Tapered Leaf Springs, Shocks are 1.75 (in) Bore); 1997-2002 Isuzu FSR (Rear) (Qualifier: Replaces OE Part Number(s) 8220644890, with 16,900 (lb) Tapered Leaf Springs, Shocks are 1.75 (in) Bore); 1997-2002 GMC T6500 (Rear) (Qualifier: Replaces OE Part Number(s) 22064489, with 16,900 (lb) Tapered Leaf Springs, Shocks are 1.75 (in) Bore); 1997-2002 GMC T7500 (Rear) (Qualifier: Replaces OE Part Number(s) 22064489, with 16,900 (lb) Tapered Leaf Springs, Shocks are 1.75 (in) Bore); 1986-2008 Kenworth T600A (Rear) (Qualifier: Replaces OE Part Number(s) S20126, with Hendrickson Air Suspension, Shocks are 1.75 (in) Bore)
