Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 240.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 512403

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

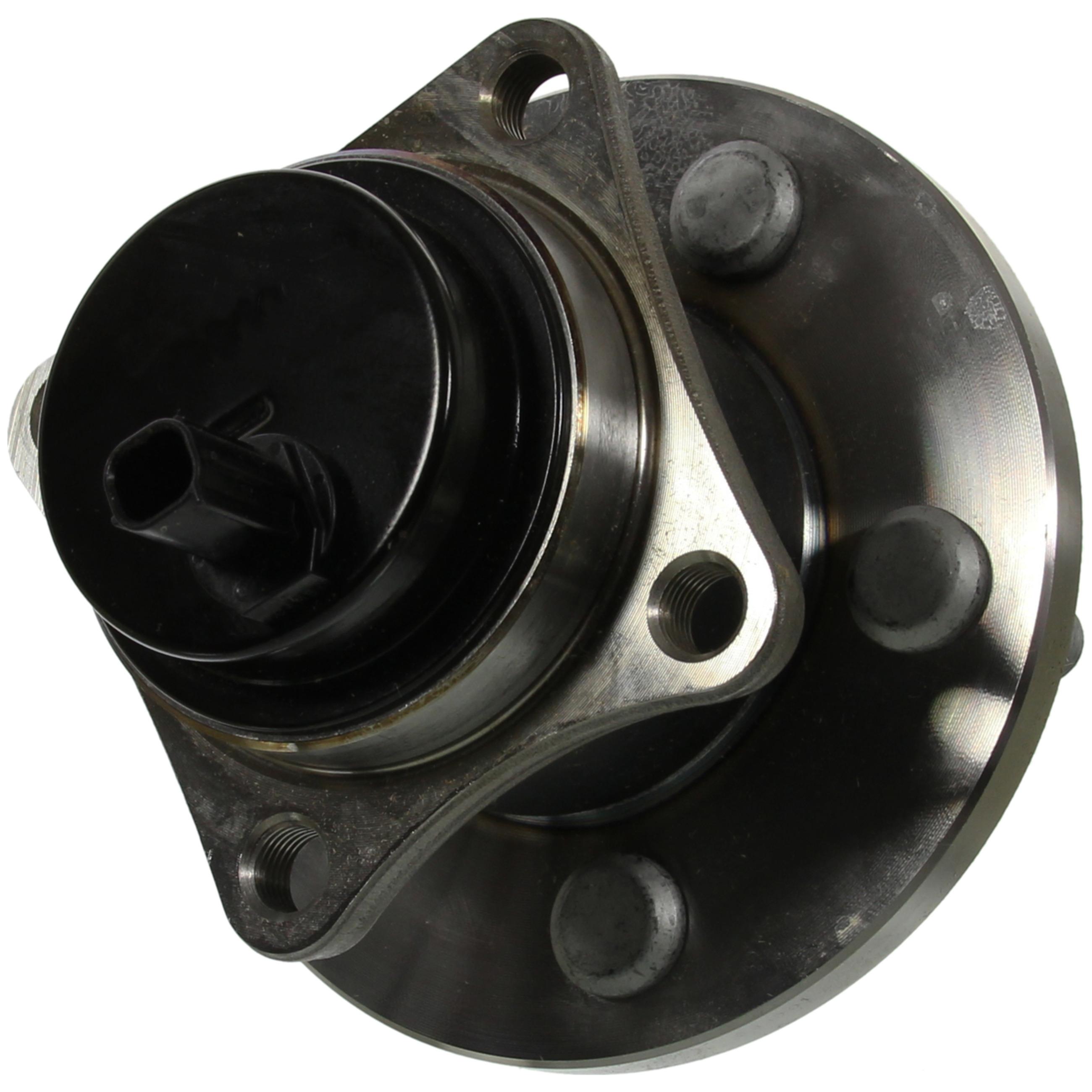

Rear Wheel Bearing and Hub Assembly

Part # 512403 | Line Code: BRG

$240.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Shipping Not Available

Product Details

Wheel Stud Quantity	5
Bolt Circle Diameter	3.937
Flange Shape	MODIFIED
Wheel Pilot Diameter	54.000
Brake Pilot Diameter	55.000
Flange Diameter	135.000
Hub Pilot Diameter	74.000
Flange Offset	60.000
Flange Bolt Hole Quantity	4
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2009-2010 Pontiac Vibe (Rear) (Liter: 1.8 & Engine(cc): 1798 & Engine(ci): 110 & Cylinder: 4 & Block: L & Bore(in): 3.17 & Bore(mm): 80.5 & Stroke(in): 3.48 & Stroke(mm): 88.3 & Drive: FWD); 2009-2018 Toyota Corolla (Rear); 2009-2014 Toyota Matrix Base (Rear) (Liter: 1.8 & Engine(cc): 1798 & Engine(ci): 110 & Cylinder: 4 & Block: L & Bore(in): 3.17 & Bore(mm): 80.5 & Stroke(in): 3.48 & Stroke(mm): 88.3 & Drive: FWD)
