Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 253.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513257

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

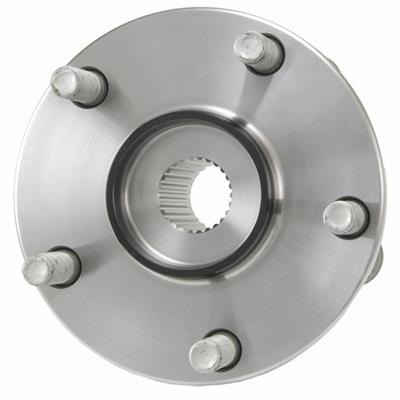

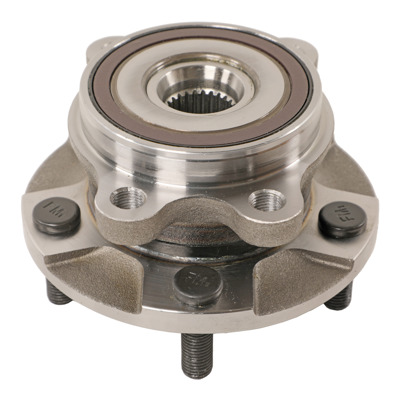

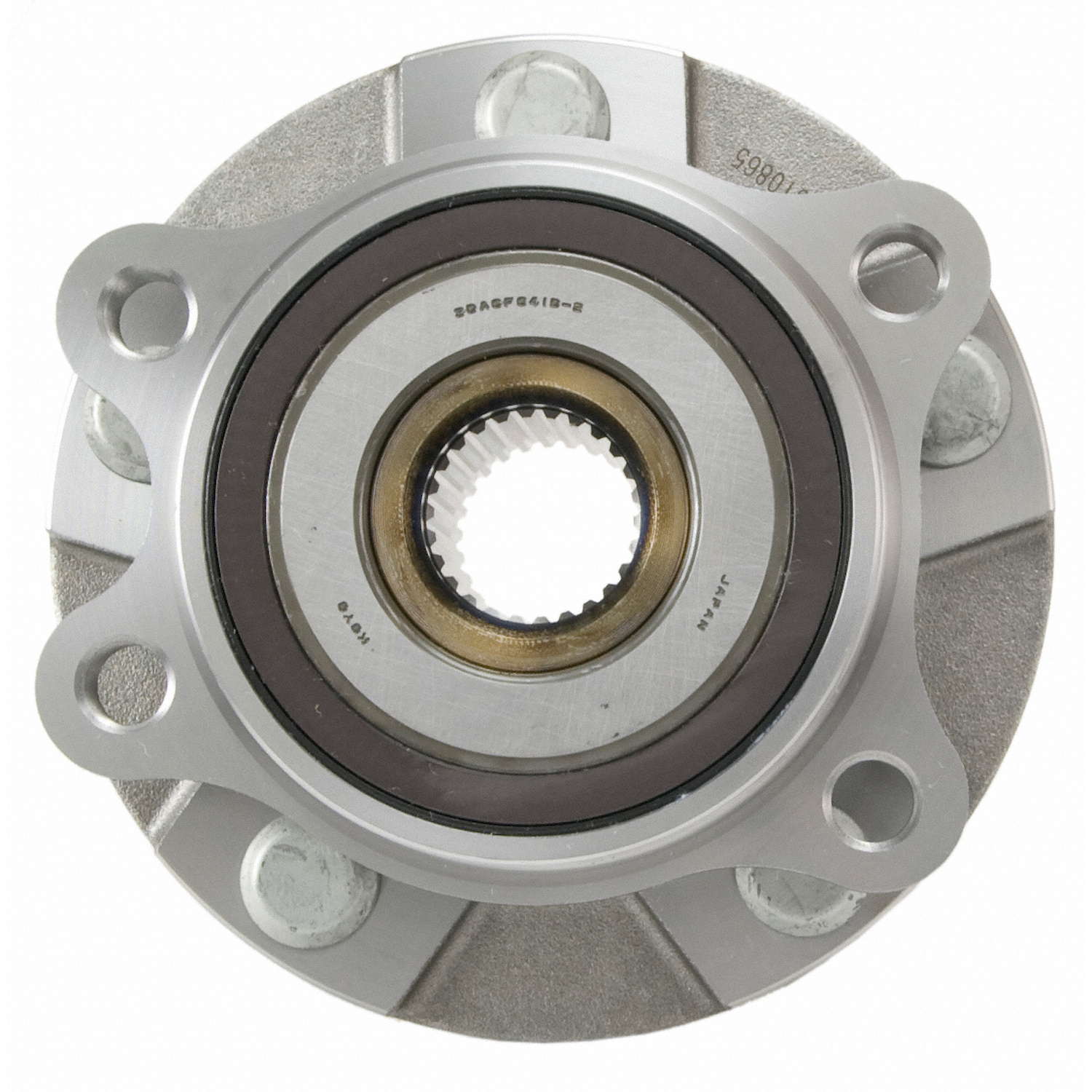

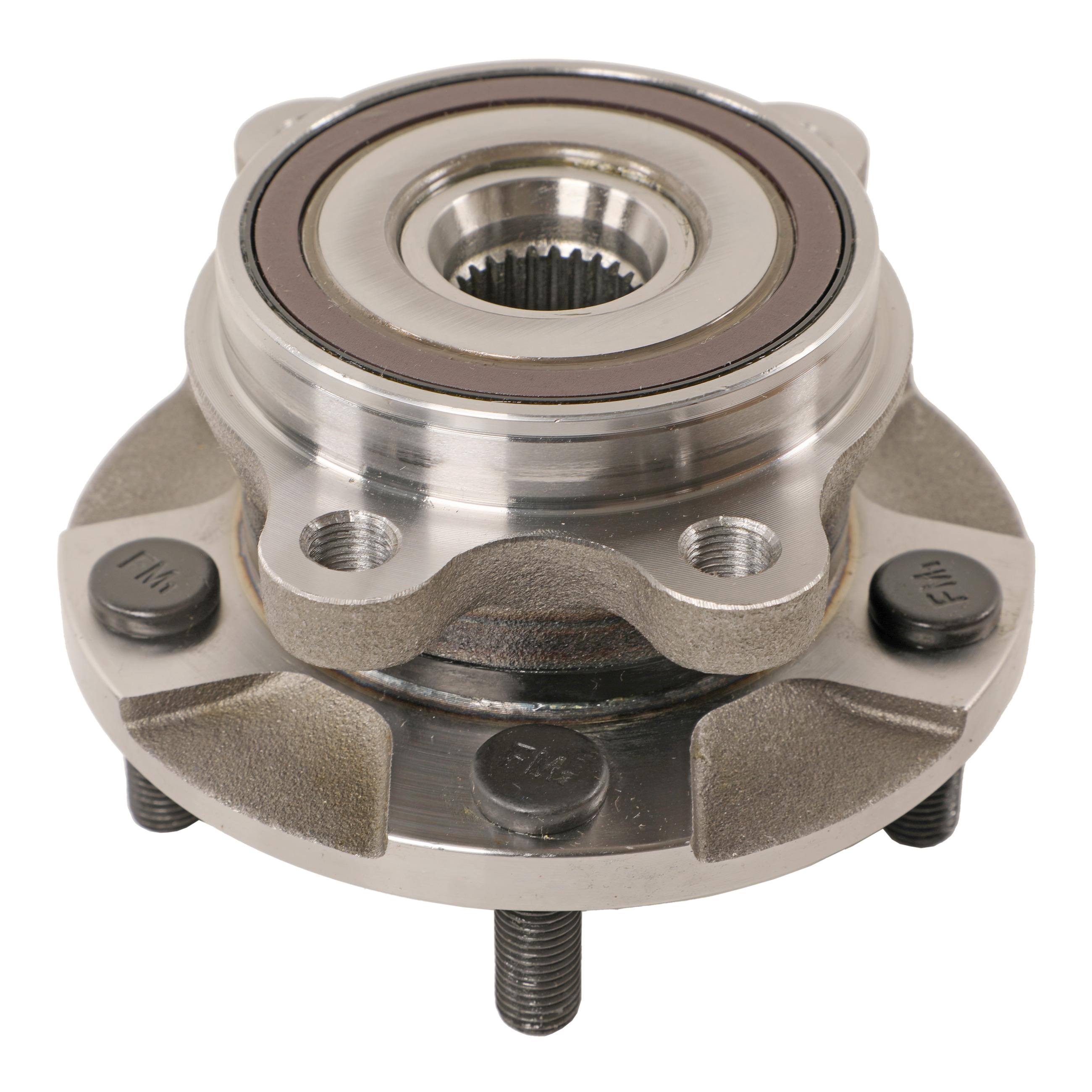

Front Wheel Bearing and Hub Assembly

Part # 513257 | Line Code: BRG

$253.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Brake Pilot Diameter	62.000
Flange Shape	MODIFIED
Spline Quantity	26
Anti Lock Brake Sensor Included	No
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	60.000
Flange Bolt Hole Quantity	4
Wheel Stud Quantity	5
Bolt Circle Diameter	114.300
Flange Diameter	139.000
Prop 65 Label (Yes/No)	No
Flange Offset	47.500
Hub Pilot Diameter	90.000
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2010-2012 Lexus HS250h (Front); 2006-2012 Toyota RAV4 (Front) (Liter: 2.4, 2.5 & Engine(cc): 2362, 2494, 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.48, 3.54, 3.50 & Bore(mm): 88.5, 90.0, 88.9 & Stroke(in): 3.78, 3.86, 3.94 & Stroke(mm): 96.0, 98.0, 100.1); 2012-2018 Toyota Prius V (Front); 2017-2018 Toyota Corolla iM (Front); 2008-2015 Scion xB (Front); 2011-2016 Scion tC (Front) (Transmission Base Type: Transaxle & Transmission Control Type: Automatic); 2016 Scion iM (Front)
