Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 212.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 515024

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

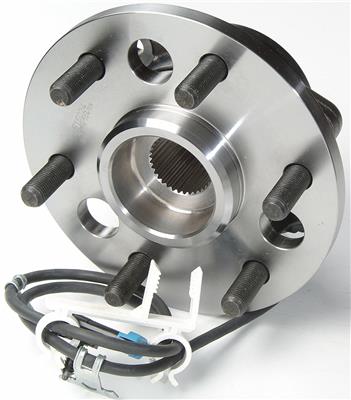

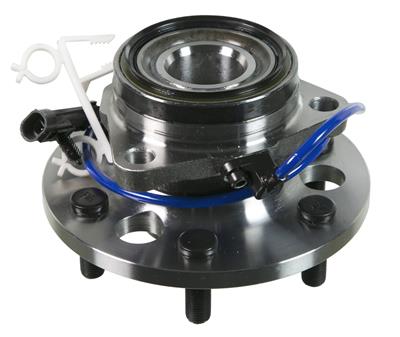

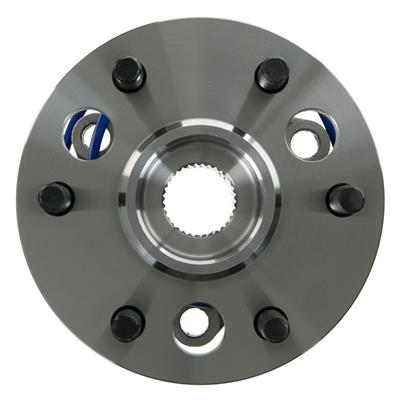

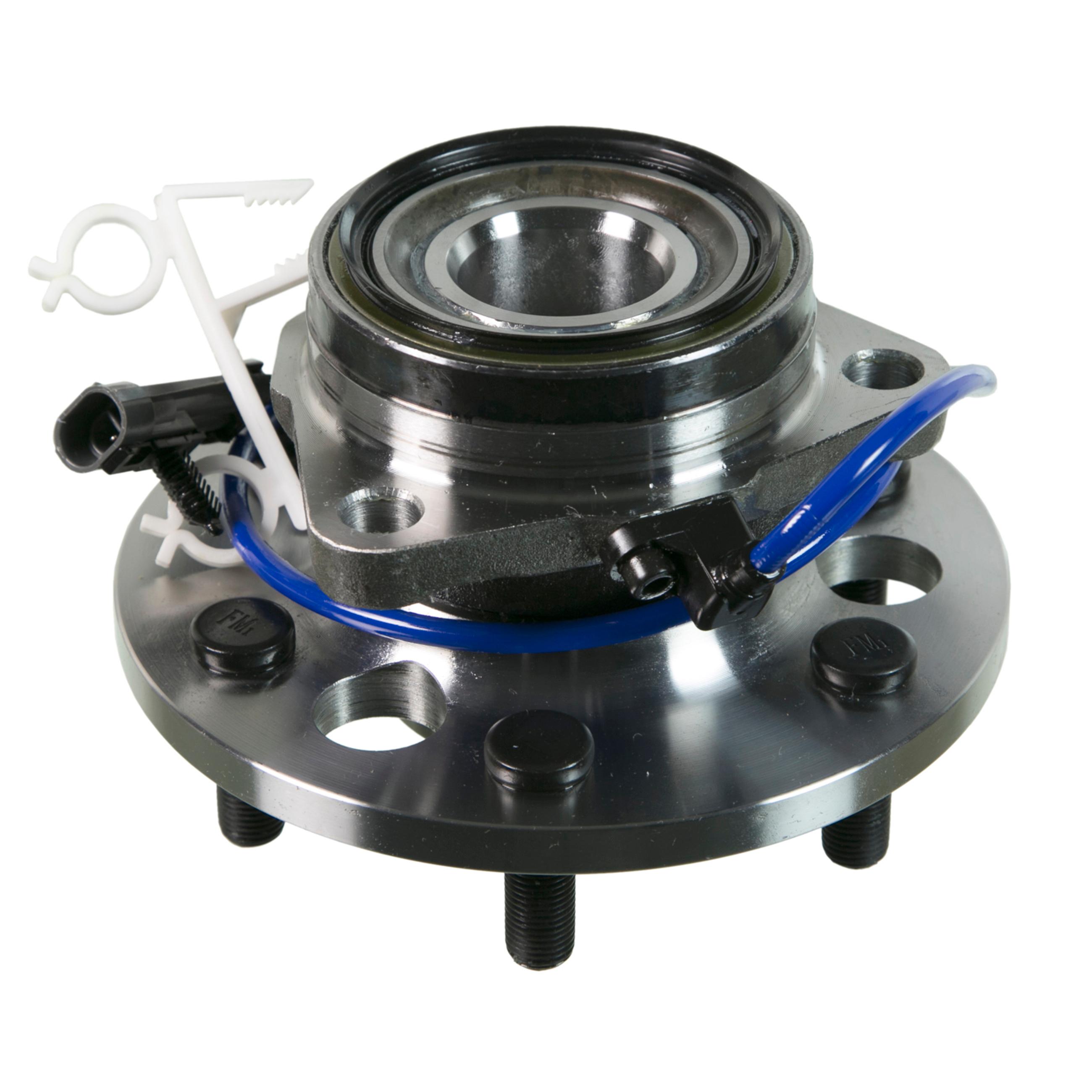

Front Wheel Bearing and Hub Assembly

Part # 515024 | Line Code: BRG

$212.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Brake Pilot Diameter	78.300
Flange Shape	Triangular
Spline Quantity	33
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	77.600
Flange Bolt Hole Quantity	3
Wheel Stud Quantity	6
Bolt Circle Diameter	139.700
Flange Diameter	181.800
Prop 65 Label (Yes/No)	No
Flange Offset	56.800
Hub Pilot Diameter	99.300
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

1999-2000 Cadillac Escalade (Front) (Qualifier: with 6 Stud Hub); 1995-1999 Chevrolet K1500 (Front) (Qualifier: with 6 Stud Hub); 1995-1999 Chevrolet K1500 Suburban (Front) (Qualifier: with 6 Stud Hub); 1995-1997 Chevrolet K2500 (Front) (Qualifier: with 6 Stud Hub, with 7,200 (lb) Gross Vehicle Weight (GVW)); 1995 Chevrolet K2500 Suburban (Front) (Qualifier: with 6 Stud Hub); 1995-2000 Chevrolet Tahoe (Front) (Liter: 5.7 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.48 & Stroke(mm): 88.5 & Drive: 4WD / Qualifier: with 6 Stud Hub); 1995-1999 GMC K1500 (Front) (Qualifier: with 6 Stud Hub); 1995-1999 GMC K1500 Suburban (Front) (Qualifier: with 6 Stud Hub); 1995-1996 GMC K2500 (Front) (Qualifier: with 6 Stud Hub, with 7,200 (lb) Gross Vehicle Weight (GVW)); 1995 GMC K2500 Suburban (Front) (Qualifier: with 6 Stud Hub); 1995-2000 GMC Yukon (Front) (Liter: 5.7 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.48 & Stroke(mm): 88.5 & Drive: 4WD / Qualifier: with 6 Stud Hub)
