Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 339.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 515057

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

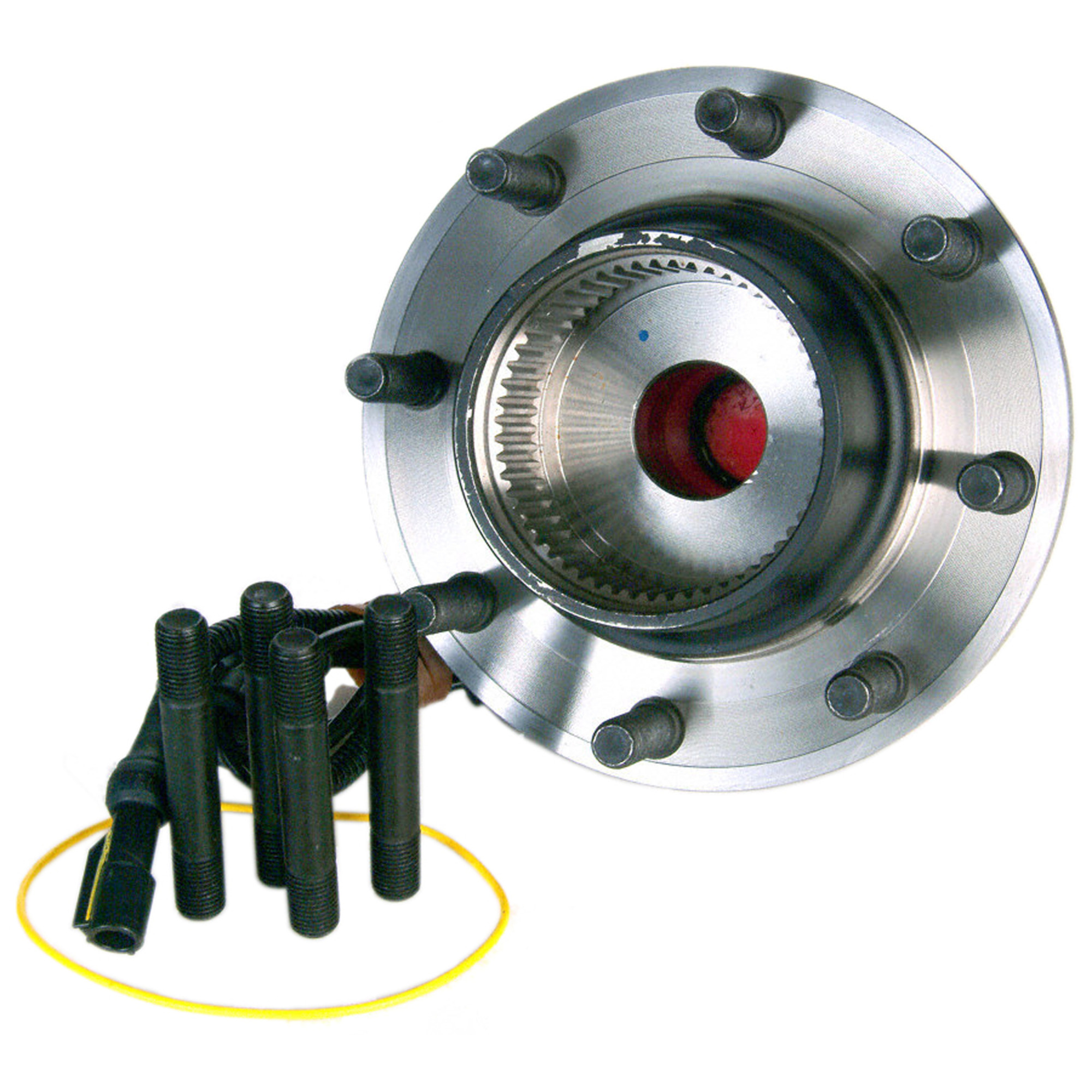

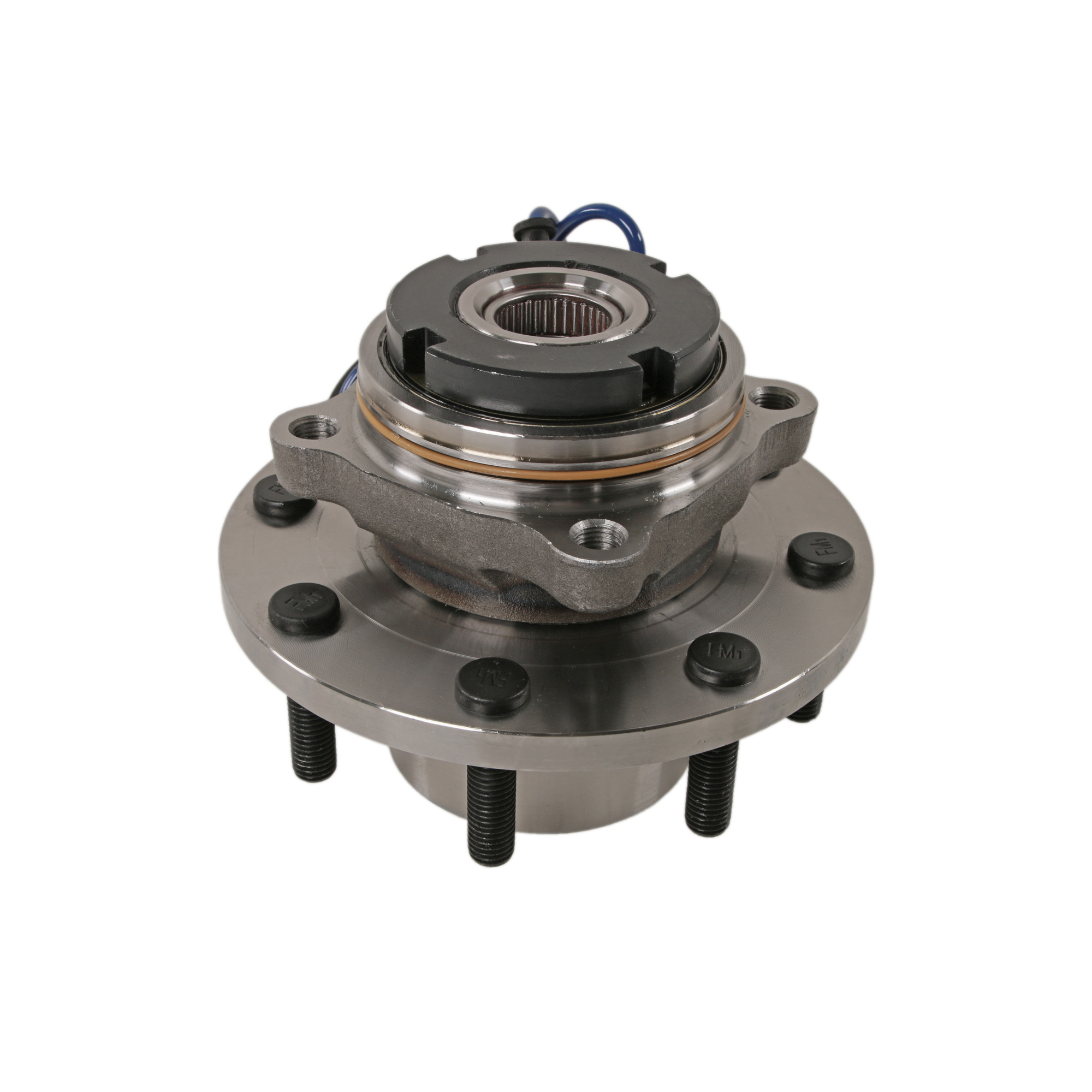

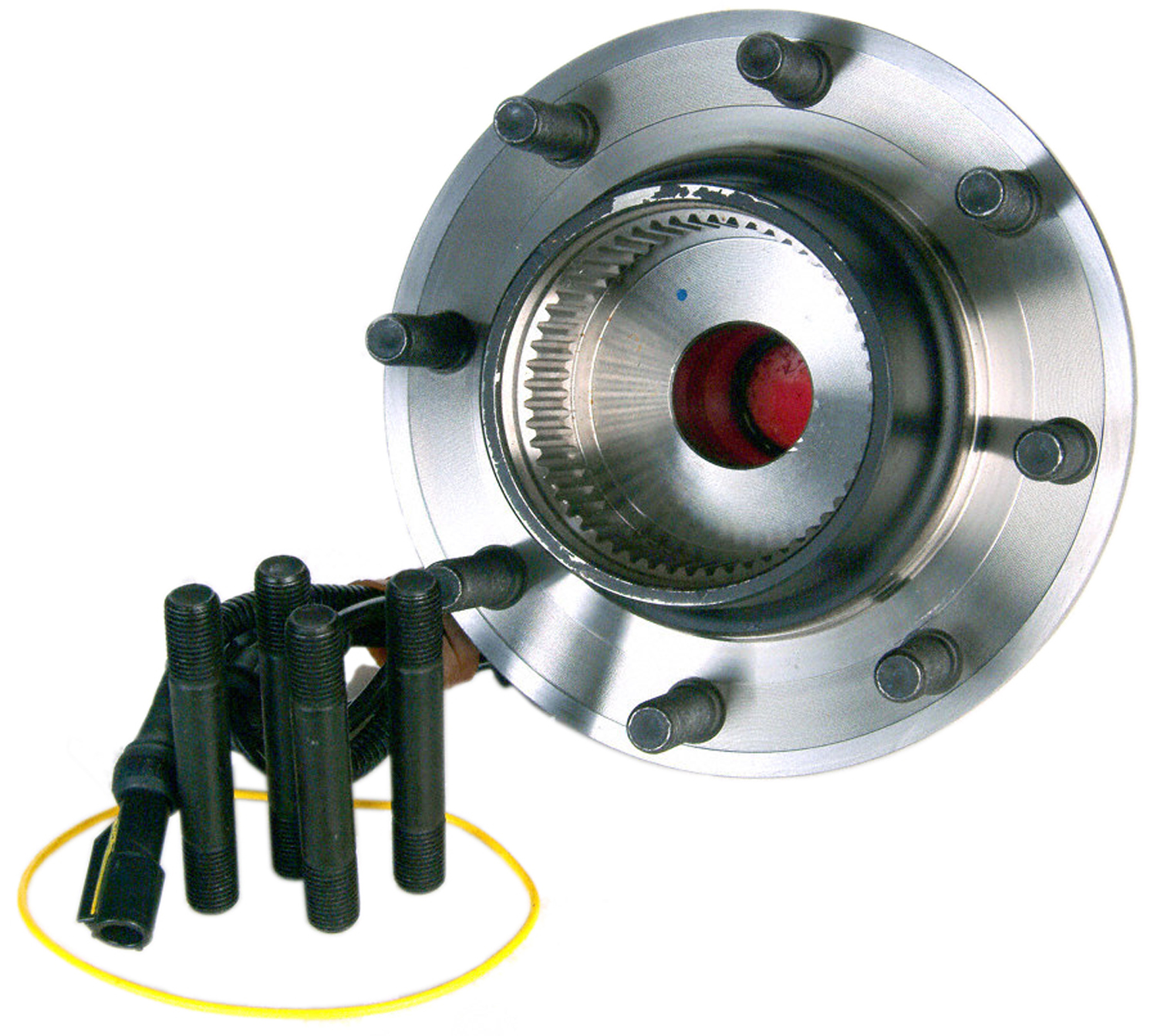

Front Wheel Bearing and Hub Assembly

Part # 515057 | Line Code: BRG

$339.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Shipping Not Available

Product Details

Wheel Stud Quantity	8
Flange Shape	Square
Spline Quantity	55
Bolt Circle Diameter	170.000
Flange Offset	54.500
Wheel Pilot Diameter	125.000
Brake Pilot Diameter	129.000
Hub Pilot Diameter	113.900
Flange Diameter	203.000
Flange Bolt Hole Quantity	4
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

1999-2004 Ford F-250 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4WD / Qualifier: 45.7 (in) Length, From 03/08/1999, with Dual Rear Wheels (DRW), with 13 (mm) Thick Hub Flange, with 14 (mm)-2.00 (mm) Coarse Thread); 1999-2004 Ford F-350 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4WD / Qualifier: 45.7 (in) Length, From 03/08/1999, with Dual Rear Wheels (DRW), with 13 (mm) Thick Hub Flange); 1999-2004 Ford F-450 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4 X 4 / Qualifier: 45.7 (in) Length, From 03/08/1999, with Dual Rear Wheels (DRW), with 13 (mm) Thick Hub Flange); 1999-2004 Ford F-550 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4 X 4 / Qualifier: 45.7 (in) Length, From 03/08/1999, with Dual Rear Wheels (DRW), with 13 (mm) Thick Hub Flange)
