Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 206.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 515059

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

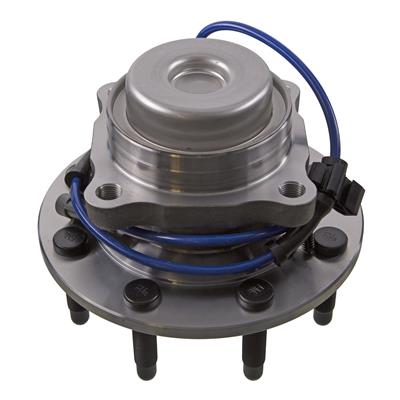

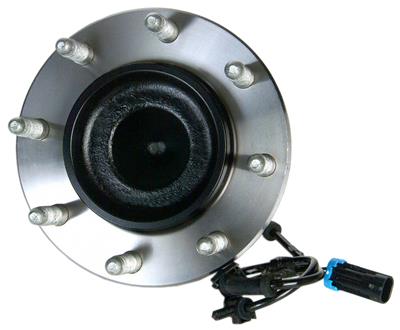

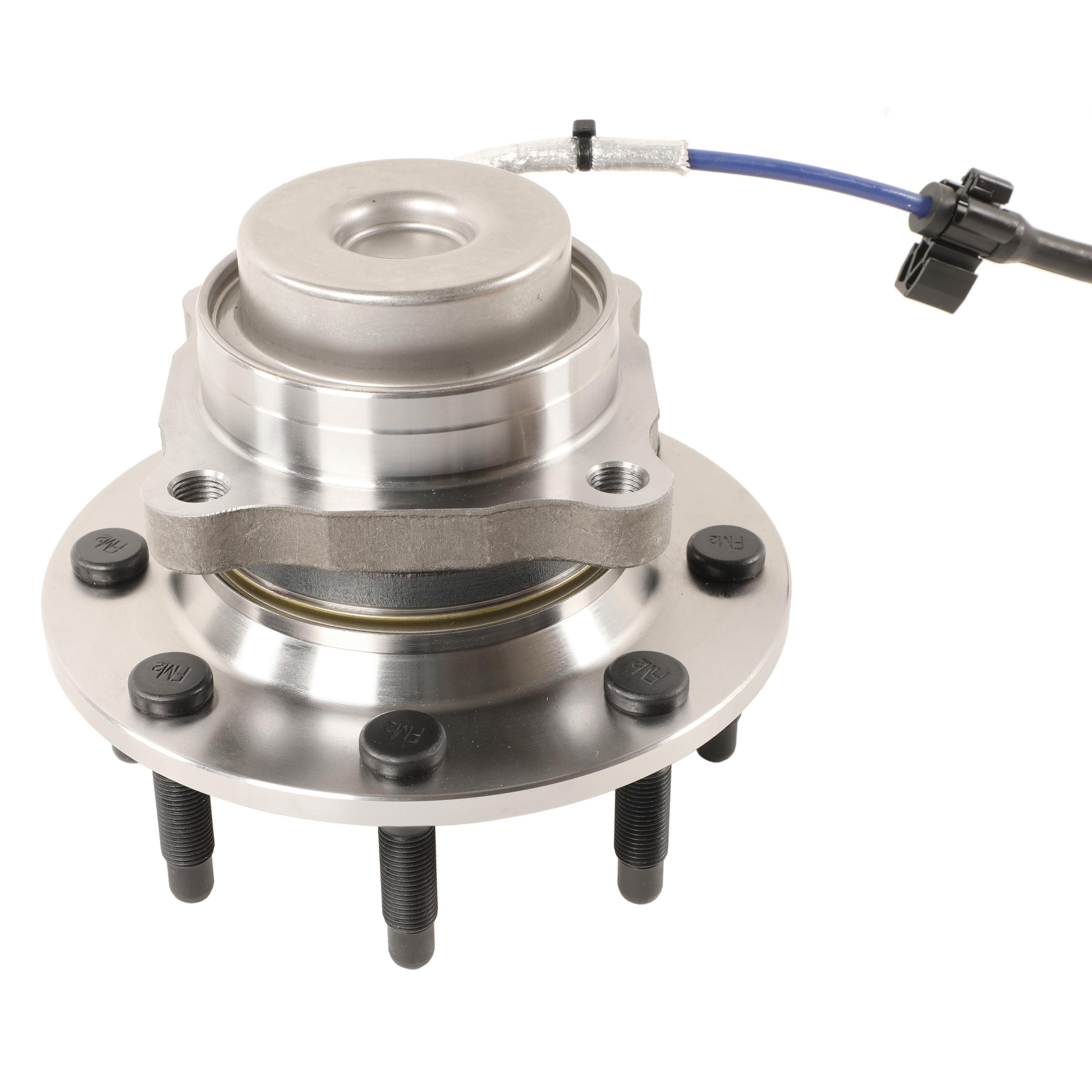

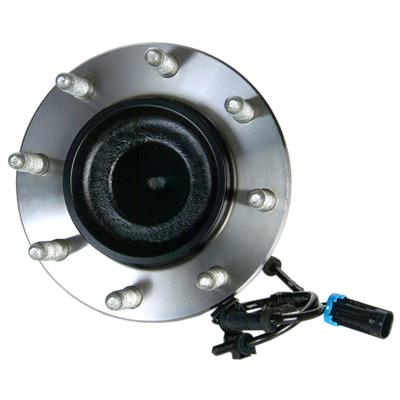

Front Wheel Bearing and Hub Assembly

Part # 515059 | Line Code: BRG

$206.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Wheel Stud Quantity	8
Brake Pilot Diameter	117.800
Bolt Circle Diameter	6.500
Flange Shape	MODIFIED
Flange Diameter	199.300
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	116.700
Flange Bolt Hole Quantity	4
Flange Offset	65.300
Hub Pilot Diameter	105.700
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2009-2015 Chevrolet Express 4500 (Front) (Qualifier: Under 9600 (lb) GVW, with 8 Stud Hub); 2003-2017 Chevrolet Express 2500 (Front) (Drive: RWD / Qualifier: with 8 Stud Hub); 2003-2017 Chevrolet Express 3500 (Front) (Qualifier: To 9600 (lb) GVW, with 8 Stud Hub); 2009-2015 GMC Savana 4500 (Front) (Qualifier: Under 9600 (lb) GVW, with 8 Stud Hub); 2003-2017 GMC Savana 2500 (Front) (Drive: RWD / Qualifier: with 8 Stud Hub); 2003-2017 GMC Savana 3500 (Front) (Qualifier: Under 9600 (lb) GVW, with 8 Stud Hub)
