Wheel Bearing and Hub Assembly MOOG Hub Assemblies 515077

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

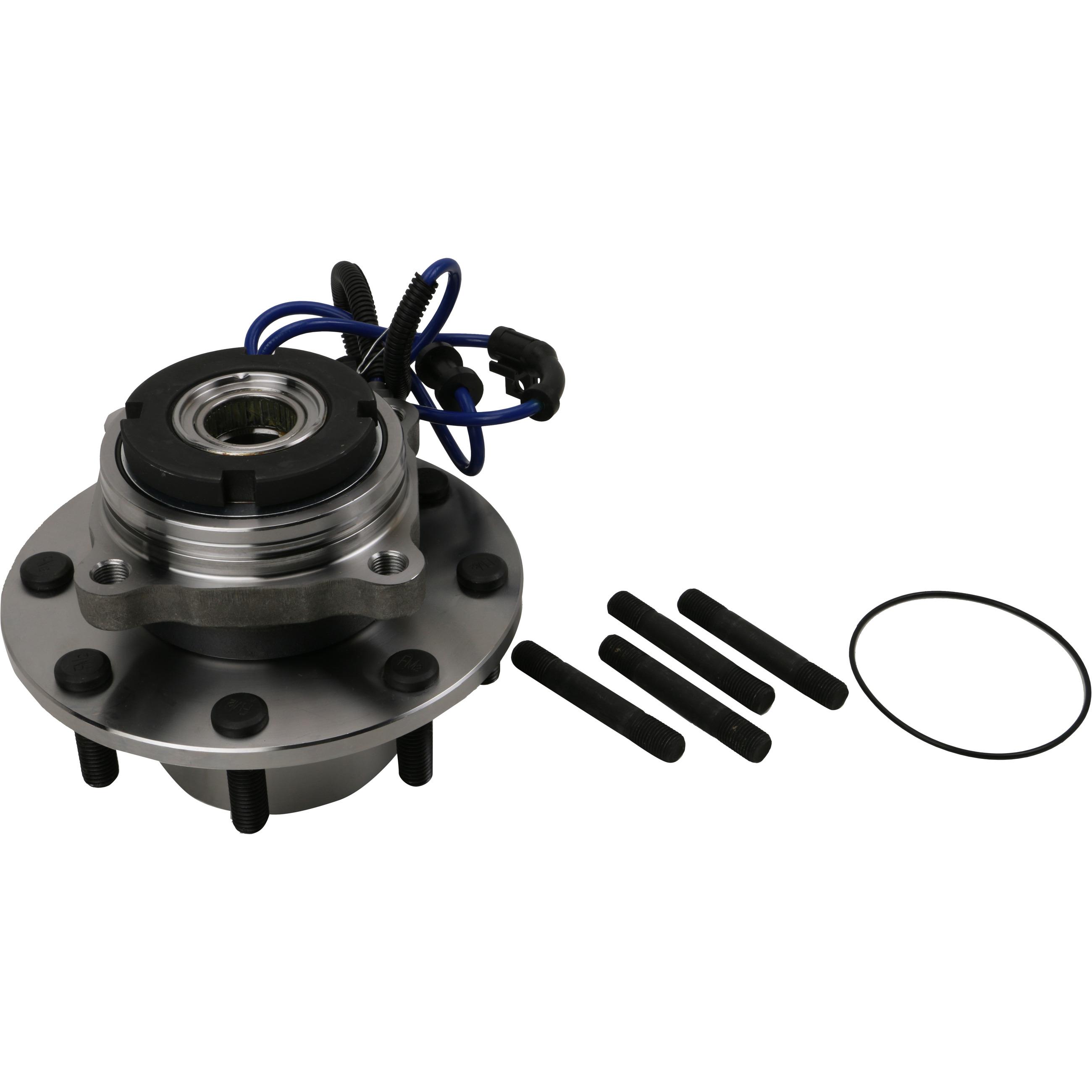

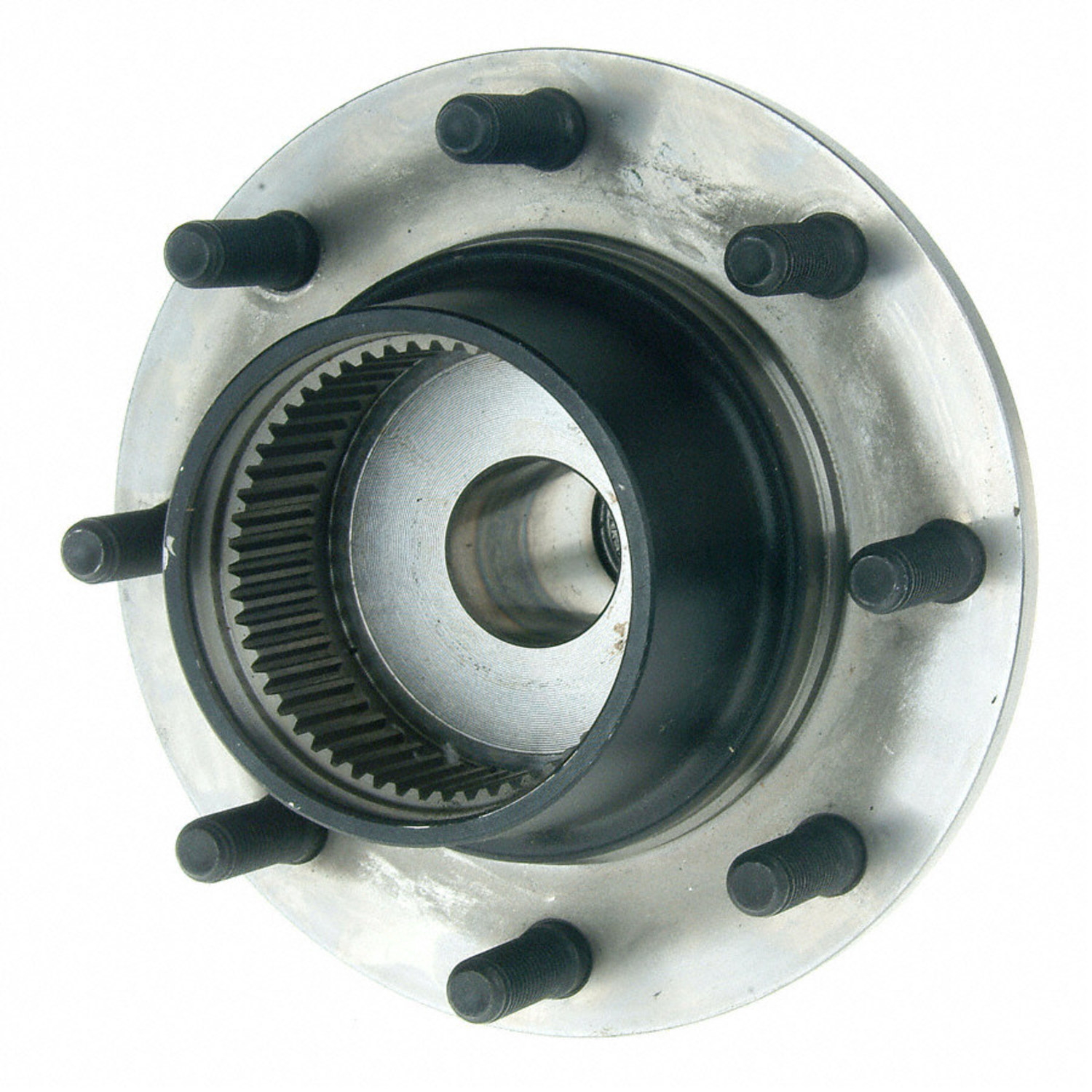

Front Wheel Bearing and Hub Assembly

Part # 515077 | Line Code: BRG

$527.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Wheel Stud Quantity	8
Flange Shape	Square
Spline Quantity	55
Bolt Circle Diameter	170.000
Flange Offset	51.500
Brake Pilot Diameter	129.000
Flange Diameter	203.000
Hub Pilot Diameter	113.800
Wheel Pilot Diameter	124.900
Flange Bolt Hole Quantity	4
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

Application Summary

1999 Ford F-250 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4WD / Qualifier: with Dual Rear Wheels (DRW), To 03/20/1999, with 10 (mm) Thick Hub Flange); 1999 Ford F-350 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4WD / Qualifier: with Dual Rear Wheels (DRW), To 03/20/1999, with 10 (mm) Thick Hub Flange); 1999 Ford F-450 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4 X 4 / Qualifier: with Dual Rear Wheels (DRW), To 03/20/1999, with 10 (mm) Thick Hub Flange); 1999 Ford F-550 Super Duty (Front) (ABS: 4-Wheel ABS & Drive: 4 X 4 / Qualifier: with Dual Rear Wheels (DRW), To 03/20/1999, with 10 (mm) Thick Hub Flange)
