| Grade Type | Premium |
| Design | Single Row Radial |

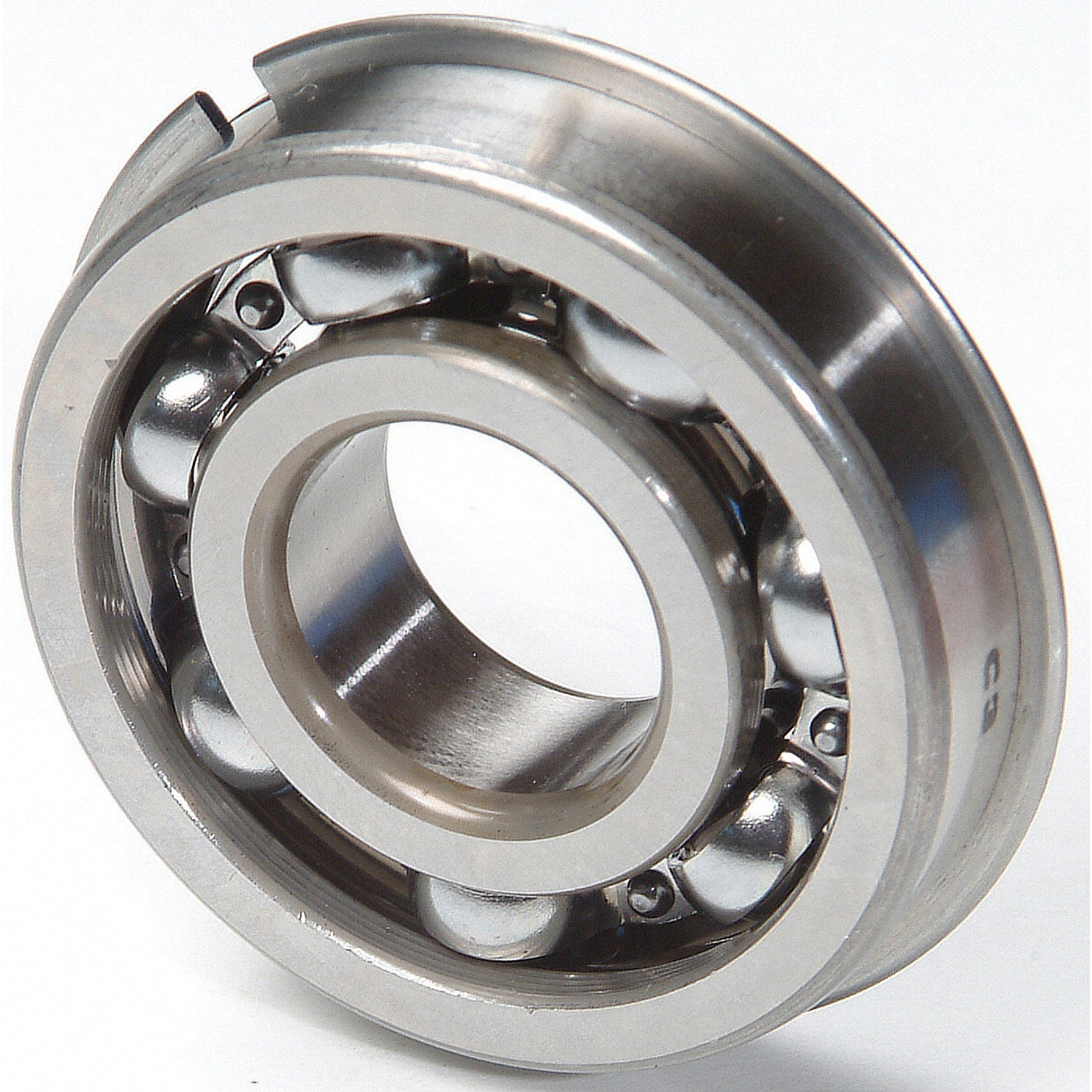

| Part Description | Ball Bearing |
| Series | 100 |
| Outer Race Radius (Inch) | 0.040 |
| Outer Race Radius (MM) | 1.020 |
| Inner Race Radius (MM) | 1.020 |
| Inner Race Radius (Inch) | 0.040 |
| Inner Race Width (MM) | 16.000 |
| Outer Race Width (MM) | 16.000 |
| Width (inch) | 0.630 |
| Outer Race Width (Inch) | 0.630 |
| WIDTH (MM) | 16.000 |
| Inner Race Width (Inch) | 0.630 |
| Outside Diameter (Inch) | 3.150 |
| Outer Race Outside Diameter (Inch) | 3.150 |
| Bore (Inch) | 1.969 |
| Bore (MM) | 50.000 |
| Outside Diameter (MM) | 80.000 |
| Inner Race Bore (Inch) | 1.969 |
| Inner Race Bore (MM) | 50.000 |
| Outer Race Outside Diameter (MM) | 80.000 |
| Type | A-10 |
| Heavy Duty Supplier | Yes |
| Alliance Keywords | multi purpose bearing, roulement polyvalent |
| Part Terminology | Multi-Purpose Bearing |
