Design | Single Row Radial |

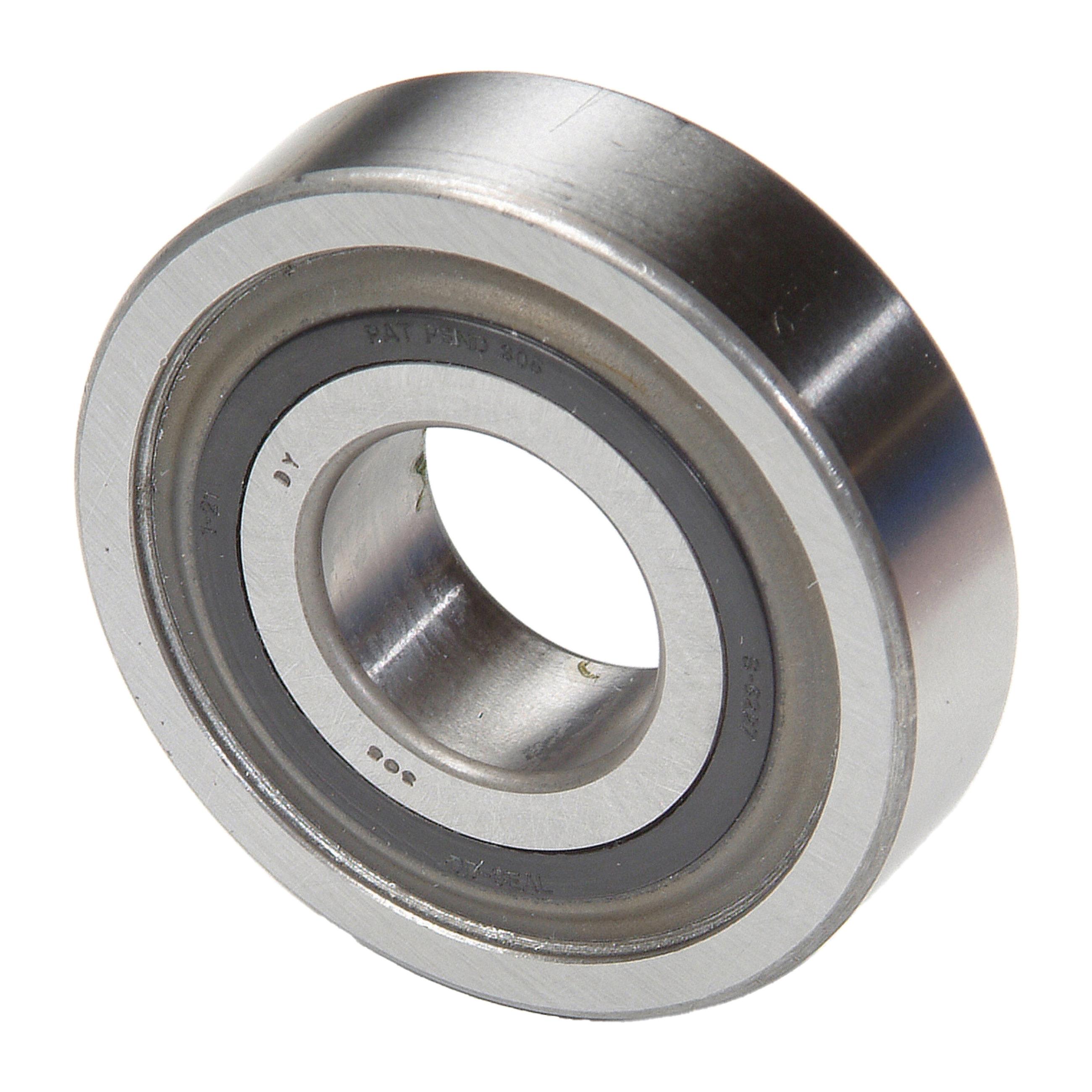

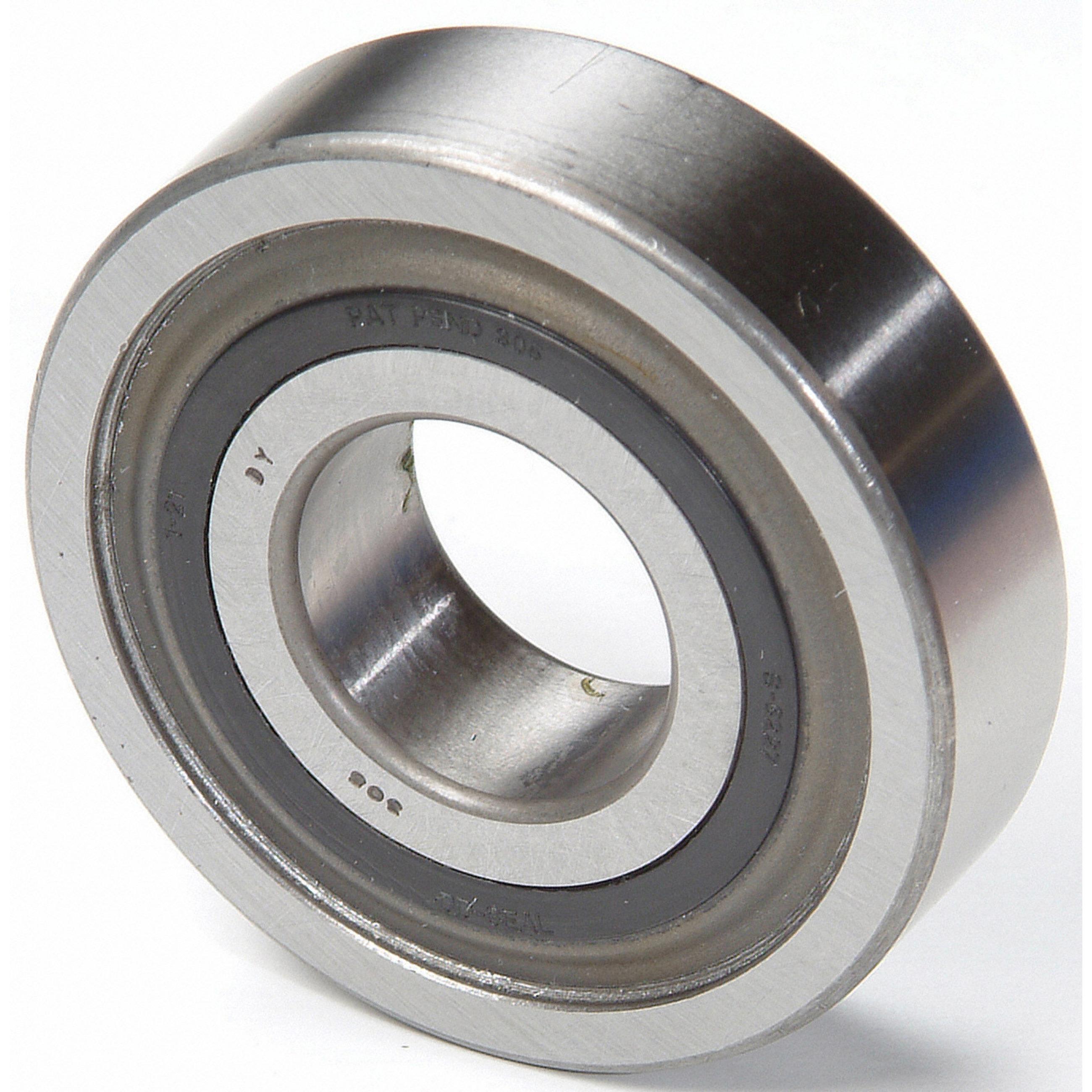

Part Description | Ball Bearing |
Bore (Inch) | 0.669 |
Bore (MM) | 17.000 |
Inner Race Bore (Inch) | 0.669 |
Inner Race Bore (MM) | 17.000 |
Inner Race Width (MM) | 12.000 |
Outer Race Width (MM) | 12.000 |
Outer Race Radius (Inch) | 0.024 |
Width (inch) | 0.472 |
Outer Race Width (Inch) | 0.472 |
WIDTH (MM) | 12.000 |
Inner Race Width (Inch) | 0.472 |
Outer Race Radius (MM) | 0.610 |
Inner Race Radius (MM) | 0.610 |
Inner Race Radius (Inch) | 0.024 |
Series | 200 |
Outside Diameter (Inch) | 1.575 |
Outer Race Outside Diameter (Inch) | 1.575 |
Outside Diameter (MM) | 40.000 |
Outer Race Outside Diameter (MM) | 40.000 |
Type | A-8 |
Heavy Duty Supplier | Yes |
Grade Type | Premium |
Alliance Keywords | multi purpose bearing, roulement polyvalent |
Part Terminology | Multi-Purpose Bearing |
