Design | Single Row Radial |
Type | A-5 |

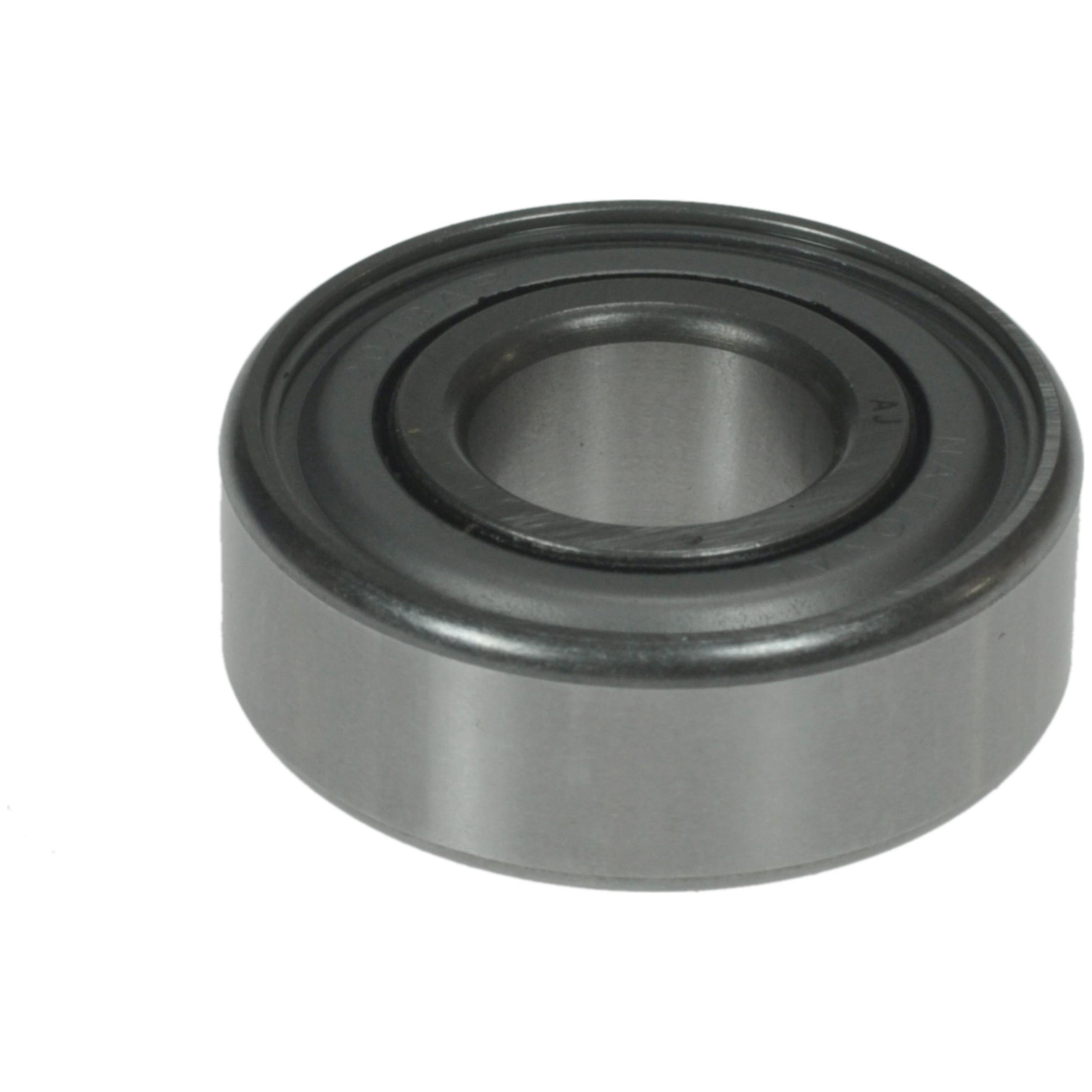

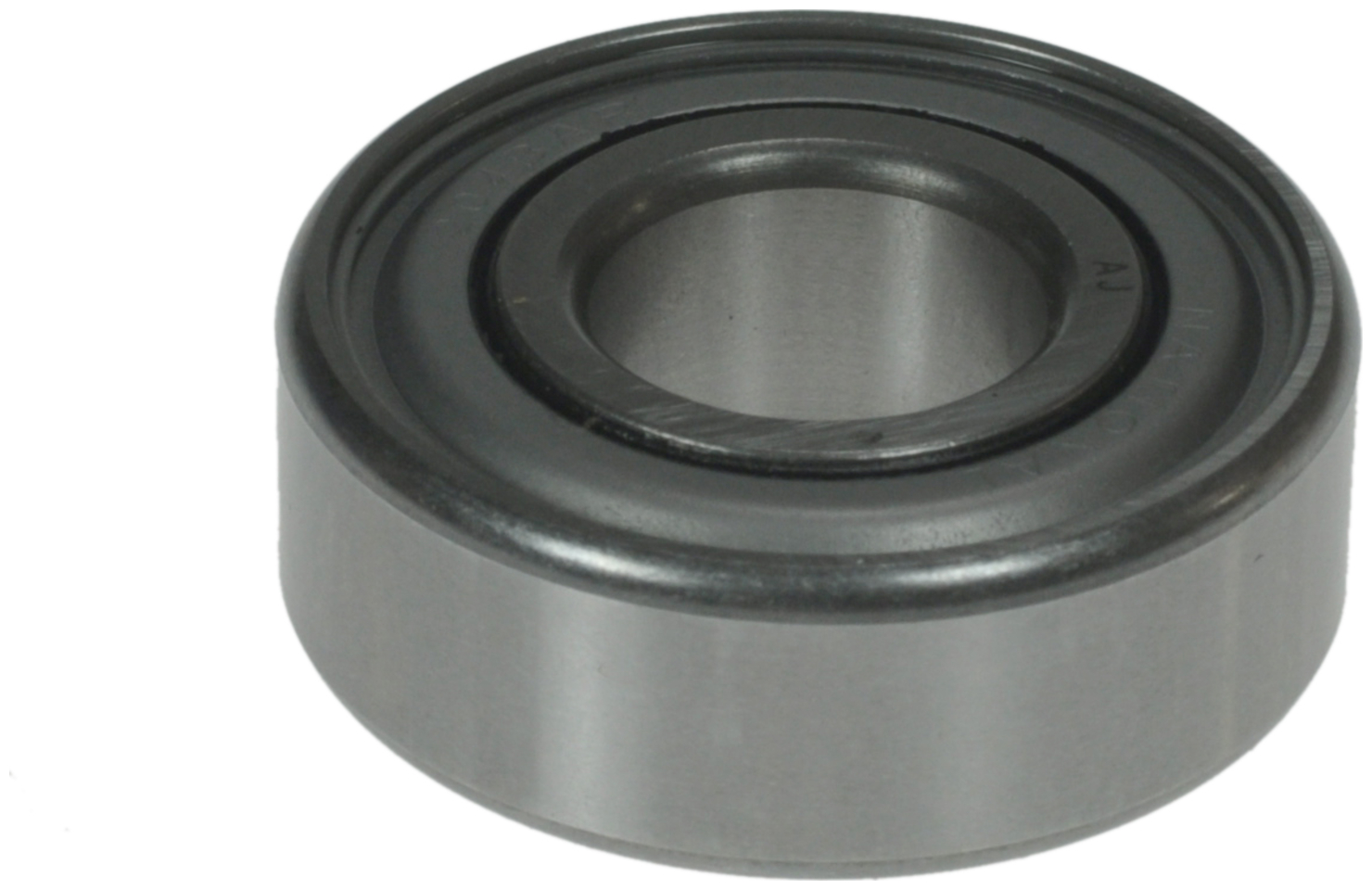

Part Description | Ball Bearing |
Outer Race Radius (Inch) | 0.040 |
Inner Race Radius (Inch) | 0.040 |
Outer Race Radius (MM) | 1.016 |
Inner Race Radius (MM) | 1.016 |
Footnote | Agricultural Bearing Special |
Series | AGSPEC |
Bore (Inch) | 0.750 |
Bore (MM) | 19.050 |
Inner Race Bore (Inch) | 0.750 |
Inner Race Bore (MM) | 19.050 |
Inner Race Width (MM) | 15.494 |
Outer Race Width (MM) | 15.494 |
Outside Diameter (Inch) | 1.781 |
Width (inch) | 0.610 |
Outer Race Outside Diameter (Inch) | 1.781 |
Outer Race Width (Inch) | 0.610 |
WIDTH (MM) | 15.494 |
Inner Race Width (Inch) | 0.610 |
Outside Diameter (MM) | 45.225 |
Outer Race Outside Diameter (MM) | 45.225 |
Heavy Duty Supplier | Yes |
Part Terminology | Multi-Purpose Bearing |
