Product Details
expand_less
| Overall Width with Side Lip (Inch) |
0.521 |
| Overall Width with Side Lip |
0.521 |
| Heavy Duty Supplier |
Yes |
| Unit of Dimension |
Inch |
| Housing Bore (MM) |
56.300 |
| Outside Diameter (Inch) |
2.235 |
| Shaft (MM) |
34.925 |
| Inside Diameter |
1.375 |
| Housing Bore (Inch) |
2.217 |
| Helix Type |
Bi-Directional Lip Design |
| WIDTH (MM) |
9.240 |
| Width |
9.240 |
| Part Description |
Oil Seal |
| Flanged Outside Diameter (Inch) |
2.402 |
| Shaft Diameter |
1.375 |
| Material |
Fluoro-Elastomer |
| Width (inch) |
0.364 |
| Thickness |
9.240 |
| Series |
710400 |
| Type |
74 |
| Flanged Outside Diameter |
61.000 |
| Outside Diameter (MM) |
56.770 |
| Overall Width with Side Lip (MM) |
13.240 |
| Prop 65 Label (Yes/No) |
No |
| Outside Diameter |
2.235 |
| Flanged Outside Diameter (MM) |
61.000 |
| Grade Type |
Premium |
| Housing Bore |
2.217 |
| Shaft (Inch) |
1.375 |
| Part Terminology |

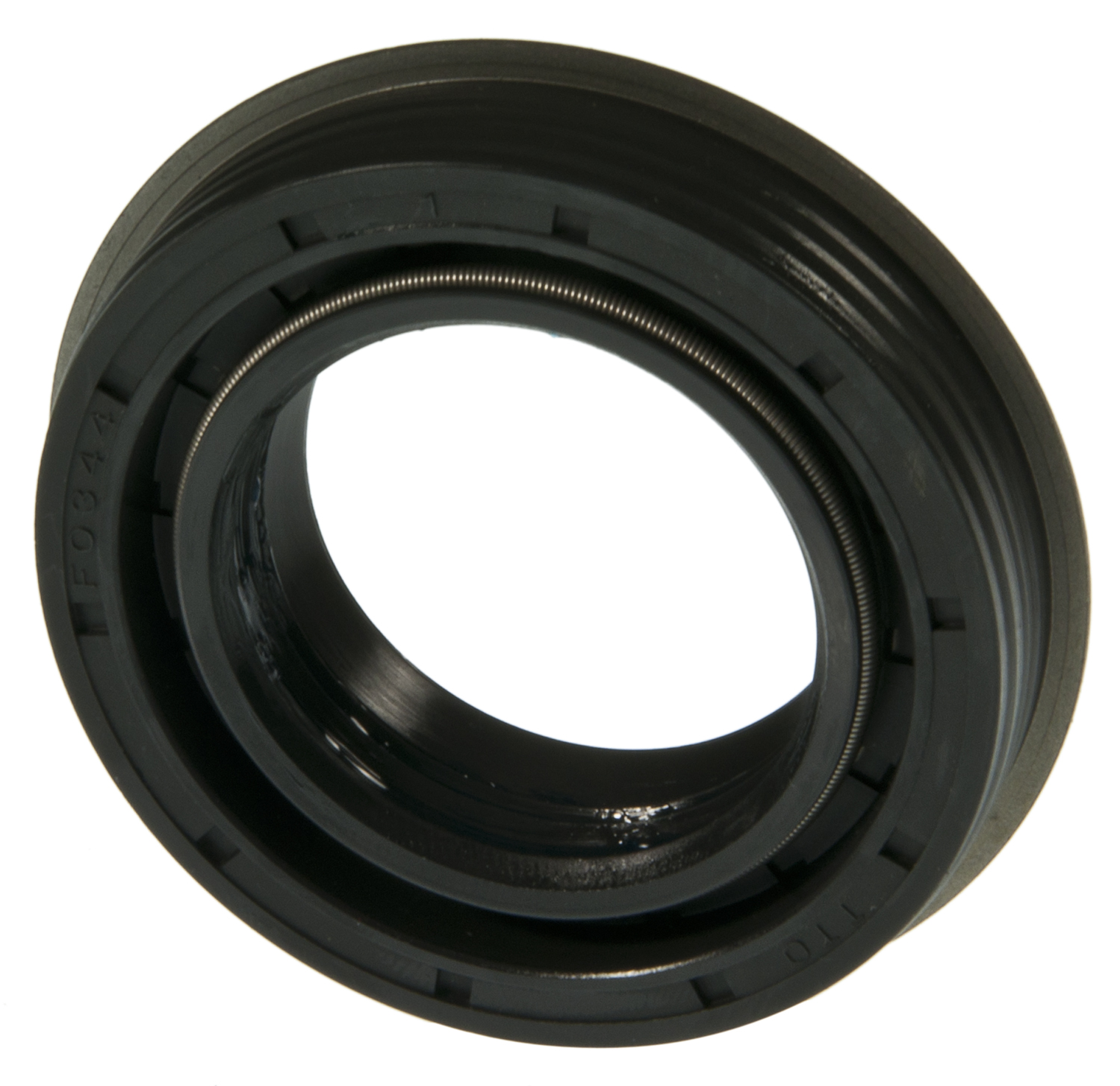

Drive Axle Shaft Seal |
Features & Benefits
expand_more
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 75 years. Our design team keeps pace with the industry and provides advanced solutions for today’s vehicles.
Application Summary
expand_more
2011 Ram 1500 (Front Left) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential, with Chrysler C205FD Differential); 2011 Ram Dakota (Front Left, Front Right) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential); 2007-2009 Chrysler Aspen (Front Right, Front Left) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential); 2002-2010 Dodge Ram 1500 (Front Left, Front Right) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential, with Chrysler C205FD Differential); 2000-2010 Dodge Dakota (Front Left, Front Right) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential); 2000-2009 Dodge Durango (Front Left, Front Right) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential); 2006-2010 Jeep Commander (Front Right) (Drive: 4WD / Qualifier: with 7.875 (in) Ring Gear, with Chrysler C200F Differential, Independent Front Suspension, with Chrysler C200FE Differential); 2009-2010 Jeep Grand Cherokee (Front Right) (Drive: AWD / Qualifier: with 7.875 (in) Ring Gear, with Chrysler C200F Differential, Independent Front Suspension, with Chrysler C200FE Differential); 2006-2009 Mitsubishi Raider (Front Right, Front Left) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Chrysler C205F Differential)
