| Overall Width with Side Lip (Inch) | 0.382 |
| Overall Width with Side Lip | 0.382 |
| Heavy Duty Supplier | Yes |
| Unit of Dimension | Inch |
| Housing Bore (MM) | 73.000 |
| Outside Diameter (Inch) | 2.878 |
| Shaft (MM) | 46.600 |
| Inside Diameter | 1.835 |
| Housing Bore (Inch) | 2.874 |
| Helix Type | Counter-Clockwise-Spiral Lip Design |
| WIDTH (MM) | 7.200 |
| Width | 7.200 |

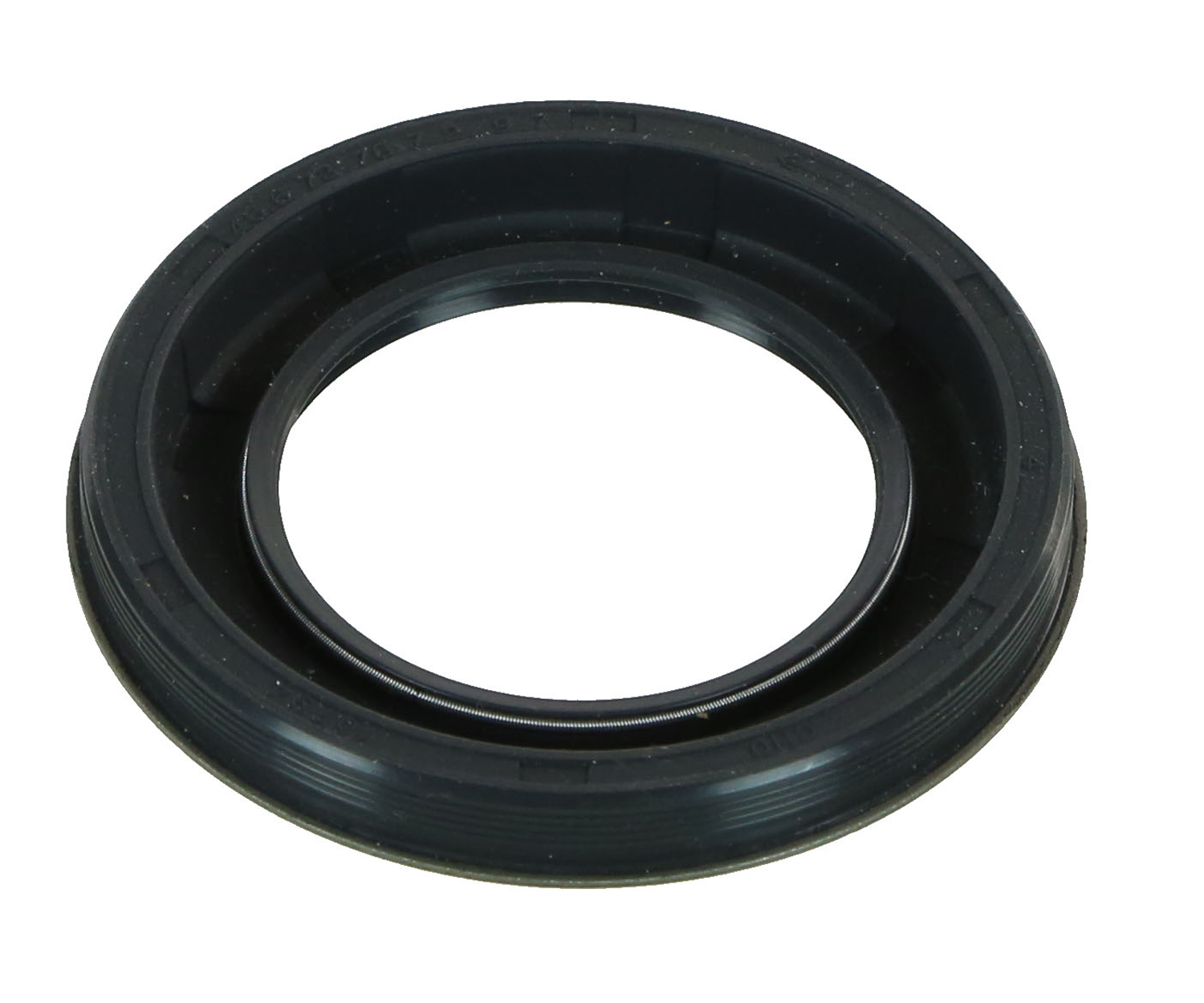

| Part Description | Oil Seal |
| Flanged Outside Diameter (Inch) | 2.992 |
| Shaft Diameter | 1.835 |
| Material | Fluoro-Elastomer |
| Width (inch) | 0.283 |
| Thickness | 0.283 |
| Series | 710800 |
| Type | 74 |
| Flanged Outside Diameter | 76.000 |
| Outside Diameter (MM) | 73.100 |
| Overall Width with Side Lip (MM) | 9.700 |
| Sealing Material | Fluoro-Elastomer |
| Prop 65 Label (Yes/No) | No |
| Outside Diameter | 2.878 |
| Flanged Outside Diameter (MM) | 76.000 |
| Housing Bore | 2.874 |
| Grade Type | Premium |
| Shaft (Inch) | 1.835 |
| Part Terminology | Multi-Purpose Seal |
