| Width | 0.688 |
| Width On Shaft | 0.563 |
| Grade Type | Premium |
| Installation Depth | 1.000 |
| Minimum Shaft Diameter | 1.872 |
| Maximum Shaft Diameter | 1.878 |
| Material | Nickel Plated Formed Steel |
| Width (inch) | 0.563 |
| WIDTH (MM) | 14.300 |
| Overall Width (Inch) | 0.688 |

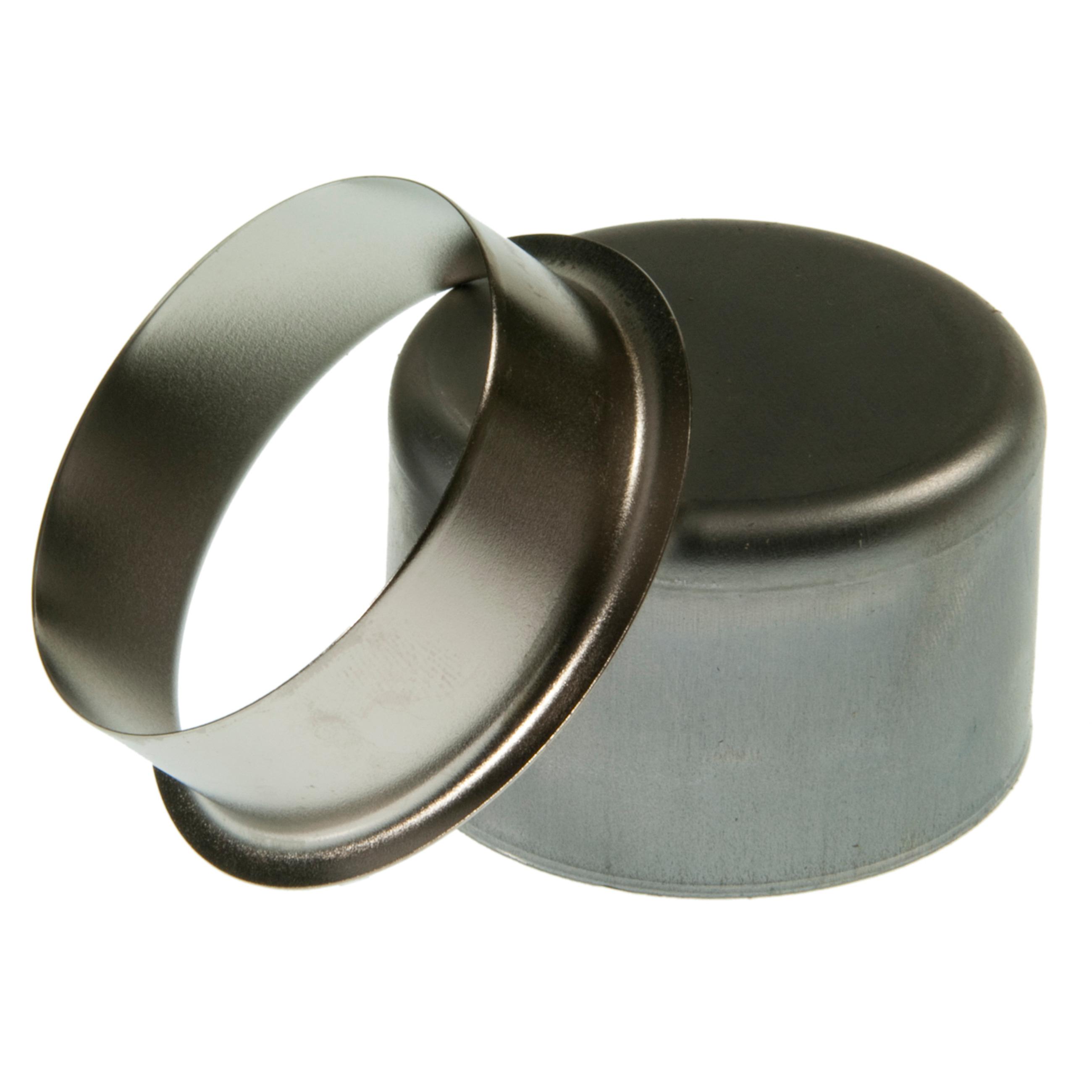

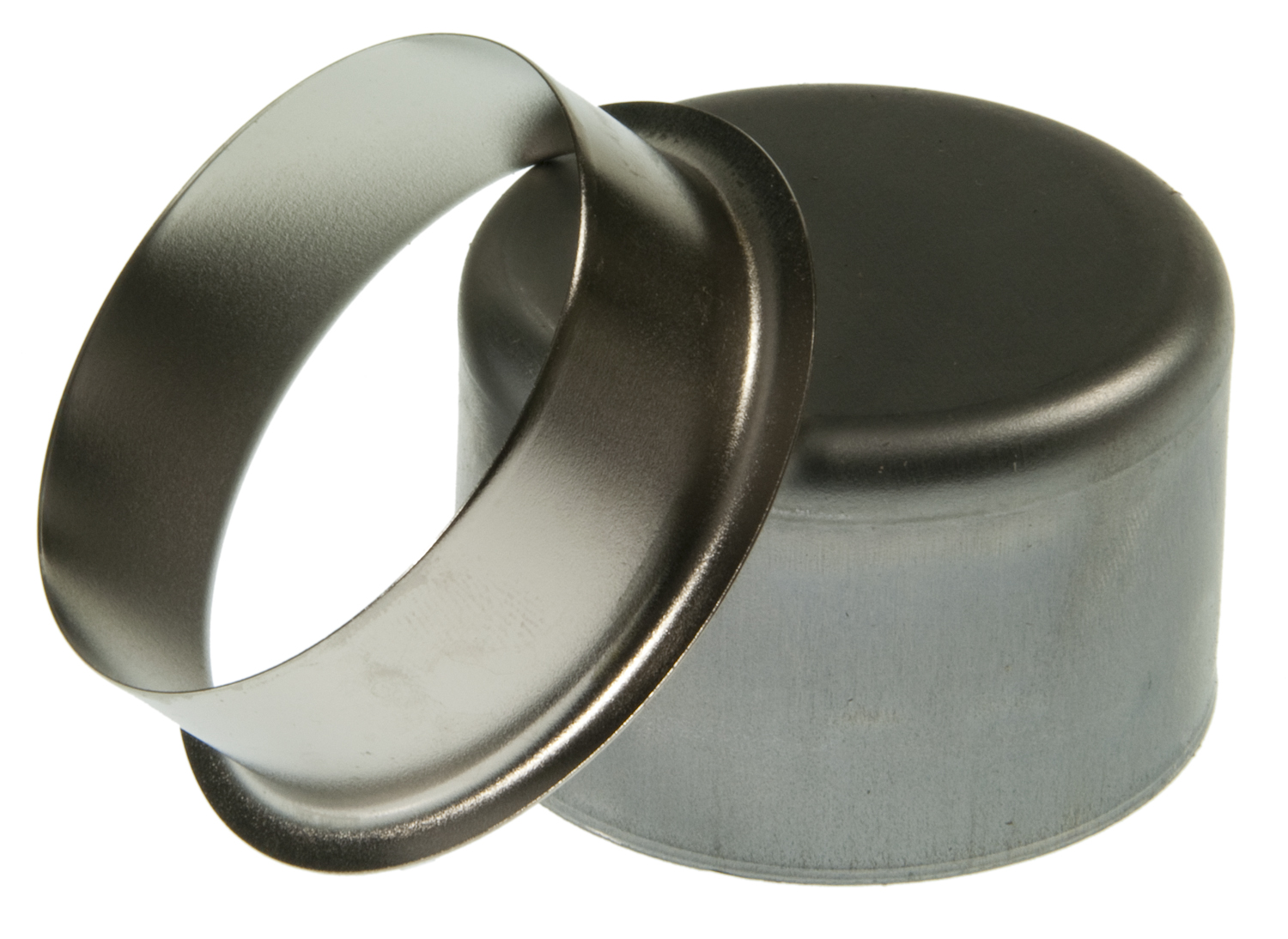

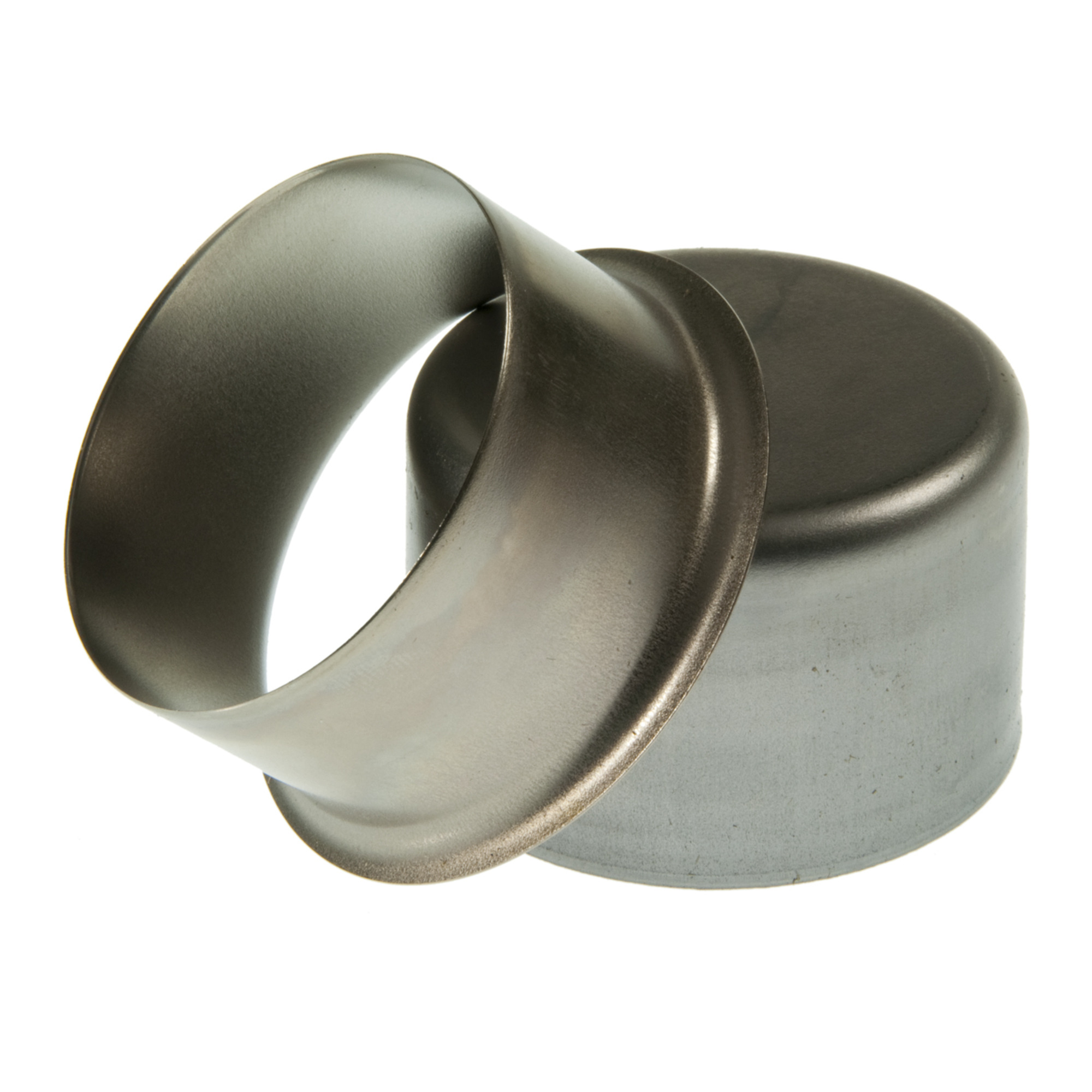

| Part Description | Harmonic Balancer Sleeve |
| Overall Width (MM) | 17.480 |
| Installation Depth (Inch) | 1.000 |
| Installation Depth (MM) | 25.400 |
| Shaft Size Minimum (Inch) | 1.872 |
| Shaft Size Maximum (Inch) | 1.878 |
| Shaft Size Maximum (MM) | 47.700 |
| Flanged Outside Diameter (MM) | 55.960 |
| Shaft Size Minimum (MM) | 47.550 |
| Flanged Outside Diameter (Inch) | 2.203 |
| Heavy Duty Supplier | Yes |
| Unit of Dimension | Inch |
| Flanged Outside Diameter | 55.960 |
| Part Terminology | Engine Harmonic Balancer Repair Sleeve |
