| Cup Radius (Inch) | 0.0460 |

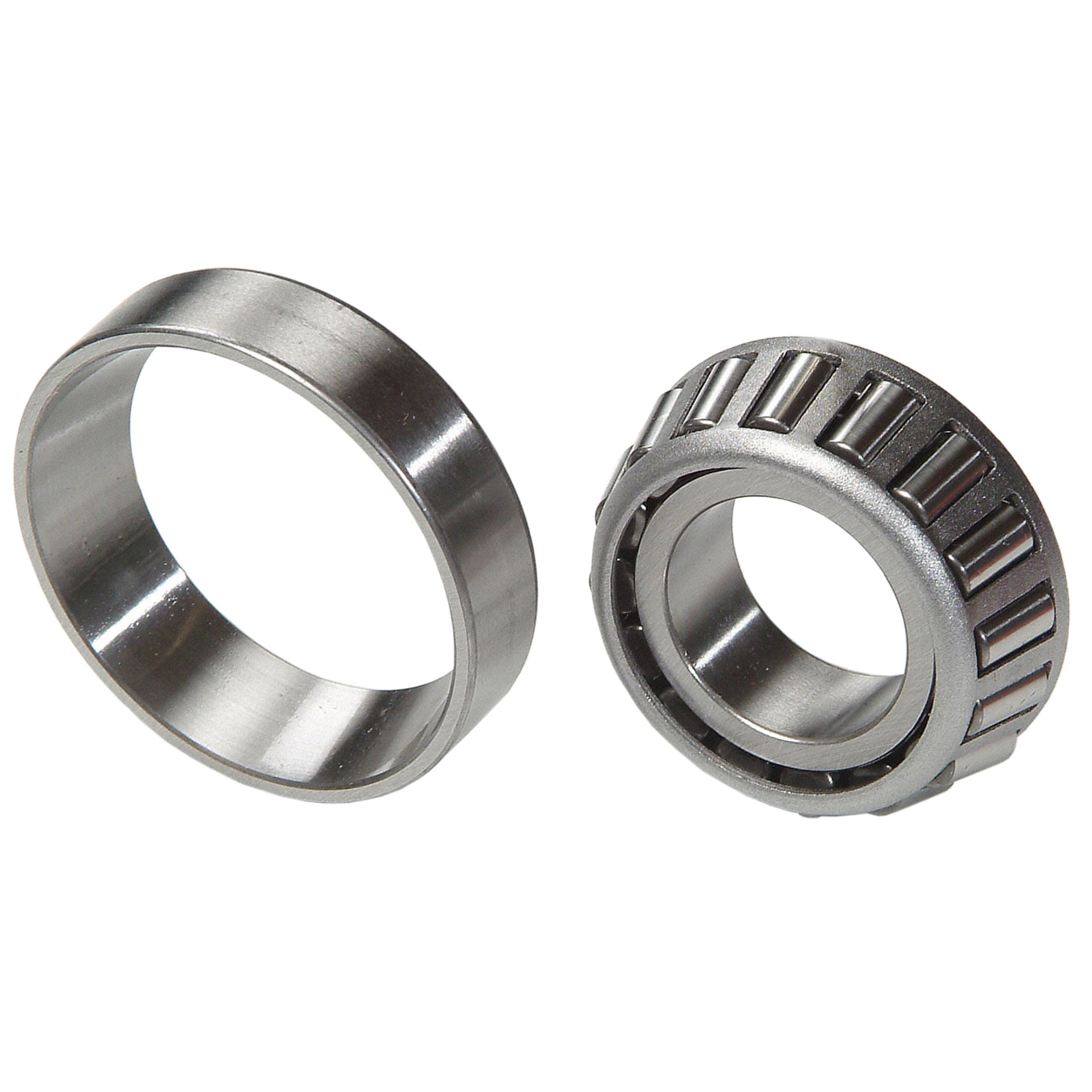

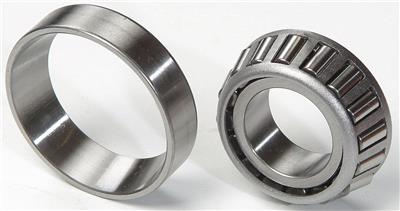

| Part Description | Taper Bearing Set |
| Taper Bearing Cone | LM11749 |
| Cup Bore (Inch) | 1.5700 |
| Standout (Inch) | 0.0125 |
| Standout (MM) | 0.3180 |
| Heavy Duty Supplier | Yes |
| Cup Radius (MM) | 1.1680 |
| Cone Radius (MM) | 1.1680 |
| Cup Length (MM) | 10.6680 |
| Cup Bore (MM) | 39.8780 |
| Width (inch) | 0.5450 |
| Taper Bearing Cup | LM11710 |
| Cone Length (Inch) | 0.5750 |
| Cup Length (Inch) | 0.4200 |
| Cone Radius (Inch) | 0.0460 |
| Cone Bore (MM) | 17.4630 |
| Cone Bore (Inch) | 0.6875 |
| WIDTH (MM) | 13.8430 |
| Alliance Keywords | multi purpose bearing, roulement polyvalent |
| Cone Length (MM) | 14.6050 |
| Grade Type | Premium |
| Part Terminology | Multi-Purpose Bearing |
