Solid Or Vented Type Rotor | Vented |
Nominal Thickness | 20.0 |
Outside Diameter | 345.0 |
Mounting Bolt Hole Quantity | 6 |
Discard Thickness | 18.5 |
Overall Height | 3.35 |
Heavy Duty Supplier | Yes |
Overall Height MM | 85.1 |
Outer Diameter Inches | 13.583 |
Center Hole Diameter Inches | 3.094 |
VIO | 9702938 |
Rotor Type | Vented |
Bolt Holes | 6 |
Bolt Circle Diameter MM | 139.7 |
Bolt Circle Diameter Inches | 5.5 |
New Thickness Inches | 0.787 |
New Thickness MM | 20 |
Outer Diameter MM | 345 |
Center Hole Diameter MM | 78.6 |
Minimum Thickness MM | 18.5 |
Minimum Thickness Inches | 0.728 |
Overall Height Inches | 3.35 |
New Drum Diameter MM | 210.2 |
Maximum Drum Diameter Inches | 8.339 |
New Drum Diameter Inches | 8.276 |
Maximum Drum Diameter MM | 211.8 |
California Proposition 65 | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |

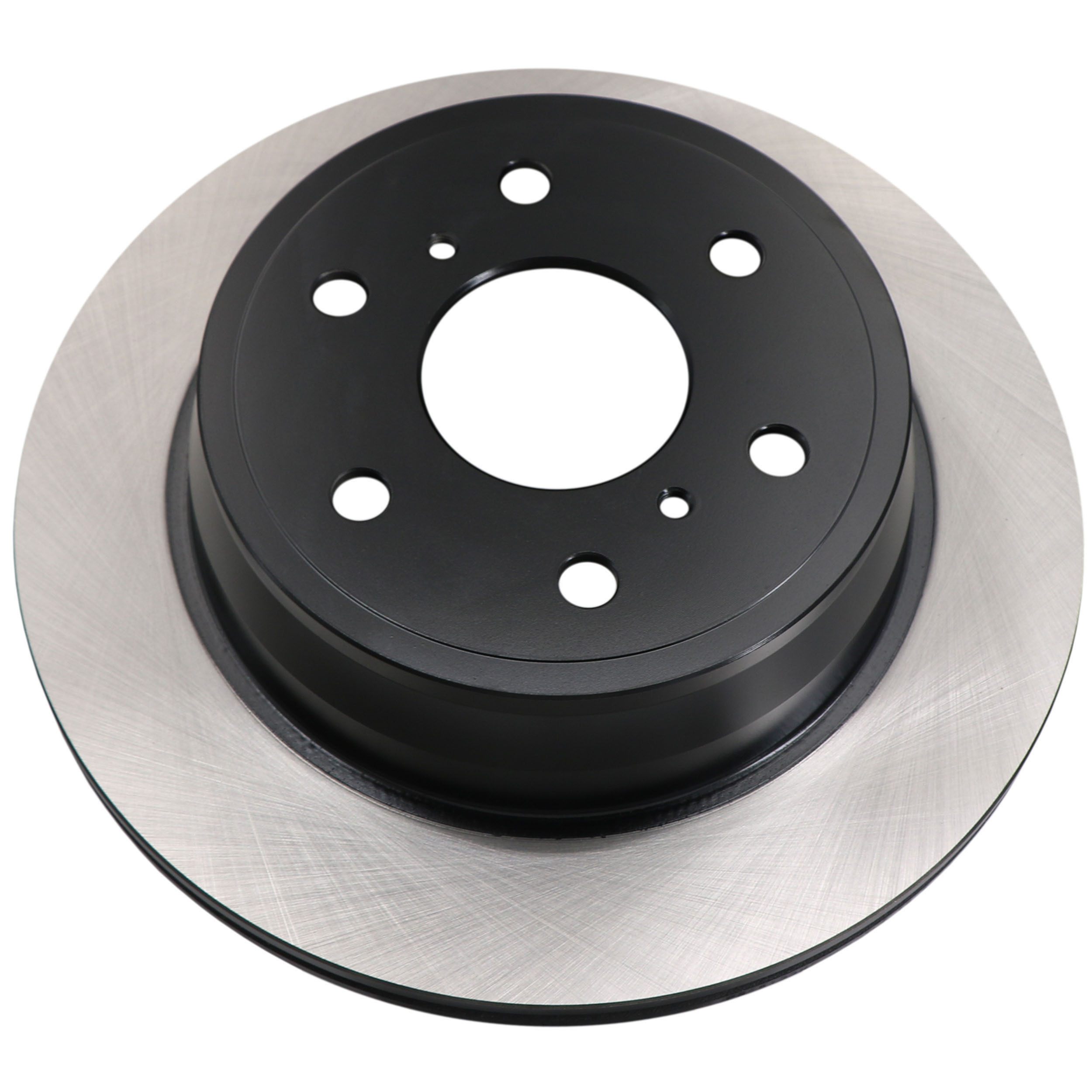

Part Terminology | Disc Brake Rotor |
