| Grade Type | Premium |
| Outside Diameter (Inch) | 3.347 |
| Outer Race Outside Diameter (Inch) | 3.347 |
| Outside Diameter (MM) | 85.000 |
| Outer Race Outside Diameter (MM) | 85.000 |
| Outer Race Width (MM) | 22.000 |
| Outer Race Width (Inch) | 0.866 |
| Inner Race Radius (Inch) | 0.025 |
| Inner Race Radius (MM) | 0.635 |
| Bore (Inch) | 1.750 |
| Inner Race Width (MM) | 42.863 |
| Inner Race Width (Inch) | 1.688 |

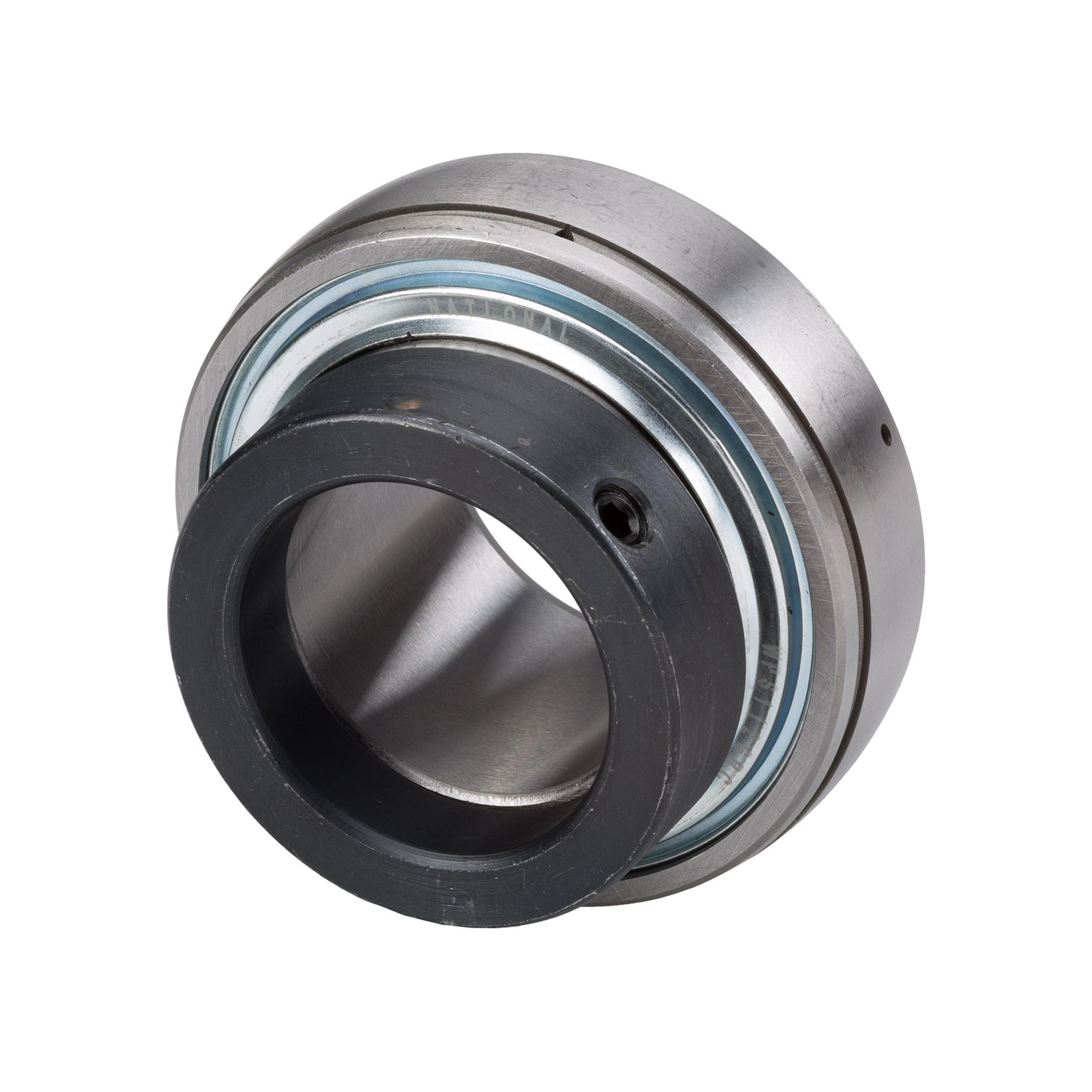

| Part Description | Adapter Bearing |
| Design | Wide Inner Ring |
| Width (inch) | 2.219 |
| WIDTH (MM) | 56.358 |
| Bore (MM) | 44.450 |
| Type | I-2 |
| Series | WPADAP |
| Inner Race Bore (Inch) | 1.750 |
| Inner Race Bore (MM) | 44.450 |
| Heavy Duty Supplier | Yes |
| Alliance Keywords | multi purpose bearing, roulement polyvalent |
| Part Terminology | Multi-Purpose Bearing |
