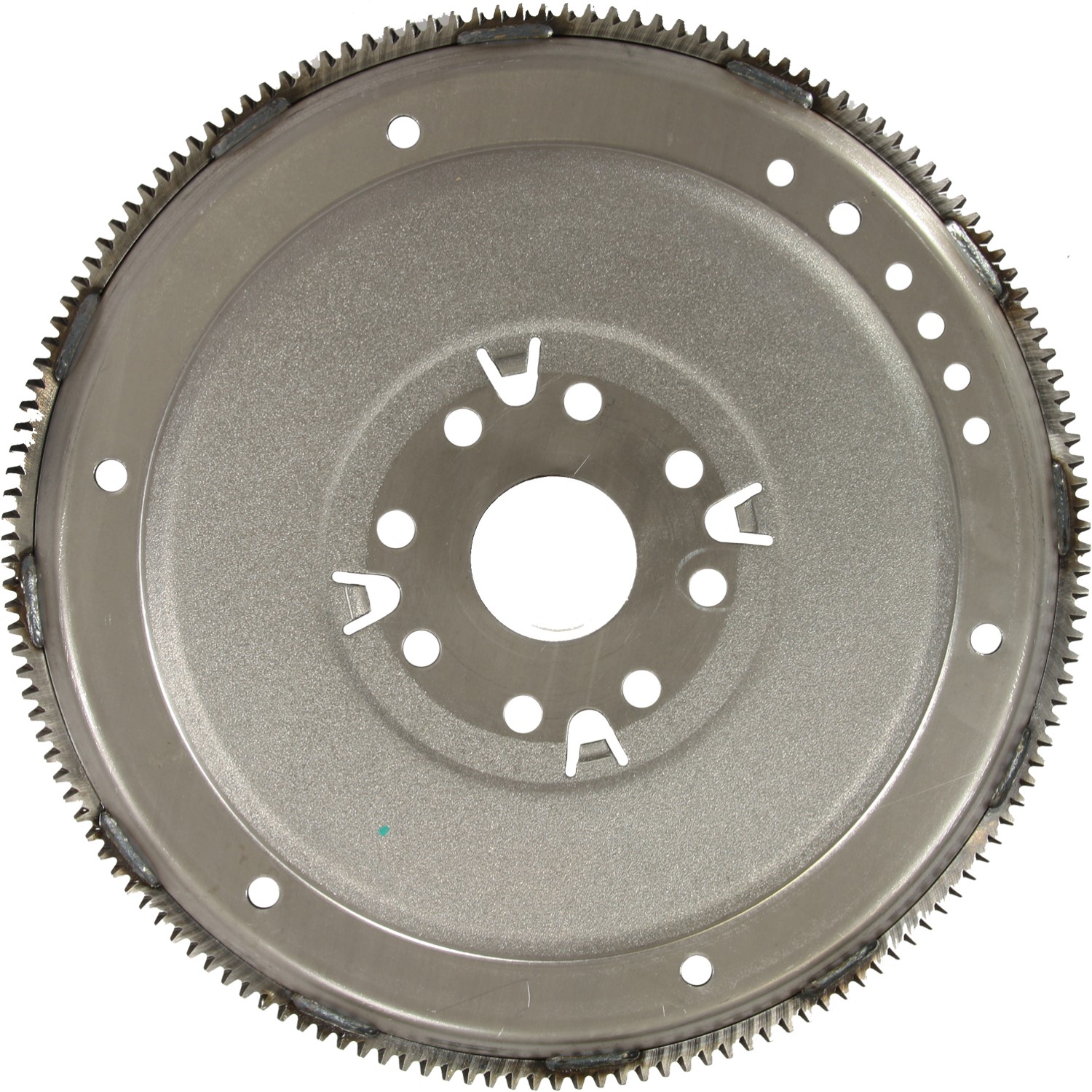

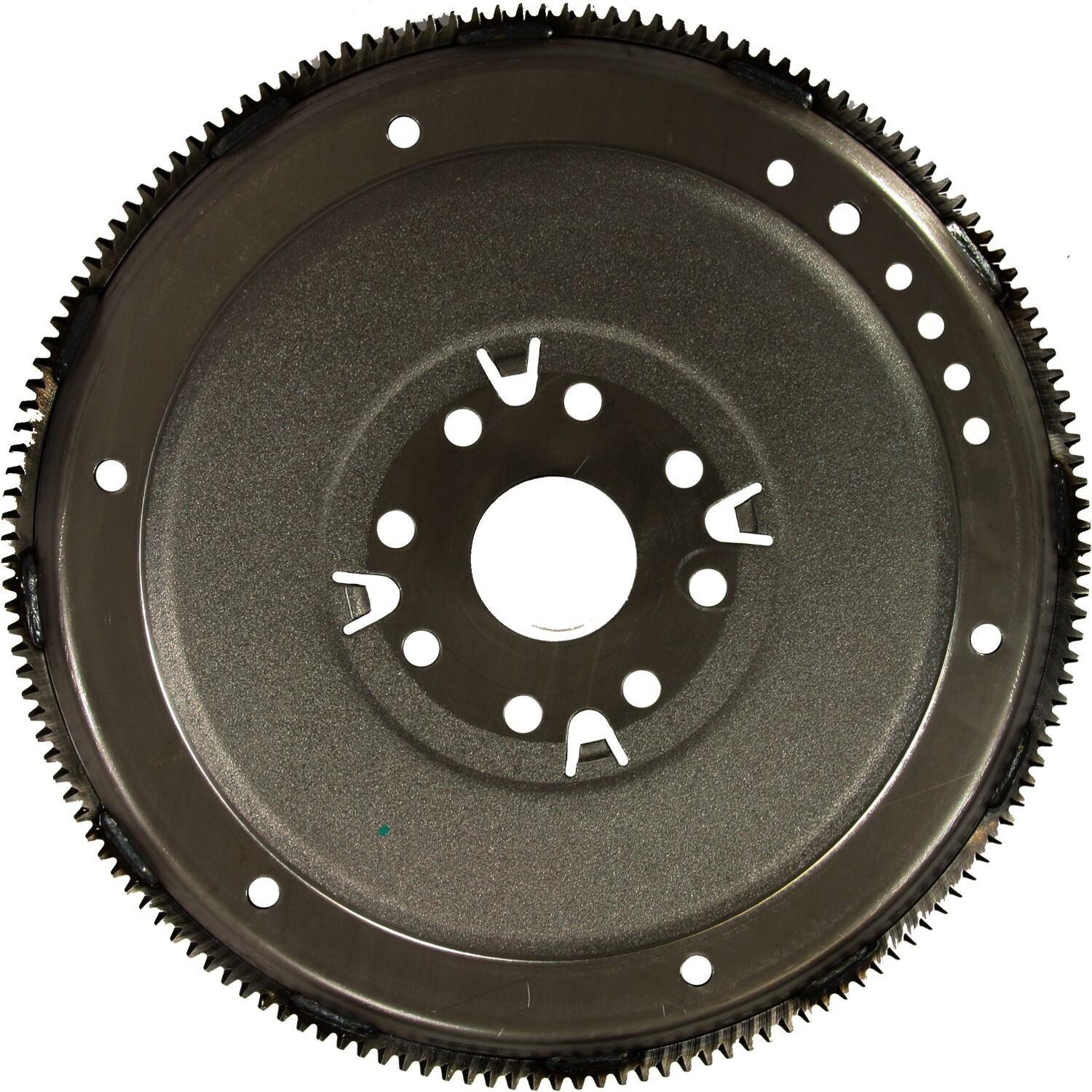

ATP Automatic Transmission Flex Plate
Part # Z-607 | Line Code: ATP
brandNameImage
brandNameImage

$439.99
$439.99
error
Not Fitted

Product Details
expand_less
Diameter (mm) 390.525
SFI Approved N
SFI Certification Sticker Included N
Heavy Duty Supplier No
Tooth Quantity 152
Teeth 152
Pitch Flywheels 12 TO 14
Diameter (in) 1.281
Outside Diameter 15.375
LineCode ATP4
Safety Rating N/A
California Proposition 65 Required N
Part Terminology Automatic Transmission Flexplate

Features & Benefits
expand_more
Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability

Application Summary
expand_more

Dodge Ram 2500 10-07, Dodge Ram 3500 10-07, Dodge Ram 4500 10-08, Dodge Ram 5500 10-08, Ram 2500 13-11, Ram 3500 13-11, Ram 4500 12-11, Ram 5500 12-11
