| Heavy Duty Supplier | Yes |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| Core Width (in) | 17 11/16 |
| Core Length (IN) | 28 3/4 |
| Inlet Length (In) | 18 1/8 |
| Top Hose Fitting (in) | 1 1/2 Right |
| Core Width | 17 11/16 |
| Core Material | Aluminum |
| Inlet Diameter | 1 1/2 Right |
| Down Flow Or Cross Flow Type | Cross Flow |
| Cap Included | No |
| Tank Material | Plastic |
| Box Height (in) | 5 11/16 |
| Box Weight (lbs) | 13 |
| Outlet Length (In) | 18 1/8 |
| Outlet Diameter | 1 1/2 Left |
| No. of Rows | 1 |
| Hazardous Material | No |
| Core Thickness | 1 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Inlet Width (in) | 1 5/8 |
| Heavy Duty | Yes |
| Core Length | 28 3/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Box Width (in) | 23 3/8 |
| Box Length (in) | 35 3/4 |
| Core Thickness (in) | 1 1/4 |
| Radiator Cap Supplied | No |

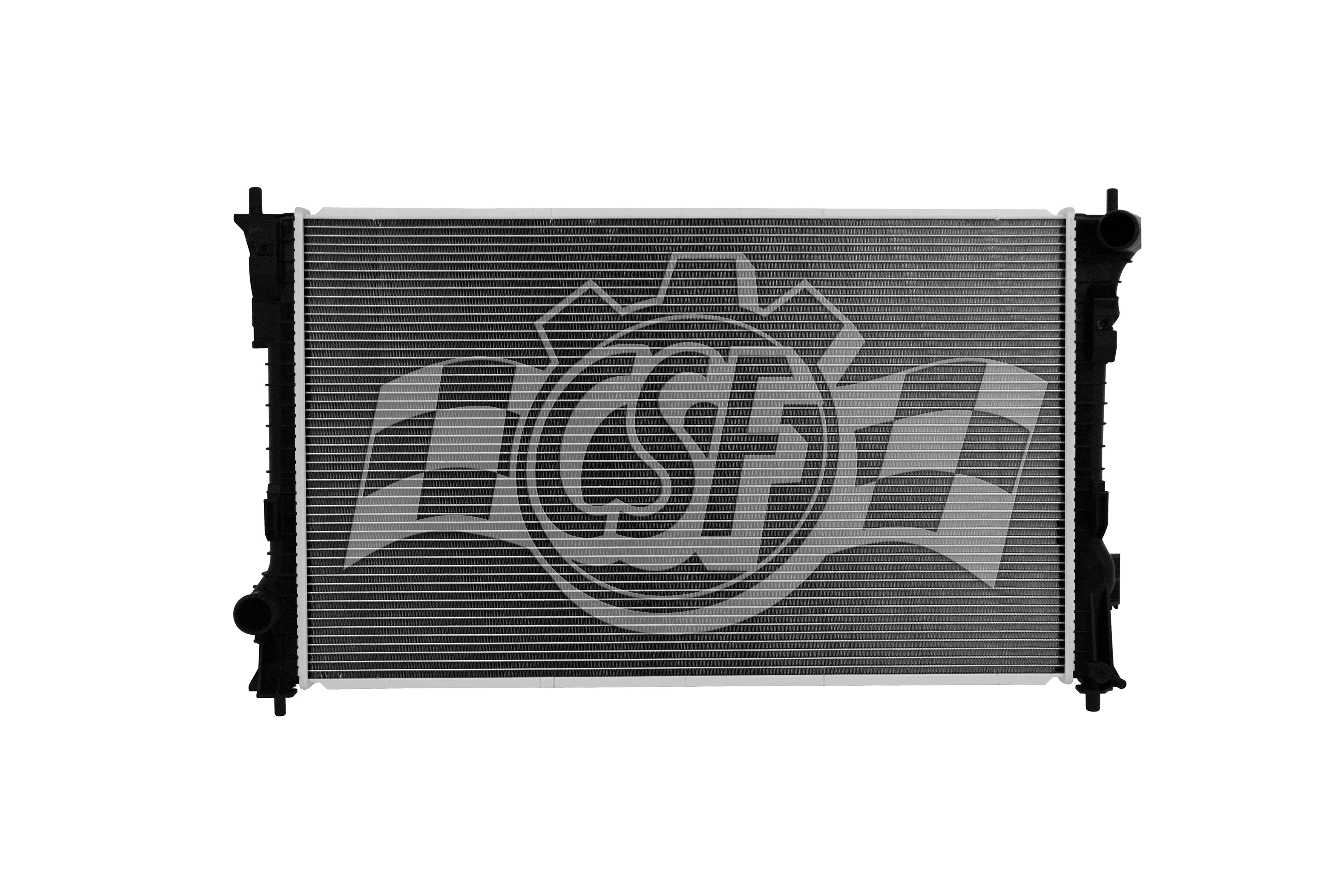

| Part Terminology | Radiator |
