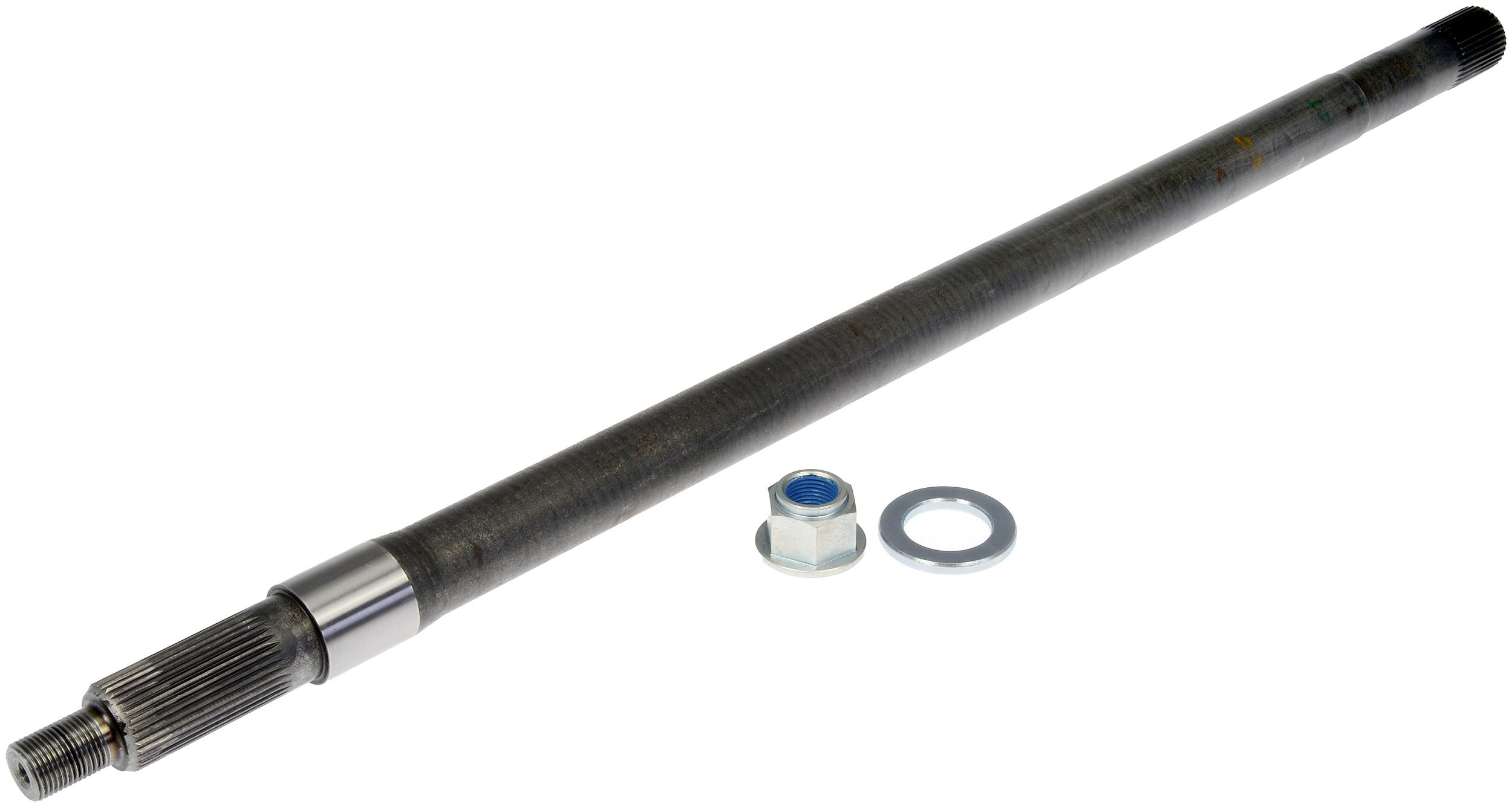

Rear Axle Shaft Assembly Kit
Part # 630-051 | Line Code: DMN
brandNameImage
brandNameImage

$406.99
$406.99
error
Not Fitted

Product Details
expand_less
Outboard Spline Quantity 34
ABS Sensor Ring Included No
Differential Case Design Type Rear Differential
Contenidos del paquete 1 eje propulsor
Heavy Duty Supplier Yes
Wheel Studs Included No
Shaft Diameter 39
Material SAE 1541
Adjustable No
Shaft Length 899
Package Contents 1 Spacer
Inboard Spline Quantity 35
Rust Resistant Coating No
Length 929 mm
Shaft Material SAE1541
Grade Type Performance
Part Terminology Drive Axle Shaft Assembly

Features & Benefits
expand_more
The bolt that secures the left rear hub to the axle on certain 2021-2025 Ford F-150 trucks equipped with the Max Tow package has been known to shear off after a modest number of towing trips, ventures offroad or even day-to-day driving. Failure symptoms include the sound of brakes dragging (a result of the brake rotor moving freely against the hub), a rattle caused by the sheared bolt head trapped inside the assembly and in extreme cases, severe changes in truck handling. The dealer solution is to replace the axle assembly with the same original equipment design, inviting a future similar failure. This Dorman OE FIX axle assembly kit eliminates the thin-walled internally-threaded axle end of the factory shaft design and the failure-prone bolt that connects it to the hub. Our upgraded axle shaft features an externally-threaded male end and matching nut to capture the axle end, resulting in a more secure connection between the hub and the axle. The entire assembly is designed for a straightforward installation and a longer-lasting repair that can prevent potentially dangerous vehicle control issues and multiple dealership repair visits that keep a customer vehicle out of commission for several days. This kit contains the axle shaft, spacer and nut required to replace one left rear axle assembly. For the right rear axle version of this product, select Dorman part number 630-050. For our kit containing both assemblies, select Dorman part number 630-052.
