| Gasket Or Seal Included | Included |
| Refrigerant Type | R12, R134a, R1234YF |
| Switch Service Port | w/o Switch Port |
| Material | Aluminum |
| California Proposition 65 | Warning: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. |
| Fitting Thread Size | 3/4" - 16 |
| Heavy Duty Supplier | Yes |
| Switch Included? | Not Included |
| O.E. Replacement? | Yes |
| Gasket / Seals? | Included |
| Hose Connection Type | Beadlock |
| Hose I.D. Fraction | 13/32 |
| Hose Size | 8 |
| Description | AC Fittings |
| Fitting Type | Female O-Ring |
| Switch Port? | w/o Switch Port |
| Service Port? | w/ Service Port |
| Run Length IN | 2.125 |
| Service Port Size | No. 16 |
| Service Port Type | R-134a |
| Fitting Angle | 90 Degrees |
| Hose I.D. MM | 10.32 |
| Hose I.D. IN | 0.41 |
| Drop Length IN | 1.31 |
| Drop Length MM | 33.27 |
| Run Length MM | 53.85 |
| Run Length IN | 2.125 |
| Fitting Size | 8 |
| Type | Standard Diameter Beadlock |
| Style | 90 Degrees Female O-Ring with R134a Service Port |

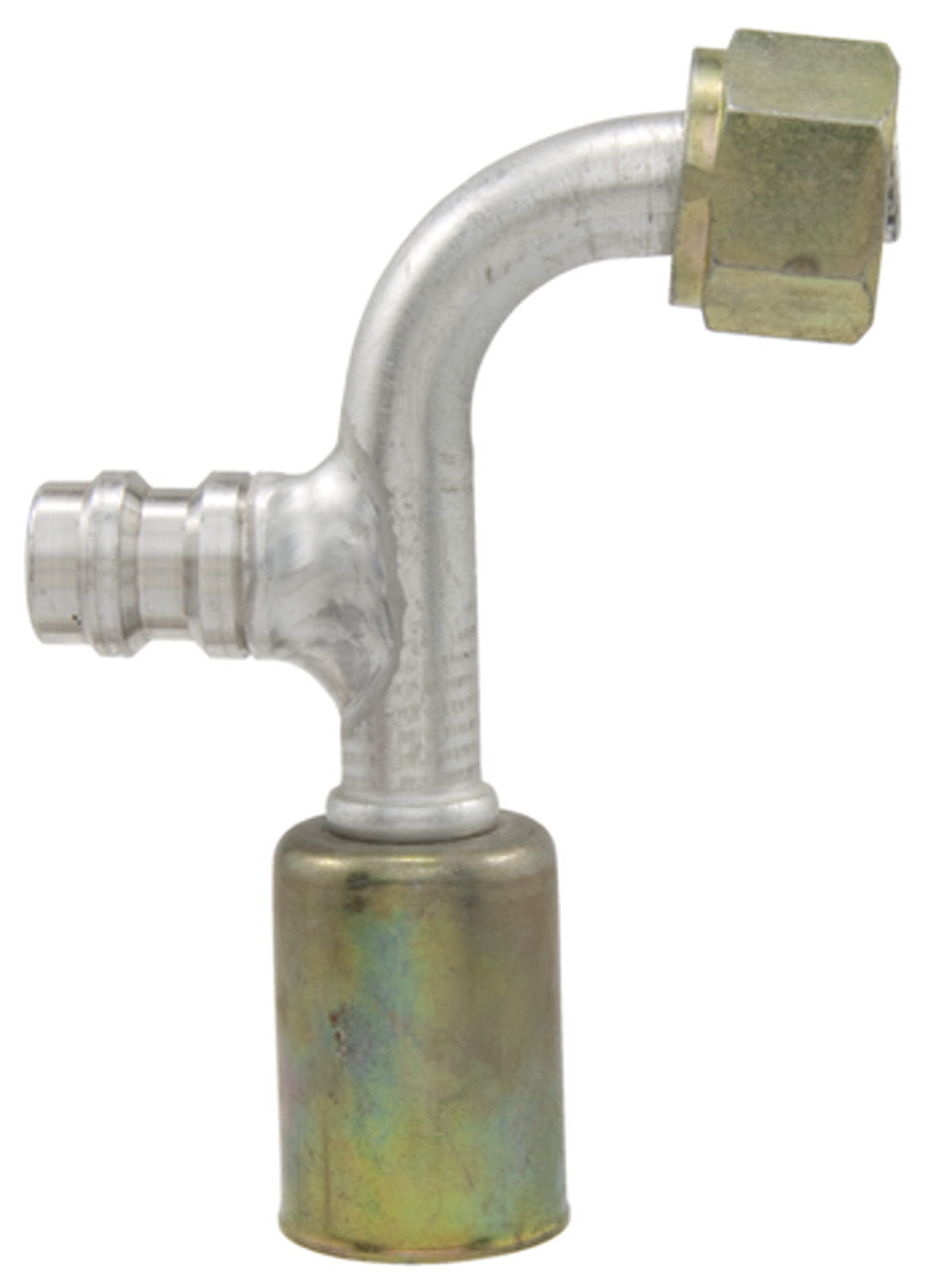

| Part Terminology | A/C Refrigerant Hose Fitting |
