Air Conditioning Compressor Clutch & Idler Assembly

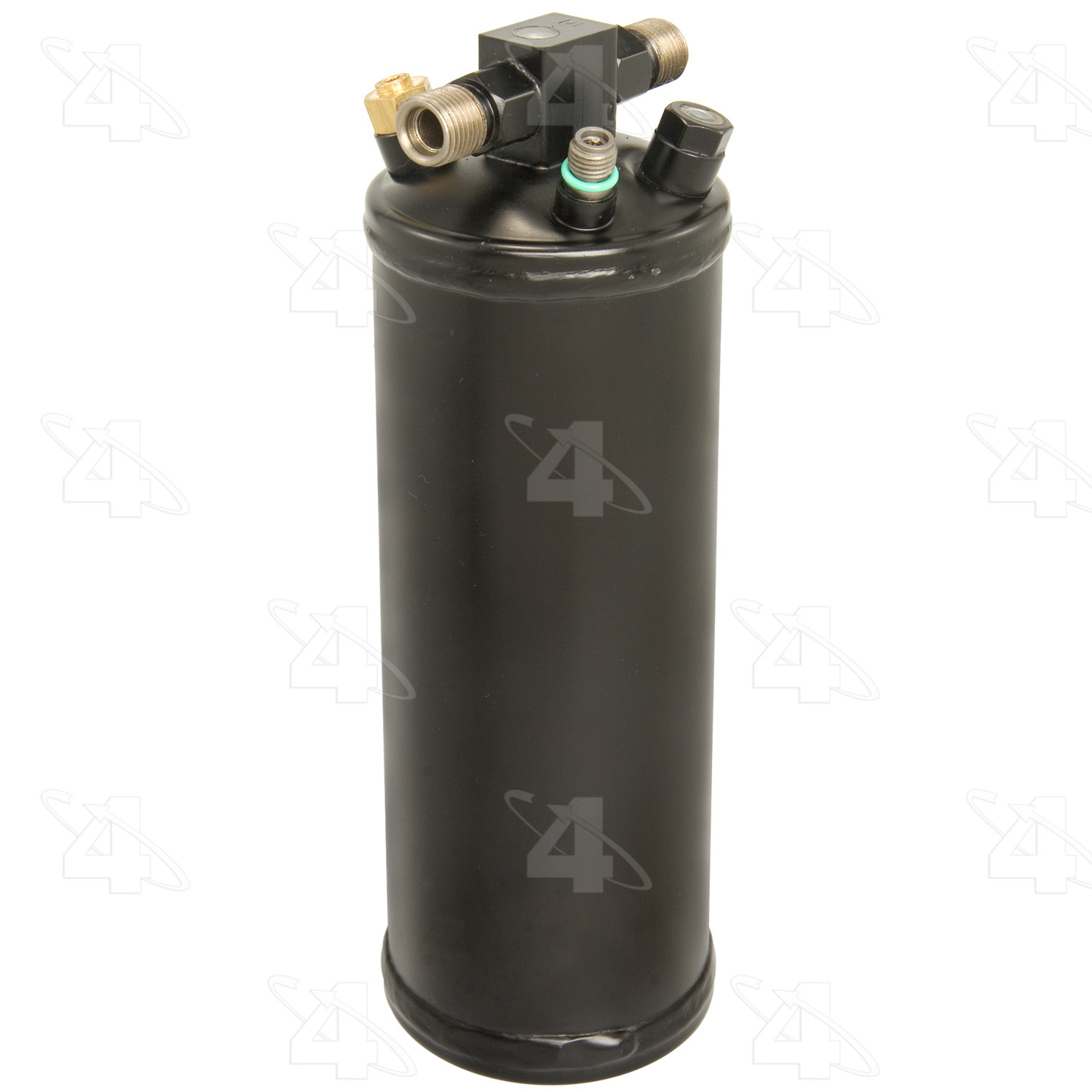

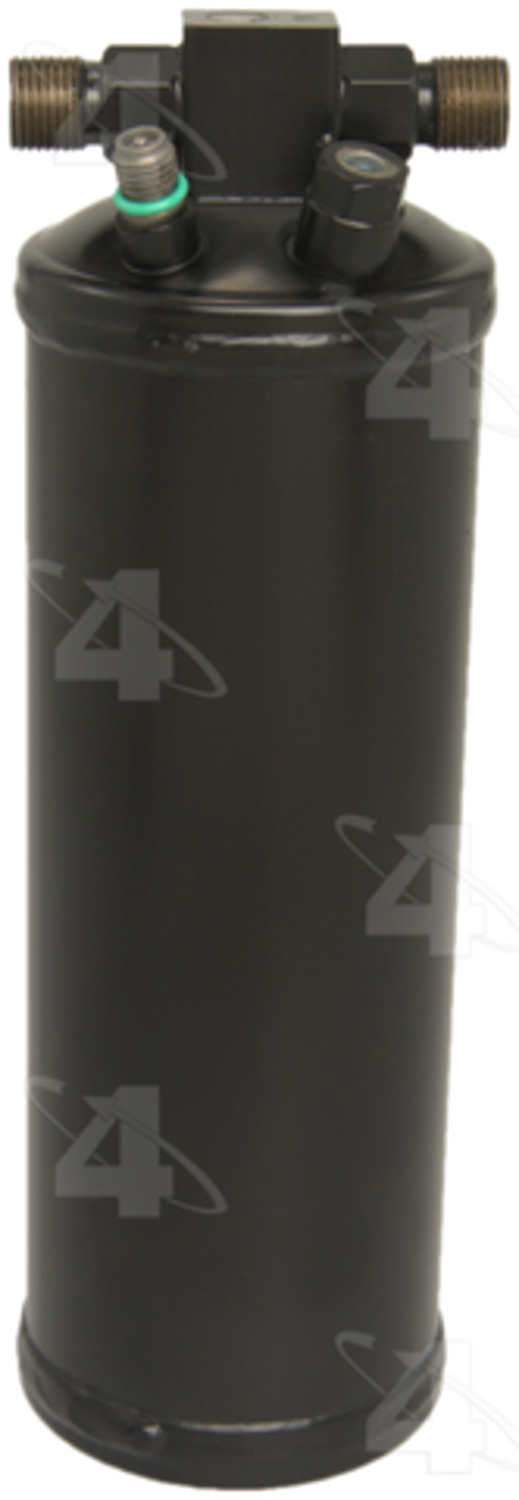

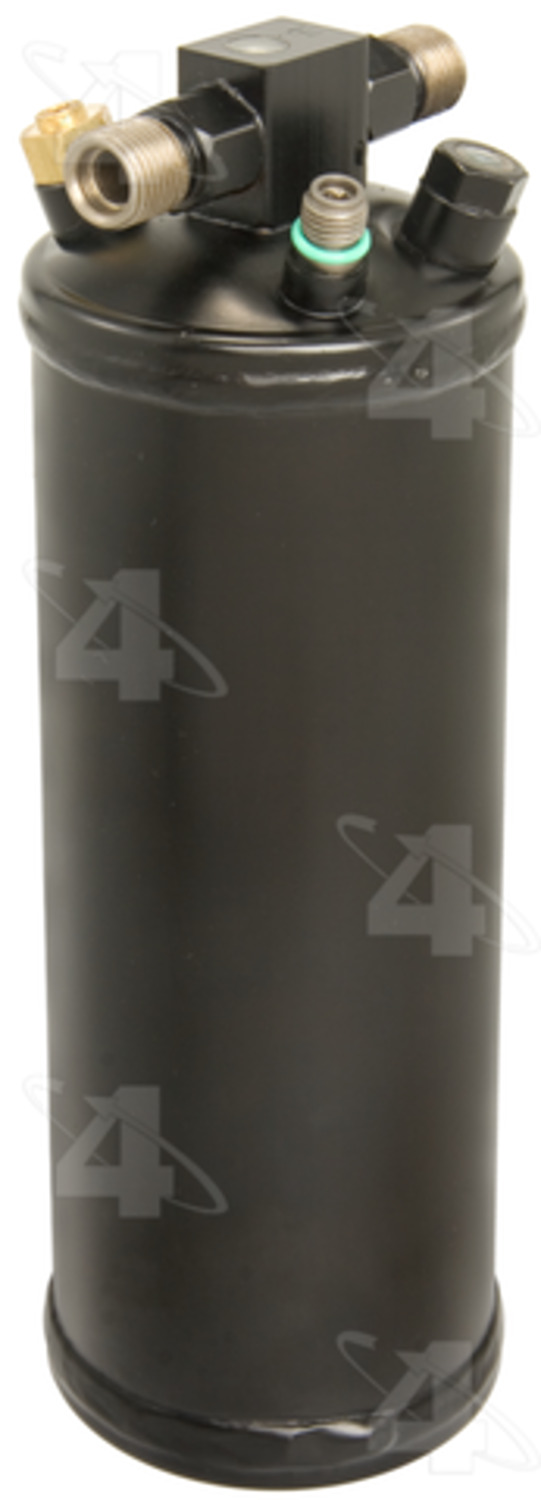

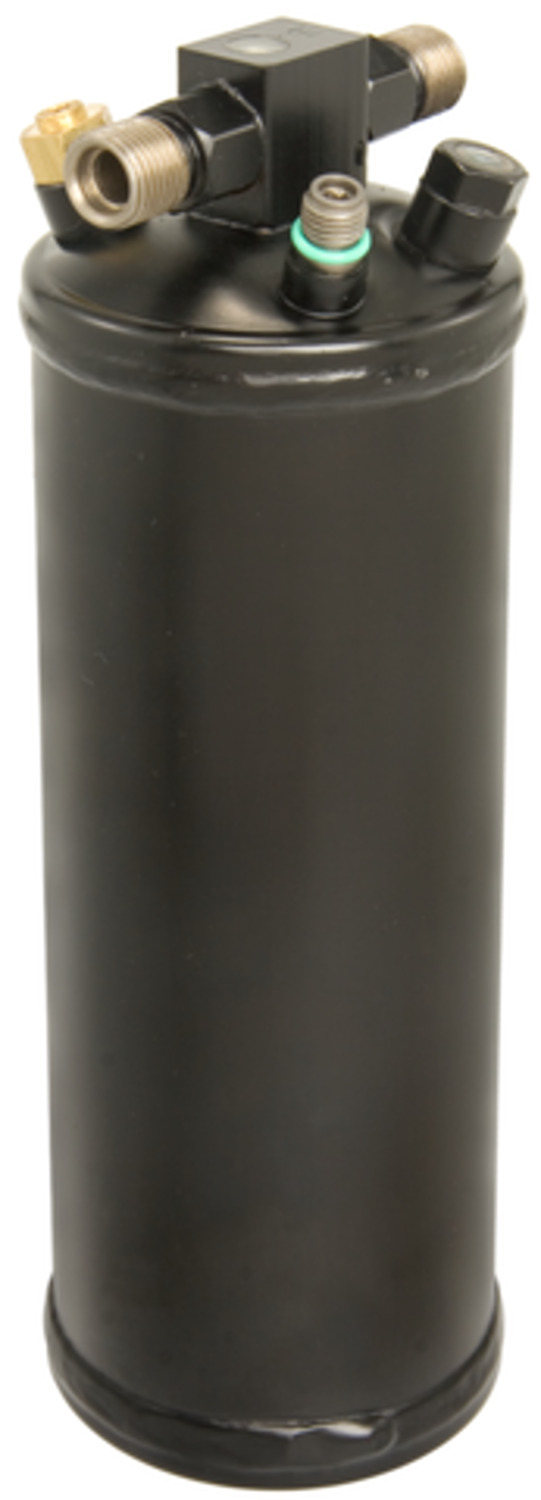

Steel Filter Drier
Part # 33474 | Line Code: STF
brandNameImage
brandNameImage

$64.99
$64.99
error
Not Fitted

Product Details
expand_less
In Line Filter Material Desiccant
Moisture Indicator Window Yes
Body Length 9.000
Inlet Fitting Type Male Insert O-Ring
Outlet Fitting Type Male Insert O-Ring
Type Washer Not Included
Body Diameter 3.000
Desiccant Replaceable Not Replaceable
Inlet Filter Fitting Thread Diameter 0.625
Inlet Fitting Diameter 0.375
Mounting Bracket Included Not Included
Fuse Plug No
Inlet Filter Fitting Type Male
Desiccant Yes
In Line Filter Outlet Fitting Type Male
Material Steel
Heavy Duty Supplier Yes
Gasket / Seals? Included
Service Port? w/ Service Port
O-Ring A Quantity 2
New or Reman New
Meets / Exceeds OEM? Yes
Outlet Type Male Insert O-Ring
Inlet Type Male Insert O-Ring
Switch Port? w/ Switch Port
Length IN 9.000
Desiccant Included? Yes
Des Replaceable? Not Replaceable
In Fltr Fitt Typ Gen Male
Connector Type Male Insert O-Ring
Description Filter Driers
Washer Type Washer Not Included
Out Fitt Type Gen Male
Connector B Type Male Insert O-Ring
Filter Material Desiccant
Outlet Fraction 3/8
Dia. IN 3.000
Fitt Thrd Dia IN 0.625
Inlet MM 9.525
Inlet IN 0.375
Style Steel Filter Drier
Inlet Fraction 3/8
Inlet Dia. IN 0.375
Overall Depth IN 9.000
Bracket? w/o Bracket
Outlet IN 0.394
Moisture Indicator? Yes
Fuse Plug? No
Stud? No
Sight Glass? Yes
P. R. V.? Yes
Mounting Hardware? Not Included
Length MM 228.6
Dia. MM 76.2
Outlet MM 10
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
O-Ring A Number/Desc 24606 / Green O-Ring
Duty Type Heavy Duty
Part Terminology A/C Receiver Drier

Features & Benefits
expand_more
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary
expand_more

Mack (06-99); Volvo
