Air Conditioning Compressor Clutch & Idler Assembly

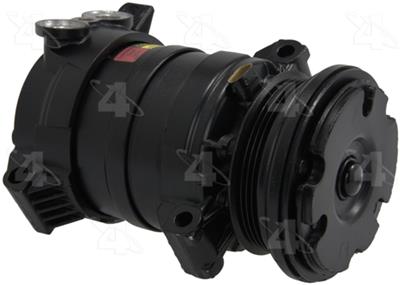

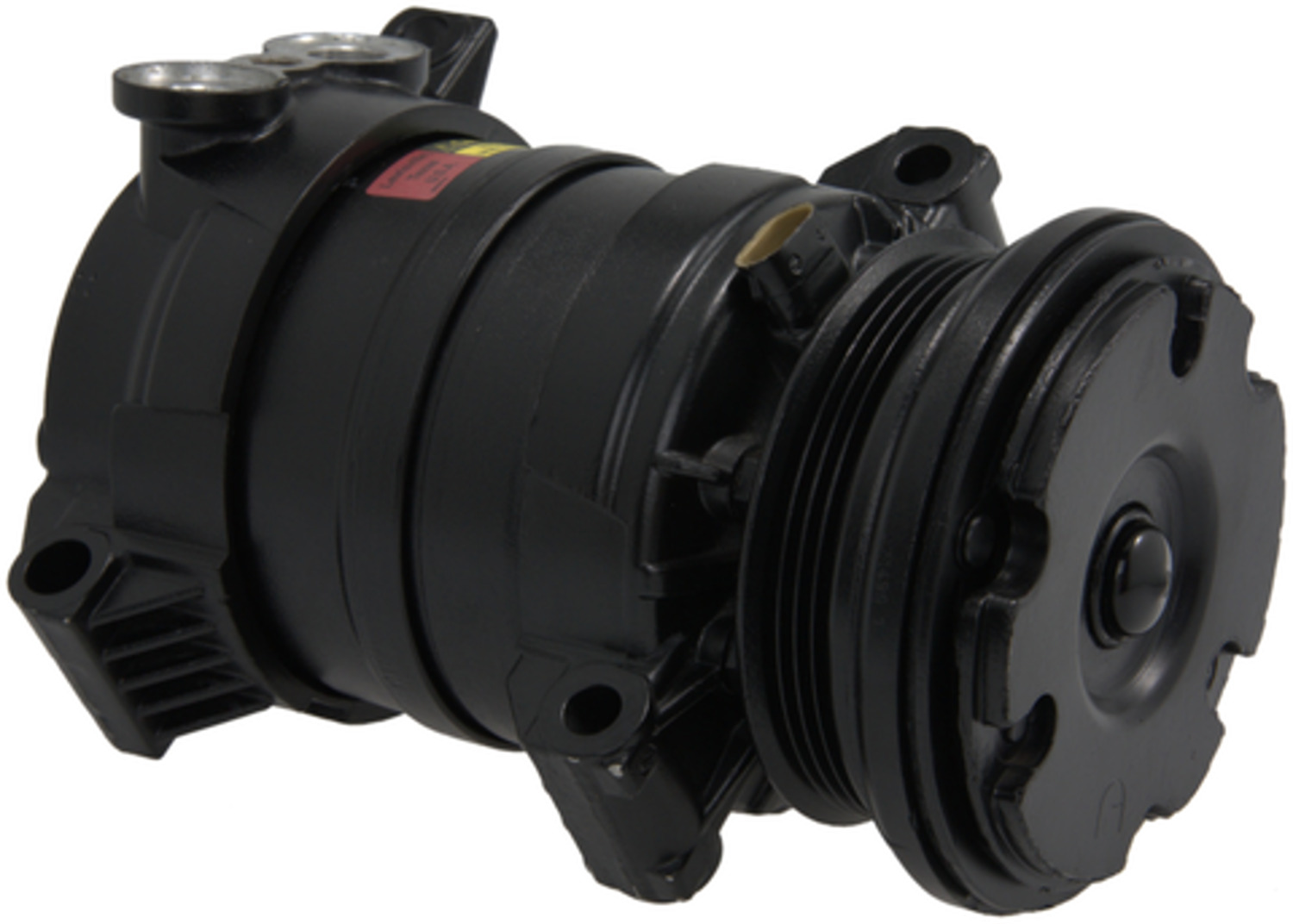

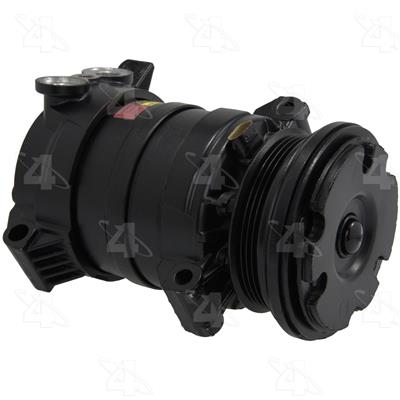

GM HU6 Reman Compressor
Part # 57901 | Line Code: STF
brandNameImage
brandNameImage

$231.99
Core Charge: $13.33
Core Charge: $13.33
$231.99
Core Charge: $13.33
Core Charge: $13.33
error
Not Fitted

Product Details
expand_less
Clutch Pulley Diameter 4.250
Coil Clock Position 11
Pulley Belt Type Serpentine
Compatible Refrigerant Oil Type PAG 150
Clutch Maximum Diameter 4.250
Pulley Lip Diameter 4.250
Pulley Ridge Diameter 4.250
Switch Included High Pressure
Connector Shape 8mm Pin Connector
Mounting Type Tangent Mount
Compressor Type GM
Switch Type Pressure Switch
Clutch Included Included
Oil Filled Included
Distance From Clutch To Mounting Flange 0.83
Coil Voltage 12
Belt Type Serpentine
Pulley Groove Quantity 4
Refrigerant Type R134a
Terminal Type Pin
Distance Between Mounting Holes 0.83
New or Reman Remanufactured
Connector Type pin
Heavy Duty Supplier Yes
Mount Type Tangent Mount
Description Compressors - Reman
Style Piston
O-Ring A Quantity 2
Type GM
Ctch Dia. MM Prmy 107.950
Switch / Sensor Desc High Pressure
Discharge Port Type Sealing Washer
Suction Port Type Sealing Washer
Oil Type PAG 150
Mounting Hardware? Not Included
Groove 4
Model HU6
Coil Clock 11
O-Ring B Number/Desc N/A
O-Ring B Quantity N/A
Pulley Diameter MM 107.95
Mount Distance MM 20.83
Electronic Control Valve No
Pulley Diameter IN 4.250
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
O-Ring A Number/Desc 24354 / Sealing Washer
Mount Distance IN 0.83
Part Terminology A/C Compressor

Features & Benefits
expand_more
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary
expand_more

Cadillac Escalade (Model) (02); Escalade EXT (02) >> Chevy AVALANCHE 1500 (02); AVALANCHE 2500 (02); C25, C2500 SERIES (02-00); C35, C3500 SERIES (02-01); SILVERADO 1500, Classic, HD, HD Classic, LD, LTD, CHEYENNE (MODEL) (02-99); SILVERADO
