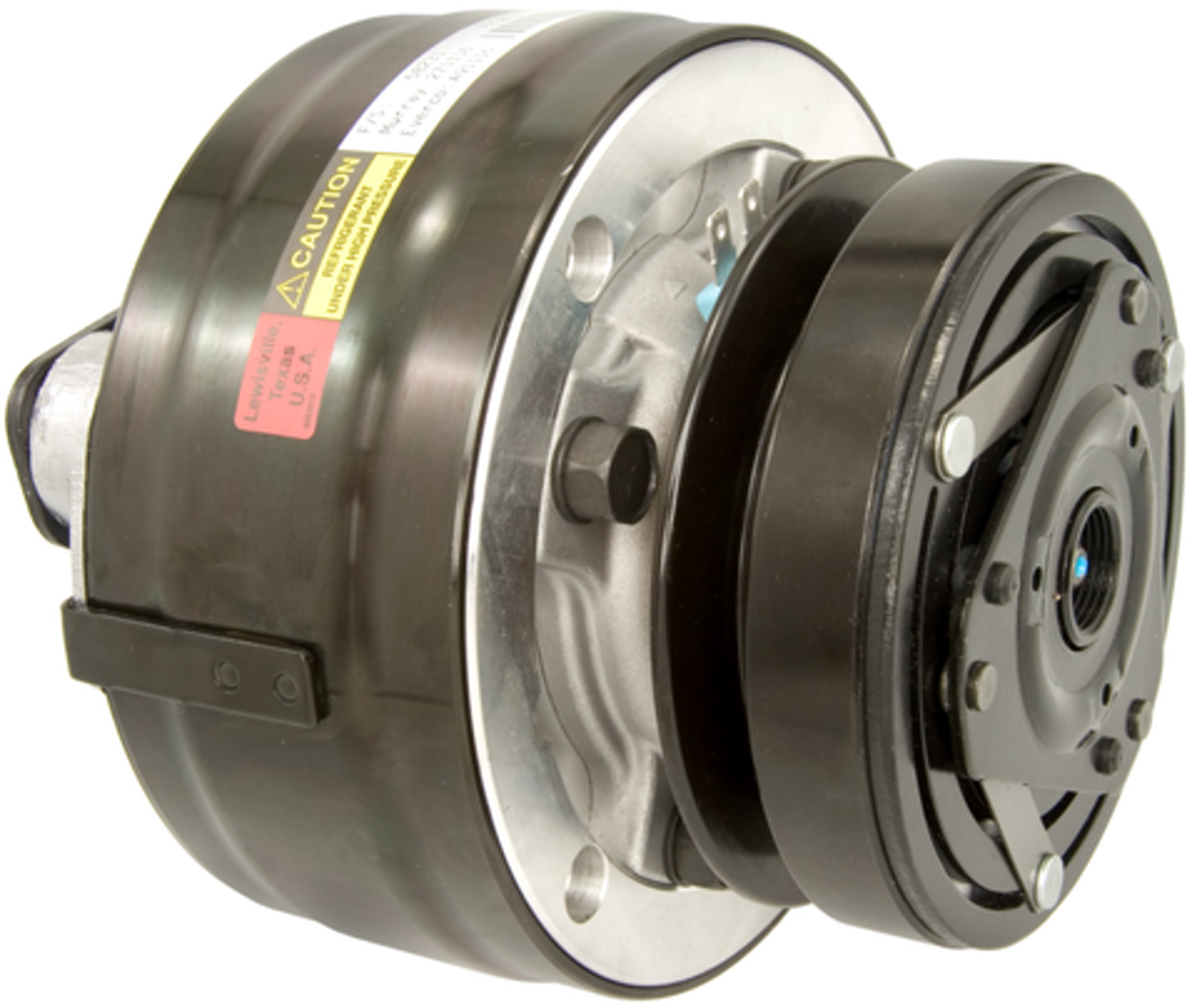

Air Conditioning Compressor Clutch & Idler Assembly

GM R4 Compressor
Part # 58231 | Line Code: STF
brandNameImage
brandNameImage

$328.99
$328.99
error
Not Fitted

Product Details
expand_less
Mounting Type Case Mount
Distance From Clutch To Mounting Flange 1.2
Clutch Pulley Diameter 5.000
Coil Clock Position 12
Compressor Type R4 Heavy
Pulley Belt Type V-belt
Compatible Refrigerant Oil Type PAG 150
Switch Included High Pressure
Clutch Maximum Diameter 5
Pulley Lip Diameter 5
Pulley Ridge Diameter 5
Switch Type Pressure Switch
Clutch Included Included
Oil Filled Included
Coil Voltage 12
Belt Type V-belt
Pulley Groove Quantity 1
Refrigerant Type R134a
Connector Shape Spade
Terminal Type Spade
Distance Between Mounting Holes 1.2
Heavy Duty Supplier Yes
Style Piston
O-Ring B Quantity 1
O-Ring A Quantity 1
New or Reman New
Ctch Dia. MM Prmy 127.000
Type GM
Coil Clock 12
Switch / Sensor Desc High Pressure
Oil Type PAG 150
Connector Type Spade
Description Compressors - New
Pulley Diameter MM 127
O-Ring C Quantity 2
O-Ring D Quantity 1
Mounting Hardware? Not Included
Model R4 Heavy
Mount Type Case Mount
Suction Port Type O-Ring / Sealing Washer
Electronic Control Valve No
Pulley Diameter IN 5
Groove 1
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Mount Distance IN 1.2
Reman w/o Clutch 57054 / 57019
O-Ring B Number/Desc 24360 / Long Sealing Washer Pilot
O-Ring A Number/Desc 24359 / Short Sealing Washer Pilot
O-Ring C Number/Desc 24356 / Red Sealing Washer
O-Ring D Number/Desc 24357 / Green Sealing Washer
Part Terminology A/C Compressor

Features & Benefits
expand_more
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary
expand_more

AMC Concord (81-80); Eagle (81); Spirit (81-80) >> Buick Century (85-77); Electra (89-77); Estate Wagon (83-77); LeSabre (90-77); Regal (87-77); Riviera (85-77); Skyhawk (84-77); Skylark (84-77) >> Cadillac Cimarron (83-82); Commercial Chas
