Length | 2.37 |
Inside Diameter | 9.5 |
Seal Type | Mated Angle |
Thread Size | 7/16-20 |
Swivel | Yes |
Gender | Female |
Drop Length | 46 |
Hose Inside Diameter (in) | .375 |
Hose Inside Diameter (mm) | 9.5 |
Nut Hex (mm) - H2 | 14 |
Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
Drop (mm) - T | 46 |
Drop (in) - T | 1.81 |
Cut Off (mm) - C | 32.3 |
Cut Off (in) - C | 1.27 |

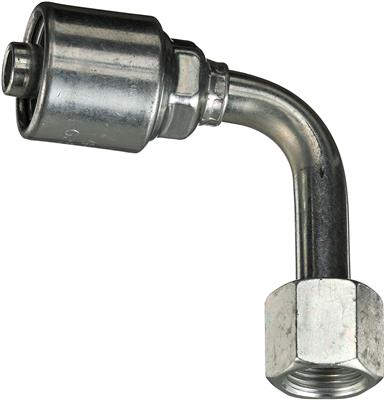

Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
Industrial Description | 6G-4FJX90L |
Heavy Duty Supplier | Yes |
Nose Seat | Standard |
Mating Angle | 37 |
Bent Tube Angle | 90 |
Length (in) | 2.37 |
Length (MM) | 60.2 |
Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
Part Terminology | Hydraulic Coupling / Adapter |
