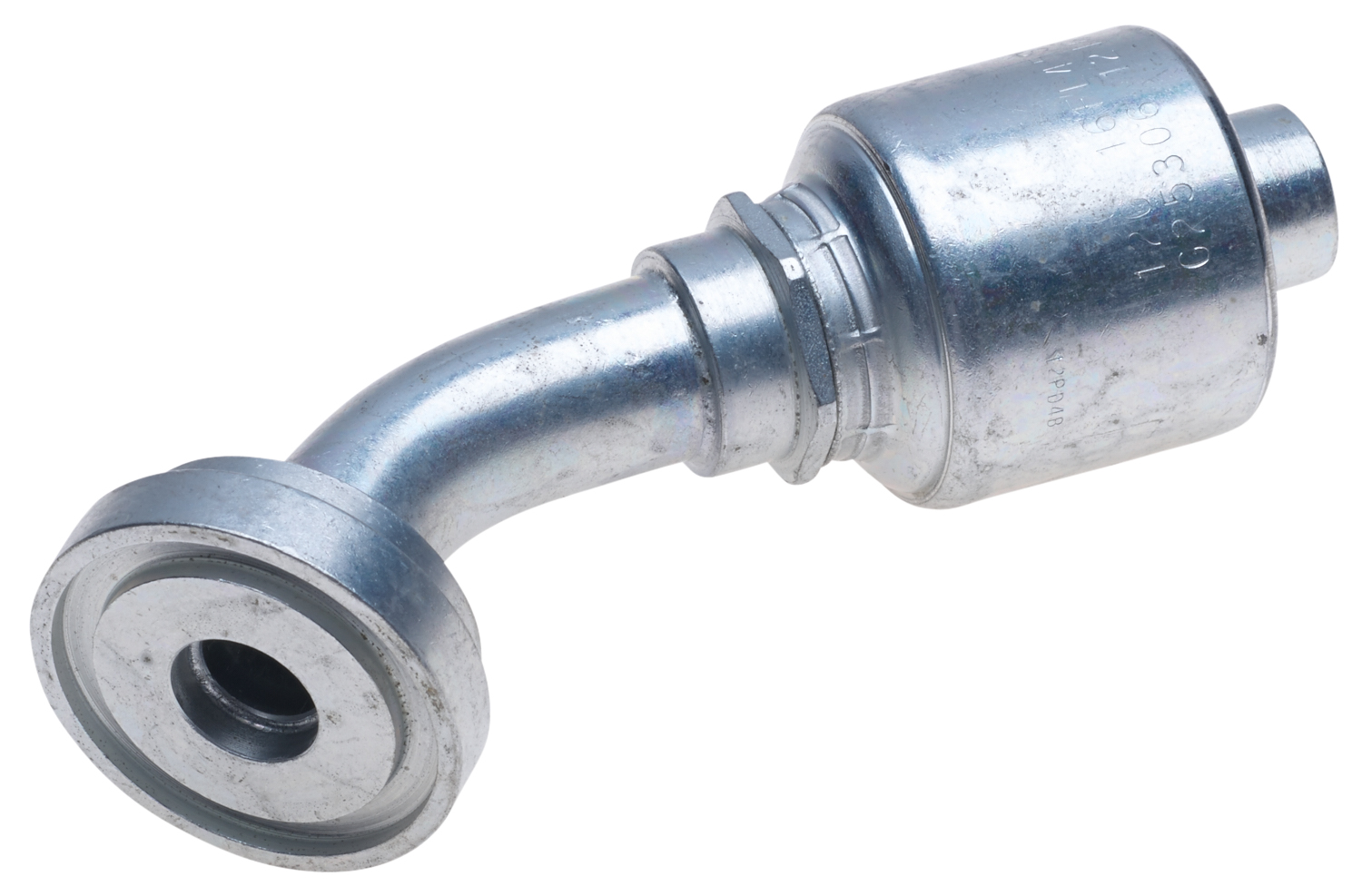

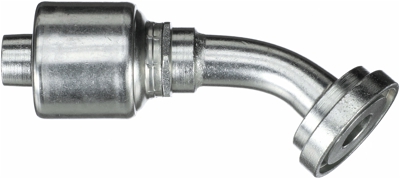

| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 45 Bent Tube |
| Seal Type | O-Ring |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1 |
| Drop (in) - T | 1.26 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Head Thickness (in) - F | .32 |
| Inside Diameter | 1 |
| Flange Head Thickness (mm) - F | 8.1 |
| Length (in) | 5.87 |
| Drop (mm) - T | 32 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 92.2 |
| Industrial Description | 16G-20FL45S |
| Cut Off (in) - C | 3.63 |
| Hose Inside Diameter (mm) | 25.4 |
| Drop Length | 32 |
| Flange Thickness | 8.1 |
| Termination | Code 61 |
| Bent Tube Angle | 45 |
| Length | 149 |
| Flange Diameter (mm) - M | 50.8 |
| Flange Diameter | 2 |
| O-Ring Location | Flange Groove |
| Length (MM) | 149 |
| Flange Diameter (in) - M | 2 |
| Part Terminology | Hydraulic Coupling / Adapter |
