Automatic Transmission Parts

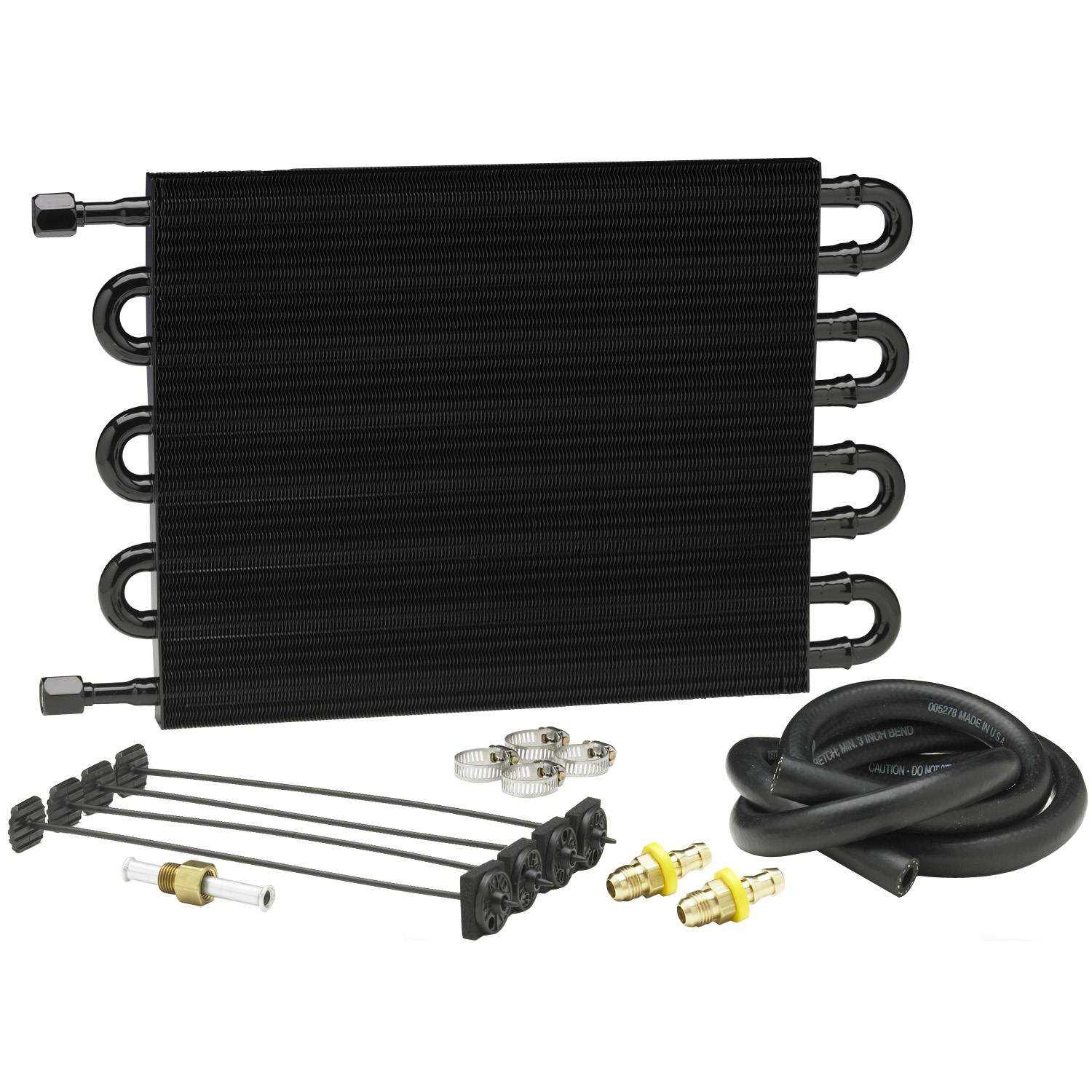

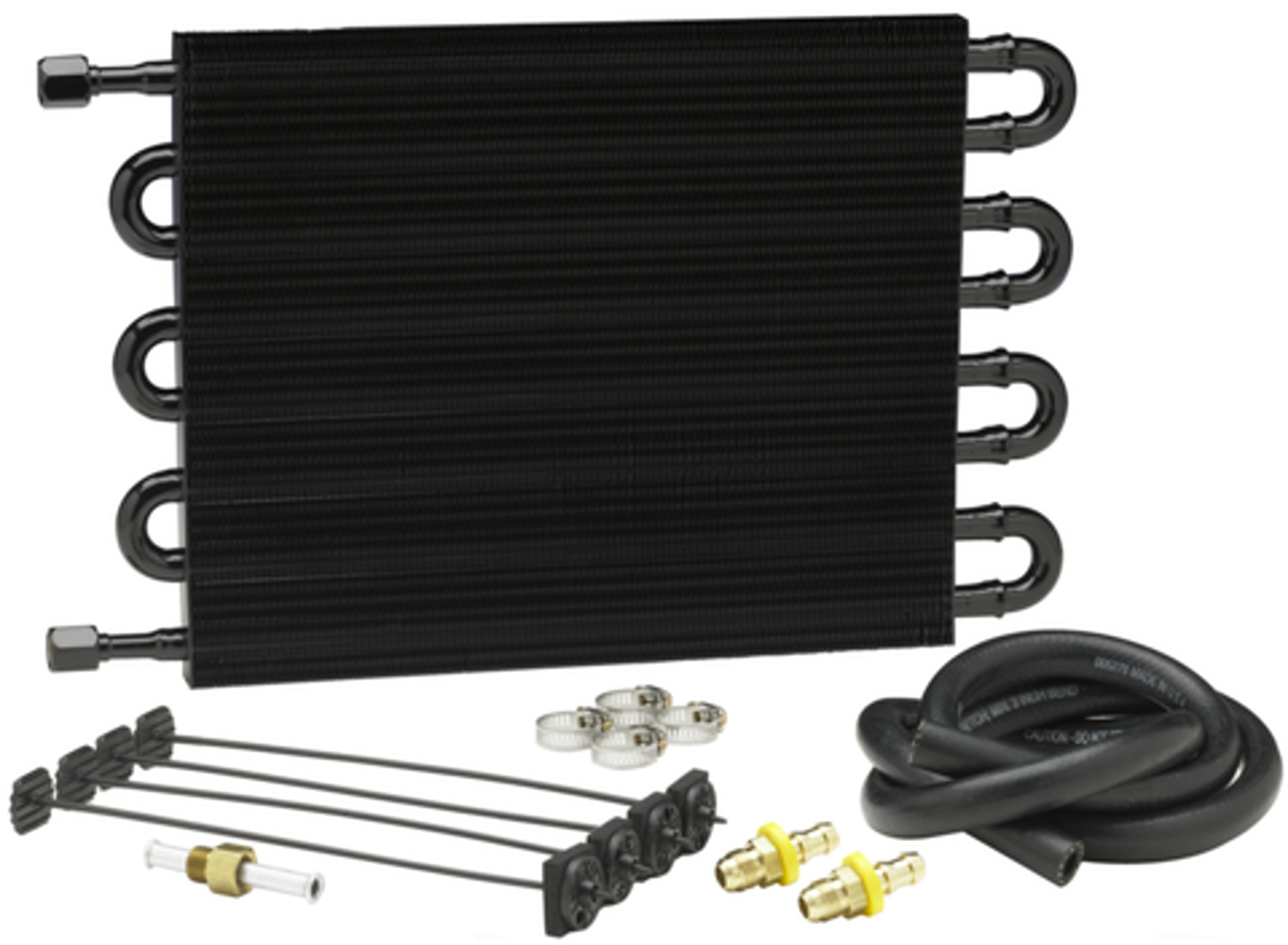

High Performance Transmission Oil Cooler
Part # 516 | Line Code: PCC
brandNameImage
brandNameImage

$95.99
$95.99
error
Not Fitted

Product Details
expand_less
Inlet Diameter 0.375
Thickness 0.750
Mounting Hardware Included Included
Core Tube Width 0.500
Finish Black
Core Material Aluminum
Electric Fan No
Length 15.5
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Type High Performance
Depth IN 0.750
Depth MM 19.050
Inlet IN 0.375
Performance Rated? Yes
Mounting Hardware? Included
Bracket? Not Included
O.E. Replacement? No
Contains Spring? No
With Electric Fan? No
Hose I.D. MM 8.731
Hose I.D. IN 0.344
Hose Length IN 54
Description Transmission Oil Cooler
Core Tube Dia. IN 0.500
Printed Foot Note Size - 10" x 15 7/8"
Warranty 2 years/24,000 miles
Burst Psi Rating 150
Width IN 0.75
Connector Type 37 degrees JIC female fitting
Overall Width IN 0.75
Connector Fitting -6AN
Overall Height IN 10
Oil Cooler Included Included
Overall Depth IN 15.88
Height MM 254
Height IN 10
Length MM 393.7
Length IN 15.5
Inlet Gender Male
Material Aluminum
Color Black
Part Note Size - 10" x 15 7/8"
Part Terminology Automatic Transmission Oil Cooler

Features & Benefits
expand_more
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Parts Master.

Application Summary
expand_more

Acura Car (20-86); Light Duty Truck (21-96) >> AMC Car (88-58) >> Buick Car (15-60); Light Duty Truck (15-02); Light Duty Van (07-05) >> Cadillac Car (15-60); Light Duty Truck (15-99) >> Chevy Car (15-60); Light Duty Truck (22-60); Light Du
