Product Details
expand_less
Adjustable Dampening |
No |
Dust Shield Included |
Yes |
Finish |
Painted |
Travel Length |
7.625 |
Shock Absorber Rod End Measuring Point |
Center of Loop |
Shock Absorber Body End Measuring Point |
Center of Loop |
Internal Construction Type |
Twin Tube |
Gas Charged |
Yes |
Dust Shield |
Yes |
Color |
Black |
Compressed Length |
338.1 |
Extended Length |
531.8 |
Upper Mounting Description |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Lower Mounting Description |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Min Year Covered |
1988 |
Most Popular Year |
2007 |
Max Year Covered |
2016 |
Extended Bumper Stop |
No |
Extended Hydraulic Lockout |
No |
Compressed Bumper Stop |
No |
Product Grade |
Premium |
Parts Pack(s) |
None |
Tope de rebote comprimido |
No |
Cubre polvo |
Yes |
Bloqueo hidráulico extendido |
No |
Tope de rebote extendido |
No |
Accesorio(s) |
None |
Heavy Duty Supplier |
Yes |
Parts Pack |
None |
Lower Mount Type |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Upper Mount Type |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Tipo de Montura Superior |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Tipo de Montura Inferior |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Total Part VIO |
250895 |
Shaft Diameter |
18 |
Most Popular Make / Model |
Peterbilt 379 |
Lower Mounting Type |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Upper Mounting Type |
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Lower Mount Code |
L3 |
Upper Mount Code |
L3 |
Adjustable Damping |
No |
Internal Rebound Bumper |
No |
Part Description |
Shock Absorber |
Foam Cell Design |
No |
Shock Absorber Bore Size |
966393.7999999999 |
Duty Type |
Heavy Duty |
Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more

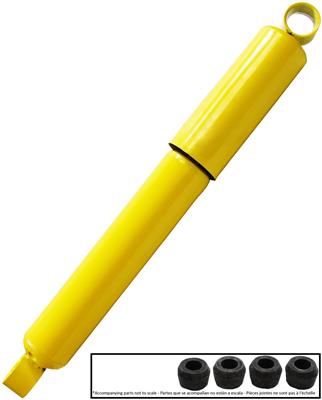

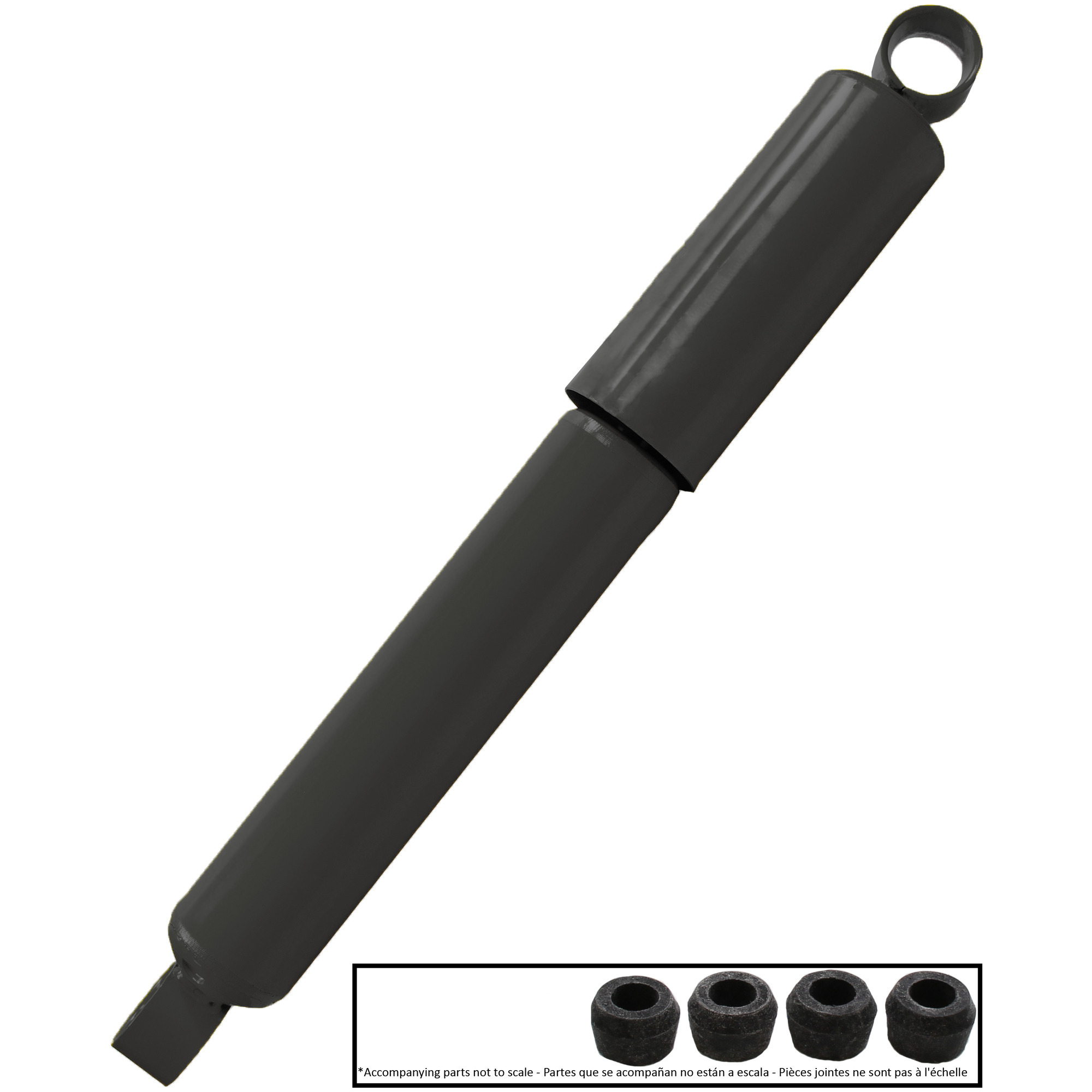

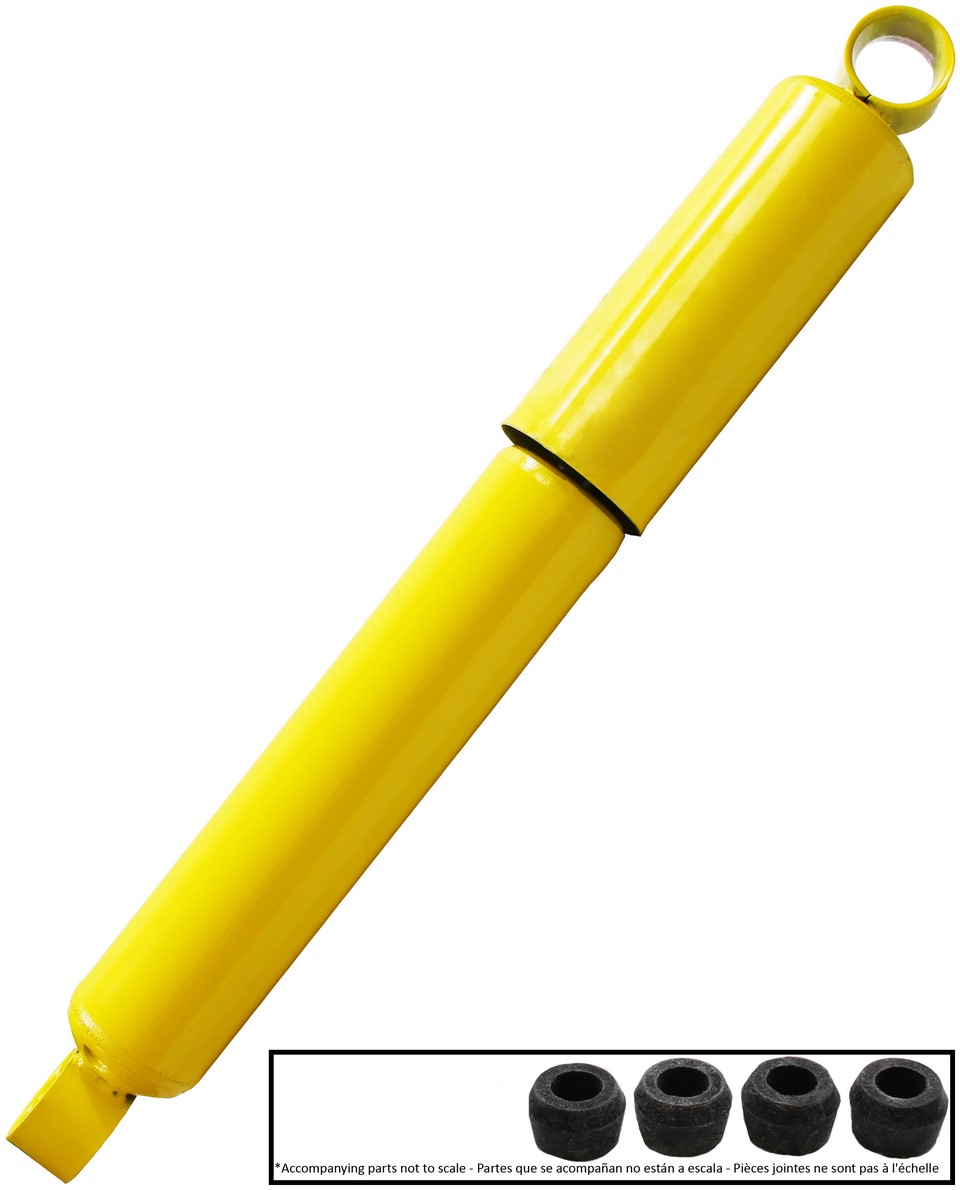

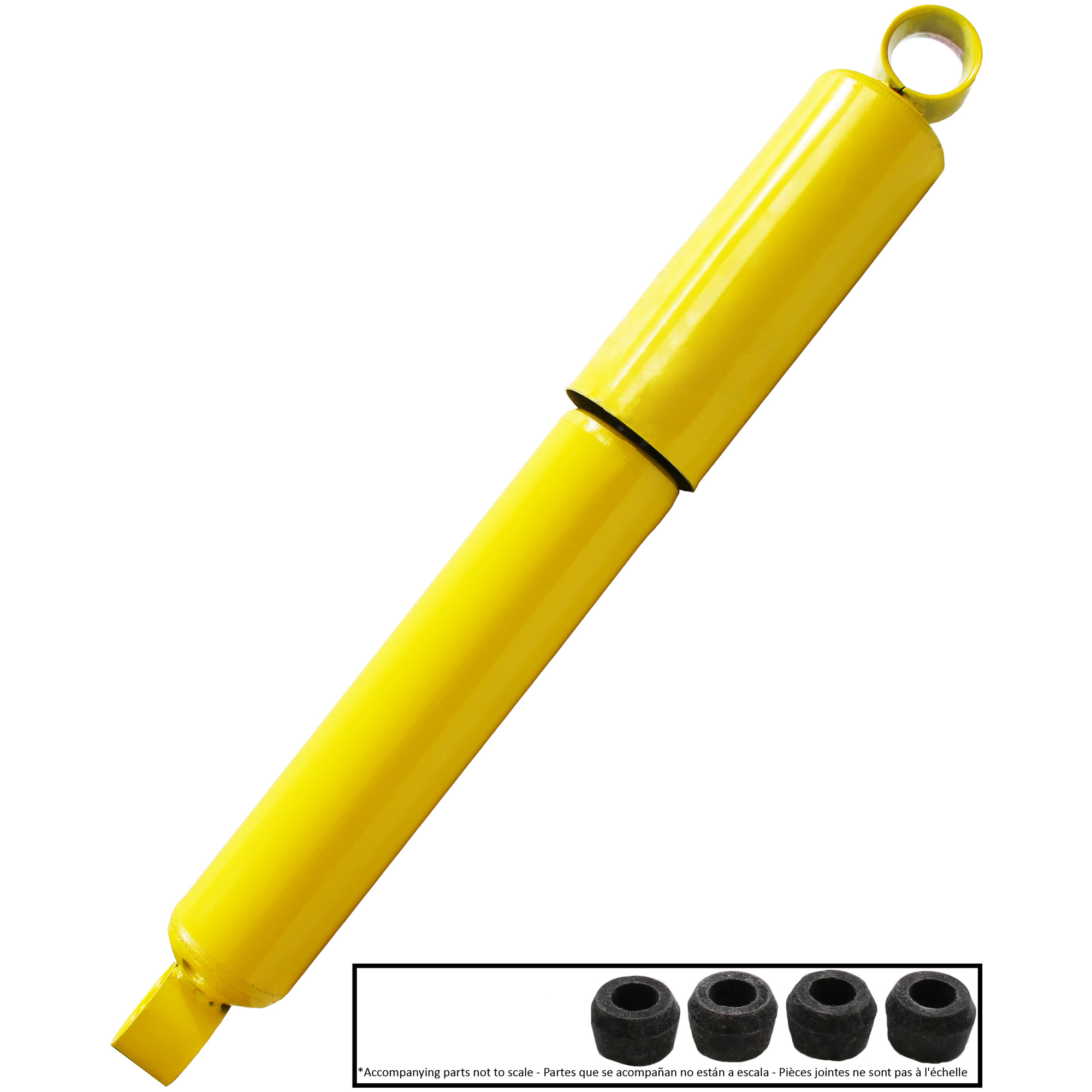

The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy truck suspension systems.
Application Summary
expand_more
1990-2007 Peterbilt 357 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 1990-2007 Peterbilt 378 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 1990-2007 Peterbilt 379 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Steering Axle, Shocks are 1.75 (in) Bore); 1990-1996 Peterbilt 375 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 1988-1999 Peterbilt 376 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 1996-2007 Peterbilt 385 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 2008-2016 Peterbilt 384 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 1990-2005 Peterbilt 362 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Progressive Spring Suspension, Shocks are 1.75 (in) Bore); 1990-2001 Peterbilt 377 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore); 1989-1997 Peterbilt 372 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, Shocks are 1.75 (in) Bore); 2006-2016 Peterbilt 386 (Front) (Qualifier: Replaces OE Part Number(s) 0201890, with Spring Suspension, with Set Back Axle, Shocks are 1.75 (in) Bore)
