Steering Parts

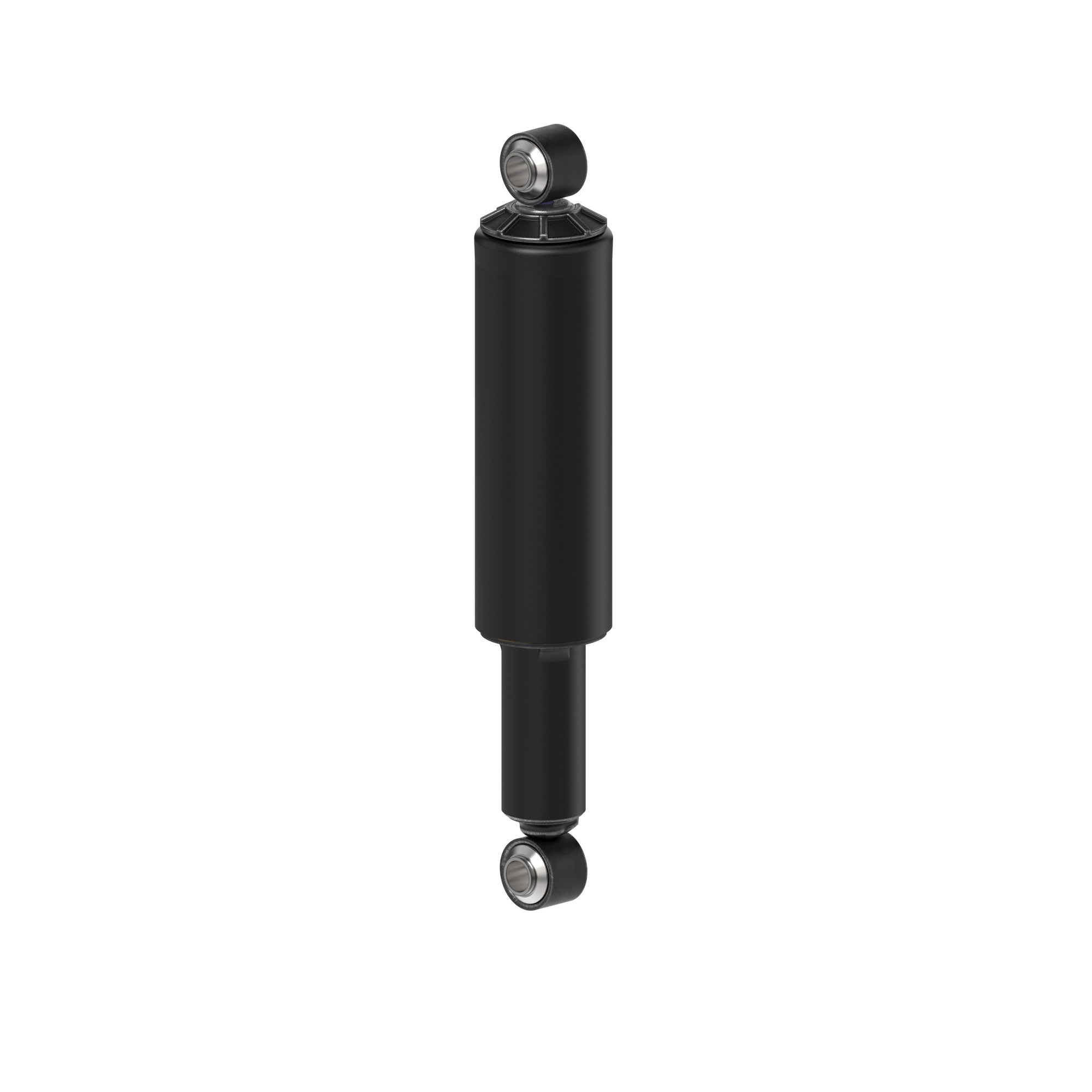

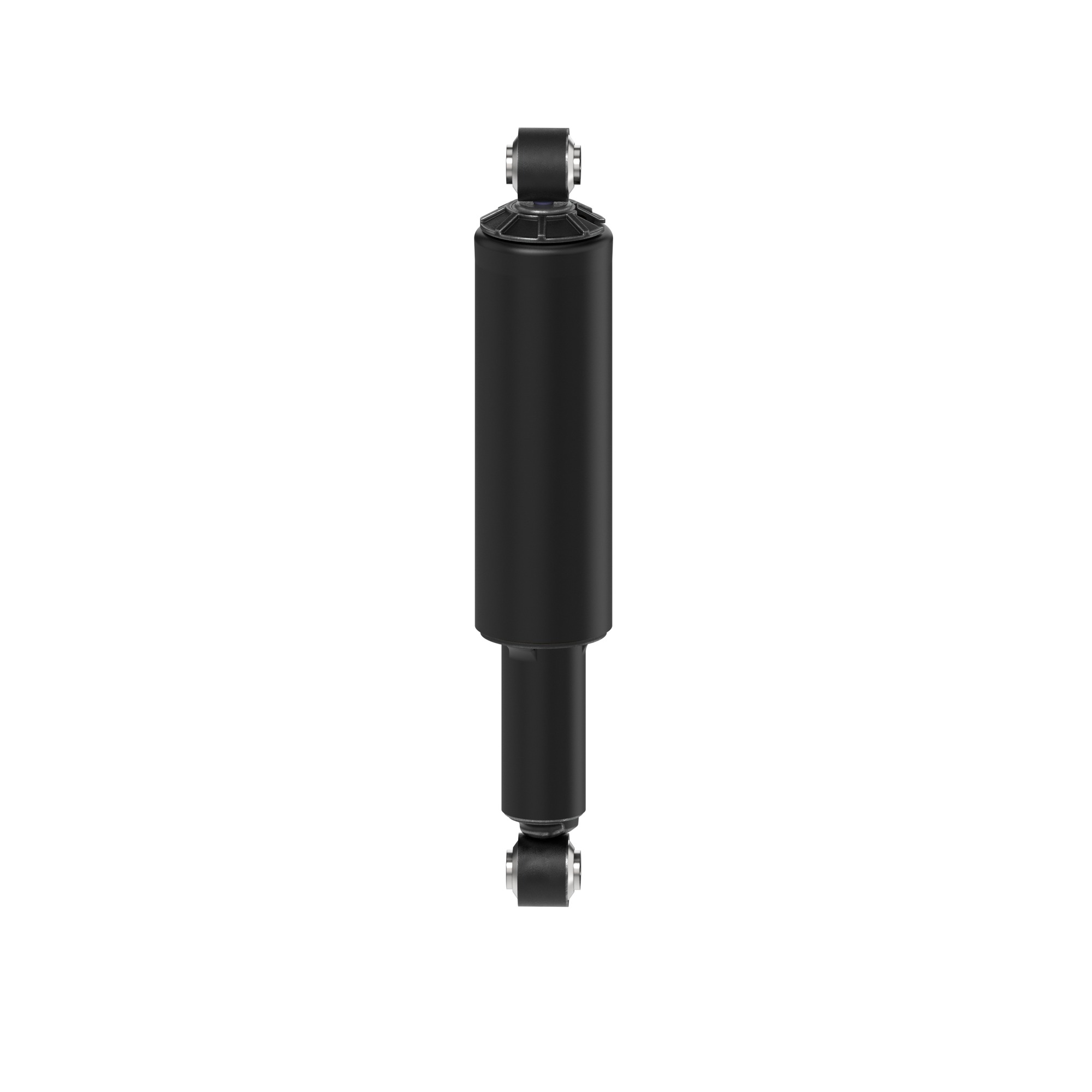

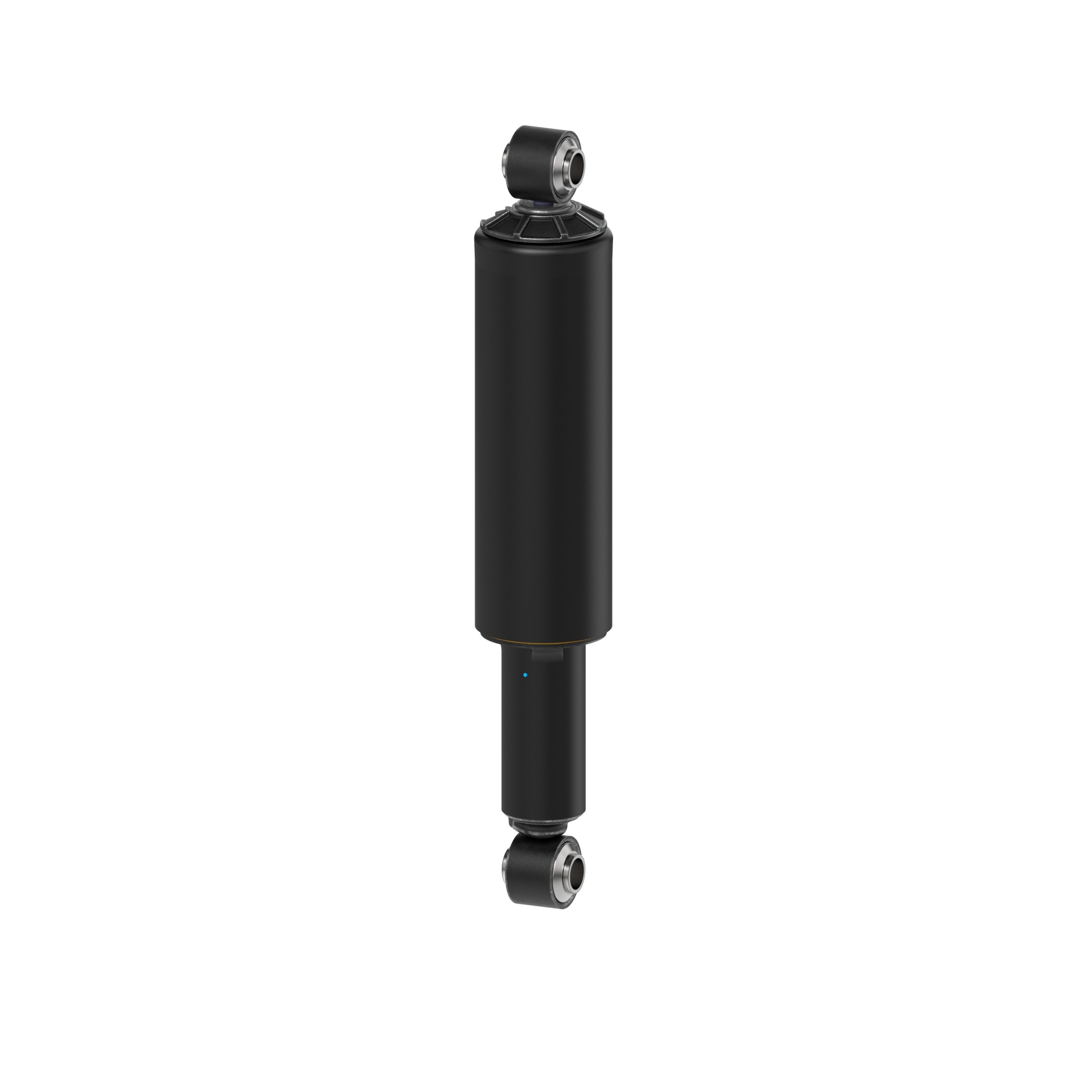

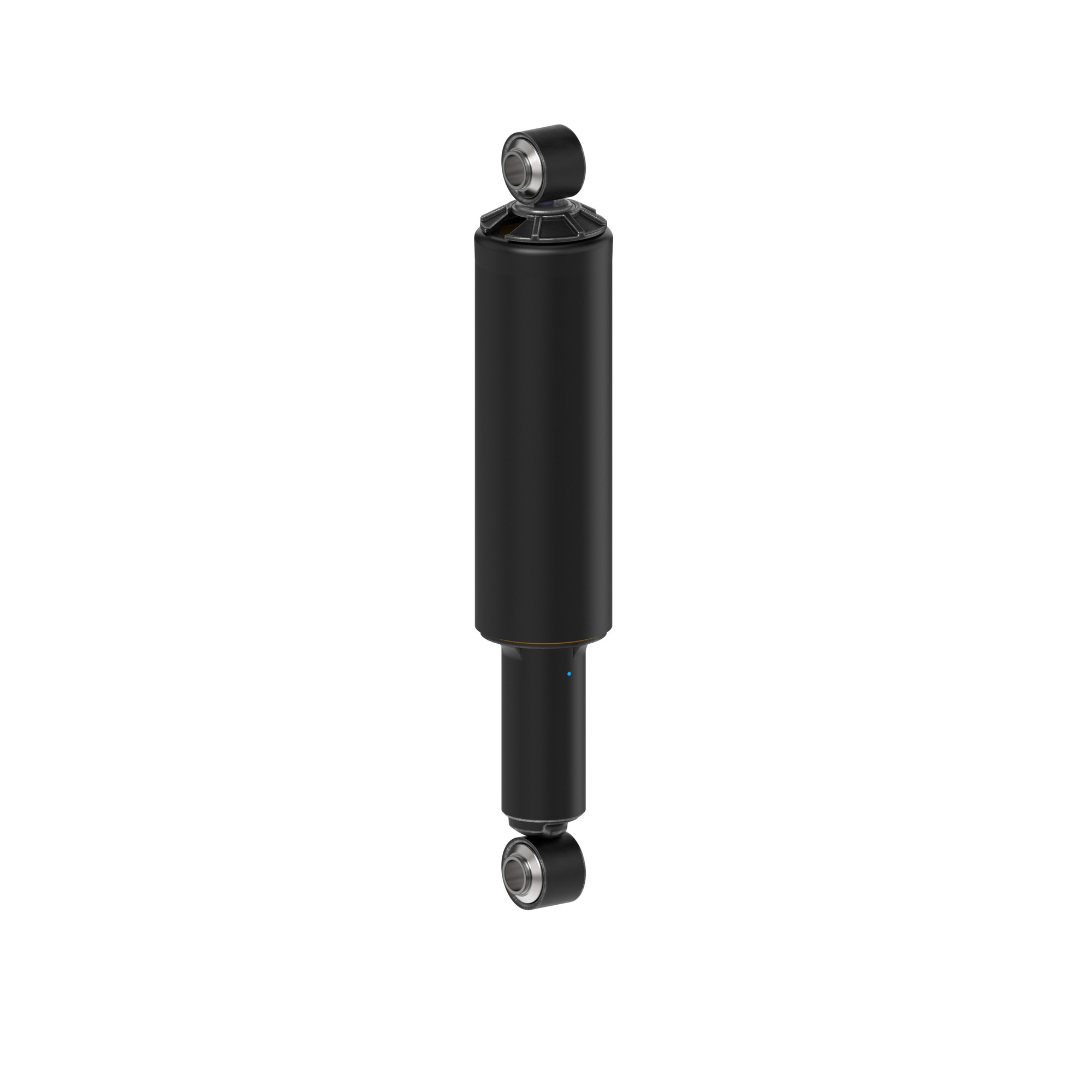

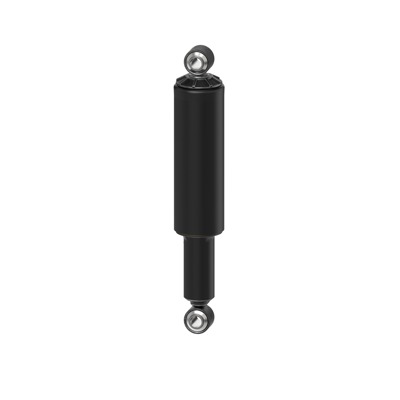

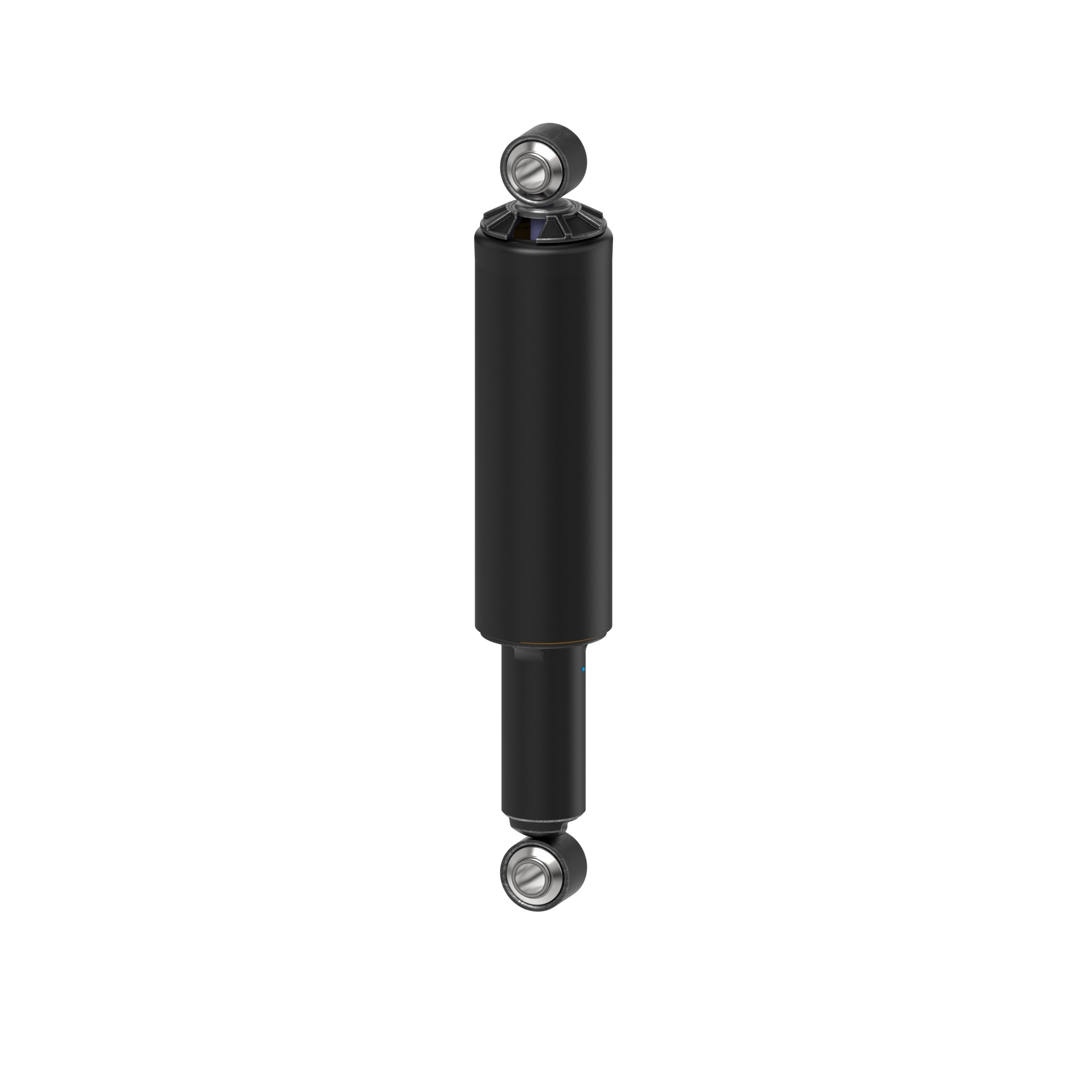

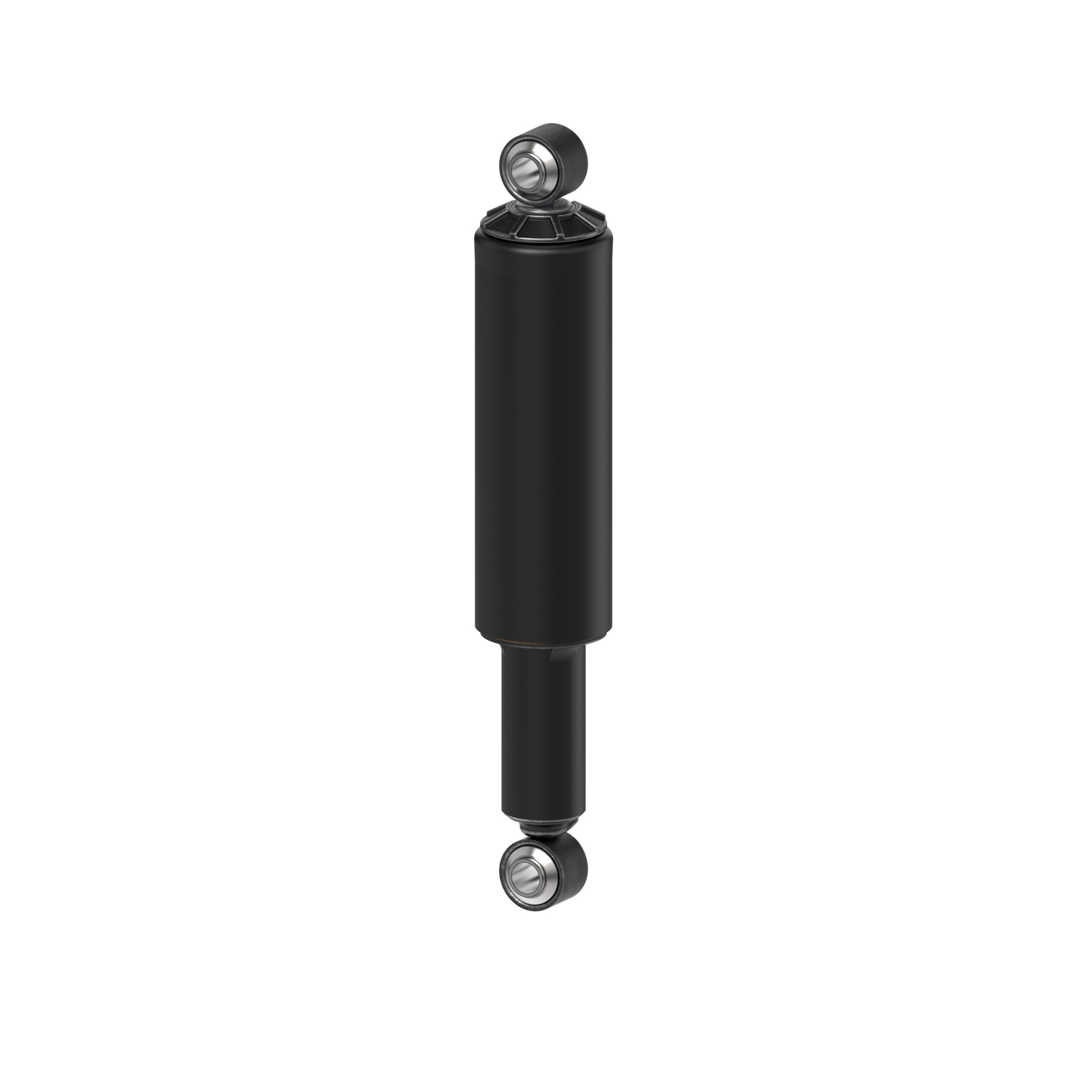

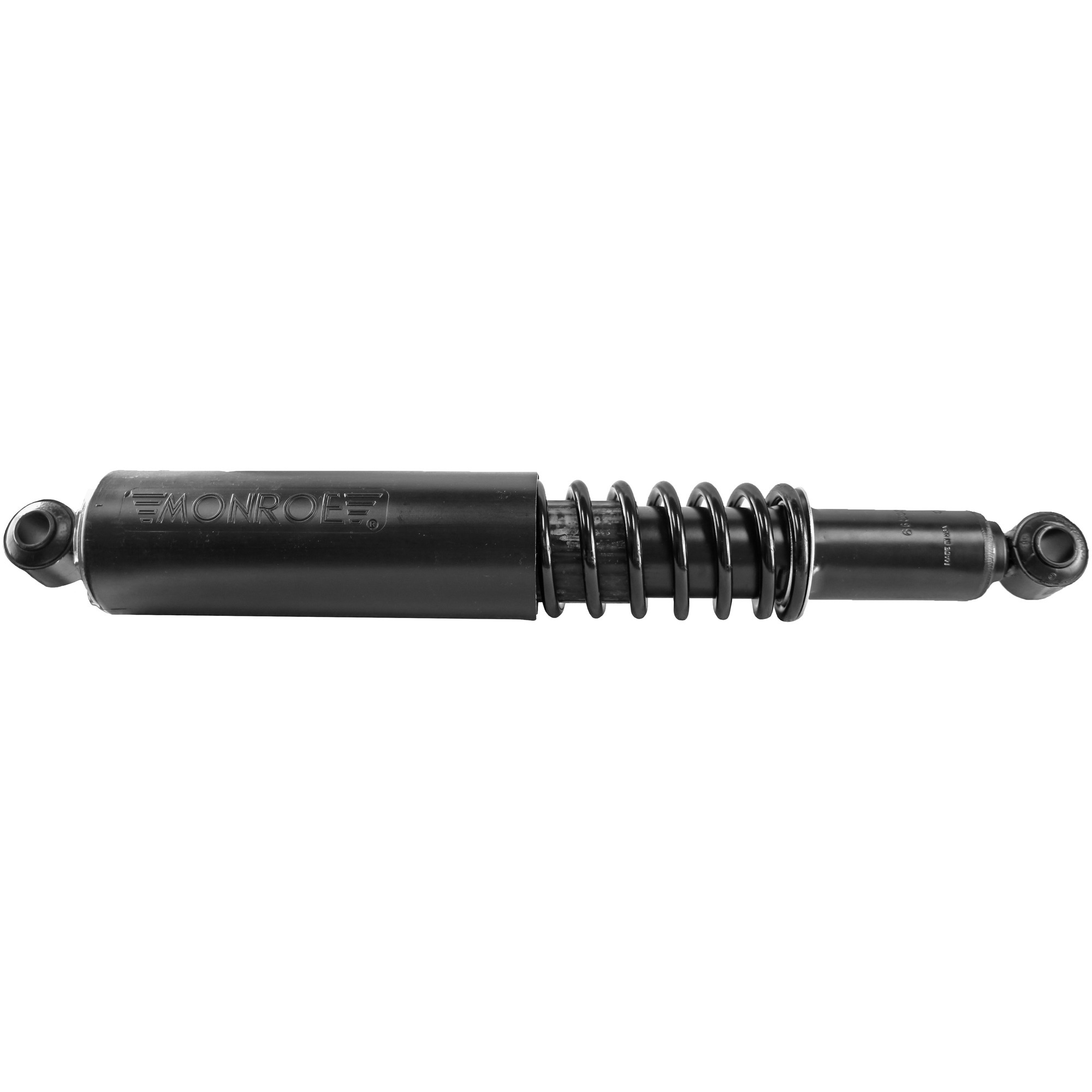

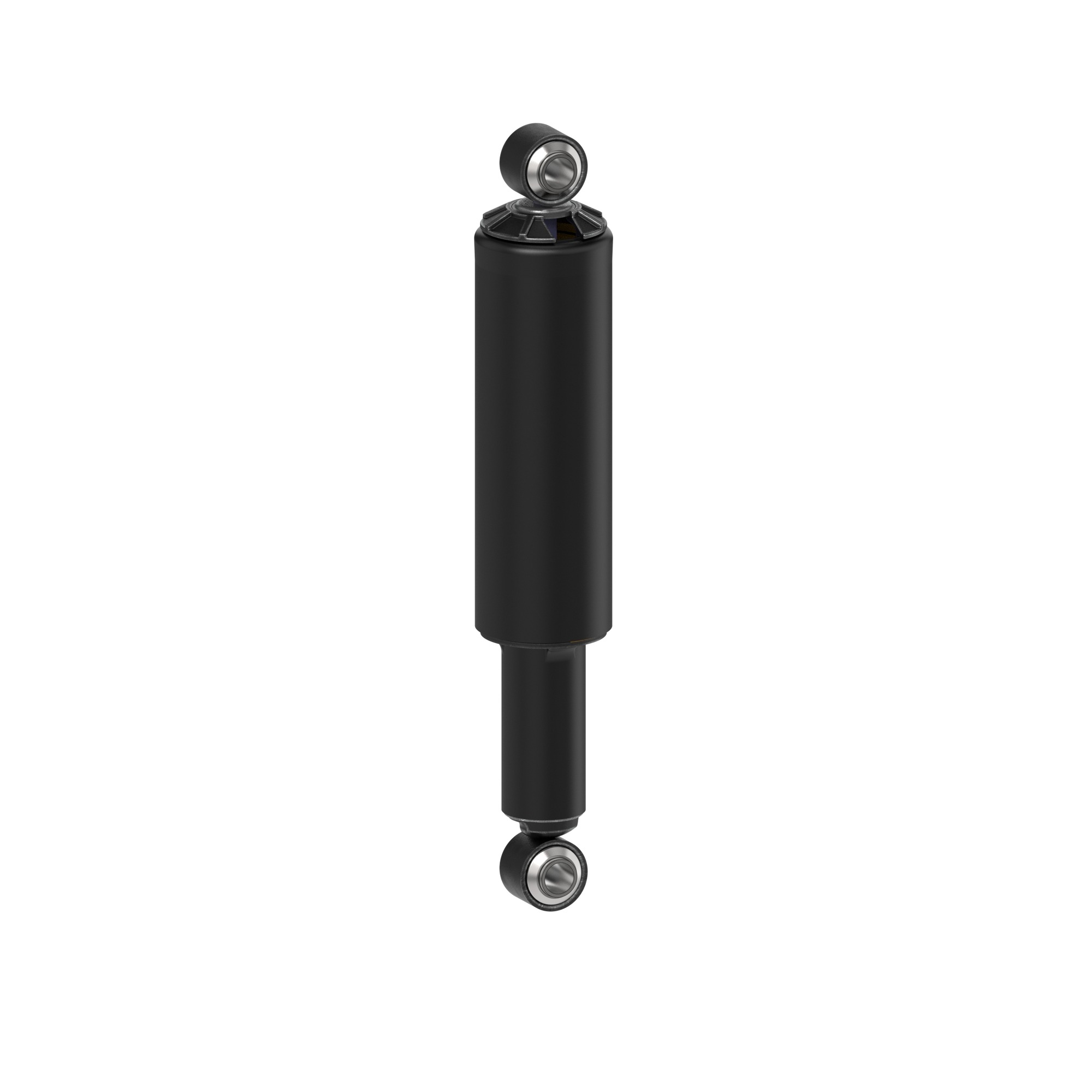

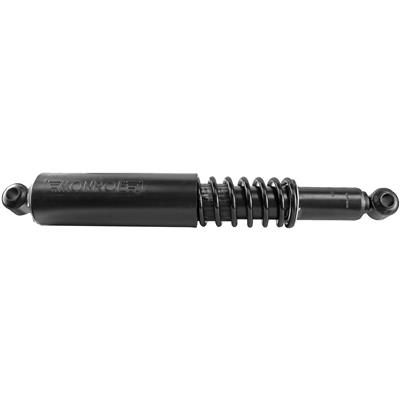

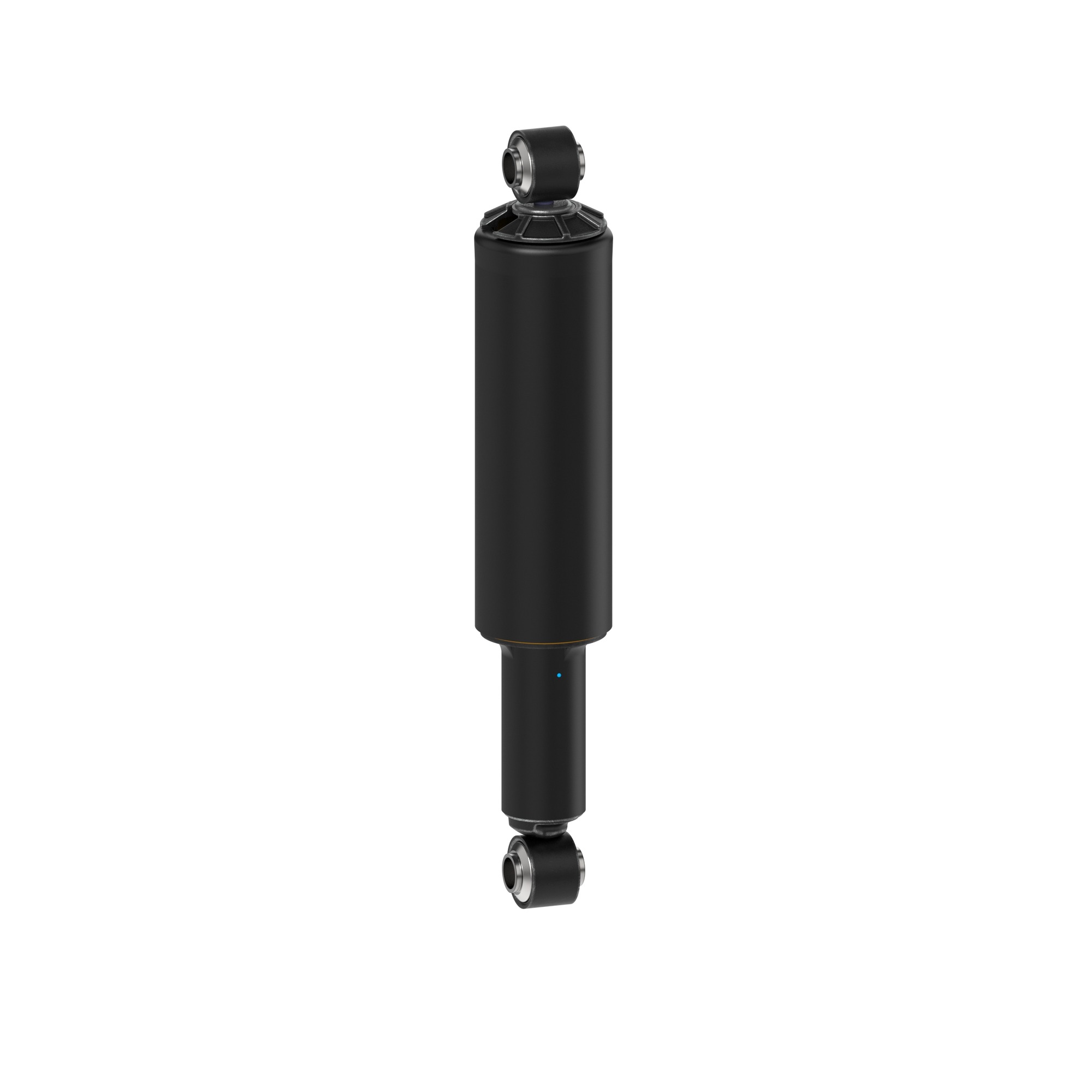

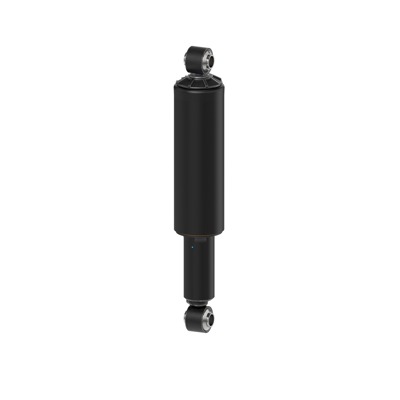

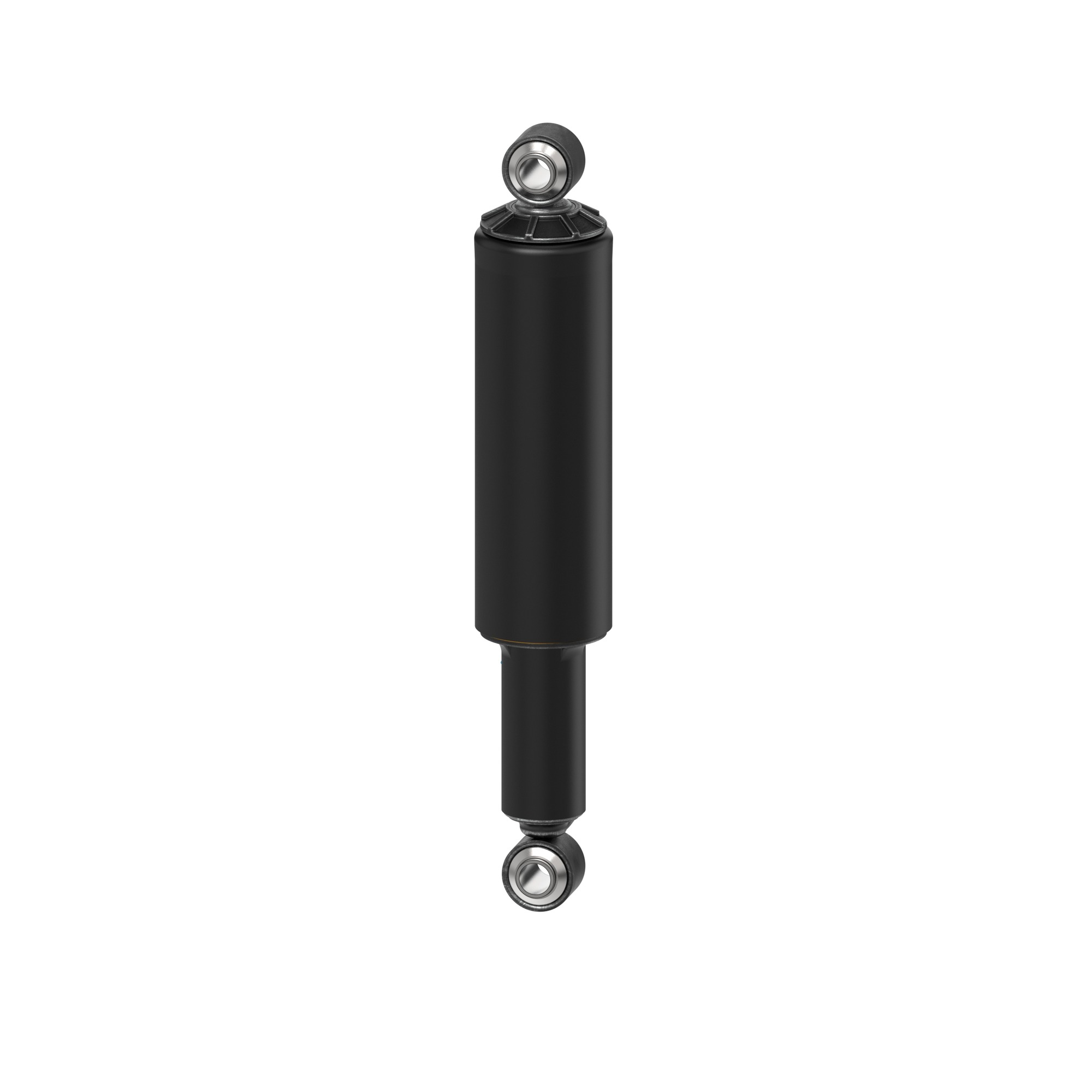

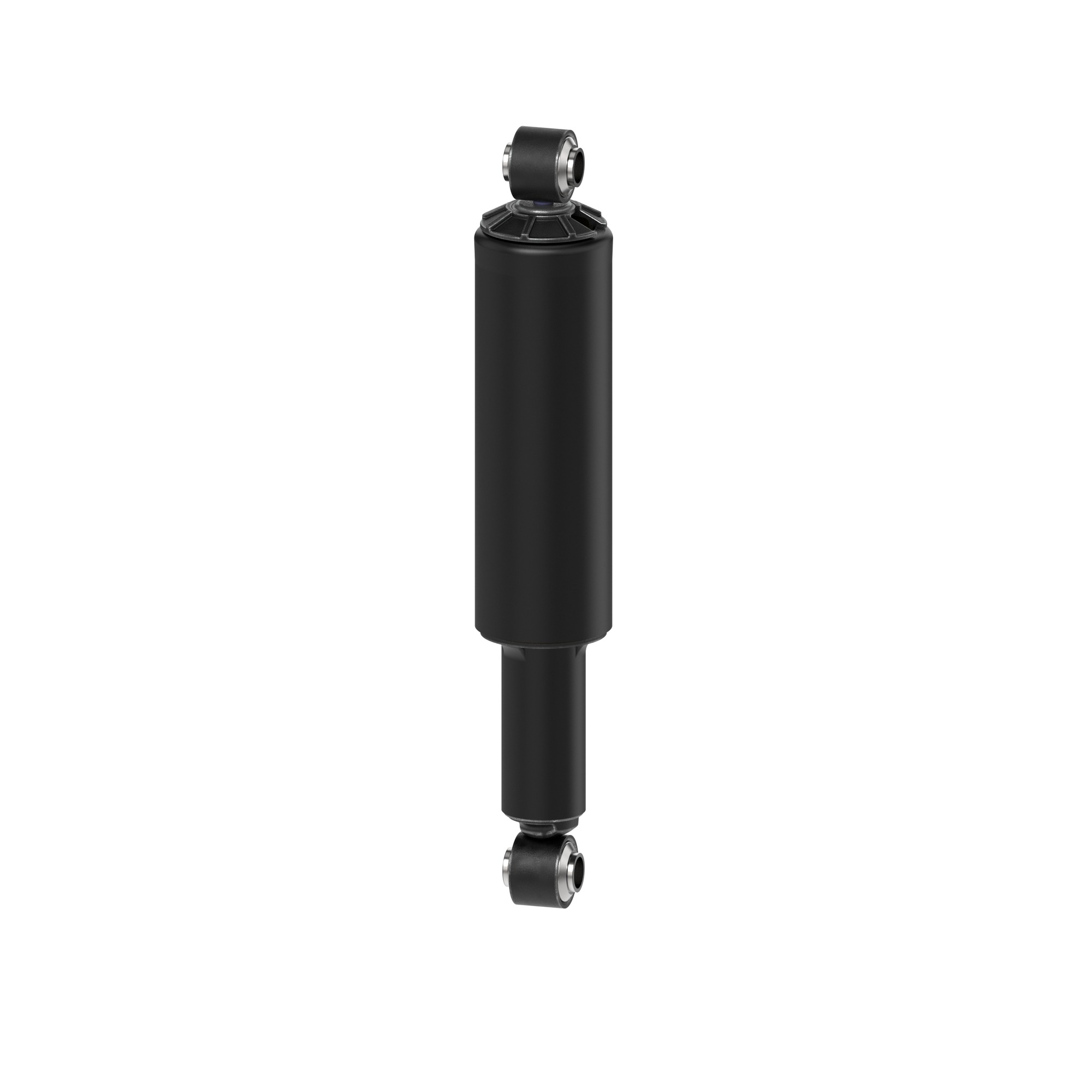

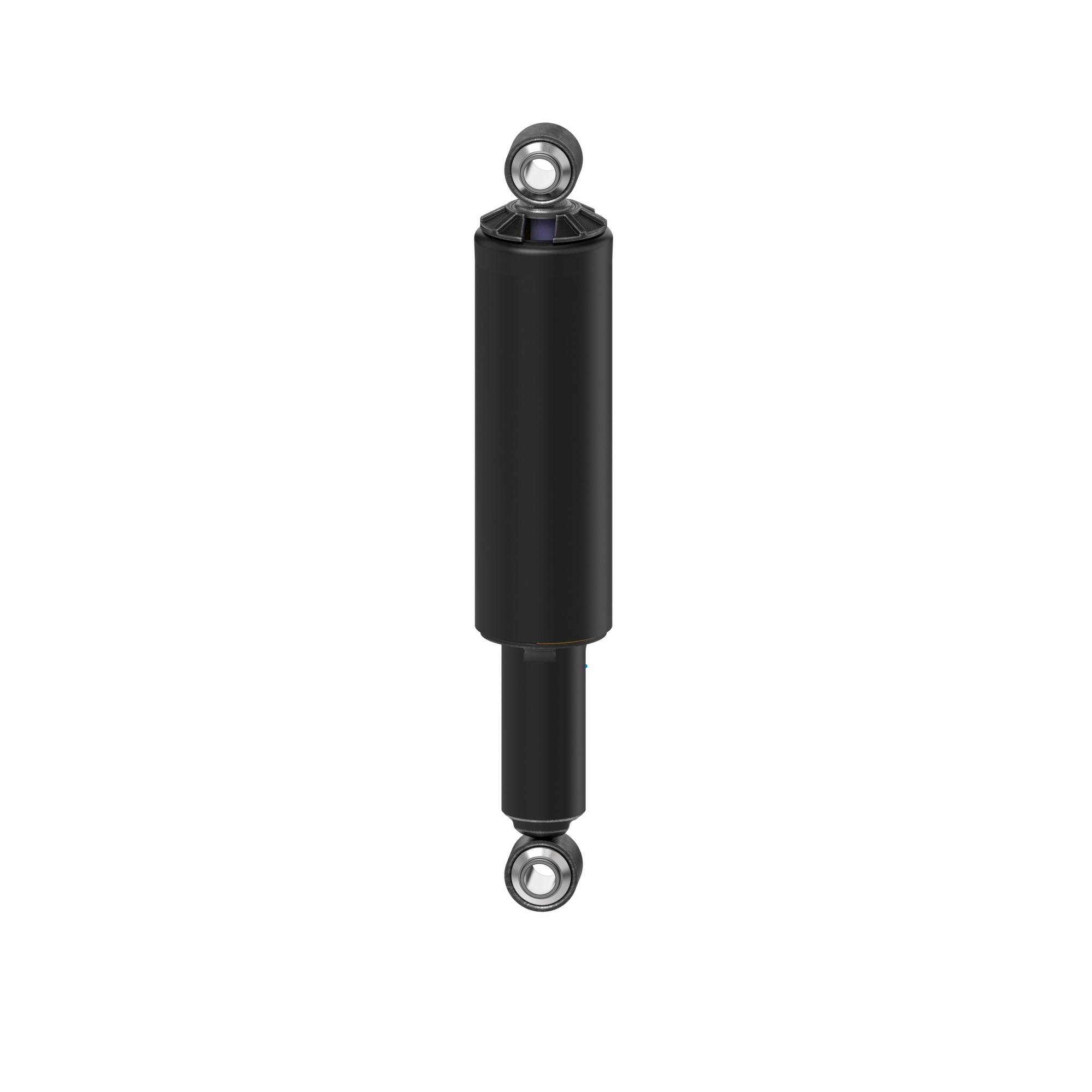

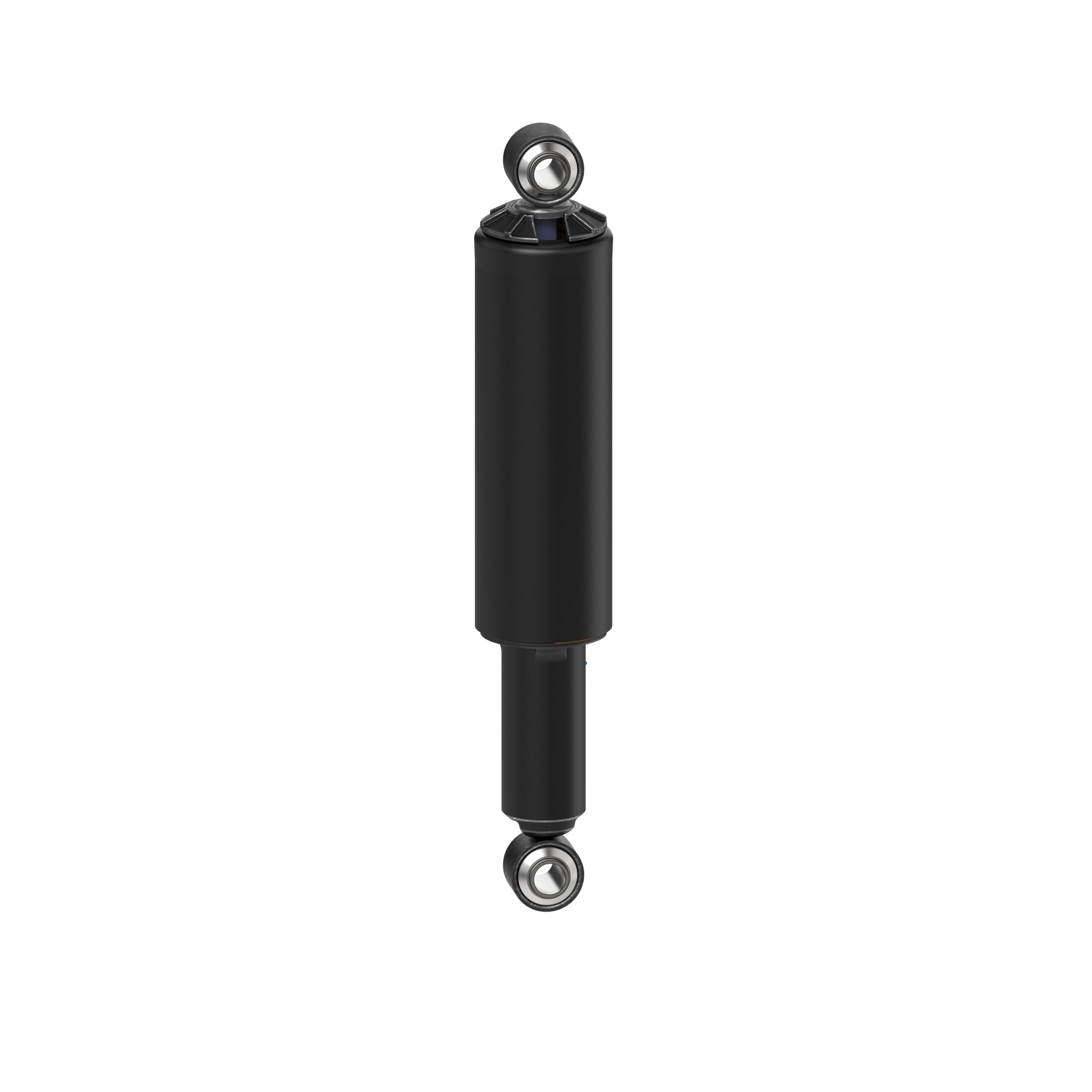

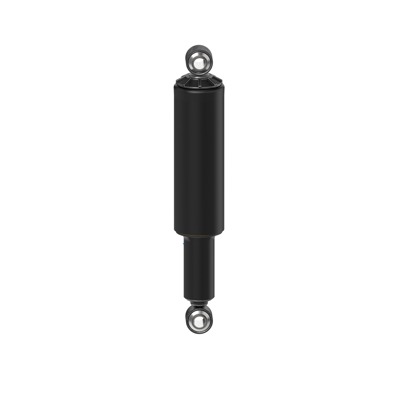

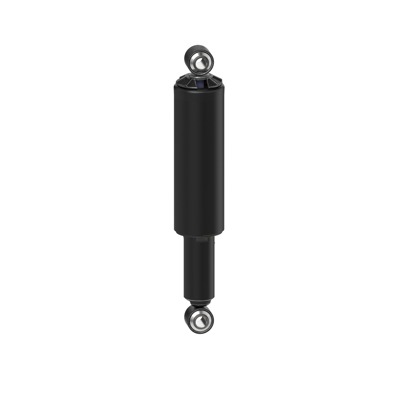

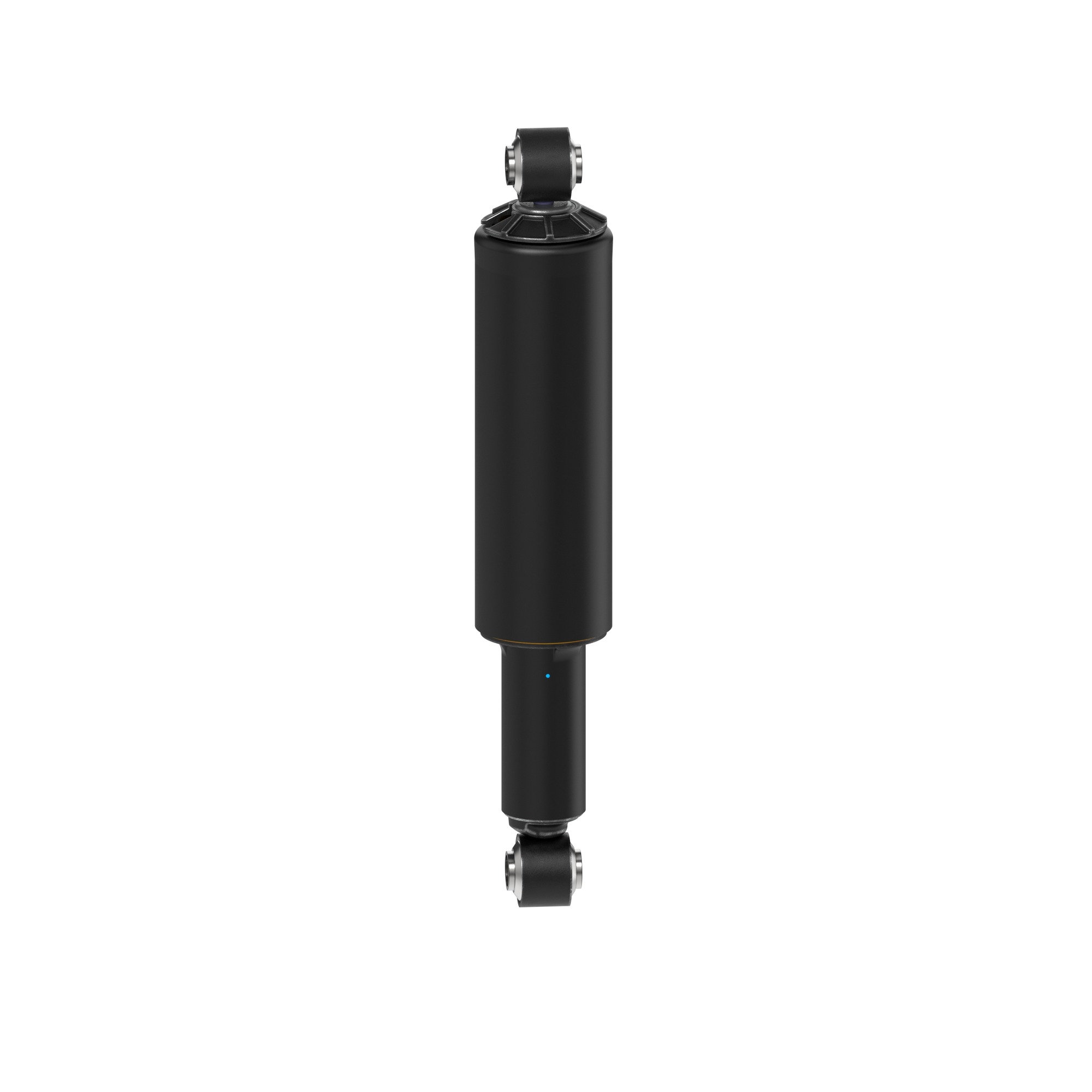

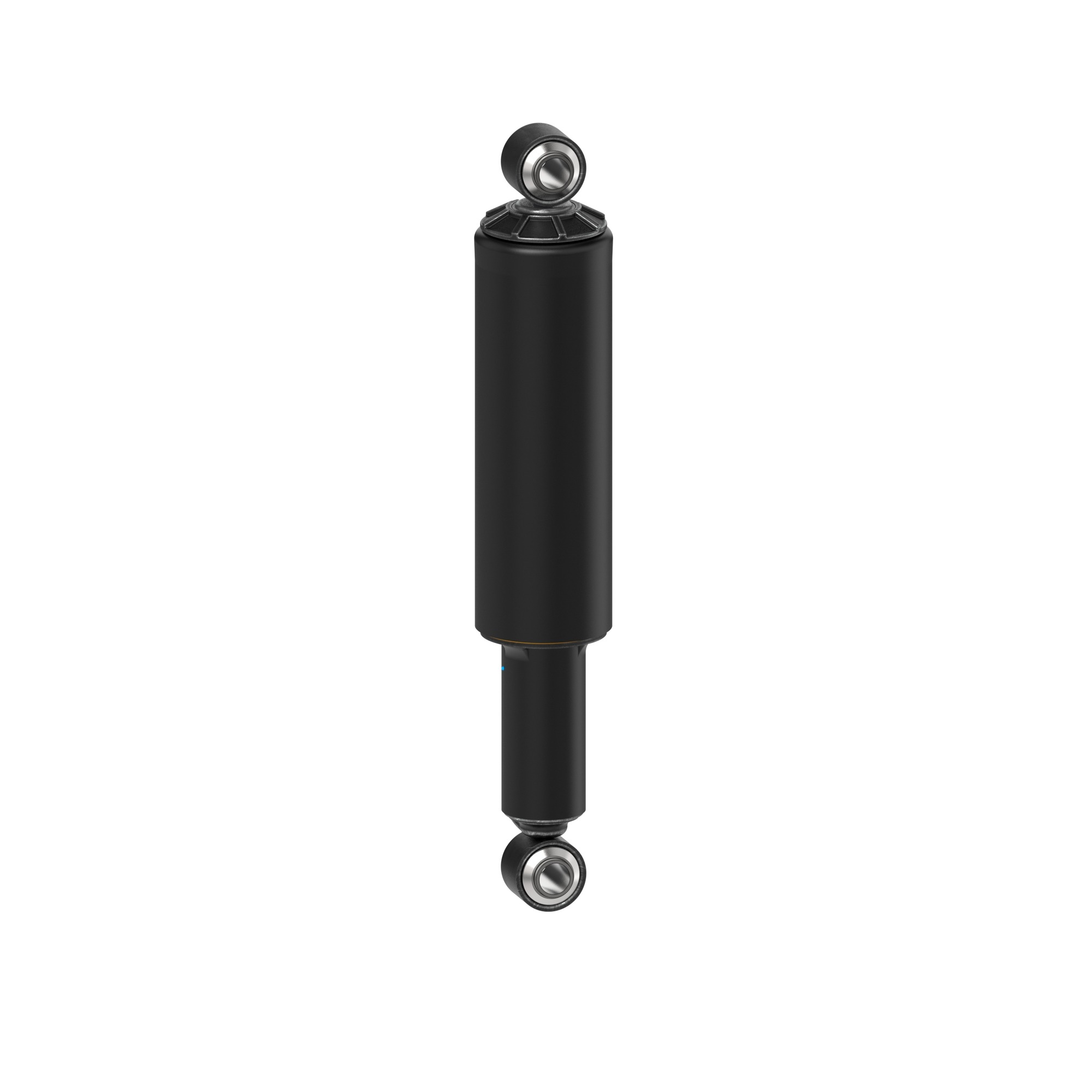

Magnum Steering Damper
Part # 66502 | Line Code: MON
brandNameImage
brandNameImage

$152.99
$152.99
error
Not Fitted

Product Details
expand_less
Dust Shield Included Yes
Body Diameter 2
Travel Length 8.531
Upper Mount Type Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1-3/4" Sleeve OAL
Gas Charged No
Extended Length 573.5
Compressed Length 356.8
Viaje 8.531
Product Grade Premium
Dust Shield Material Plastic
Parts Pack(s) None
Max Year Covered 2020
Min Year Covered 2014
Most Popular Year 2019
Cubre polvo Yes
Accesorio(s) None
Material del Cubre Polvo Plastic
Most Popular Make / Model Kenworth T880
Heavy Duty Supplier Yes
Parts Pack None
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Tipo de Montura Superior Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Total Part VIO 44354
Lower Mount Type Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1-3/4" Sleeve OAL
Upper Mount Code LS54
Lower Mount Code LS54
Part Description Steering Damper
Dust Shield Yes
Duty Type Heavy Duty
Part Terminology Steering Damper

Features & Benefits
expand_more

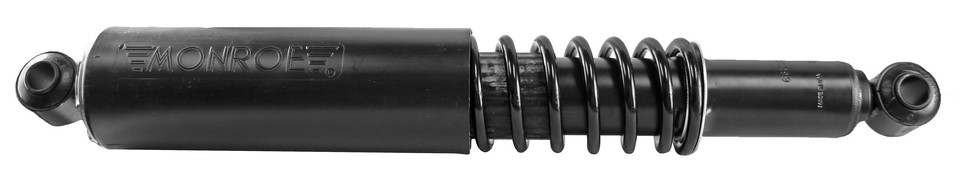

Hardworking over-the-road and severe duty vehicles with self-steering drop axles are susceptible to shock damage that can result in poor performance and/or premature failure. Monroe Magnum Spring-Over Steering Stabilizers have a thicker nitrocarburized piston rod, large piston bore, large oil chamber and thicker tube wall for maximum durability.

Application Summary
expand_more

Cement/Mortar Mixer Challenge Cook Cement Truck (Tag Axle) (Qualifier: Replaces OE Part Number(s) 630811, 632155, 1540212, 1540459, Must Use with Steering Damper(s) 66506, Unit is not strapped. Unit is fully extended out of the box.); Commercial Truck Suspension Hendrickson HLP Paralift Auxiliary Liftable Steerable System (Tag Axle) (Qualifier: Replaces OE Part Number(s) 632155, A14496, Must Use with Steering Damper(s) 66506, Unit is not strapped. Unit is fully extended out of the box.); Commercial Truck Suspension Hendrickson HLU Paralift Ultra Auxiliary Liftable Steerable System (Tag Axle) (Qualifier: Replaces OE Part Number(s) 632155, Must Use with Steering Damper(s) 66506, Unit is not strapped. Unit is fully extended out of the box.); Cement/Mortar Mixer Kimble Mixer Company Cement Truck (Tag Axle) (Qualifier: Replaces OE Part Number(s) OE10455, Must Use with Steering Damper(s) 66506, Unit is not strapped. Unit is fully extended out of the box.); Commercial Truck Suspension Watson & Chalin SL Series Steerable Lift Axles (Tag Axle) (Qualifier: Replaces OE Part Number(s) 632155, 11418, Must Use with Steering Damper(s) 66506, Unit is not strapped. Unit is fully extended out of the box.); 2014-2020 Kenworth T880 (Tag Axle) (Qualifier: Replaces OE Part Number(s) 11418, with Watson & Chalin SL Series Steerable Lift Axle(s), Must Use with Steering Damper(s) 66506, Unit is not strapped. Unit is fully extended out of the box.)
