Product Details
expand_less
| Bloqueo hidráulico extendido |
Yes |
| Extended Bumper Stop |
No |
| Gas Charged |
Yes |
| Tipo de Montura Inferior |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Cylinder Color |
Black |
| Most Popular Make / Model |
Kenworth T680 |
| Heavy Duty Supplier |
Yes |
| Body Color |
Black |
| Duty Type |
Heavy Duty |
| Most Popular Year |
2019 |
| Shock Absorber Rod End Measuring Point |
Center of Loop |
| Extended Hydraulic Lockout |
Yes |
| Compressed Bumper Stop |
No |
| Tope de rebote extendido |
No |
| Accesorio(s) |
P01482 |
| Lower Mounting Type |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Extended Length |
453.6 |
| Dust Shield Included |
Yes |
| Cubre polvo |
Yes |
| Upper Mounting Type |
Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL |
| Internal Rebound Bumper |
No |

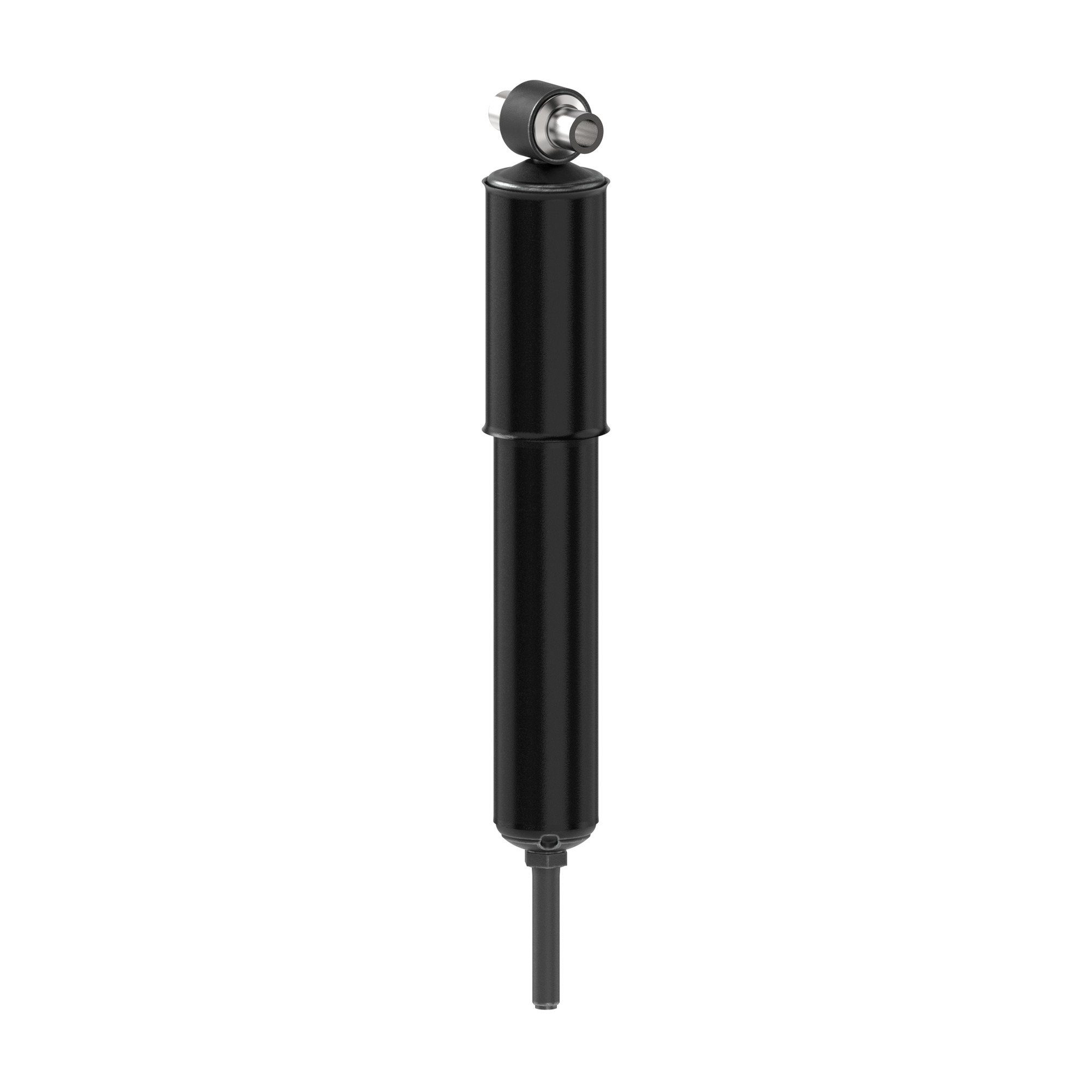

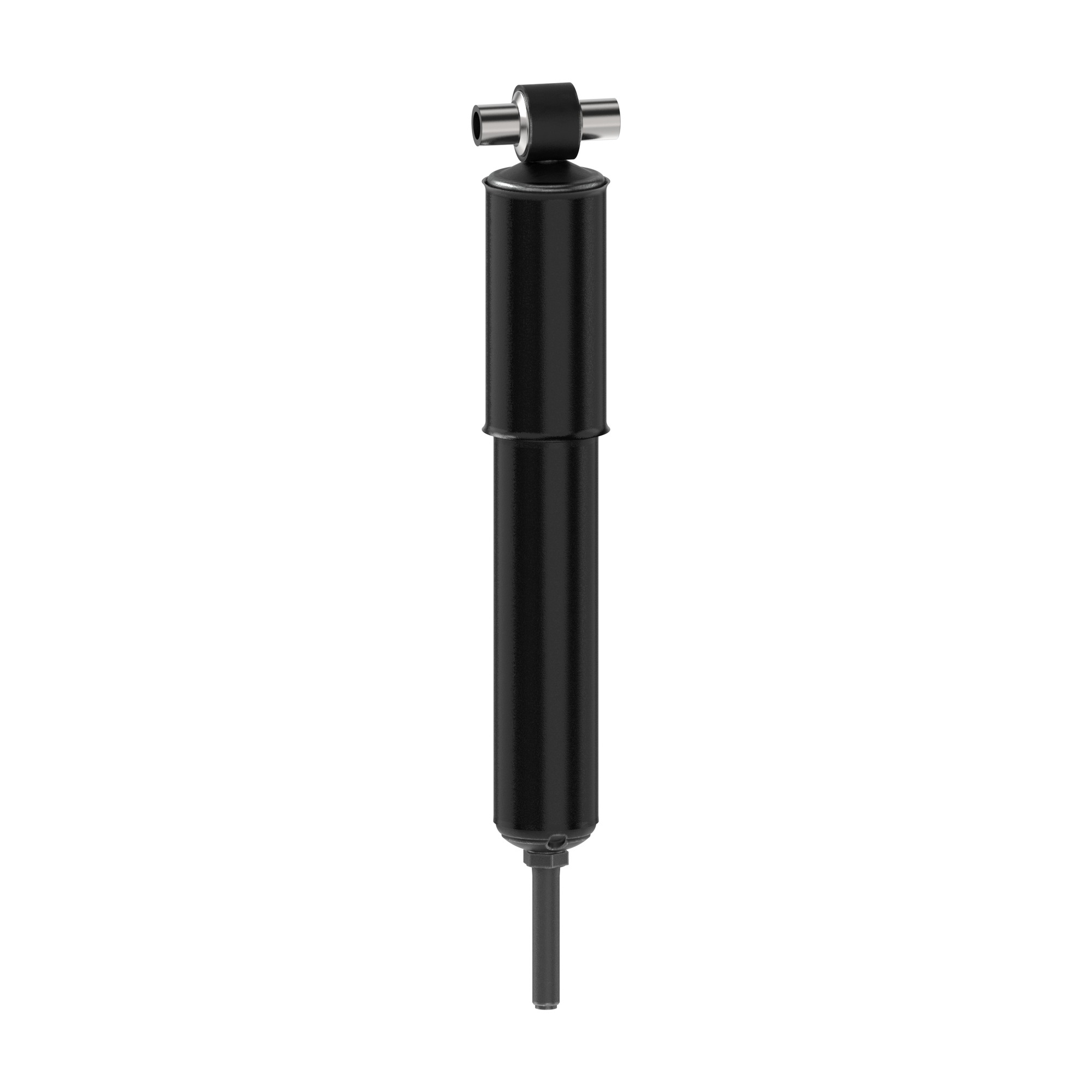

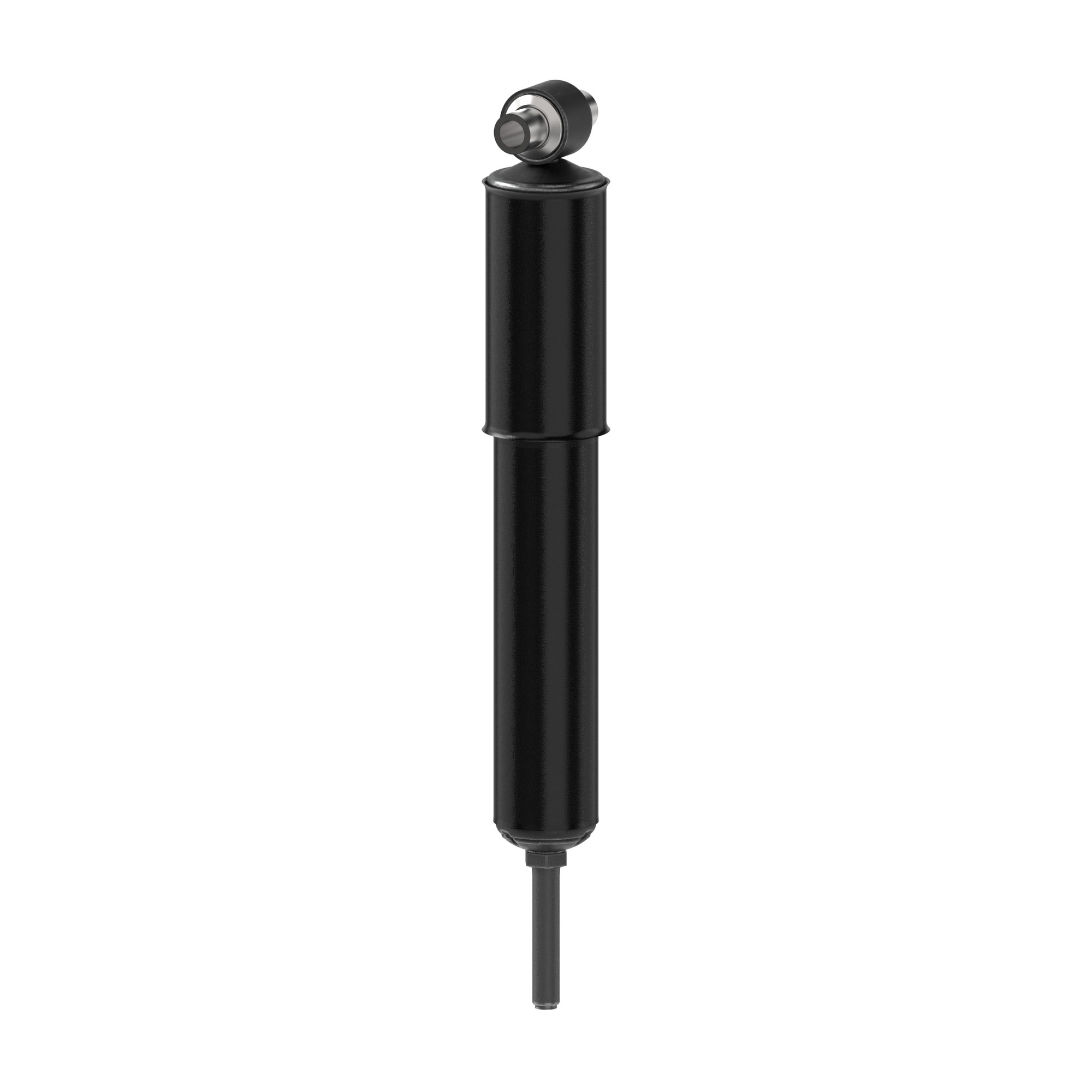

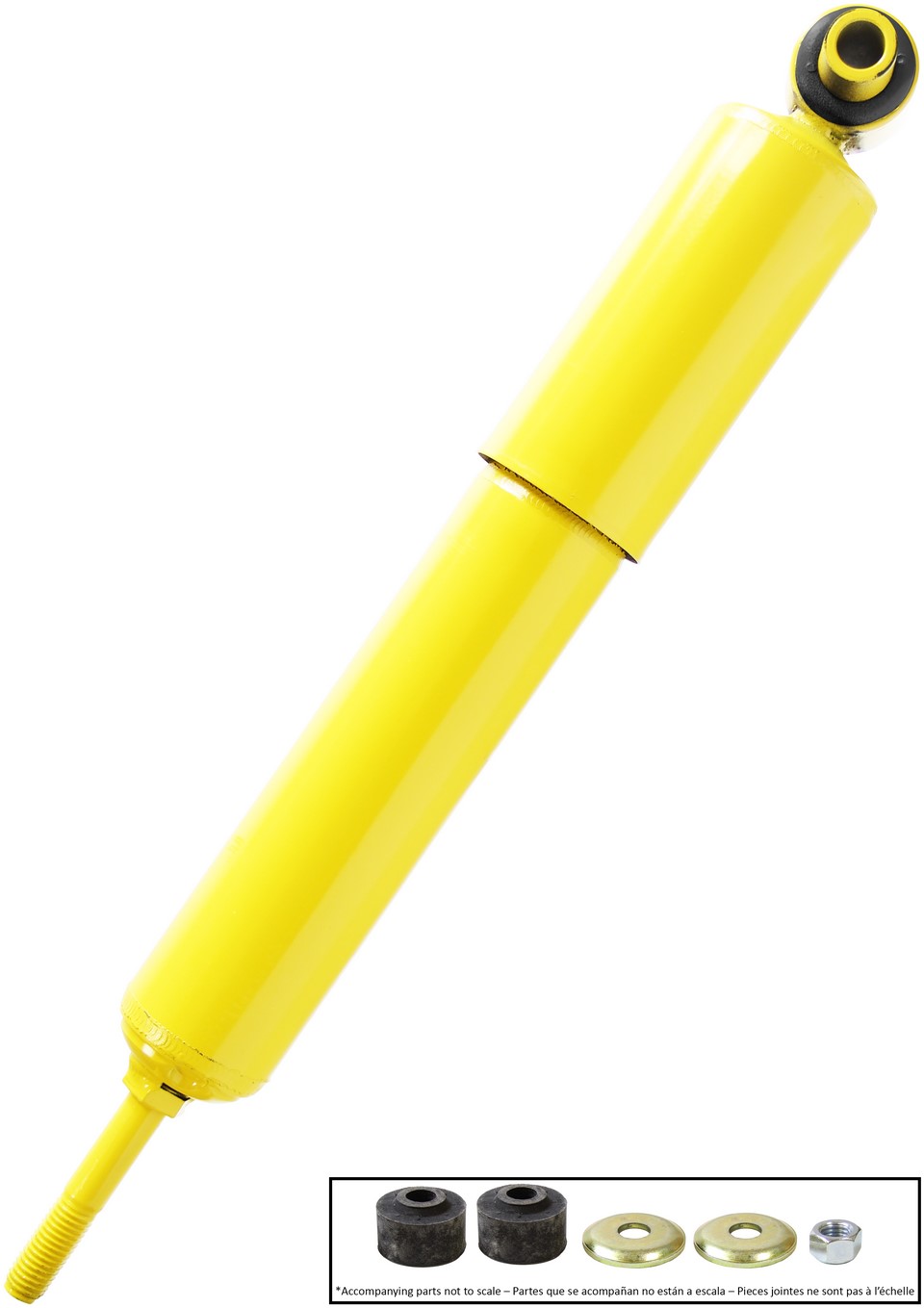

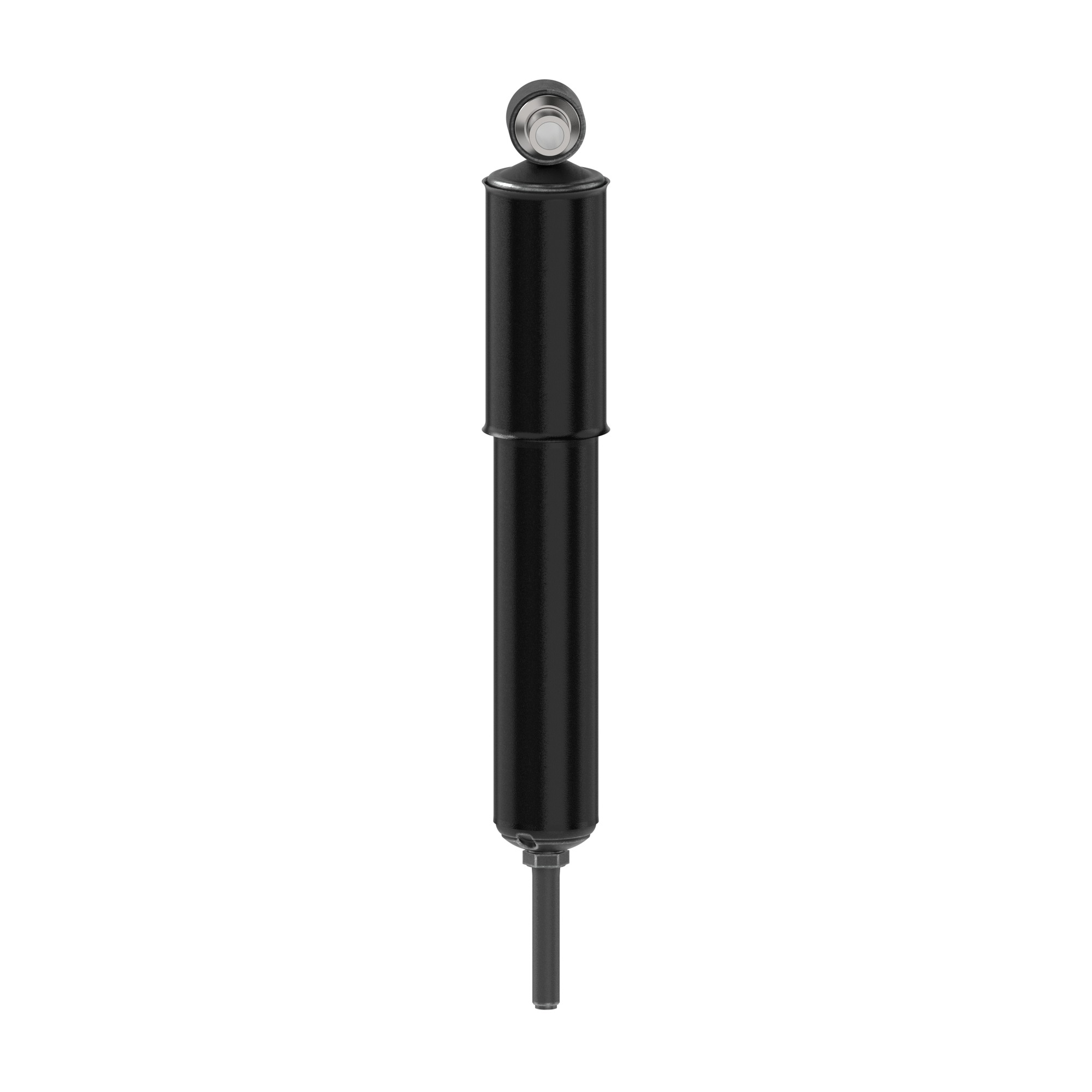

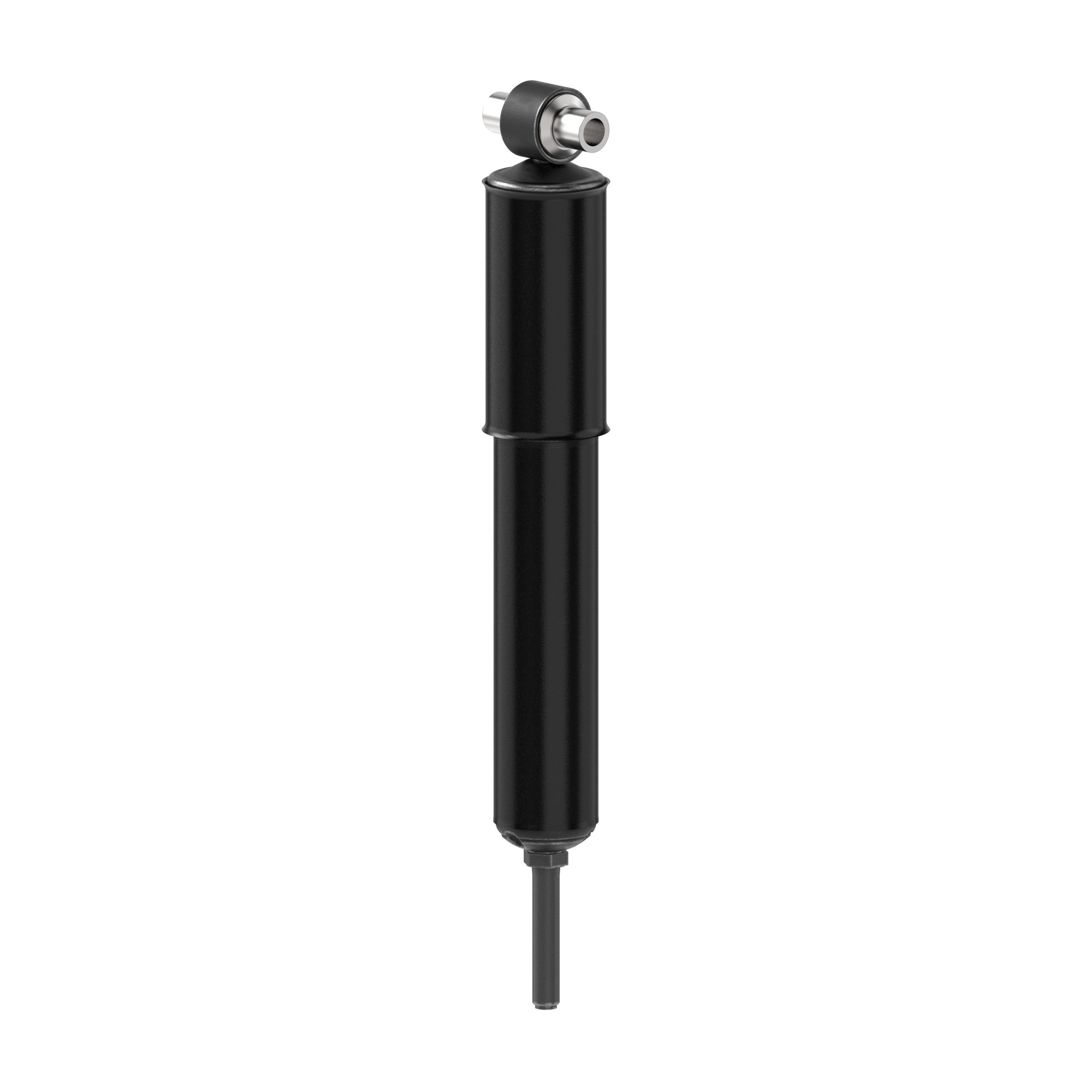

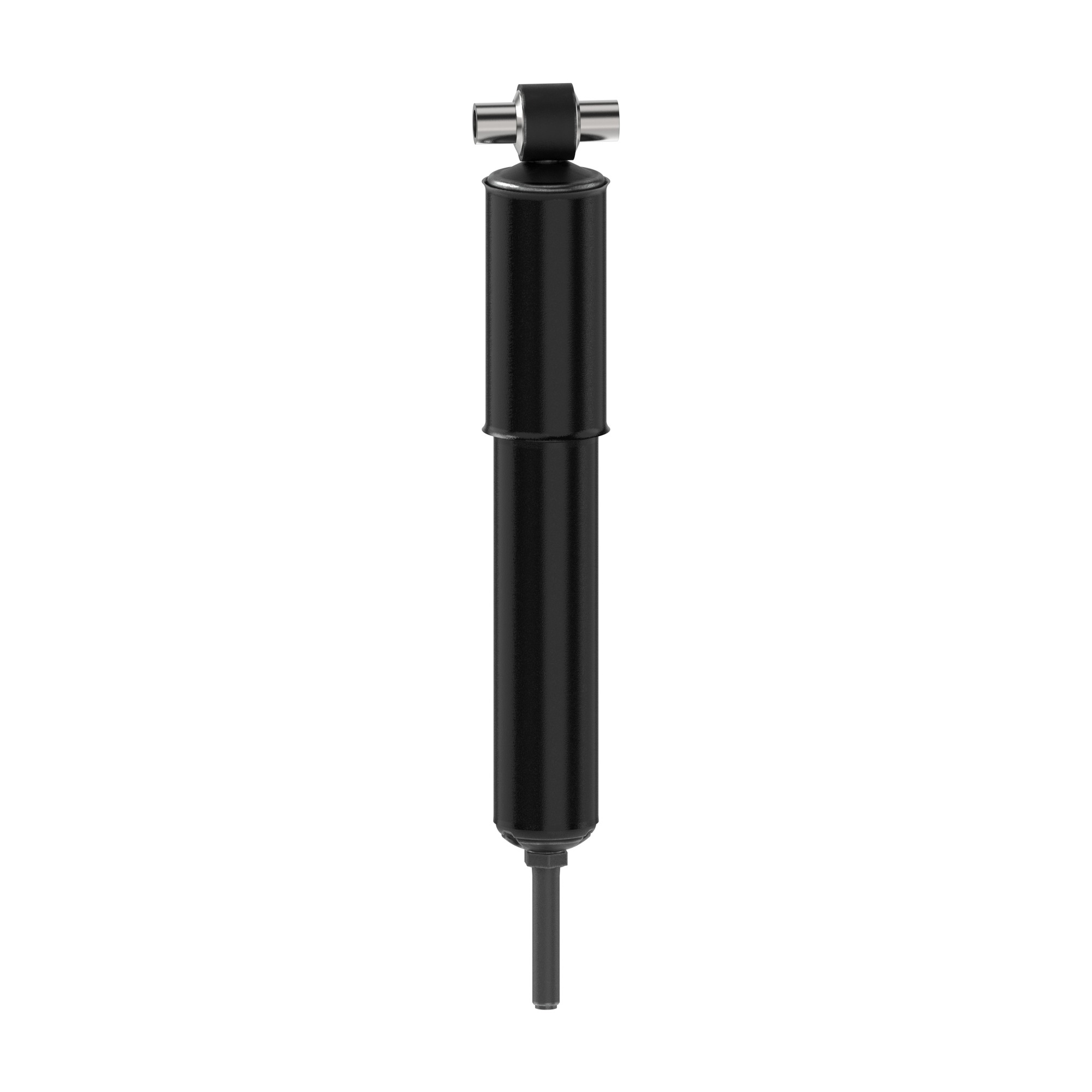

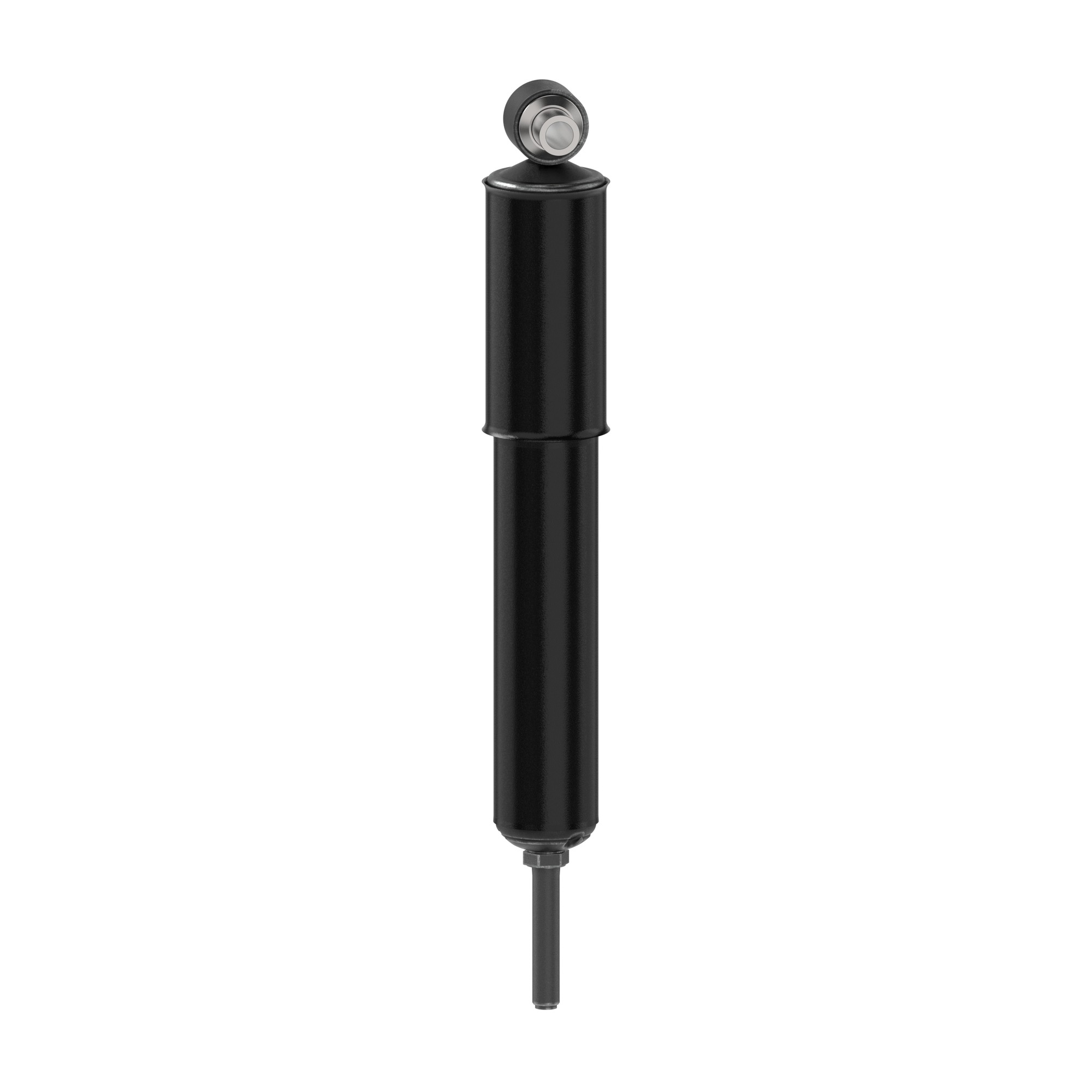

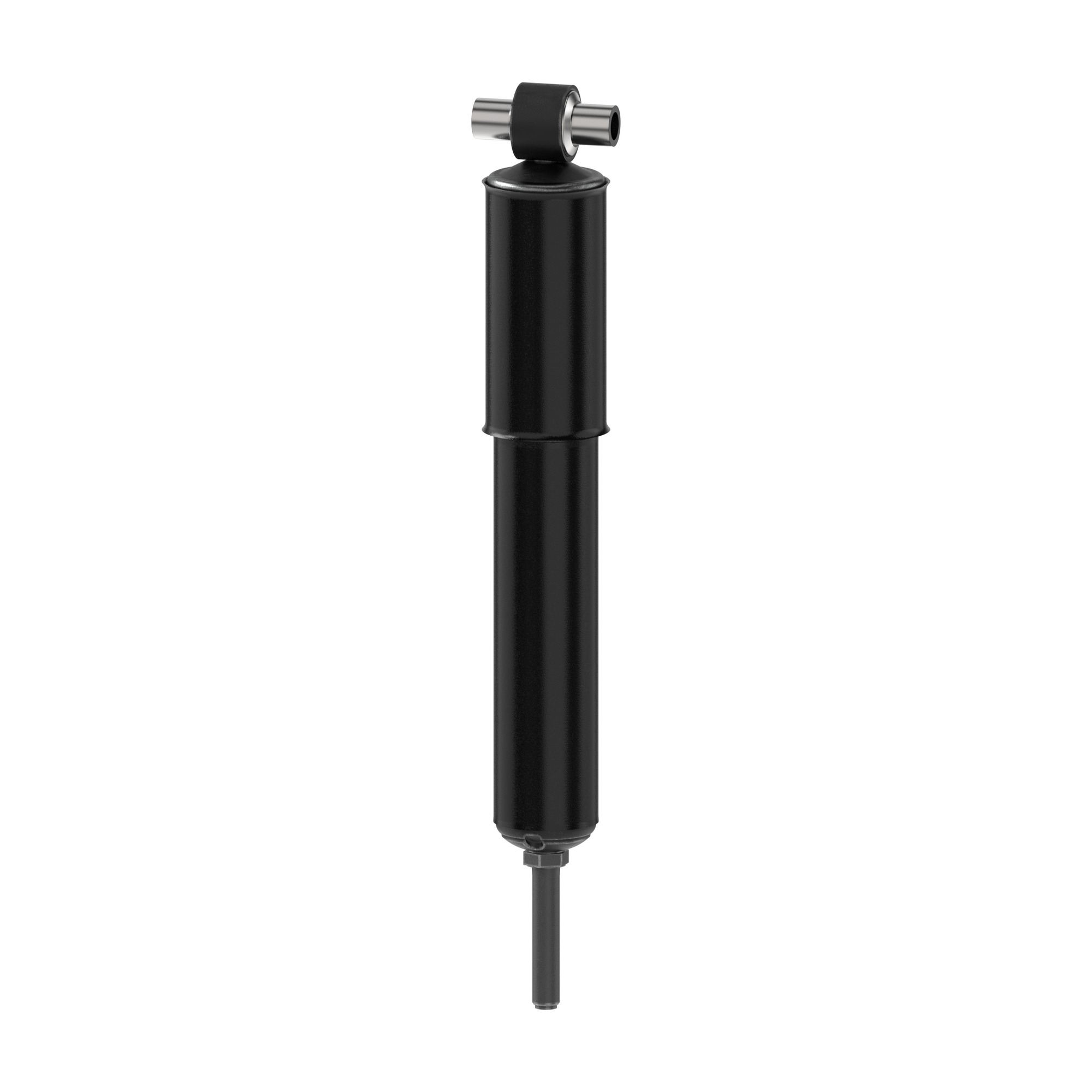

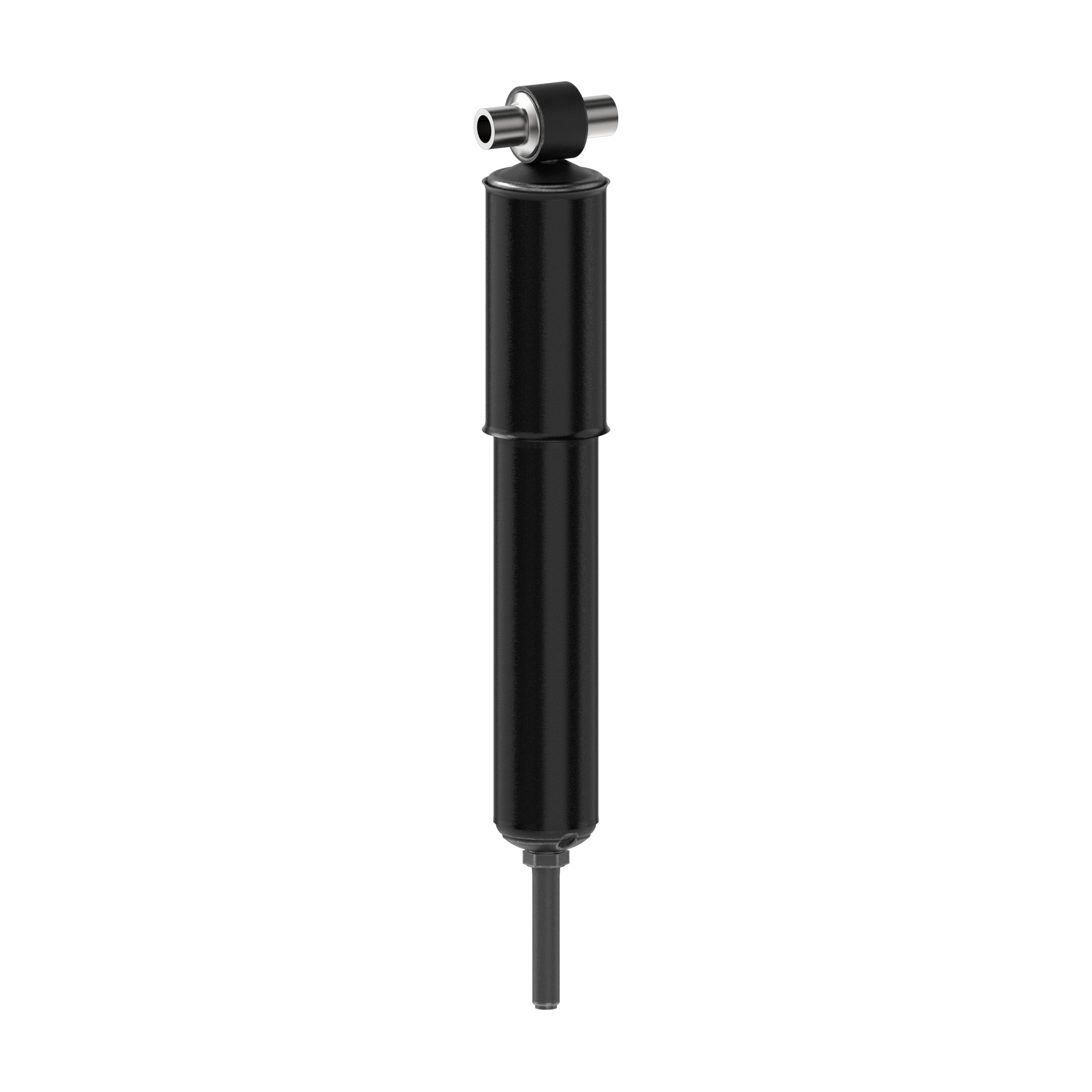

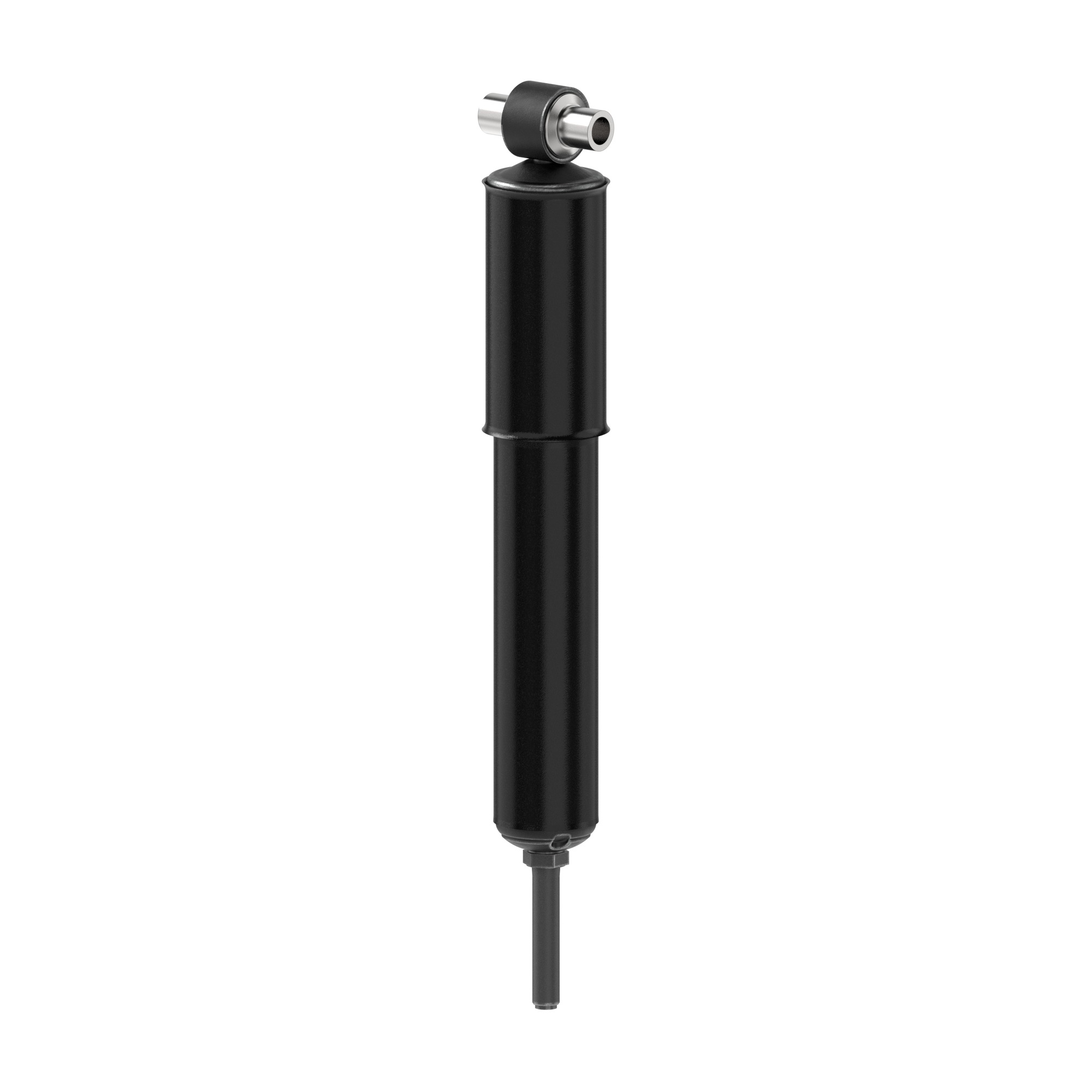

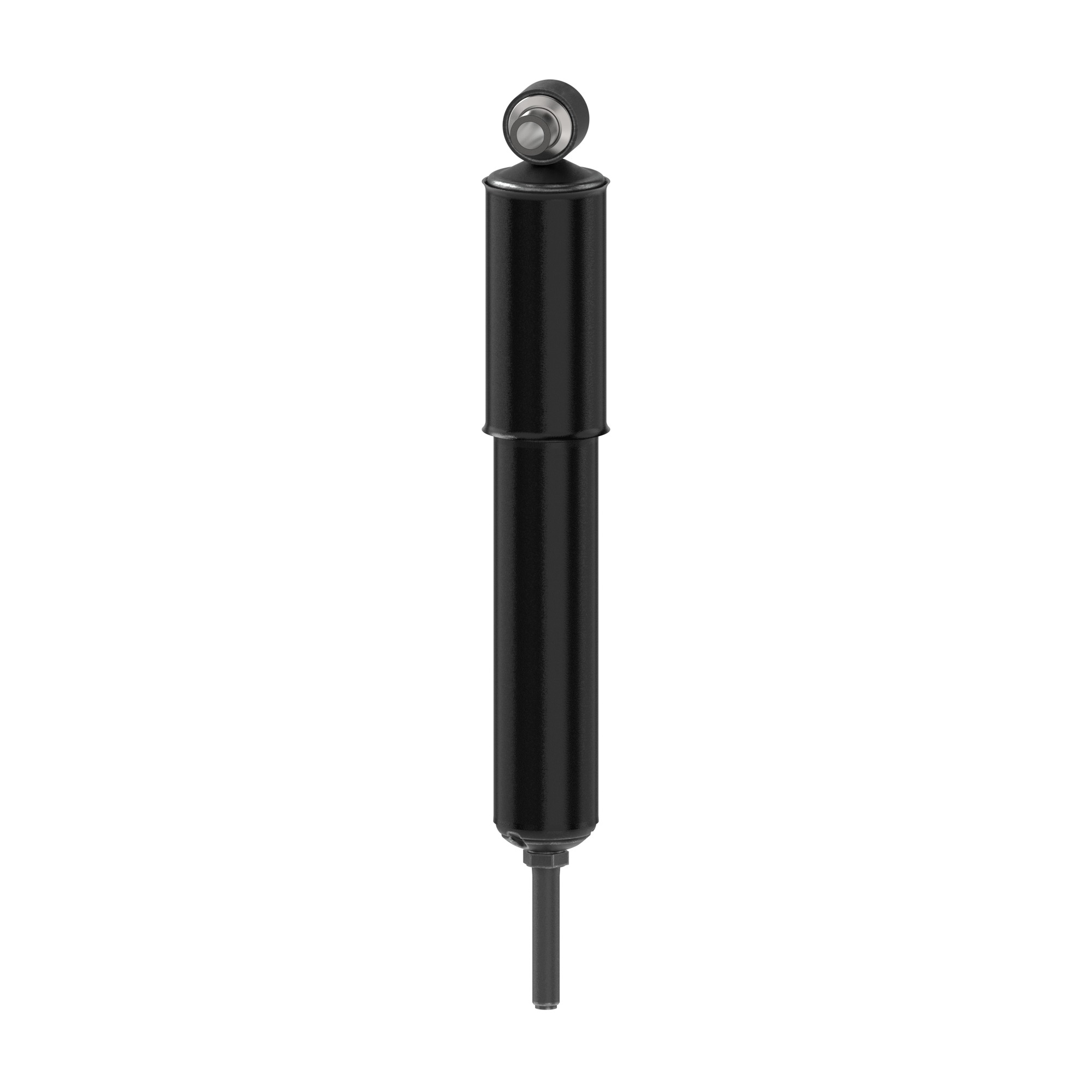

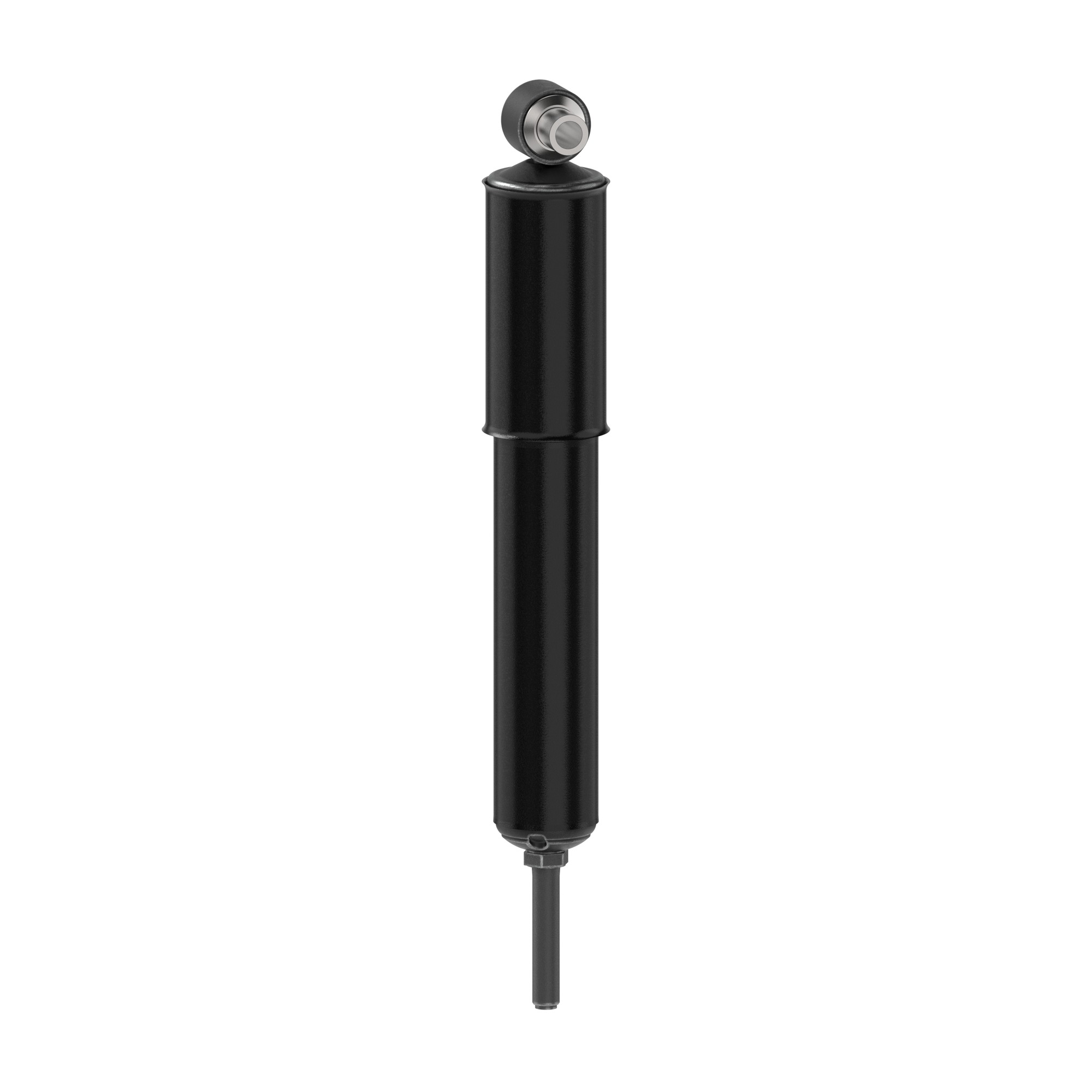

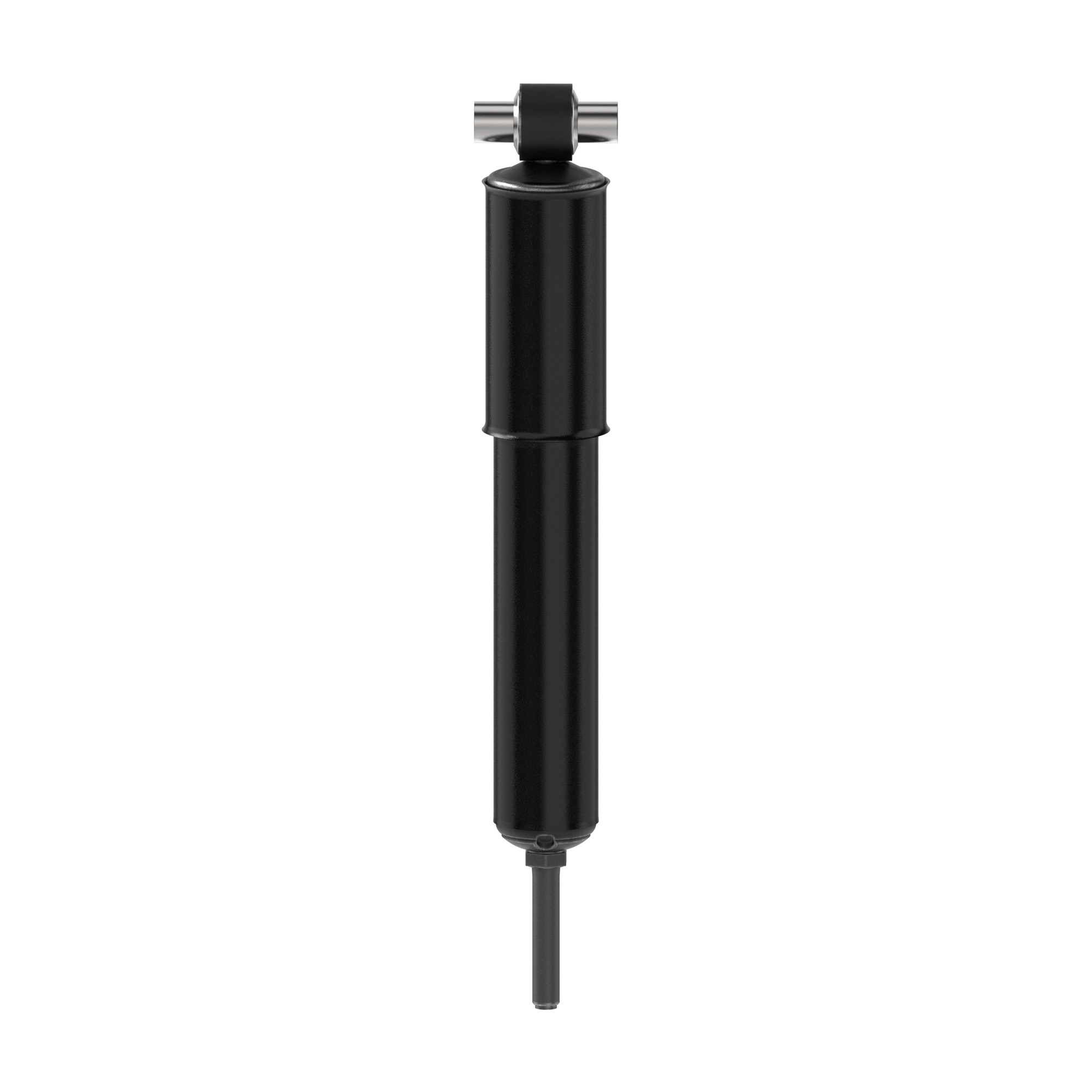

| Part Description |
Shock Absorber |
| Shock Absorber Body End Measuring Point |
Base of Stem |
| Compressed Length |
299.6 |
| Lower Mount Type |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Parts Pack(s) |
P01482 |
| Color |
Black |
| Product Grade |
Premium |

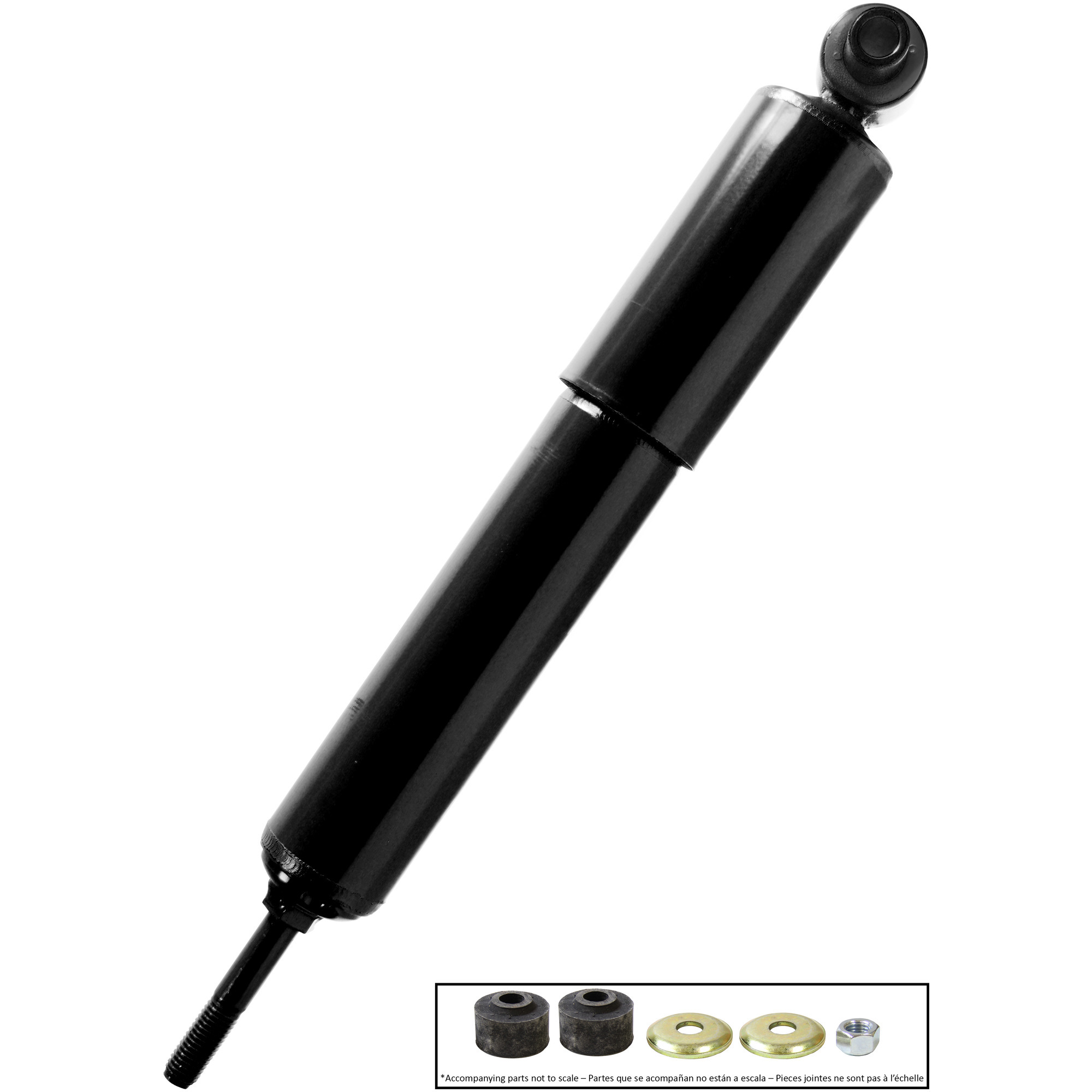

| Mounting Hardware Included |
Yes |
| Max Year Covered |
2020 |
| Lower Mount Code |
S6 |
| Upper Mount Type |
Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL |
| Tope de rebote comprimido |
No |
| Tipo de Montura Superior |
Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL |
| Total Part VIO |
217537 |
| Min Year Covered |
1986 |
| Adjustable Rebound |
No |
| Lower Mounting Description |
Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Travel Length |
154 |
| Parts Pack |
P01482 |
| Upper Mount Code |
LS87 |
| Dust Shield |
Yes |
| Grade Type |
Premium |
| Upper Mounting Description |
Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL |
| Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more

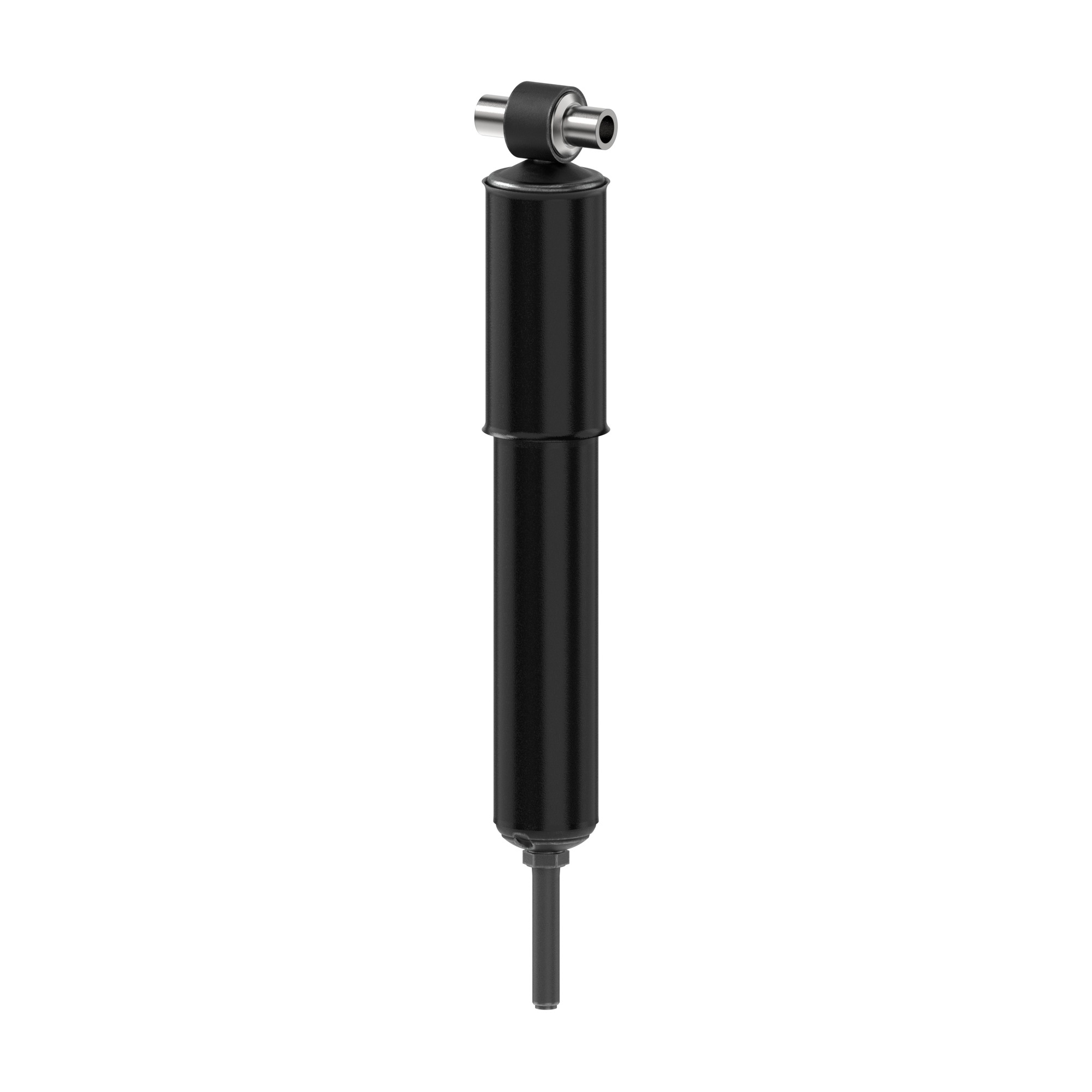

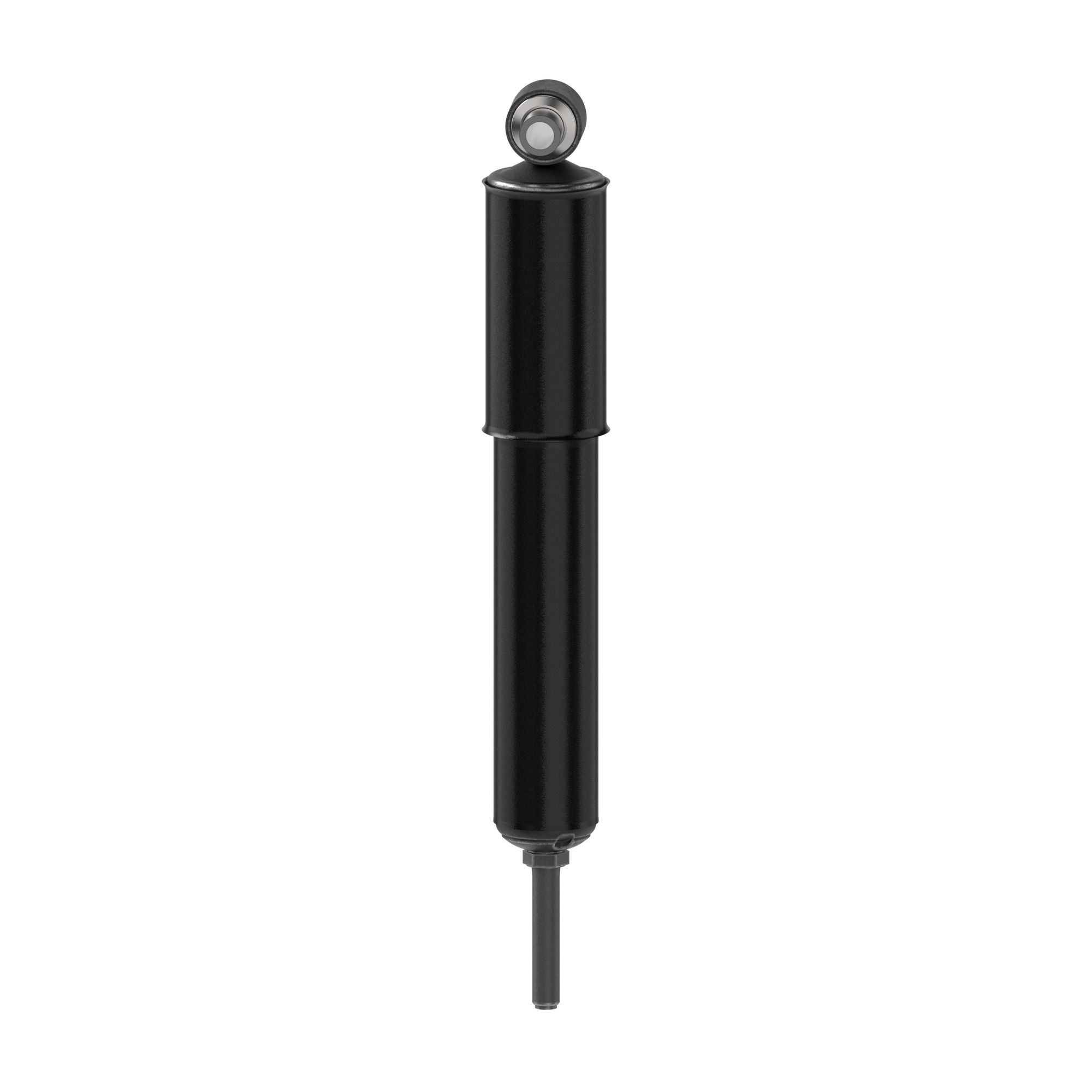

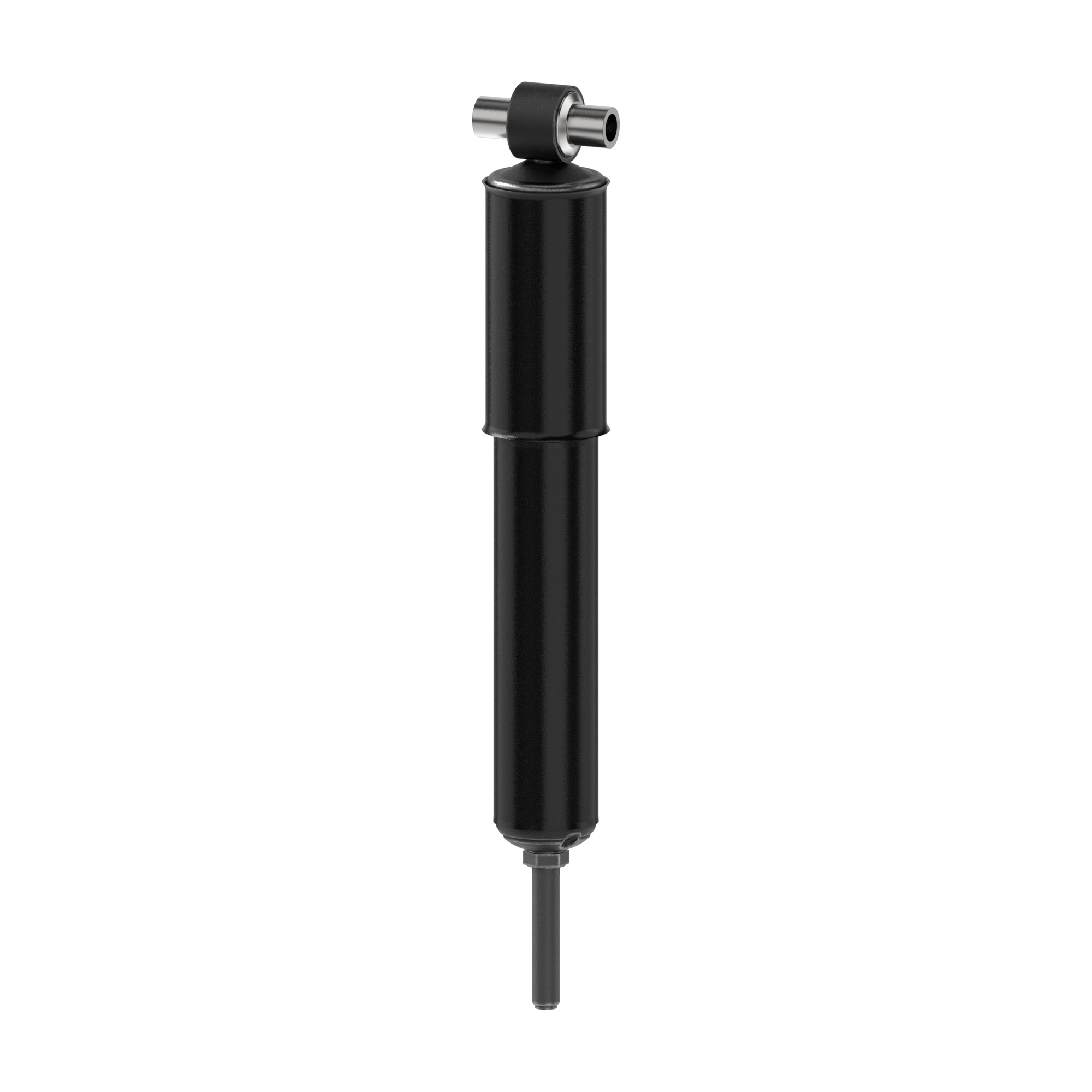

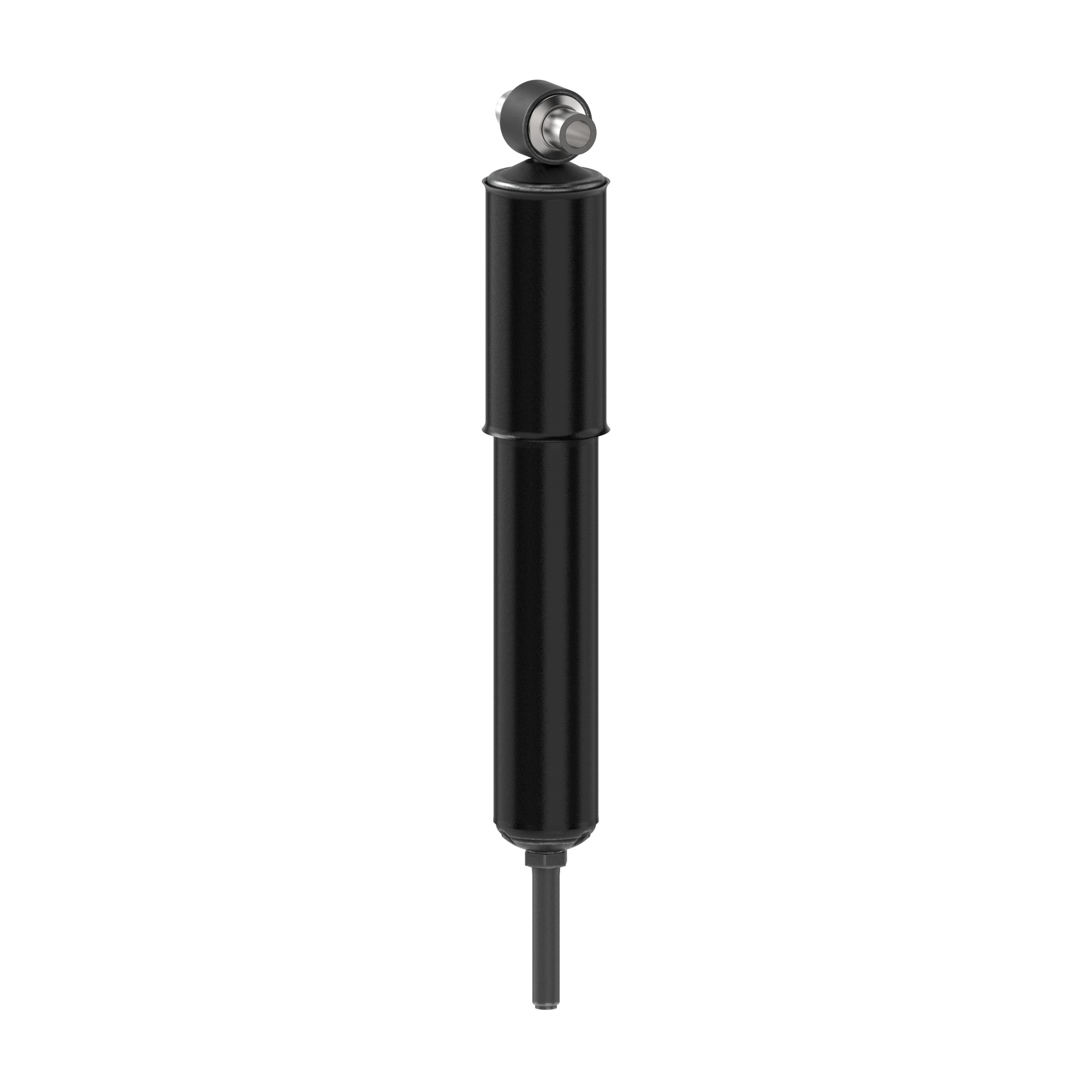

The Monroe(R) Magnum(R) shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today?s heavy-duty truck suspension systems.
Application Summary
expand_more
1997-2011 Kenworth T2000 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shocks are 1.75 (in) Bore); 1986-2008 Kenworth T600A (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shocks are 1.75 (in) Bore); 2007-2022 Kenworth T800 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, with Kenworth AG400 Air Suspension, Shocks are 1.75 (in) Bore); 2005-2021 Kenworth W900 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, with Kenworth AG400 Air Suspension, Shocks are 1.75 (in) Bore); 2010-2020 Kenworth T400 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shocks are 1.75 (in) Bore, Replaces OE Part Number(s) C711014, Replaces OE Part Number(s) 671962); 2008-2019 Kenworth T660 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shocks are 1.75 (in) Bore); 2013-2022 Kenworth T680 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, with Air Glide 400 Air Suspension, Shocks are 1.75 (in) Bore); 2014-2020 Kenworth T880 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shocks are 1.75 (in) Bore); 2011-2015 Kenworth T700 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shocks are 1.75 (in) Bore); 2019-2021 Kenworth W990 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, with Air Glide 400 Suspension, Shocks are 1.75 (in) Bore)
